SKU: LSCRA3030SS
Brava Metro Privacy Knob Set Fire Rated 60-70mm Satin Stainless Steel RA3030SS
RRP: $56.13
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

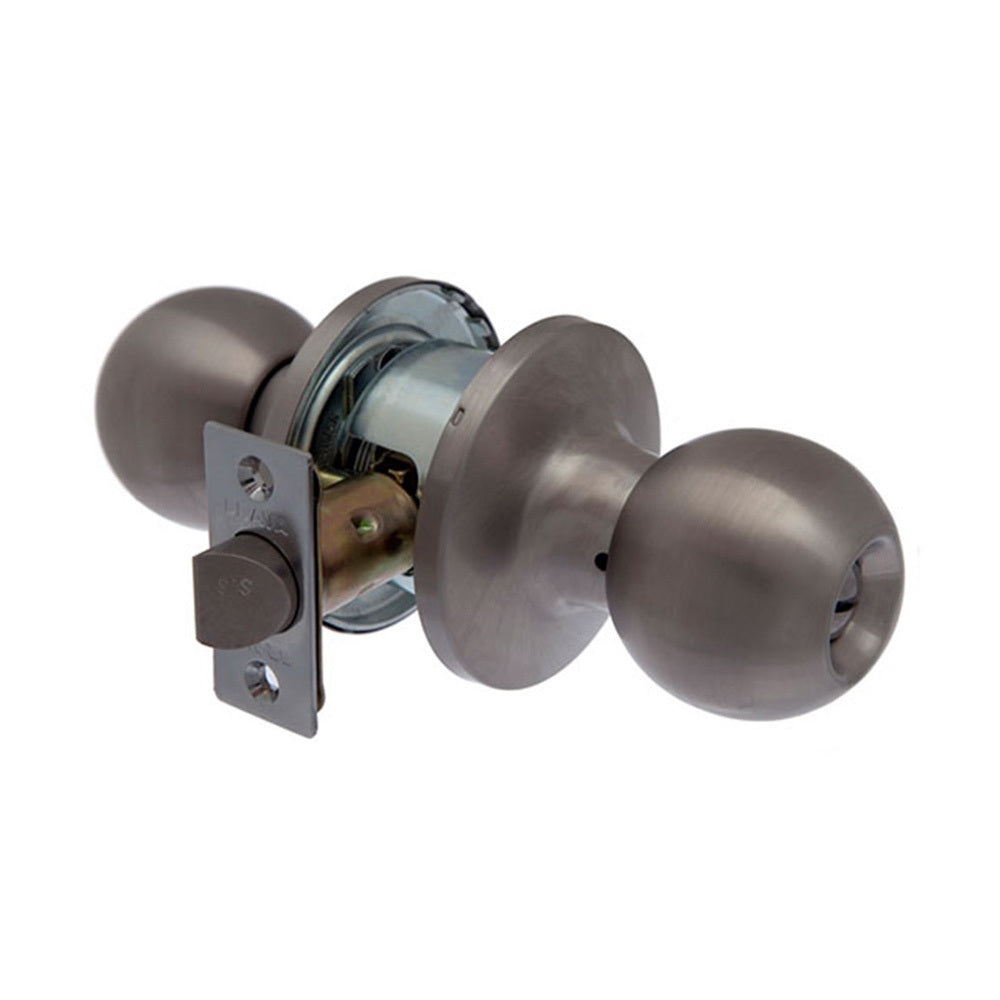

Brava Metro Privacy Knob Set
RA3030SS
Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)
Privacy Function - can be locked by a button or a turn piece on the inside with no key function.
- BRAVA Metro RA3000 series commercial grade tiebolt 60-70 mm privacy knobset.
Features:
- Tiebolt concealed fixing.
- Fire rated.

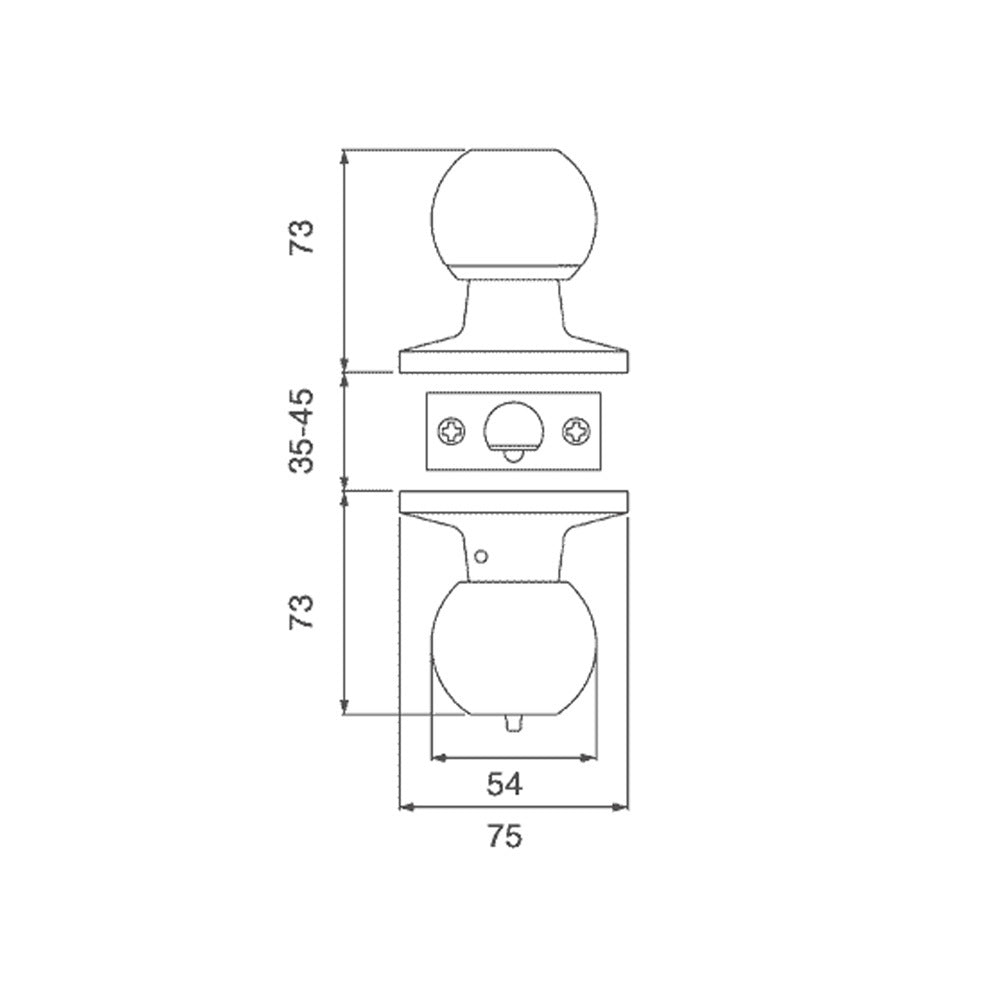

Specifications:
- Door Thickness: 35mm to 45mm
- Backset: 60mm to 70mm (adjustable latch)
- Max. Lever / Knob Projection: 73mm (distance may not include turnsnib)
- Strike: 70mm x 28mm x 2mm
- Latch: 60 to 70mm (adjustable)
- Latch Face Plate: 25mm x 57mm
- Door handing: Non-handed levers
- Lock Grade: Commercial
- Lock Type: Tie Bolt
- Rose Diameter: 75mm
- Function: Privacy
- Finish: Satin Stainless Steel
Protection: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
