Brava Metro Storeroom Lever Set EV8062SC70 Fire Rated 70mm SC Keyed Alike

Brava Metro Storeroom Lever Set Keyed Alike
EV8062SC70

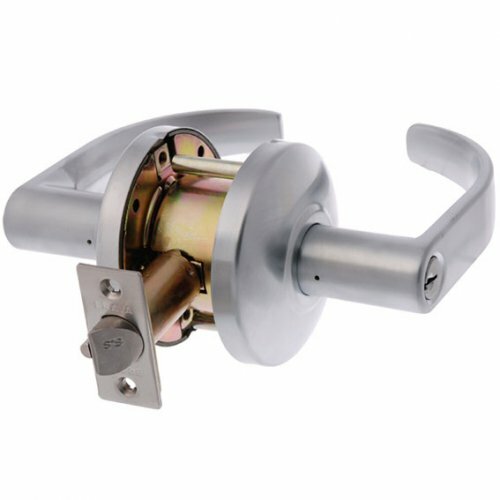

BRAVA Metro EV8000 series commercial grade storeroom leverset with external clutching lever.

Storeroom function:

• Outside lever always clutching, key retracts the latch.
• Inside lever free at all times.

Additional info:

• Clutching lever feature to prevent forcing.
• Screw post to prevent lock rotation are removable.
• Carolina lever design.
• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• Keyed alike.
• 2 keys supplied.
• Fire rated.
• Finished in satin chrome.

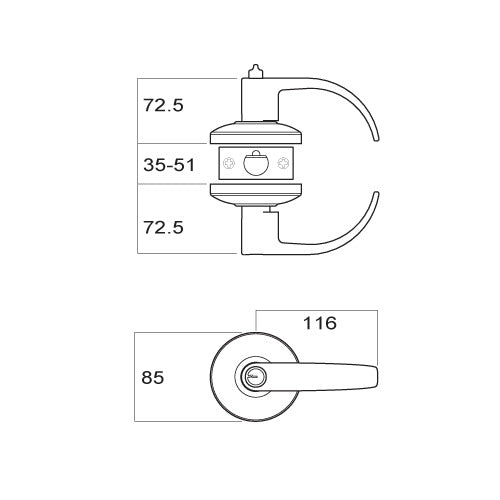

Features:

• Door thickness: 35-51mm
• Backset: 70mm
• Max. knob projection: 72.5mm (distance may not include turnsnib)
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door handing: Non-handed levers
• Rose: 85mm

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Please note if buying more than 1 lock:
This listing is for 'keyed alike' (KA) locks, for example:
- if you buy 5 locks, all 5 locks can be opened with the 1 same key

If you need 'keyed to differ' (KD) locks, please search for our other listing with 'KD' or 'keyed to differ' in the title.
