Brava Metro Storeroom Lever Set Keyed To Differ 70mm Satin Chrome EV8062SC70

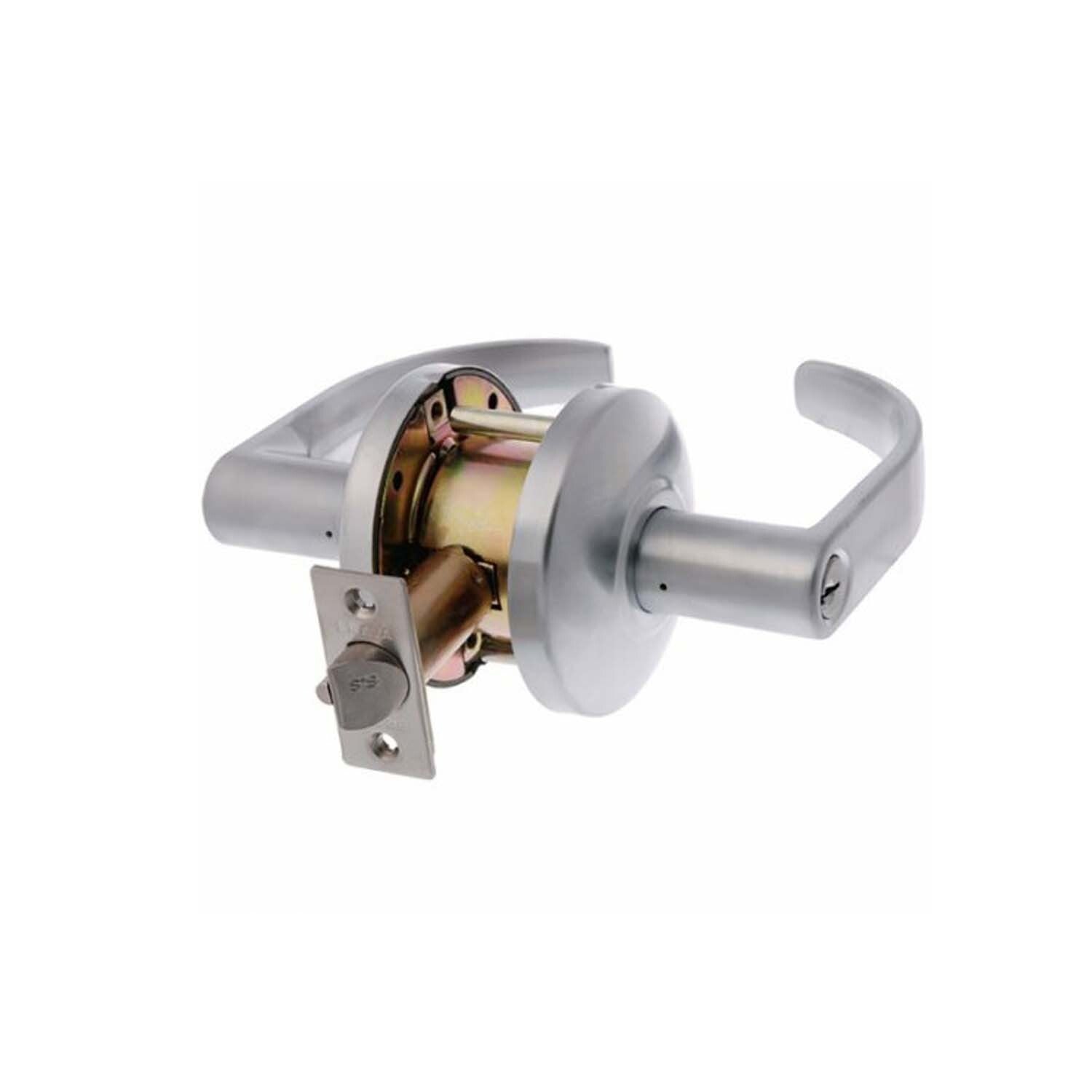

Brava Metro Storeroom Lever Set
EV8062SC70

BRAVA Metro EV8000 series commercial grade storeroom leverset with external clutching lever.

Storeroom function:

• Outside lever always clutching, key retracts the latch.
• Inside lever free at all times.

Features:

• Clutching lever feature to prevent forcing.
• Screw post to prevent lock rotation are removable.
• Carolina lever design.
• Cylindrical fixing.
• Silca LW5 profile 6 pin cylinder.
• Incorporates the popular PD 8221 barrel.
• Compatible with most restricted keying systems.
• Boxed and colour coded.
• Keyed to differ.
• 2 keys supplied.
• Fire rated.

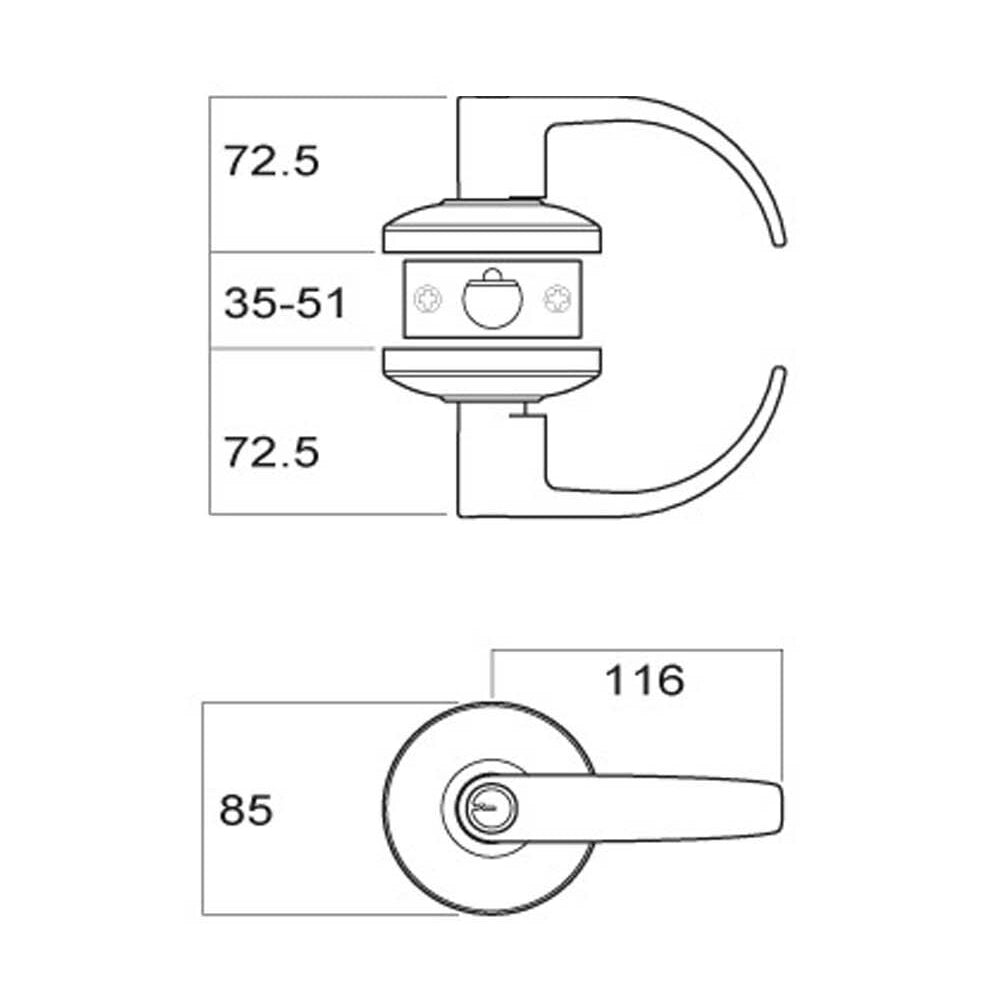

Specifications:

• Door thickness: 35-51mm
• Backset: 70mm
• Max. knob projection: 72.5mm (distance may not include turnsnib)
• Strike: 28mm x 70mm x 2mm
• Latch: 70mm (12.7mm throw)
• Latch face plate: 57mm x 25mm
• Cylinder: LW5 profile
• Door handing: Non-handed levers
• Rose: 85mm
• Finish: Satin chrome.

Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.

Please note if buying more than 1 lock:
This listing is for 'keyed to differ' (KD) locks, for example:
- if you buy 5 locks, all 5 locks will use a different key

If you need 'keyed alike' (KA) locks, please search for our other listing with 'KA' or 'keyed alike' in the title.
