Brio Wheel Intermediate Hanger For Pivotfold 75kg Top Hung Interior 214HN

Brio Wheel Intermediate Hanger
214HN

PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)

This is a non-stocked item which leaves the warehouse in 15 business days after payment is made.

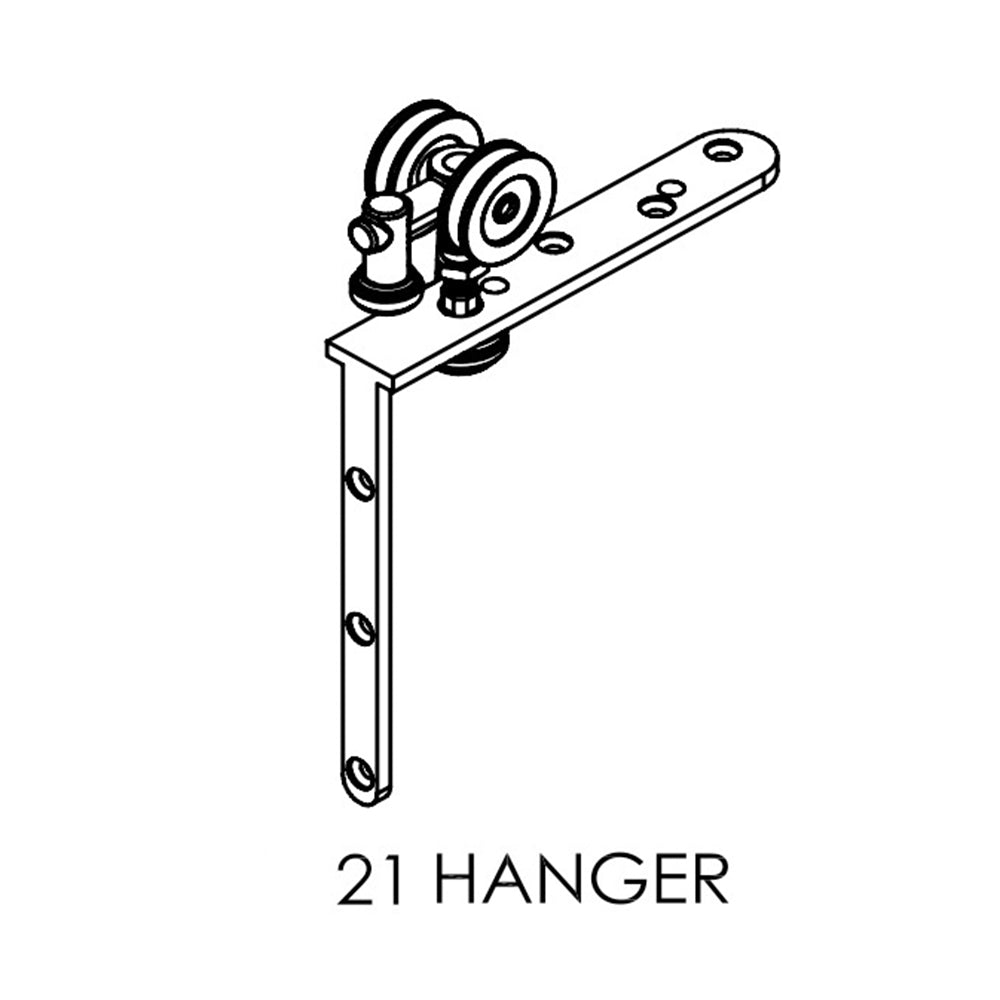

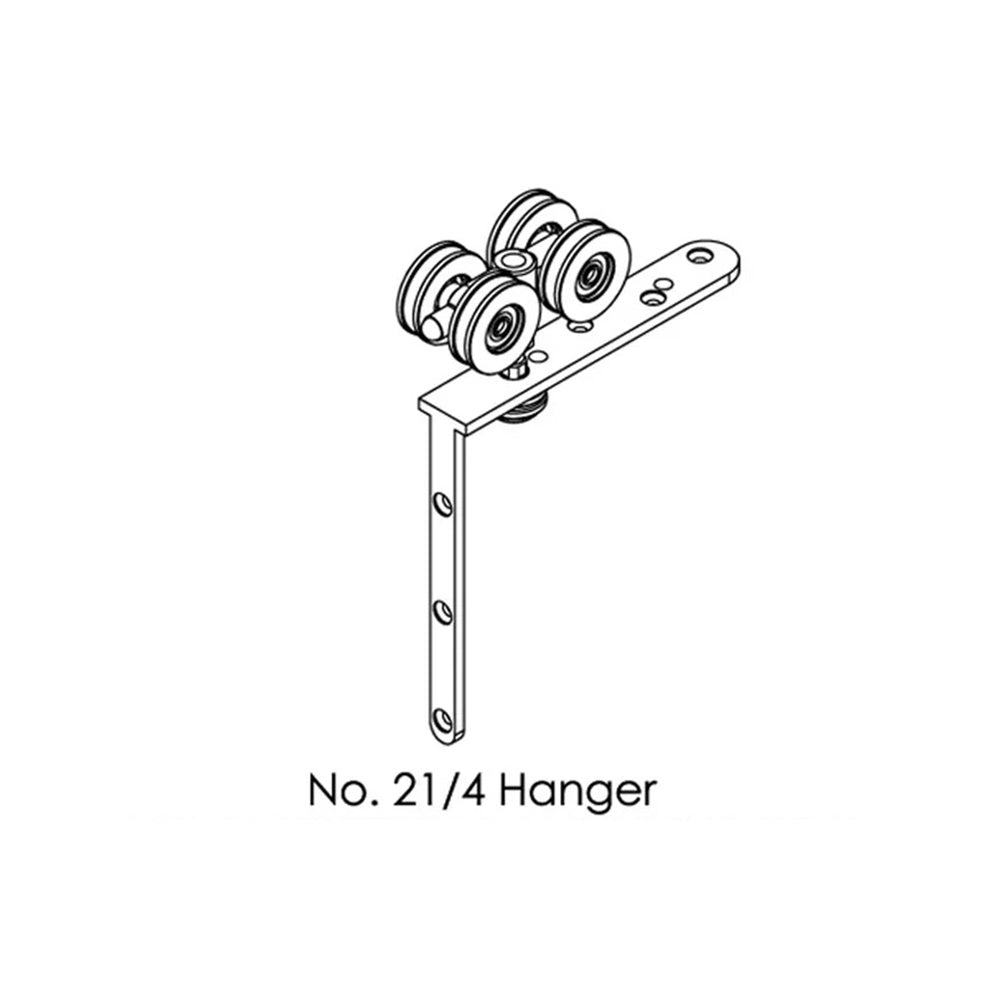

Intermediate Hanger is used for taller doors to keep the middle part of the door in alighment with the pivot hinges at the top and bottom of the door.

Intermediate Hanger Function - are fitted with nylon tyre wheels on ball race bearings for ease of opening and closing pivot doors.

Features:

• Used for Pivotfold and Endfold
• 2 Wheel End Hanger and 4 Wheel End or Intermediate Hanger
• Hangers are fitted with nylon tyre wheels on ball race bearings
• Vertical adjustment is simple and positive

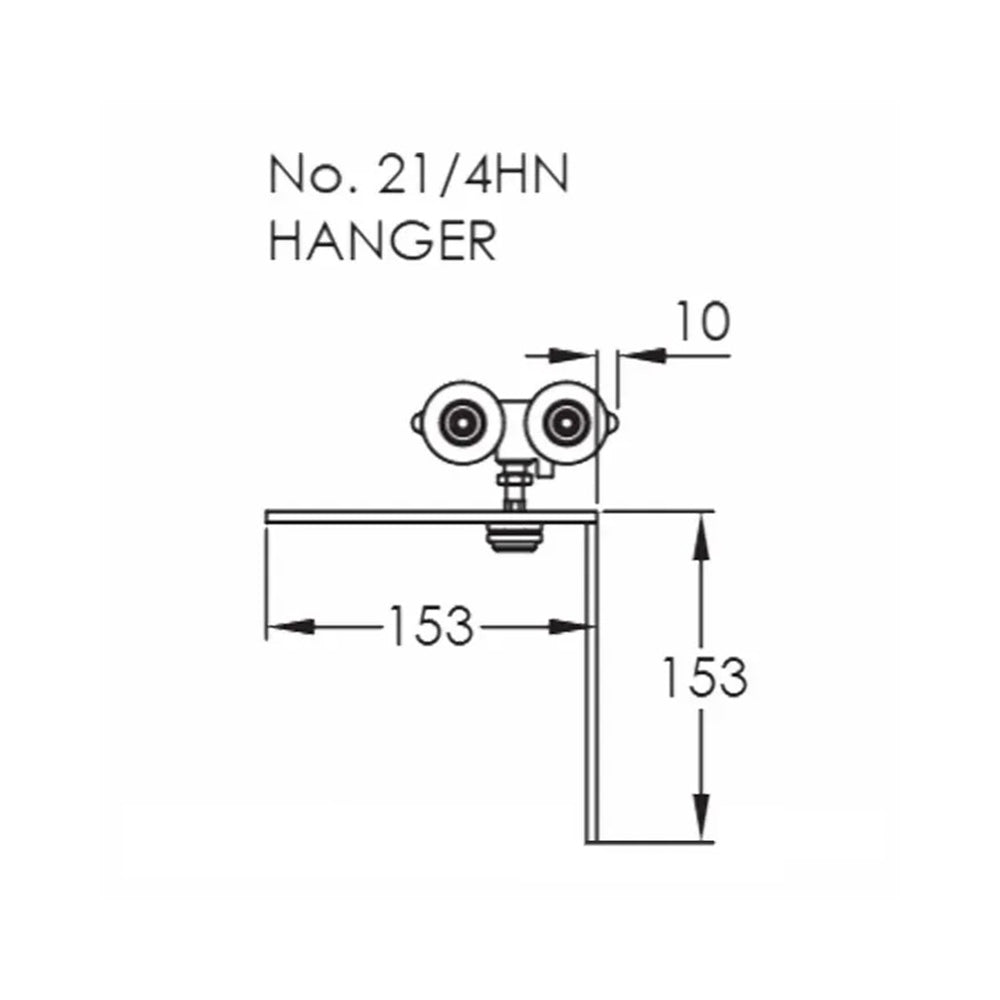

Specifications:

• Max Panel Weight: 75kg
• Max Panel Width: 900mm
• Max Panel Height: 3300mm
• Min Panel Thickness: 40mm
• Max Number of Panels: 8 each way
