SKU: ALLB378ESE
Briton Door Reversible Rim Panic Latch Commercial Grade Fire Rated B378E/SE
RRP: $249.95
RRP: $249.95
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

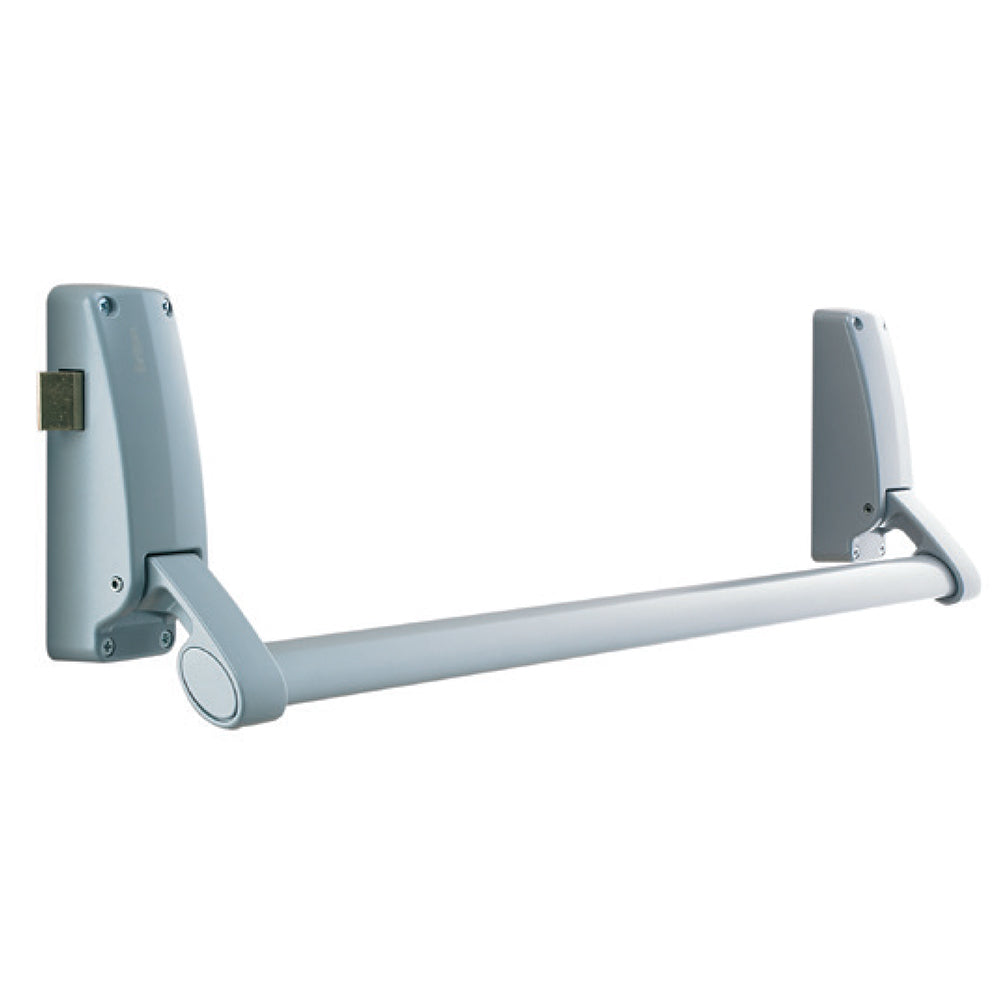

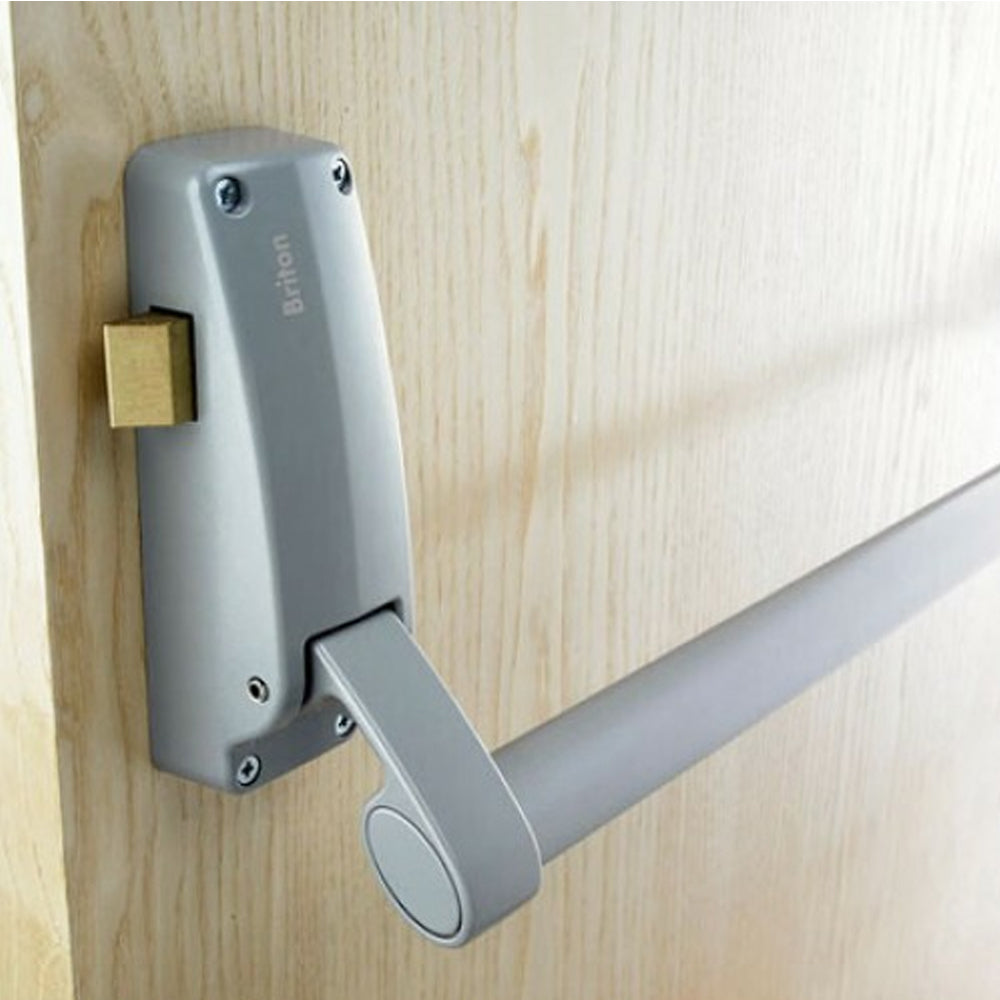

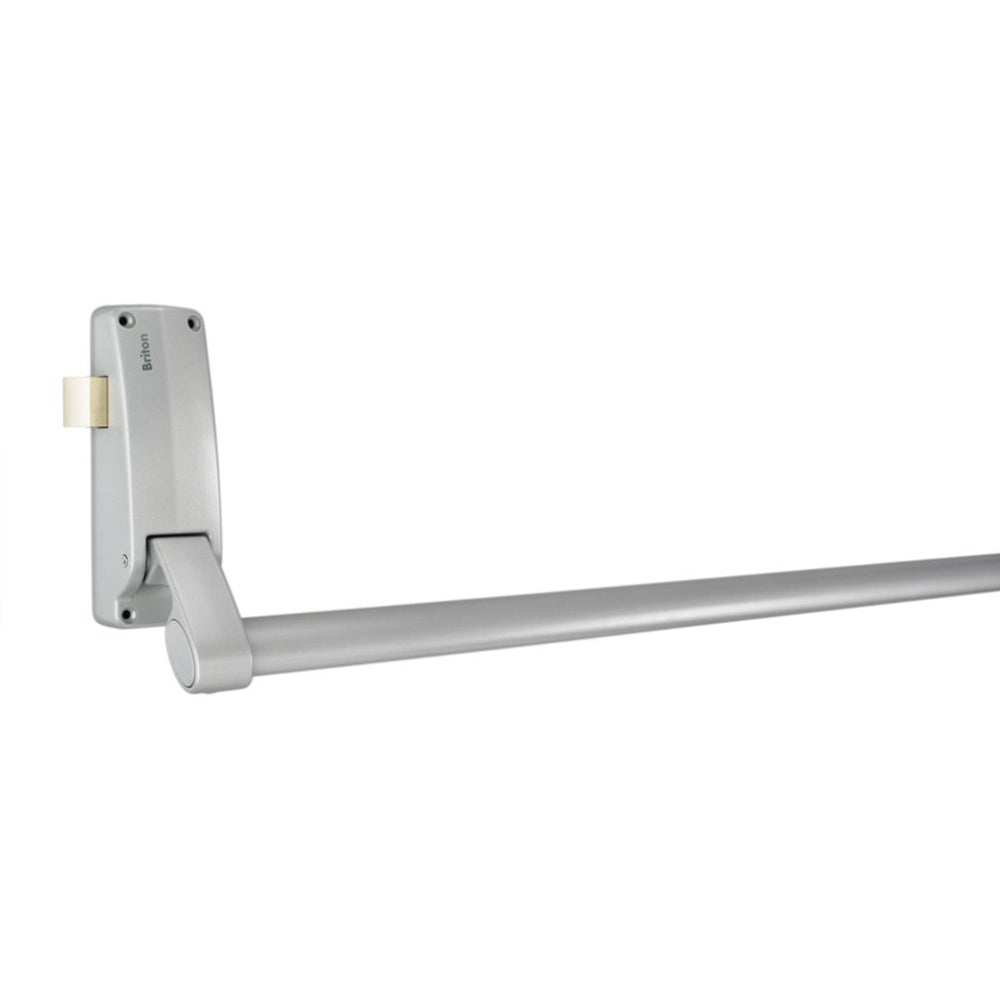

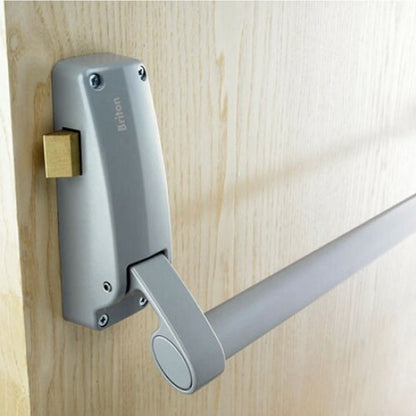

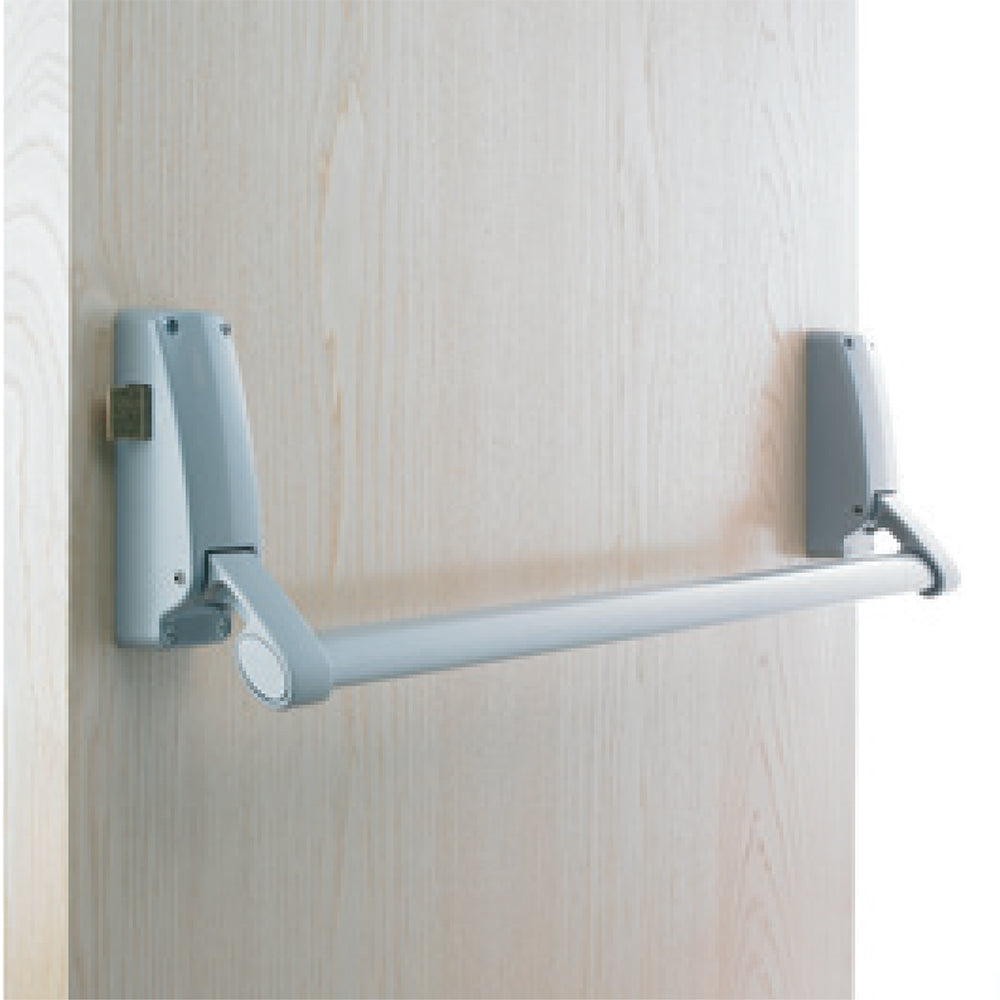

Briton Reversible Rim Panic Latch
B378E/SE
Panic Bars are push bars/crash bars installed on exit doors to allow quick exiting of buildings. (e.g. where emergency or panic situation could occur)
Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.
Note: Panic bar only, door & 201 cylinder not included
- An economical range of push bar devices designed to suit single and double door applications.
- Can be used on aluminium, hollow metal or wood swinging commercial doors.
- Available as rim and surface mounted vertical panic bolt devices.
Features:
- Suitable for all types of single doors
- Suitable for use on single doors and the first opening leaf of double doors with rebated meeting stiles
- Supplied in left or right hand, but can be reversed on site
- Optional model available with manual dogging (hold open)(Dogging not suitable for fire doors)
- Can be used with a rim cylinder fitted to the outside of the door
- For double rebated door applications the 377E double door set should be used.
- Successfully tested up to 2 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets
Specifications:
- Door Type: Timber or Metal
- Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
- Door Width: 665mm to 1300mm
- Material: Zinc Chassis & Steel Rods/Cross Bars
- Finish: Silver Enamel
- Warranty: 5 Years
- Supplied as Trade pack with all fixing hardware
