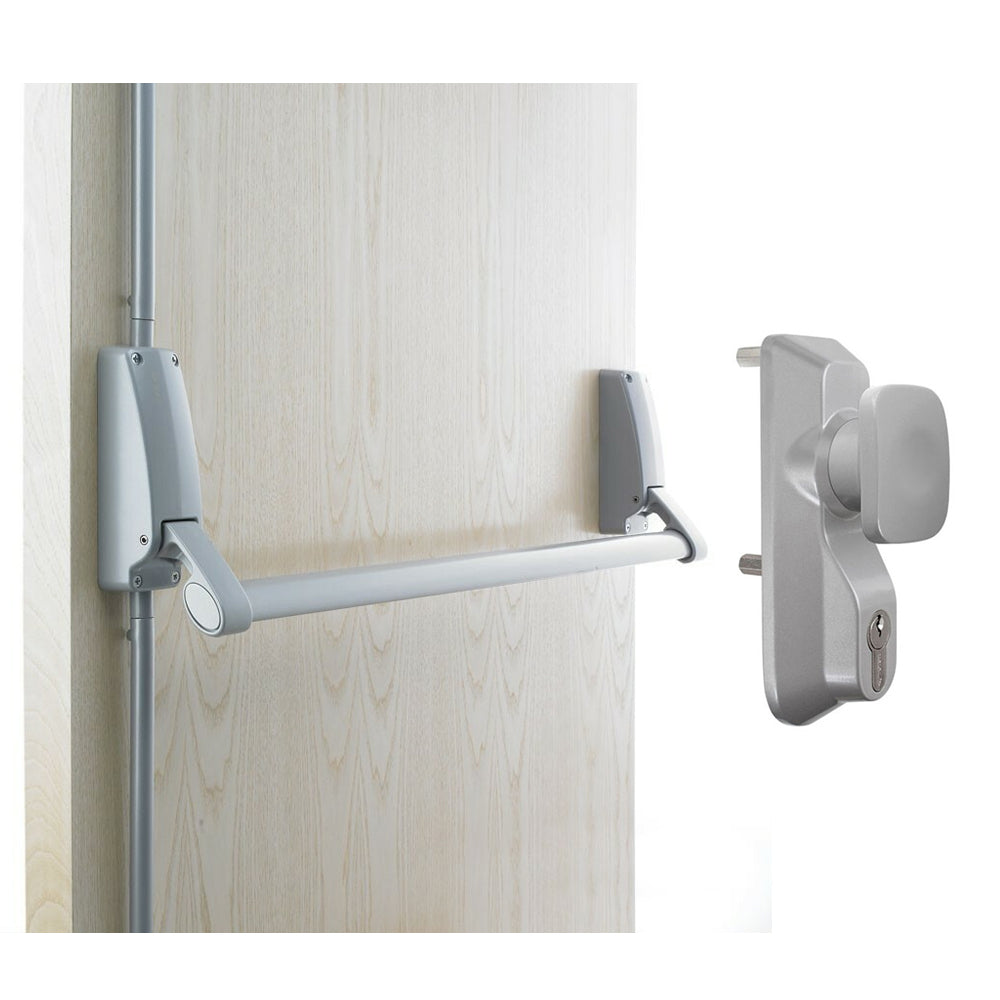

Briton Panic Bar B376E-D/SE Single Door with Outside Trim Knob w/ Cylinder 1413/KE

Briton Panic Bar B376E-D/SE Single Door with Outside Trim Knob w/ Cylinder 1413/KE

Note: Panic bolt only, door not included

Panic Bar are push bars/crash bars installed on exit doors to allow quick exiting of buildings. (e.g. where emergency or panic situation could occur)

Panic Bar Function - Operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Includes:

• 1 X Briton Single Door Vertical Panic Bolt w/ Dogging (B376EDSE)
• 1 X Briton Outside Door Trim Knob Outside Access Device w/ Cylinder (B1413KE)

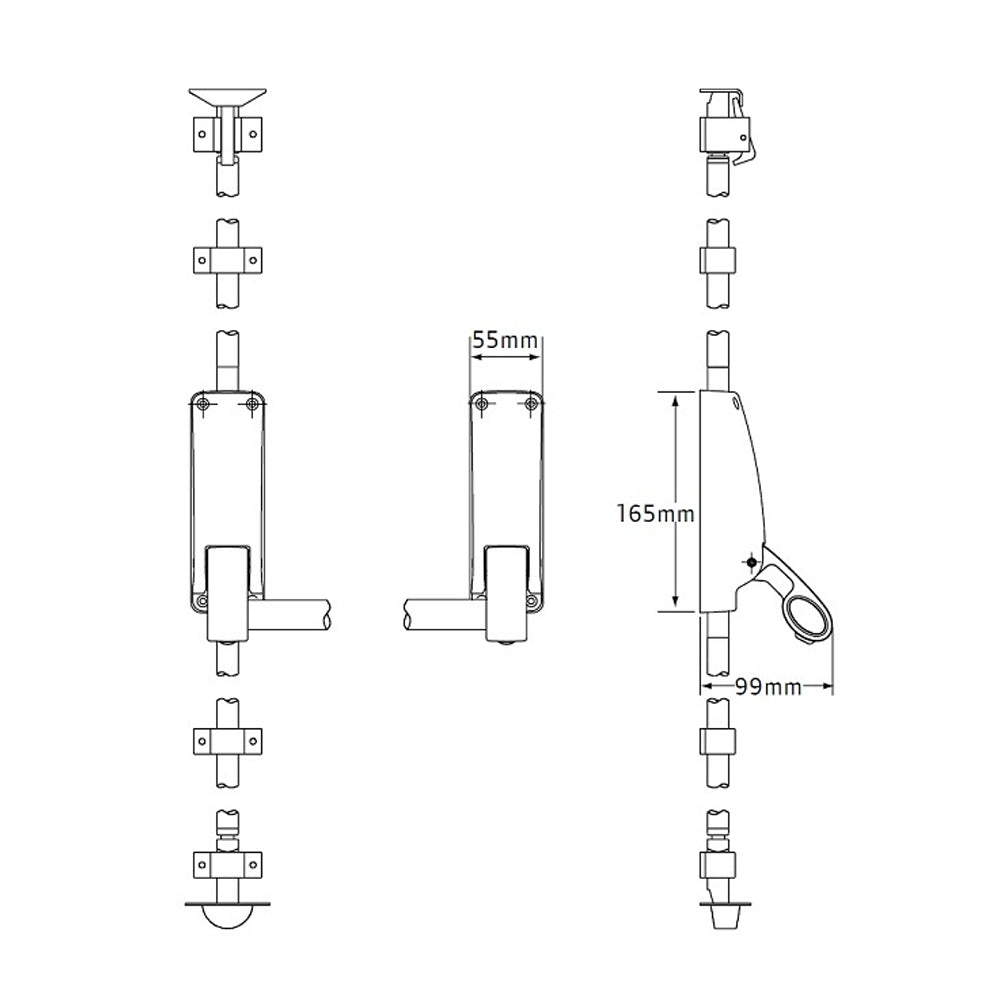

Briton Single Door Vertical Panic Bolt w/ Dogging
B376EDSE

• Economical range of push bar devices designed to suit single and double door applications
• Can be used on aluminium, hollow metal or wood swinging commercial doors
• Available as rim and surface mounted vertical panic bolt devices
• Each model in the 376E Series is operated by a horizontal push bar, which when pushed in a downward arc withdraws either the bolts or latch, releasing the door for immediate escape in the event of an emergency.

Features:

• Suitable for all types of single doors and can be used in conjunction with either another 376E or a 379E for double nonrebated door applications
• For double rebated door applications the 377E double door set can be used
• Field sizable to accommodate a range of door openings
• Two point locking for extra security
• Anti-thrust device, prevents unauthorised retraction of the latchbolt
• Non handed — will suit both left and right handed doors
• Adjustable top shoots
• Supplied with an easy clean floor socket

Specifications:

• Door Type: Timber or Metal
• Stile Width: 78mm minimum with 13mm rebates, 90mm minimum with 25mm rebates
• Door Width: 665mm to 1300mm
• Door Height: 2500mm standard. Extra long top shoot available for door heights up to 3350mm
• Material: Zinc diecast chassis. Steel rods and crossbars
• Finish: Silver Enamel

Briton Outside Trim Knob w/ Cylinder
B1413KE

Please note: Not recommended for high use areas.

• Ergonomic design providing improved grip in wet conditions when locked, knob rotates freely

Features:

• Provide access when the door is locked. When unlocked the door can also be operated from the outside by using the knob or lever.
• Designed to suit all exit devices within the Briton 376E series.
• Designed to accept oval cylinders for key access.
• Suitable for doors between 35mm and 70mm thick.
• Fixings supplied are suitable for both timber and metal doorsets.

Specifications:

• Door Type: Timber or Metal
• Material: Zinc diecast chassis and knob
• Supplied as: Trade pack with all fixing hardware
• Finish: Silver Enamel
