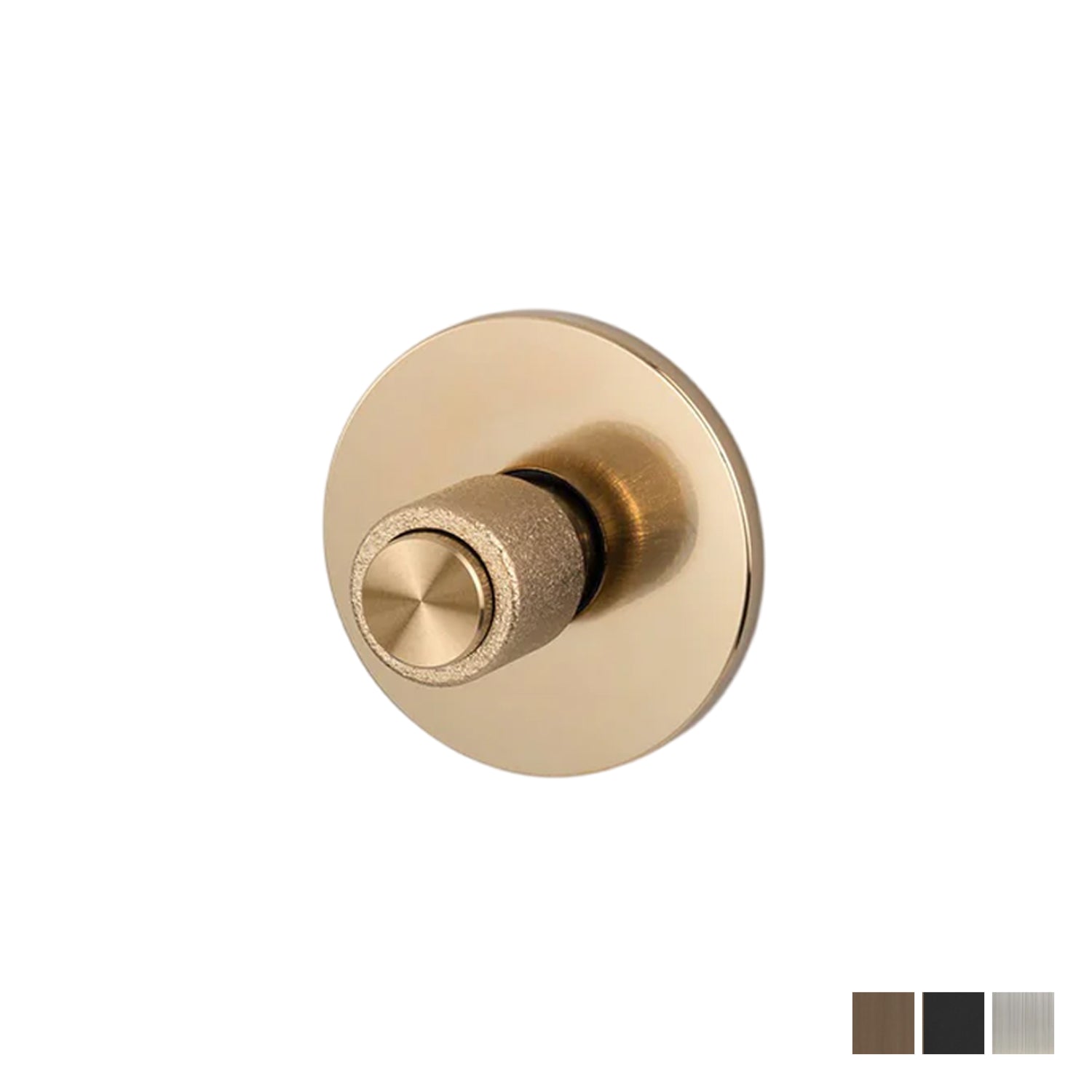

Buster & Punch Thumbturn Lock / Cast / Latch Included - Available in Various Finishes

Buster & Punch Thumbturn Lock / Cast / Latch Included

Privacy Turn and Release is used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)

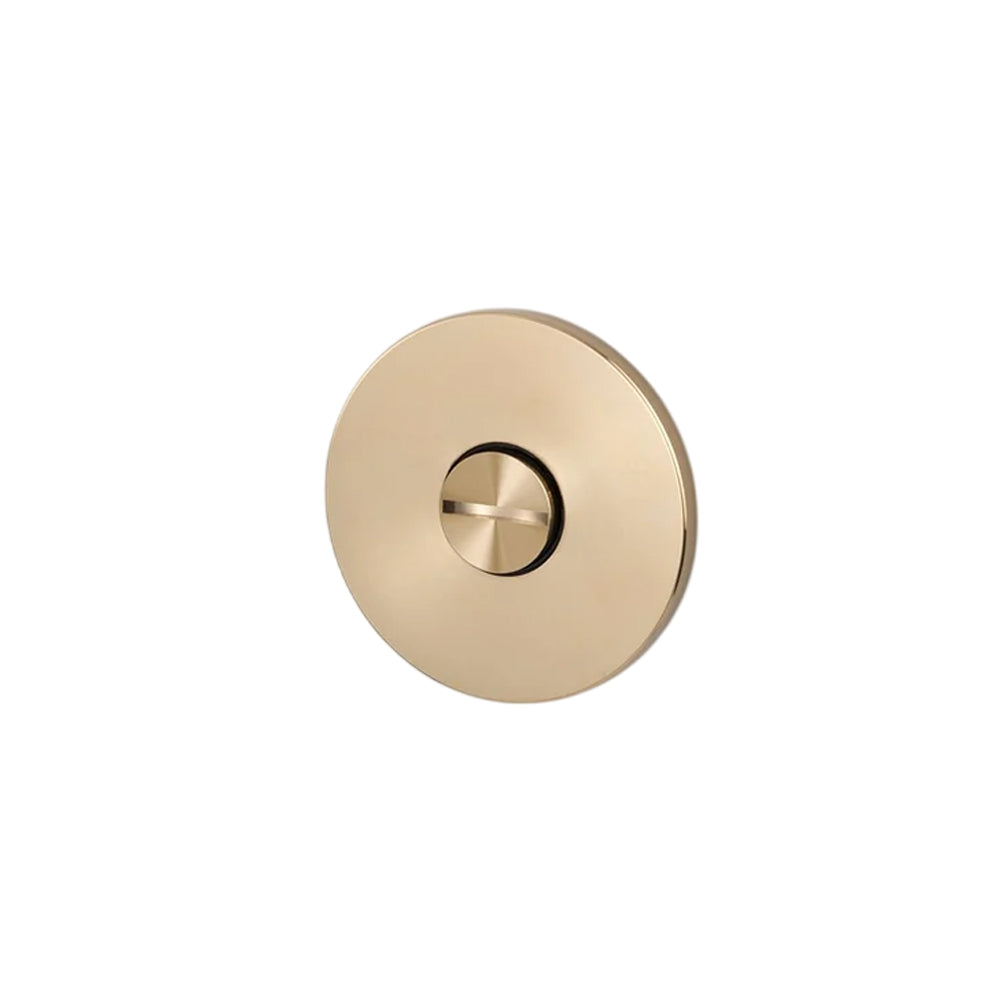

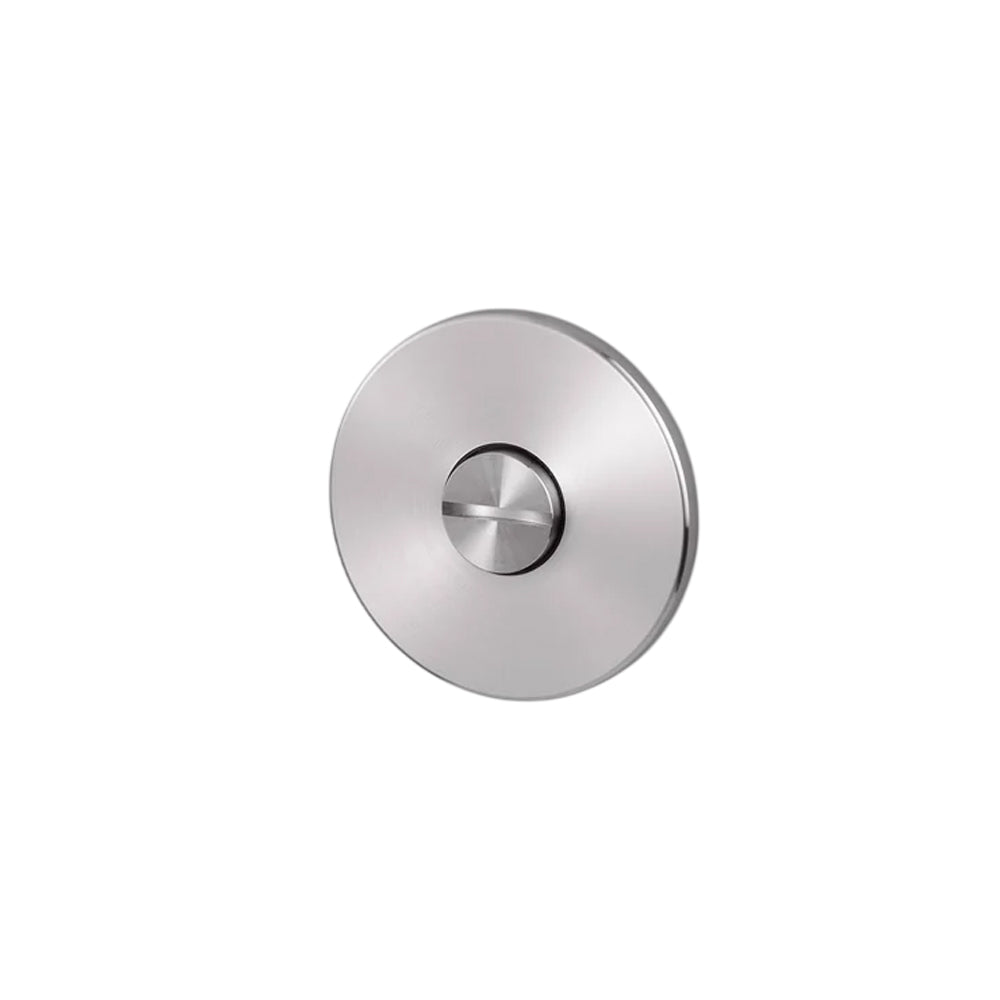

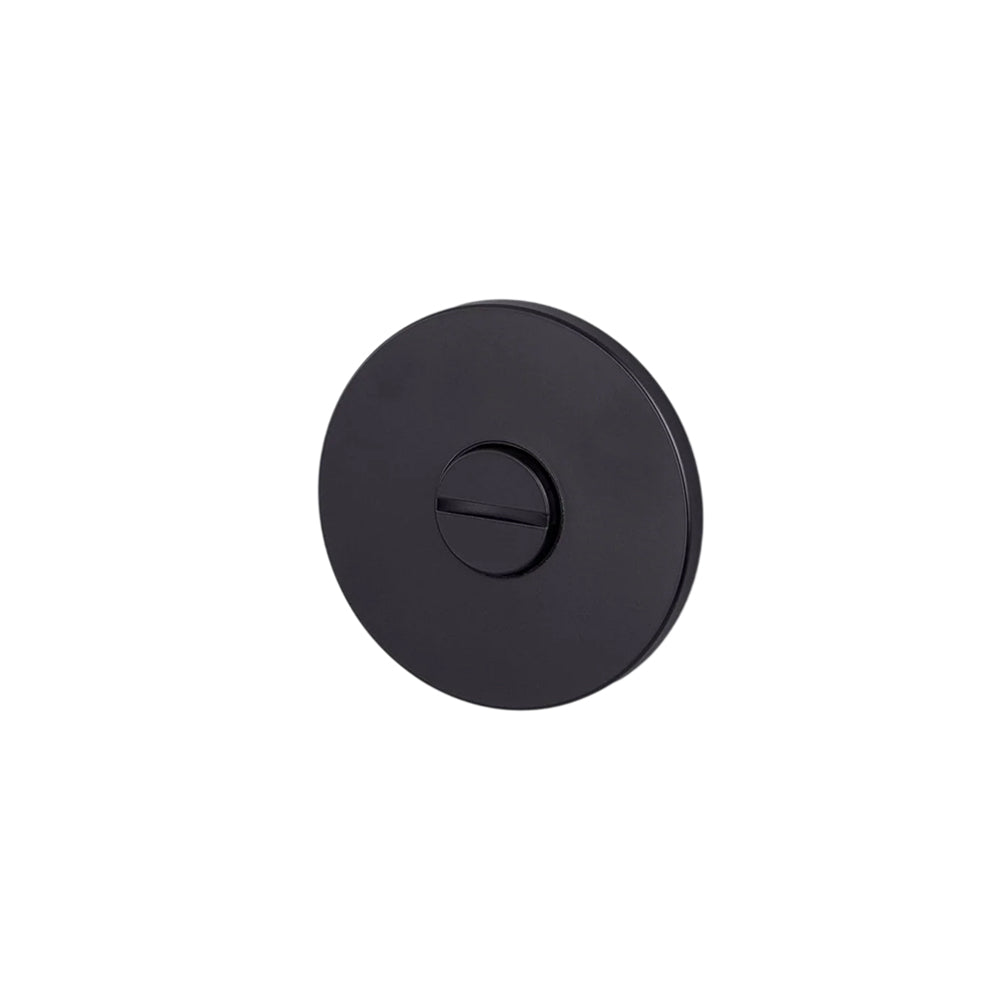

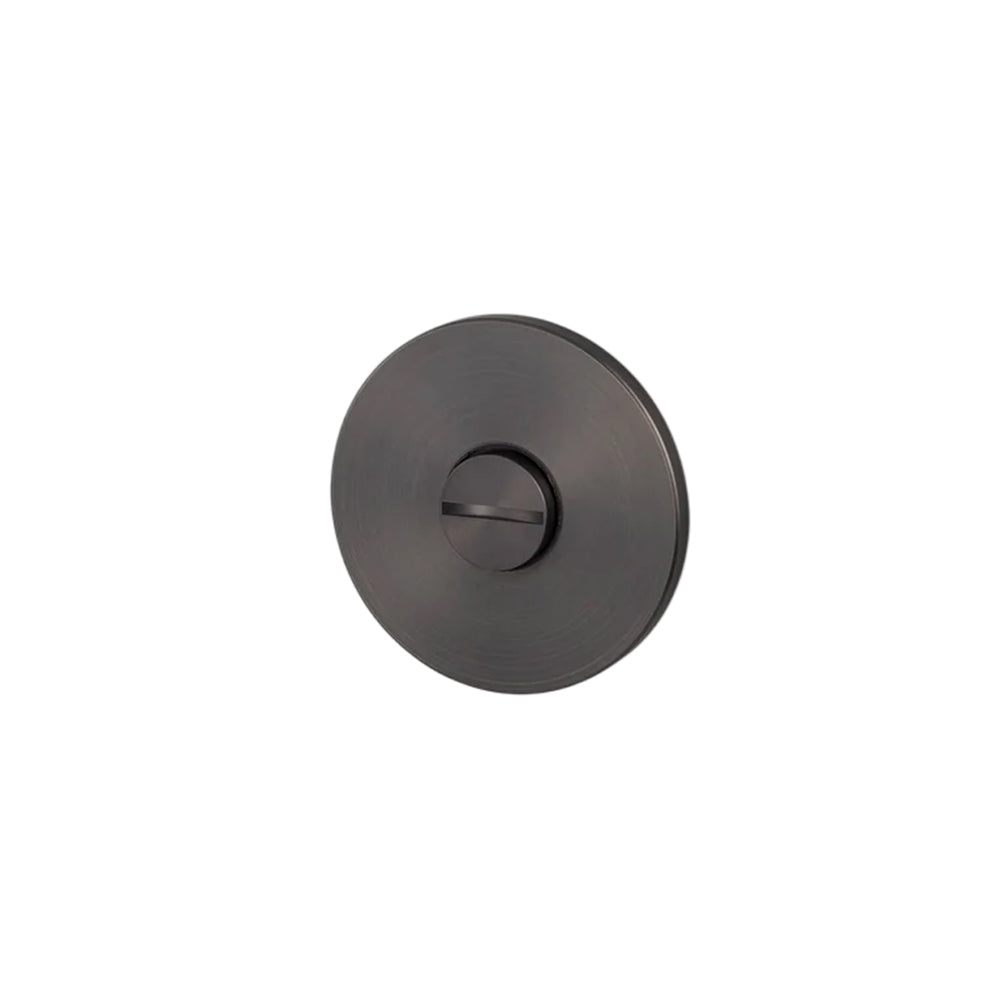

Privacy Turn and Release Function - is locked by thumbturn from inside and emergency release from outside.

Includes:

• Box 1:
  • 1 x thumbturn lock
  • 2 x M4 x 35mm through bolts
  • 1 x 5mm x 5mm x 46mm spindle
  • 1 x 5mm x 5mm x 64mm spindle


• Box 2:
  • 1 x 60mm deadbolt latch
  • 1 x strike plate
  • 1 x face plate
  • 4 x countersunk woodscrews


• Box 3:
  • 1 x 5-8mm spindle expansion sleeves

Features:

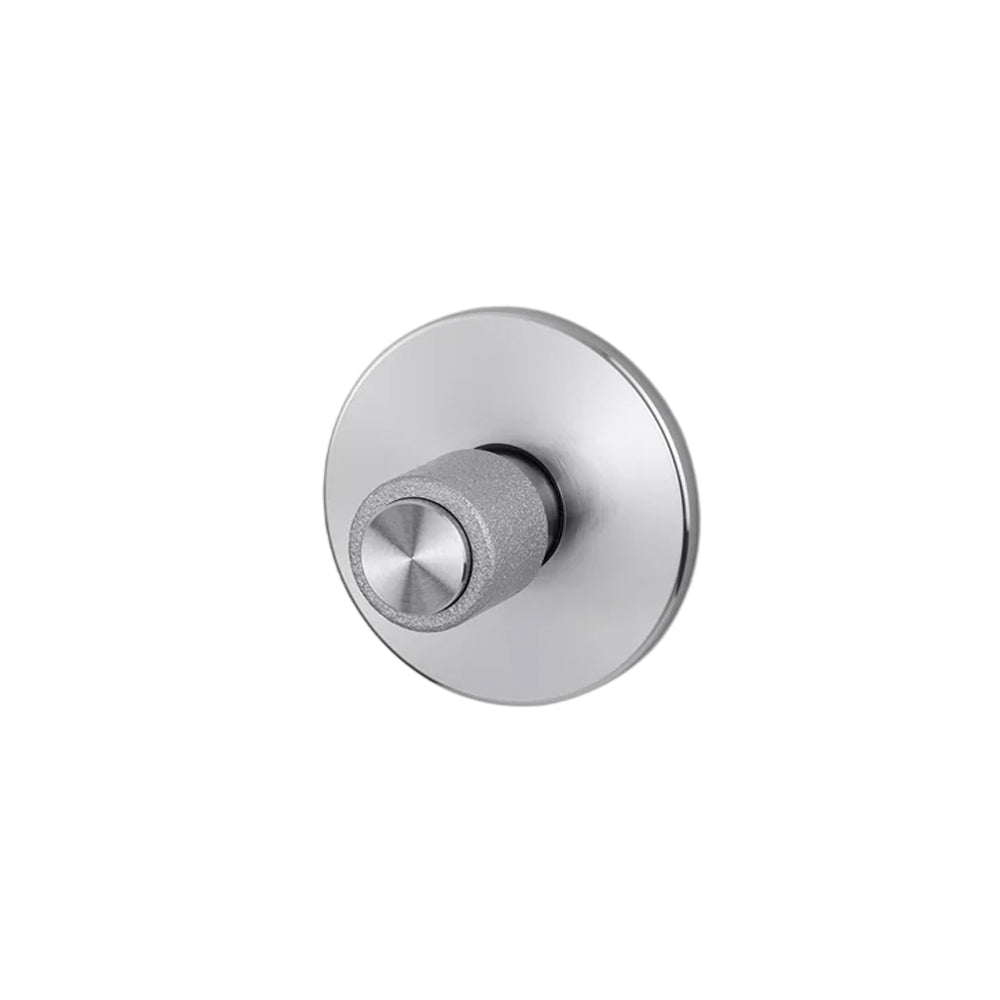

• Solid-metal thumbturn lock with a signature rough-cast knuckle
• Designed for internal bathroom and toilet doors
• Architectural 4mm-thick rose
• Compatible with tubular deadbolt latches and mortise locks
• Supplied with a 60mm deadbolt latch, matching strike plate, and face plate

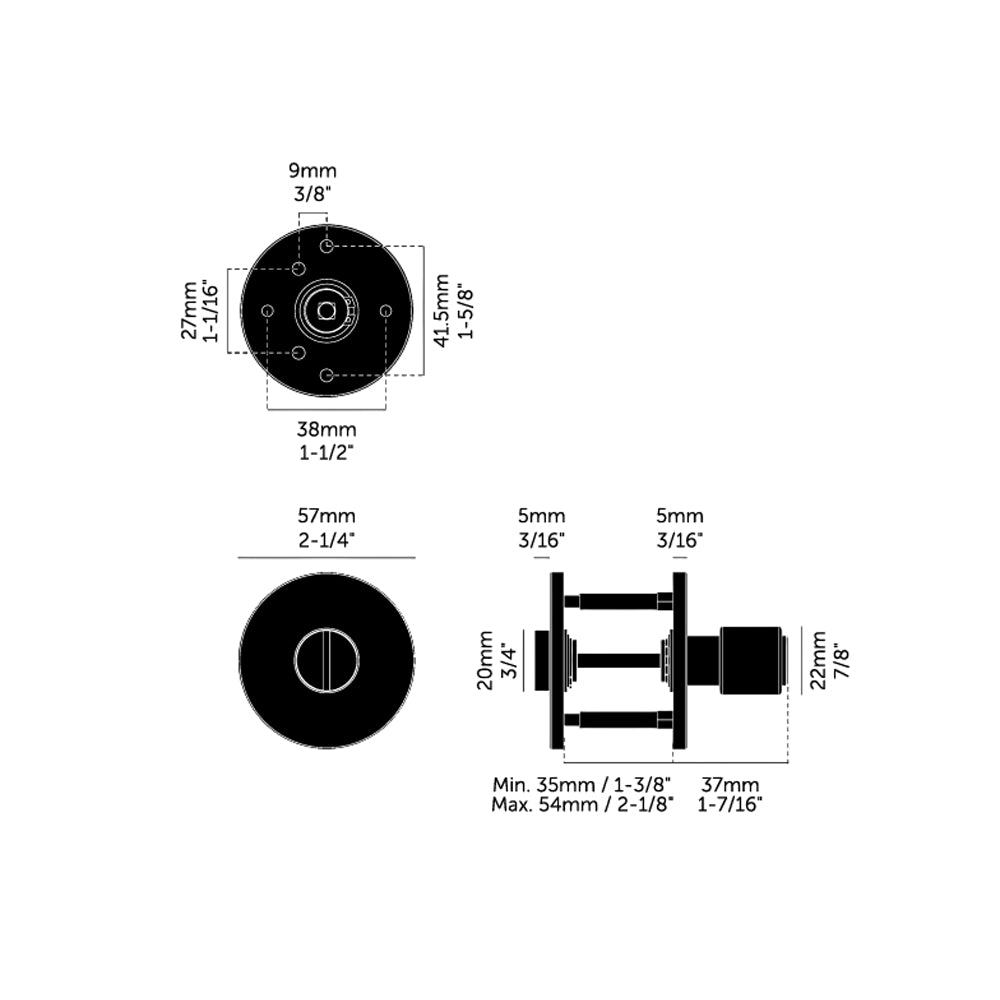

Specification:

• Rose diameter: 57mm
• Rose thickness: 5mm
• Thumbturn projection: 37mm
• Opposite-side projection: 20mm
• Knob diameter: 22mm
• Compatible center distances: 27mm, 38mm, and 41.5mm
• Door thickness: 35–54mm
• Spindle adaptor: 5–8mm expansion sleeve
• Latch: 60mm deadbolt latch
• Available Finishes:

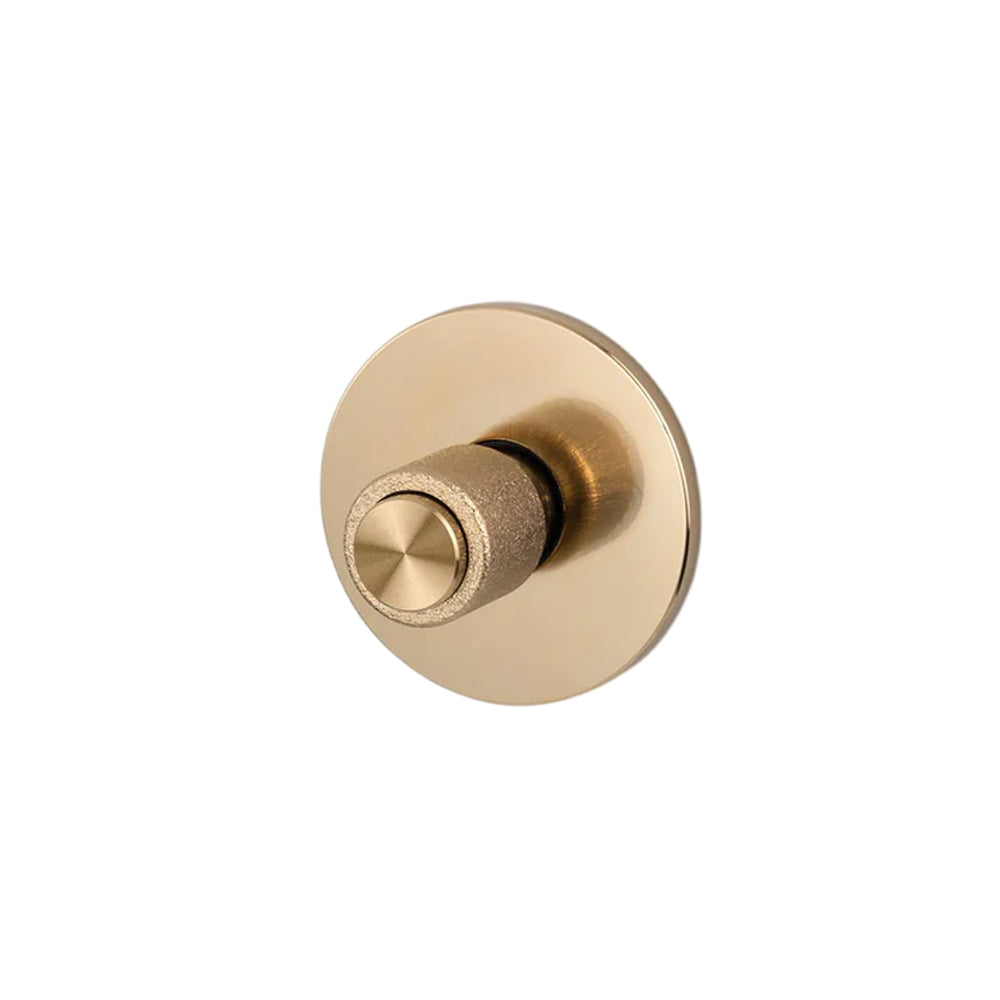

  • Brass

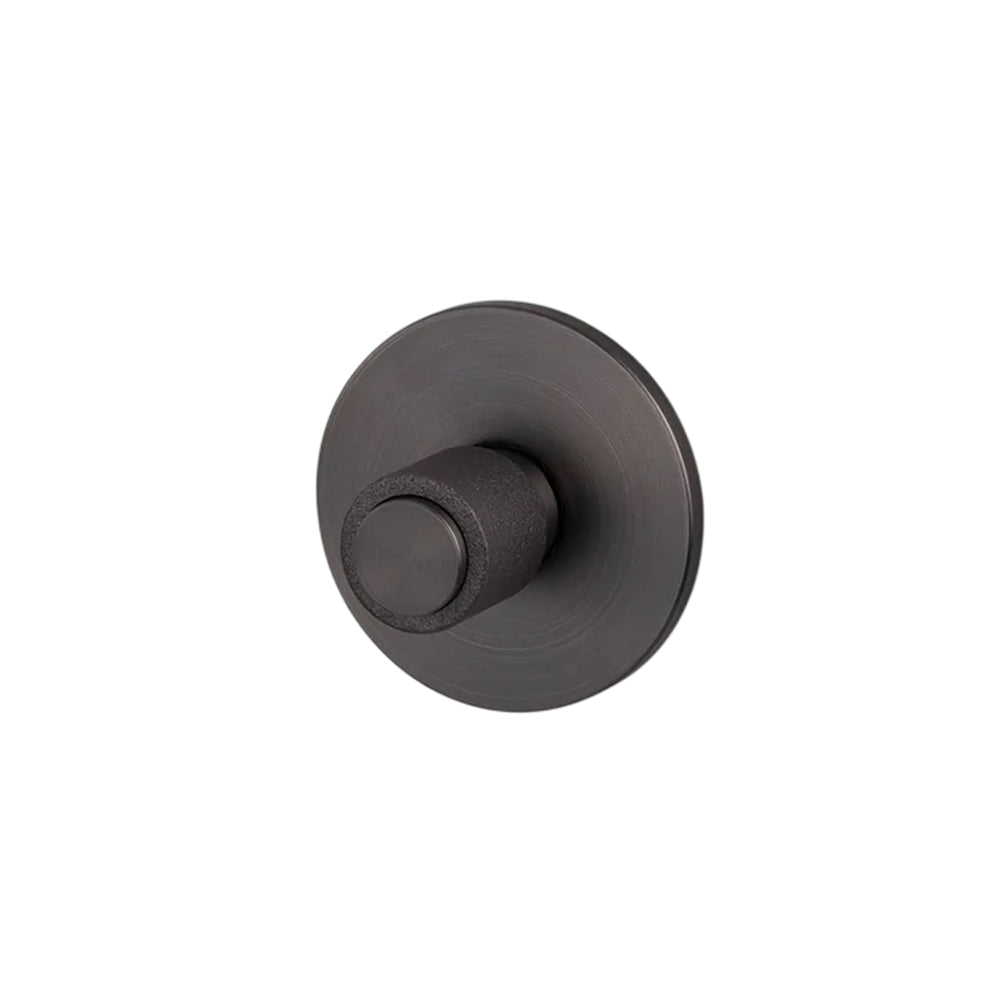

  • Smoked Bronze
  • Steel

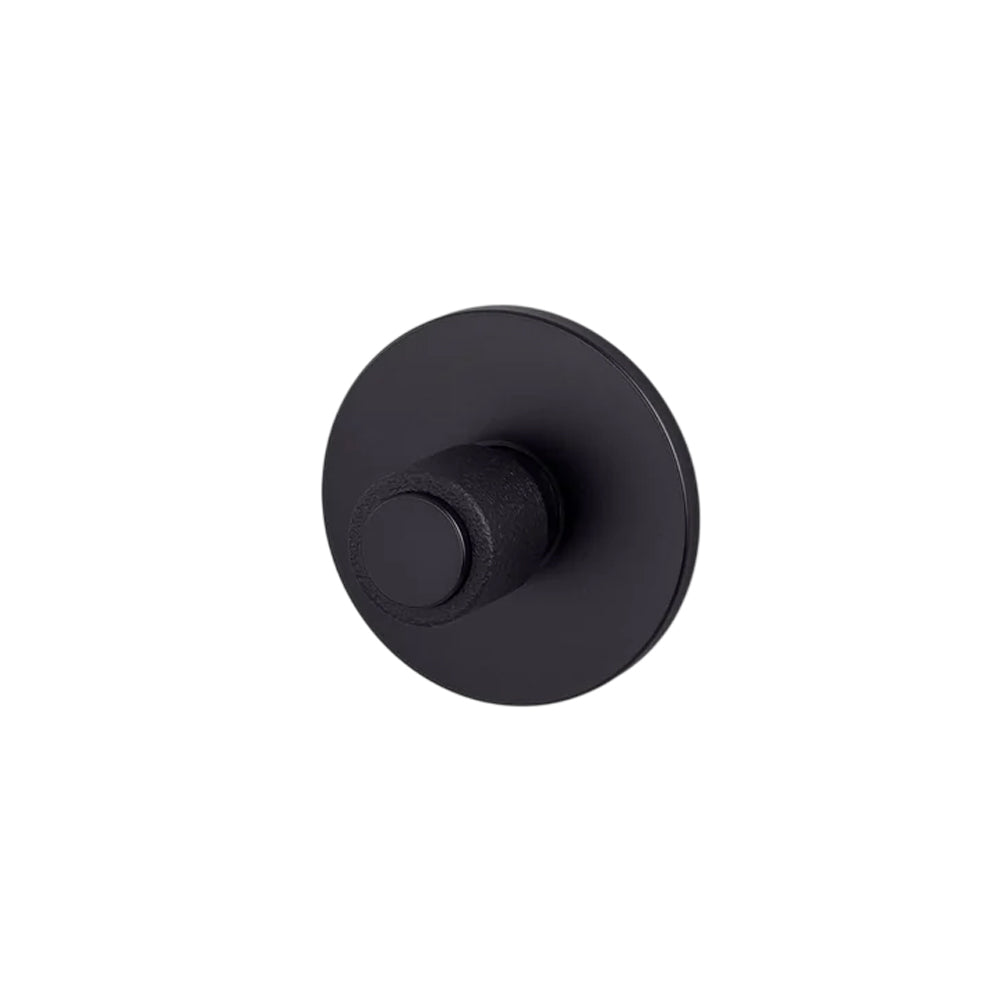

  • Welders Black

Note:

• Always consult a trade professional when installing this product
• Buster + Punch is not responsible for the usage or feasibility of installation requirements
• This product is not suitable for damp or wet environments
• For internal use only, not for commercial use.
