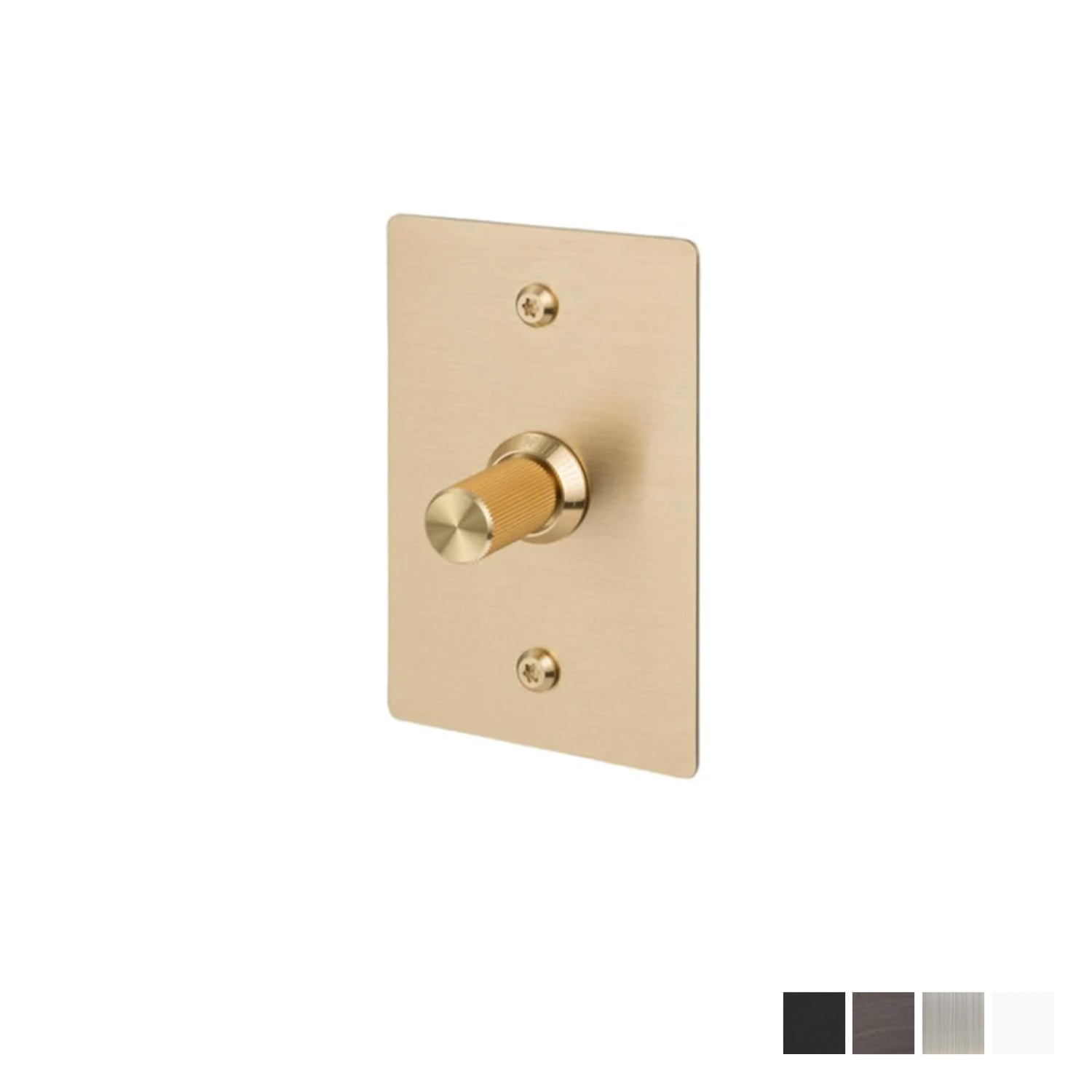

Buster & Punch 1G Dimmer / 2-Way / 100W / Vertical / Linear - Available in Various Finishes

BBuster & Punch 1G Dimmer / 2-Way / 100W / Vertical / Linear

Dimmer Switch used in residential and commercial interiors to provide smooth, adjustable dimming control for compatible LED and incandescent lighting circuits.

Dimmer Switch Function - Controls the brightness of connected dimmable lights by rotating the knob and switches the lights on or off with a push-button action.

Includes:

• 1 x 1G Wall Plate
• 1 x 100W Dimmer Module
• 1 x Dimmer Detail Kit
• 1 x Plate Detail Kit

Features:

• Solid metal 1-gang vertical dimmer switch
• Signature diamond-cut Linear-knurled dimmer knob
• Push ON/OFF rotary dimmer operation
• New-generation dimmer module with enhanced functionality
• Compatible with 2-way switching
• Trailing-edge dimming for smooth LED performance
• Customizable with compatible Buster + Punch detail kits
• Signature Torx screw detailing
• Designed with a 2.5 mm shadow gap when installed
• Suitable for Australia & New Zealand electrical systems

Specifications:

• Product: 1G Dimmer / Vertical / 100W / Linear
• Configuration: 1 Gang (Vertical)
• Switch Type: Push ON/OFF Rotary Dimmer
• Knurl Pattern: Linear
• Input Voltage: 240 VAC
• Frequency: 50 Hz
• Dimming Type: Trailing Edge
• Switching: 2-Way
• LED Load: 2-100 W
• Incandescent Load: 10–250 W
• Plate Material: 304 Stainless Steel
• Operating Temperature: 0-35 Degrees Celsius

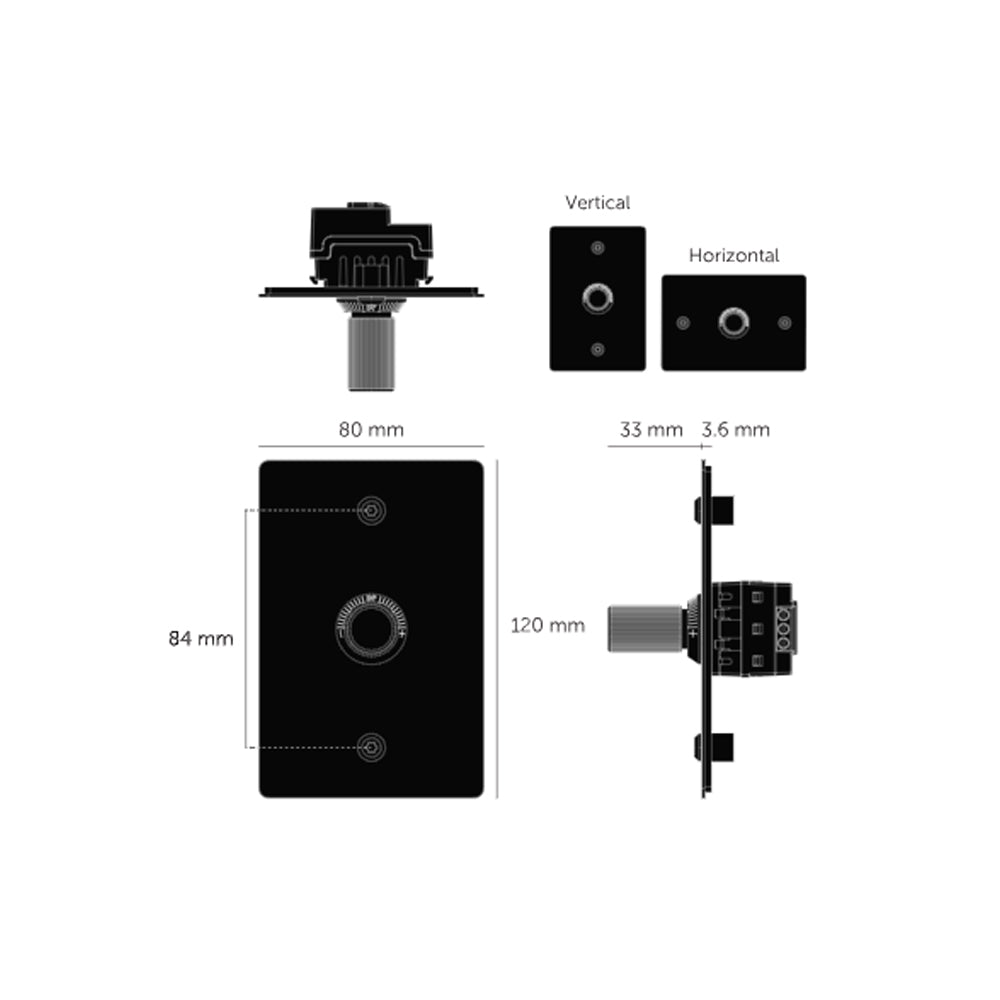

• Plate Fixing Centres: 84 mm
• Shadow Gap: 2.5 mm
• Certification: SAA - AS/NZS 60669.1 & AS/NZS 60669.2.1
• Indoor Use: Yes
• Compatibility: Standard 2-way and 3-way wiring accessories (maximum one dimmer module per circuit)
• Not Compatible With:
  • Non-dimmable lamps and fixtures
  • Compact fluorescent lamps (CFLs)
  • Electric motors (e.g. fans)
  • Native TRIAC (leading-edge) dimmable drivers
  • Buster + Punch multipoint dimmers
  • Retractive switches

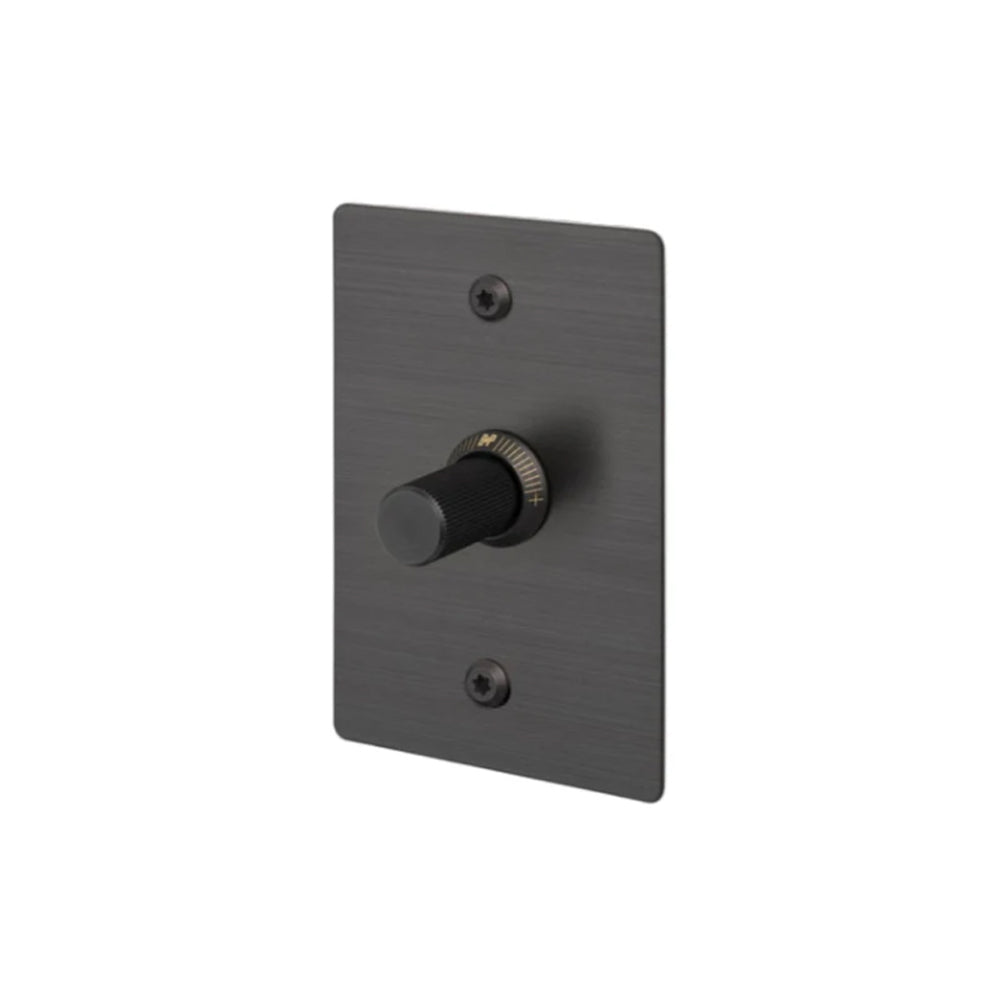

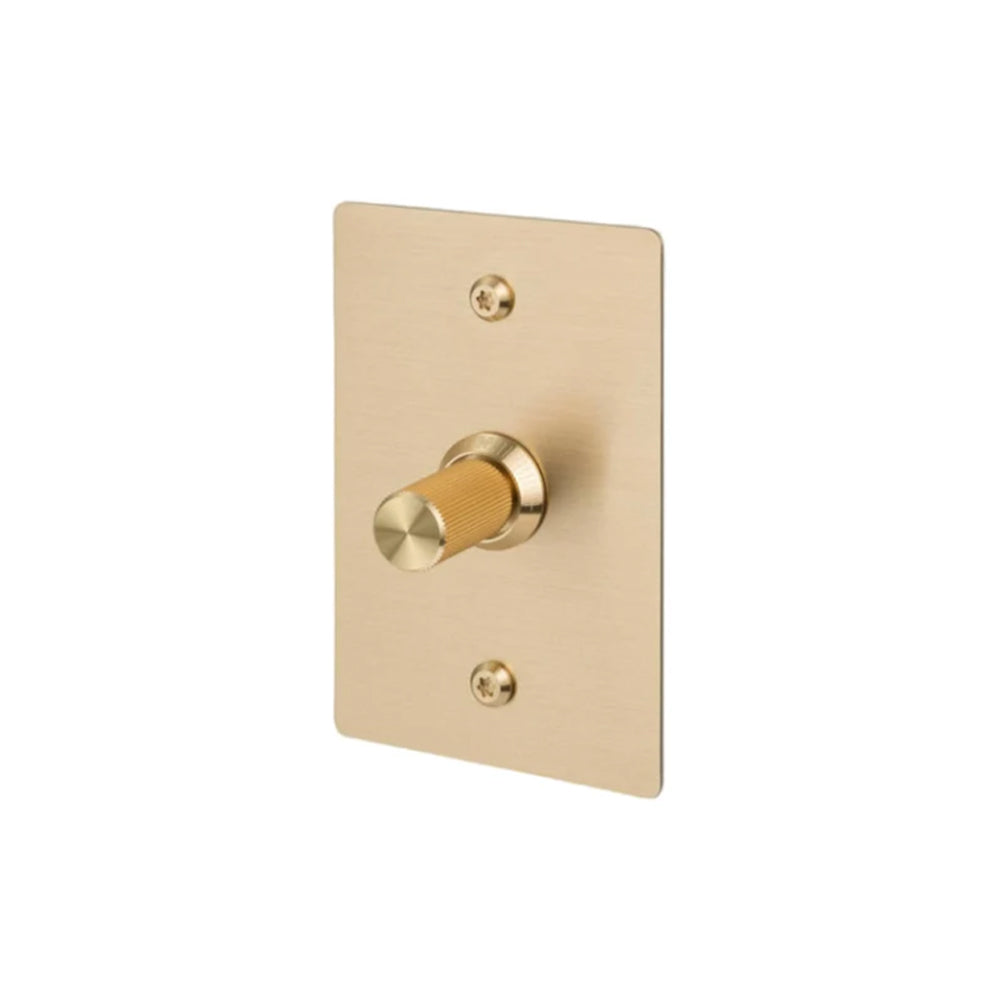

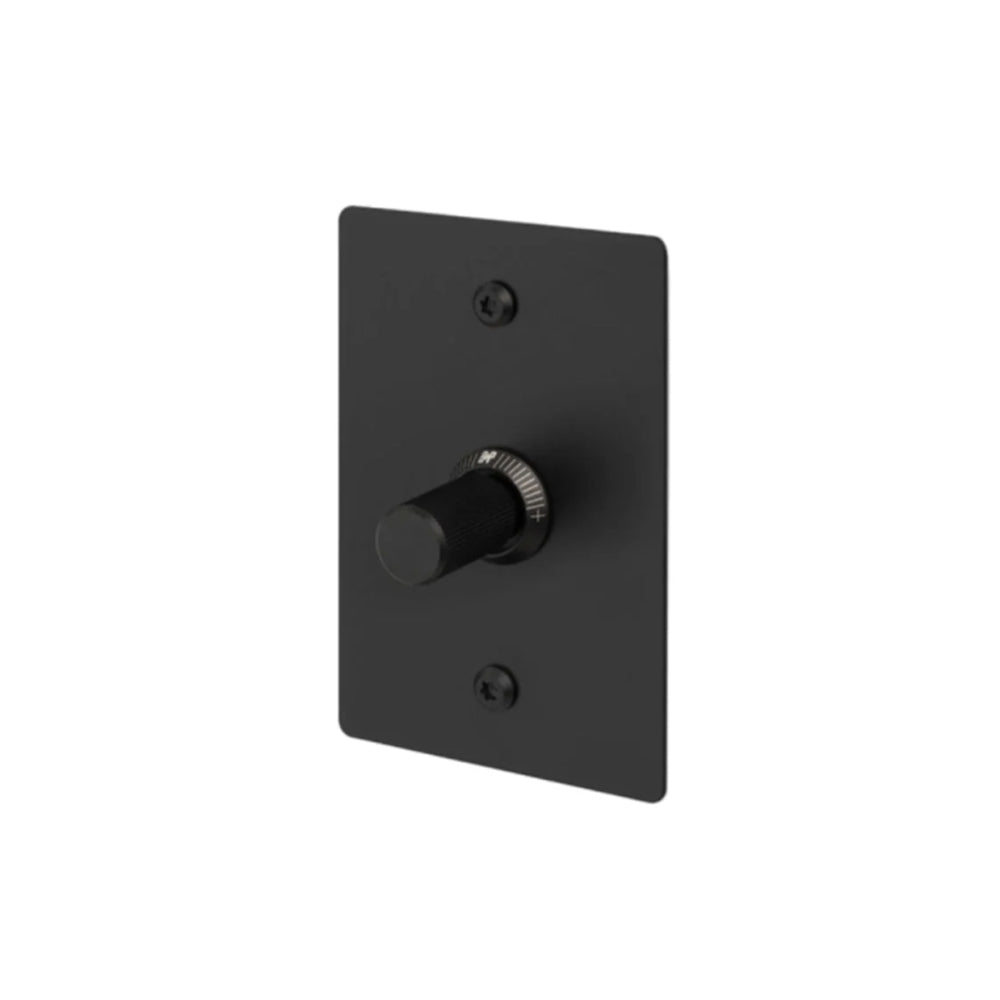

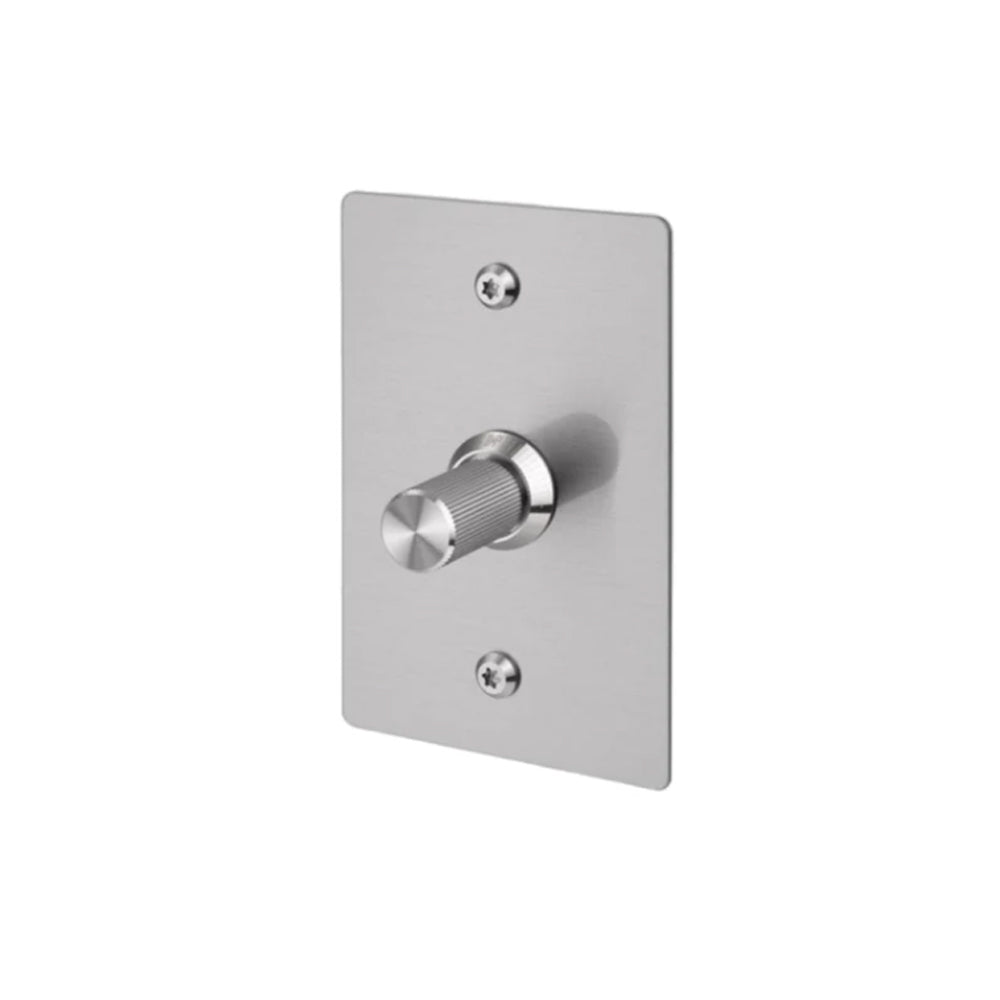

• Available Finish:
  • Black
  • Brass
  • Smoked Bronze
  • Steel
  • White
