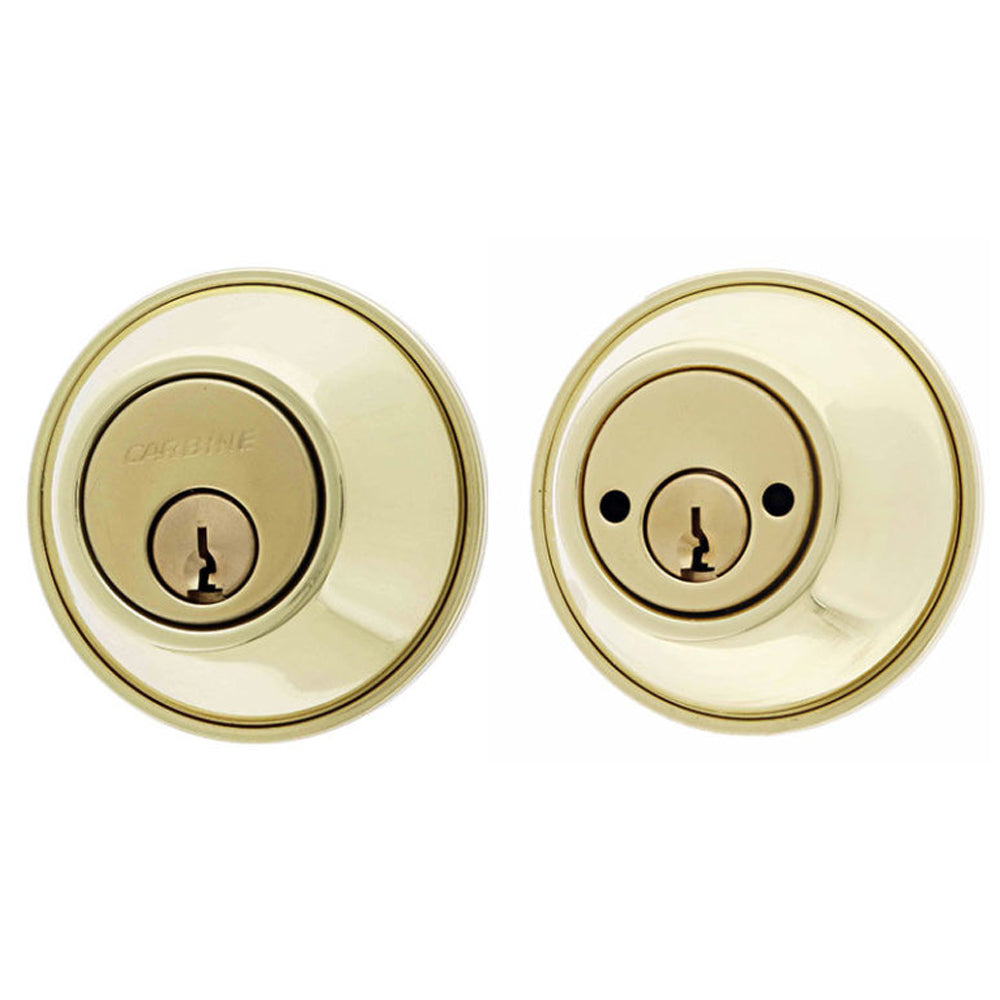

Carbine ALB Series Deadbolt Double Cylinder 60/70mm Polished Brass ALB4111A

Carbine ALB Series Deadbolt Double Cylinder 60/70mm
ALB4111A

Double Cylinder Deadbolt designed to offer high security level commonly used in domestic and architectural applications.

Double Cylinder Deadbolt Function - A key will be required to turn the lock on the outside. On the inside a key can be used when locked or the turn knob when unlocked

Features:

• Commercial-grade surface-mounted deadbolt
• Double-cylinder configuration-key operated from both sides
• Superior bolt mechanism tested to ANSI Grade 2
• Concealed Allen-key fixing screws for added security
• Removable brass 6-pin PD-style cylinder, keyed to a 5-pin key
• Fully rekeyable for keyed-alike or master-key systems
• Accepts a wide range of restricted barrels
• Brass bolt with anti-saw hardened steel pin for increased security
• Supplied with spacing rings to accommodate different door thicknesses

Specifications:

• Keying: Keyed to Differ
• Cylinder: Removable brass 6-pin PD style
• Key Profile: Keyline LKW9 / Silca LW5
• Door Thickness: 35-45mm
• Packaging: Trade Pack Carbine
• Rose Diameter: 65mm without rosette
• Rose Diameter: 70mm with supplied rosette
• Standard Door Thickness: 35-45mm
• Backset: 60-70mm adjustable
• Function: Double Cylinder
• Finish: Polished Brass
