Carbine Alpha Deadlatch Long Lever For Metal and Timber Doors - Available in Various Functions

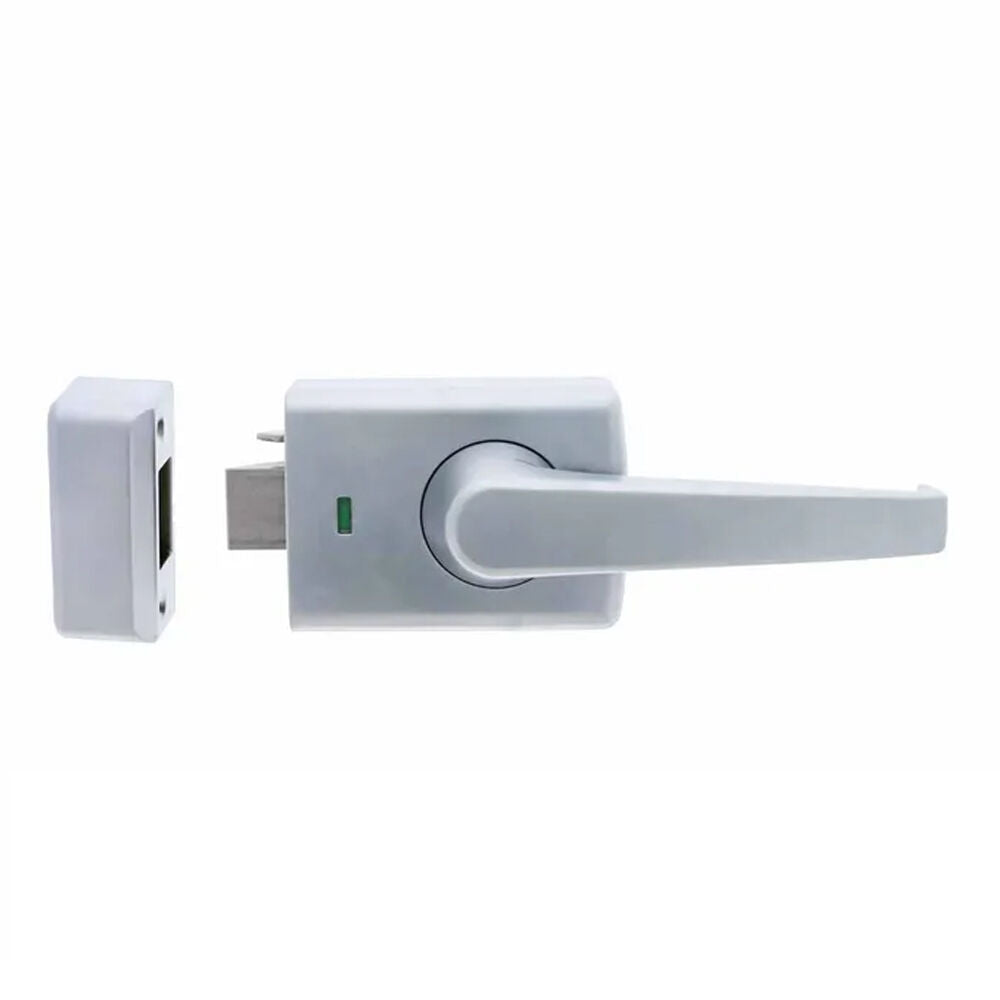

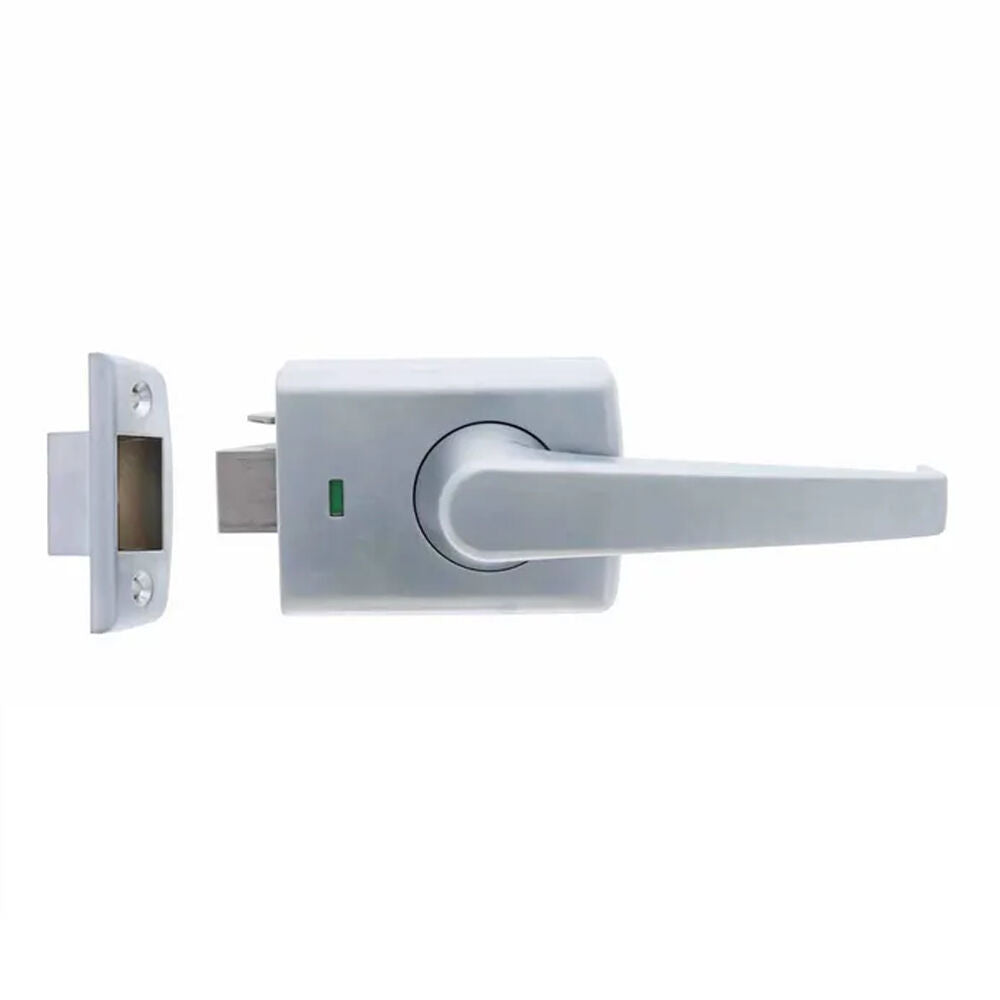

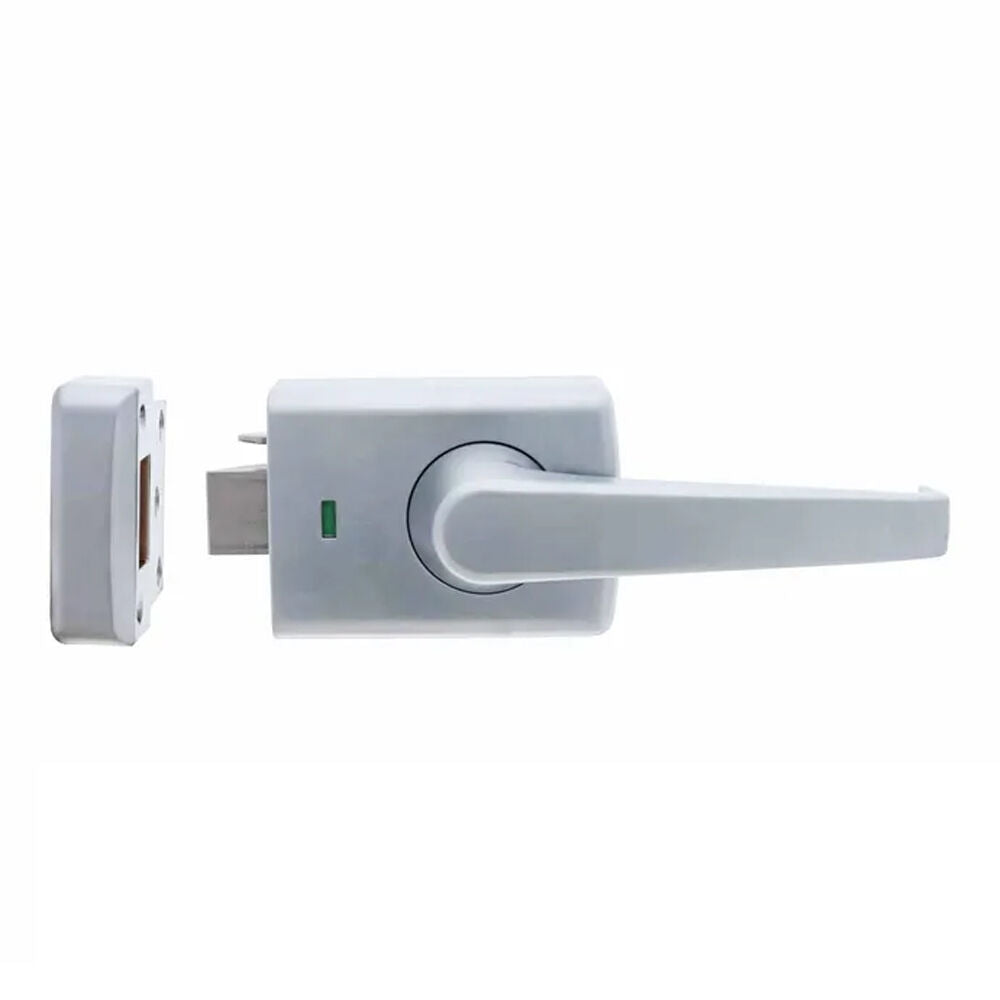

Carbine Alpha Deadlatch Long Lever

DeadLatch are commonly found on front doors that don't have handles or if they do they are purely there for aesthetics.

DeadLatch Function - is a locking mechanism that locks automatically without having to turn a knob or use a key.

Features:

• Single-cylinder deadlatch with lever handle on the inside
• High-security rim lock design suitable for residential and light commercial use
• Deadlatching action prevents forced entry when the door is closed
• Lever handle enables quick egress from the inside
• Compatible with most standard strike plates
• Sleek, modern appearance to suit a variety of doors
• 45 degree lever rotation to unlock the door?
• 45 degree knob rotation to unlock the door
• Lever compliant with BCA codes and AS1428.? Lever Offset (distance between door face and inside of lever) meets requirement for disability
• Lever has a return on the end to meet the requirement for disability?
• Fire rated up to 2 hours on E-core as a primary or secondary lock with the hold back disabled, egress regulations still apply
• High grade zinc alloy for the lock casing, knob and lever, marine grade stainless steel for the latch bolt and snib, has a cut resistant latch bolt and a reinforced strike with extended fasteners for increased frame strength
• Supplied with a 5 pin external CRC rim cylinder and a 5 pin internal CA-DL3 cylinder but can easily be changed to 6 pin versions. And, for additional ease it boasts an easy internal cylinder removal and replacement
• Adjustable strike
• Suits left and right hand opening doors

Specifications:

• Lockable Hold Back Function: when holdback has been activated by the knob or lever, it can be locked in this mode by the internal key
• Door Thickness: 30mm - 50mm
• Latch Projection: 19mm
• Door Gap: 1mm - 3mm
• Fixing: Concealed Fix
• Cylinder: Single cylinder (keyed entry from outside, lever on inside)
• Backset: 60mm
• Door Compatibility: Timber or metal doors
• Fire Rating: Compliant for certain fire doors
• Function: Key-lockable from outside, lever-operated from inside
• Included: Lock body, external cylinder, internal lever, screws, strike plate
• Available Strike Option:
  • Lever, Timber Frame
  • Lever, Metal Frame Strike
  • Lever, Open Out Strike
• Finish: Satin Chrome
