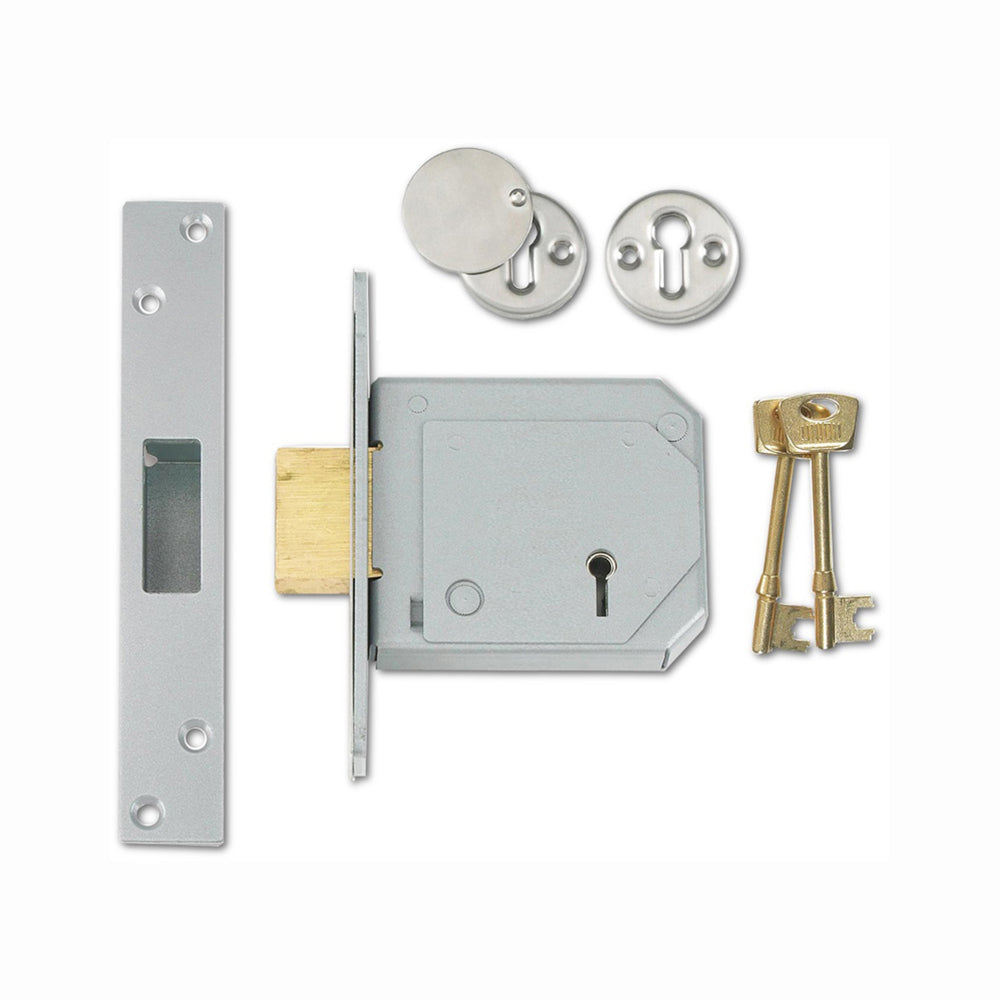

Chubb Union C-Series 5 Lever Mortice Door Lock Deadlock 80mm Satin Chrome 3G114E/80/SC

Chubb Union C-Series 5 Lever Mortice Door Lock Deadlock 80mm Satin Chrome
3G114E/80/SC

Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.

Features:

•  Force-resistant, anti-drill, anti-pick, and anti-saw security features
• Available with square forend and striking plate
• 20mm bolt throw
• Can be supplied on patented RKS key section to prevent illicit copying of keys
• Can be supplied with either a single or double pole microswitch for alarm systems.
• Supplied with one plain escutcheon and one escutcheon with a cover plate, finished to match the faceplate/strike

Specifications:

• Door Thickness:
• Differs:
• Mechanism: 5 Lever
• Finish: Satin Chrome
• Keys Supplied: 2

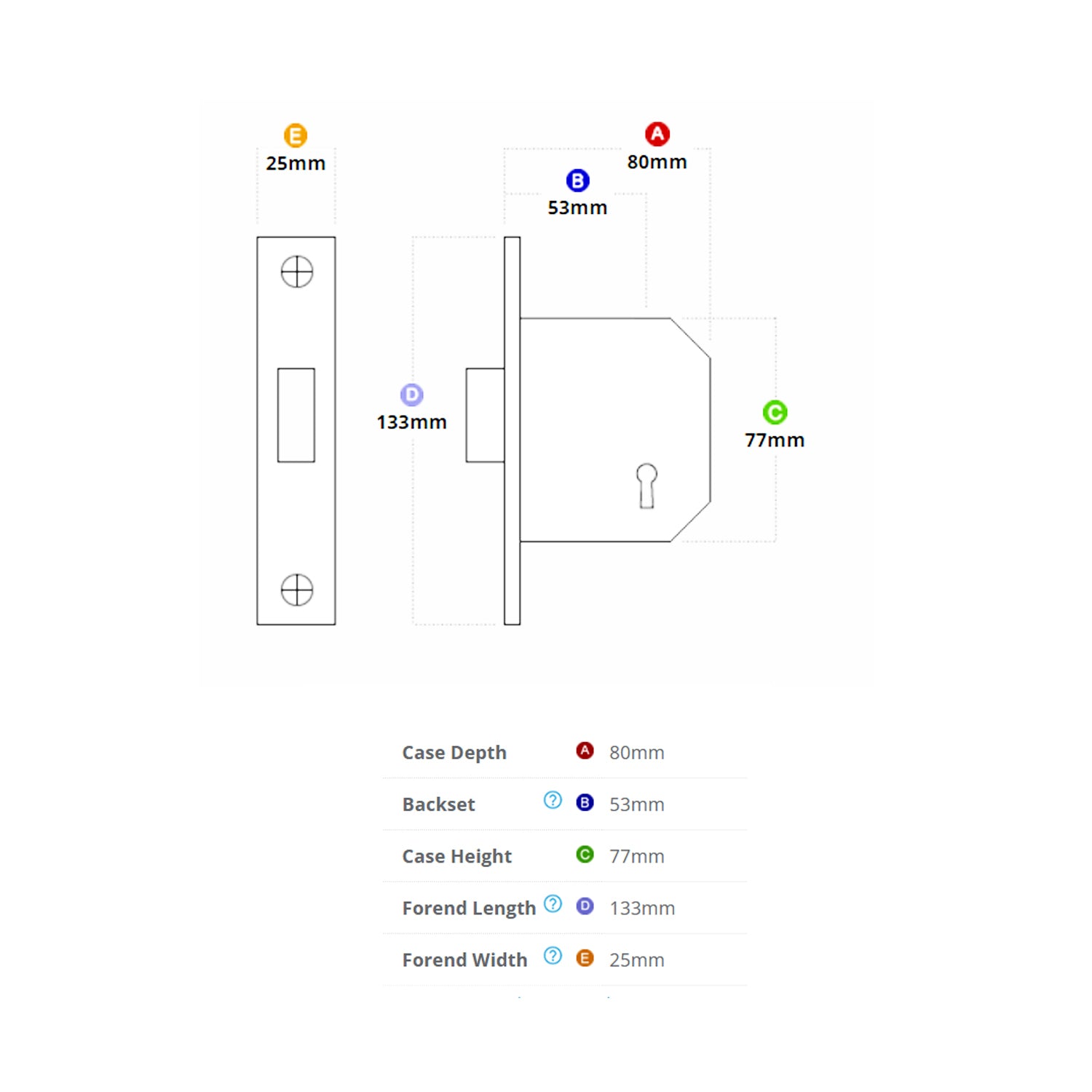

• Backset: 53mm
• Case Depth: 80mm
• Bolt Projection: 20mm
• Case Height: 77mm
• Forend Length: 133mm
• Forend Width: 25mm
