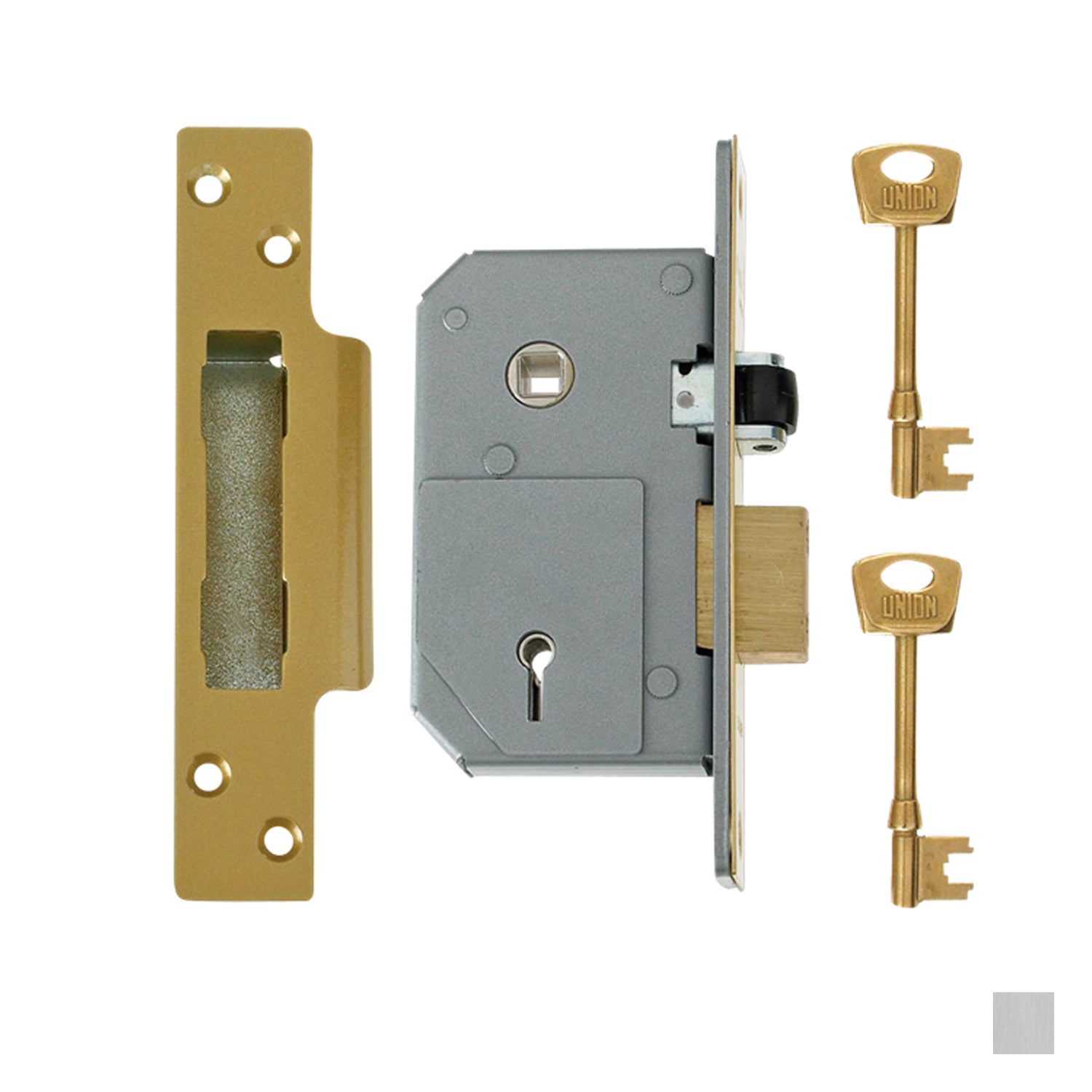

Chubb Union Mortice Sashlock 67mm - Available in Polished Brass and Satin Chrome

Chubb Union Mortice Sashlock

Mortice Sashlock combines the features of a deadlock and a latch, offering both security and convenience. It is commonly used in both residential and commercial properties where both locking and latching are required.

Mortice Sashlock Function -  provide the convenience of easy access with a handle or knob and the security of a key-operated deadbolt. While they require careful installation and may come at a higher cost, their combined functionality and security benefits make them a popular choice for many property types.

Features:

• Force resistant, anti drill, anti-pick and anti-saw security features
• Available with square forend and striking plate with 14mm bolt
• For timber door hinged on the left or the right
• Keys are suitable for use on doors up to 50mm thick
• Deadbolt is locked or unlocked by key from either side
• Latch bolt withdrawn by lever handle from either side

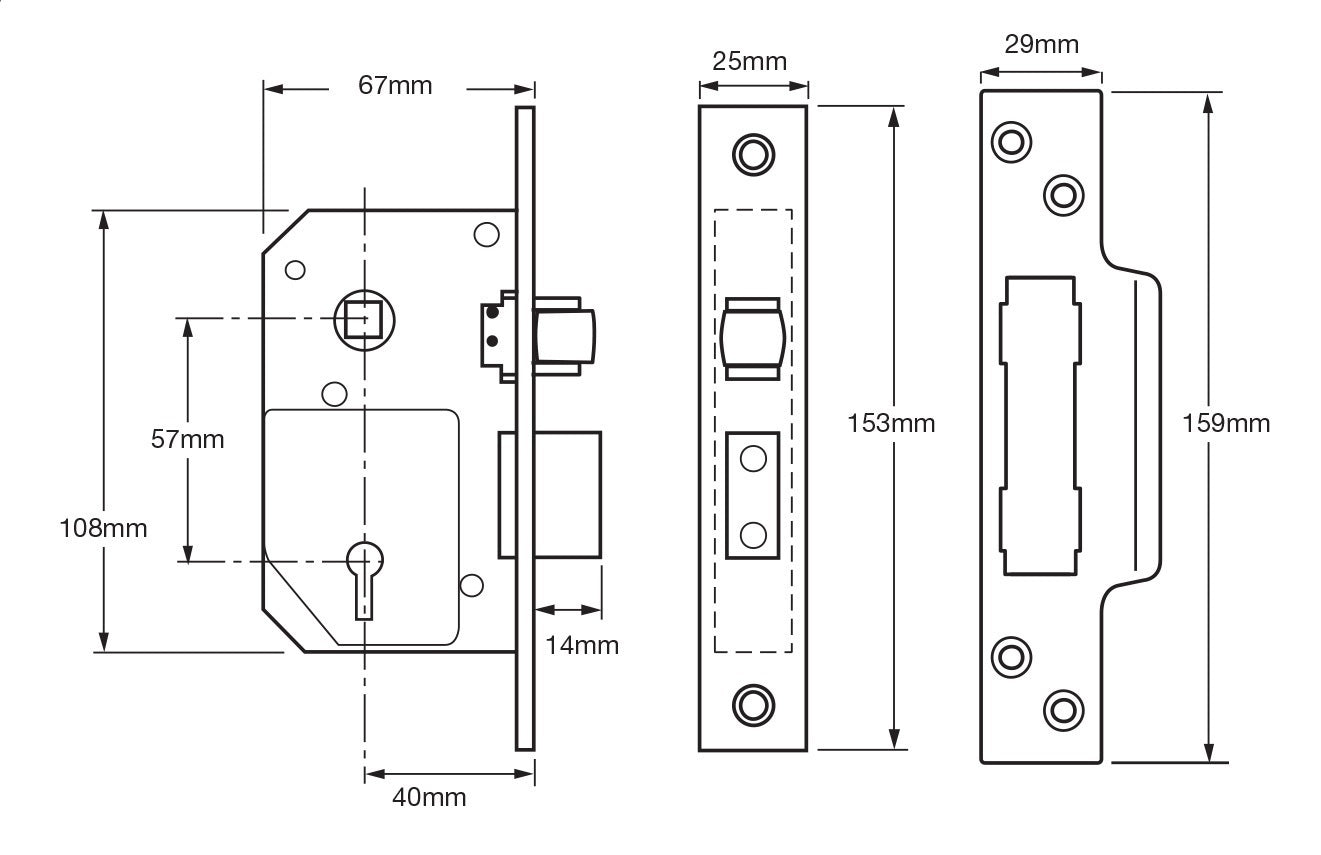

Specifications:

• Case Size: 67mm
• Backset: 40mm
• Centres: 57mm
• Case Material: Silver Powder Coat
• Forend: Stainless Steel and Brass
• Box Strike Assembly: Painted to match forend
• Deadbolt Material: Brass (with hardened steel rollers)
• Latch Bolt: Roller bolt (non handed)
• Keys supplied: Standard differ supplied with 2 keys
• Available Finish:

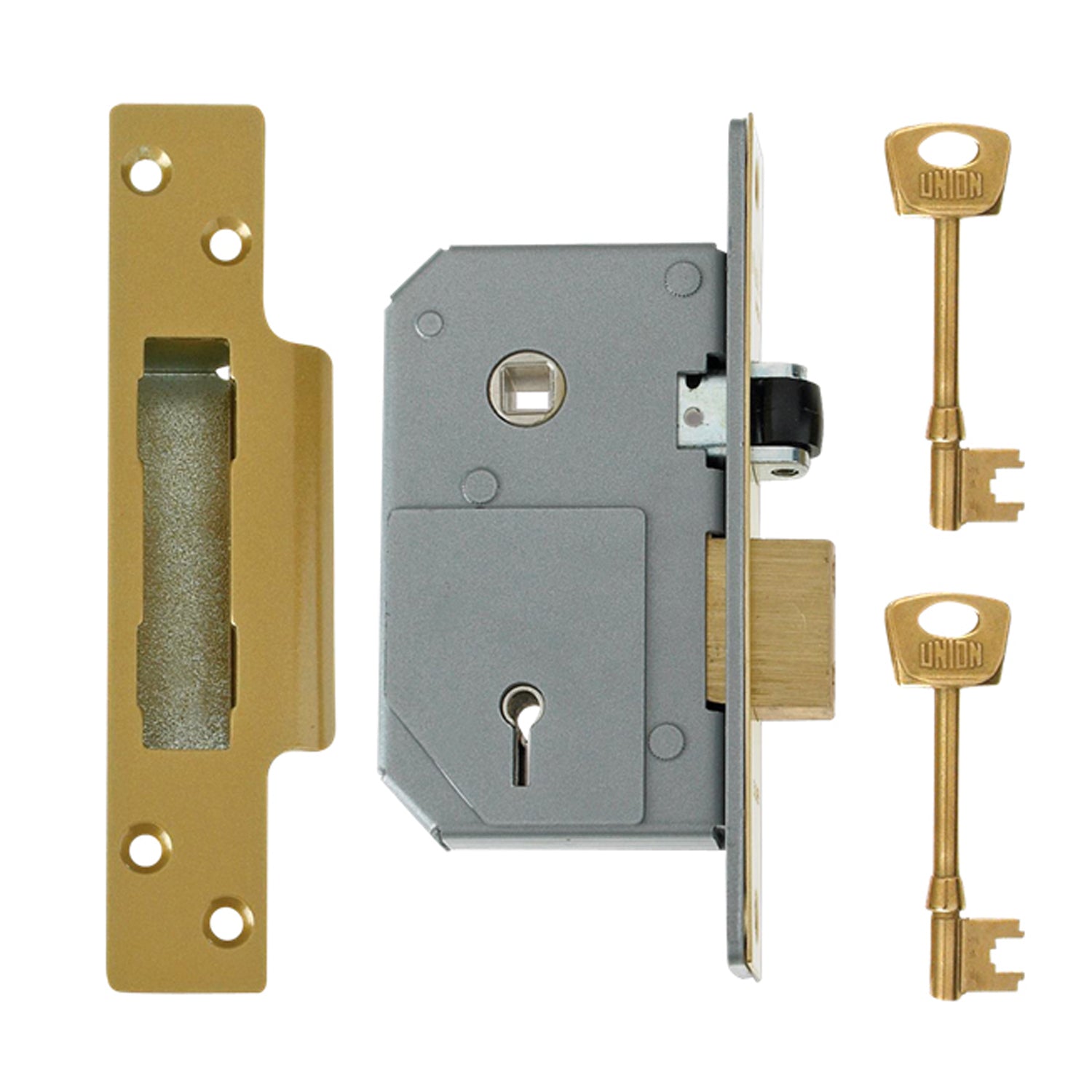

  • Polished Brass

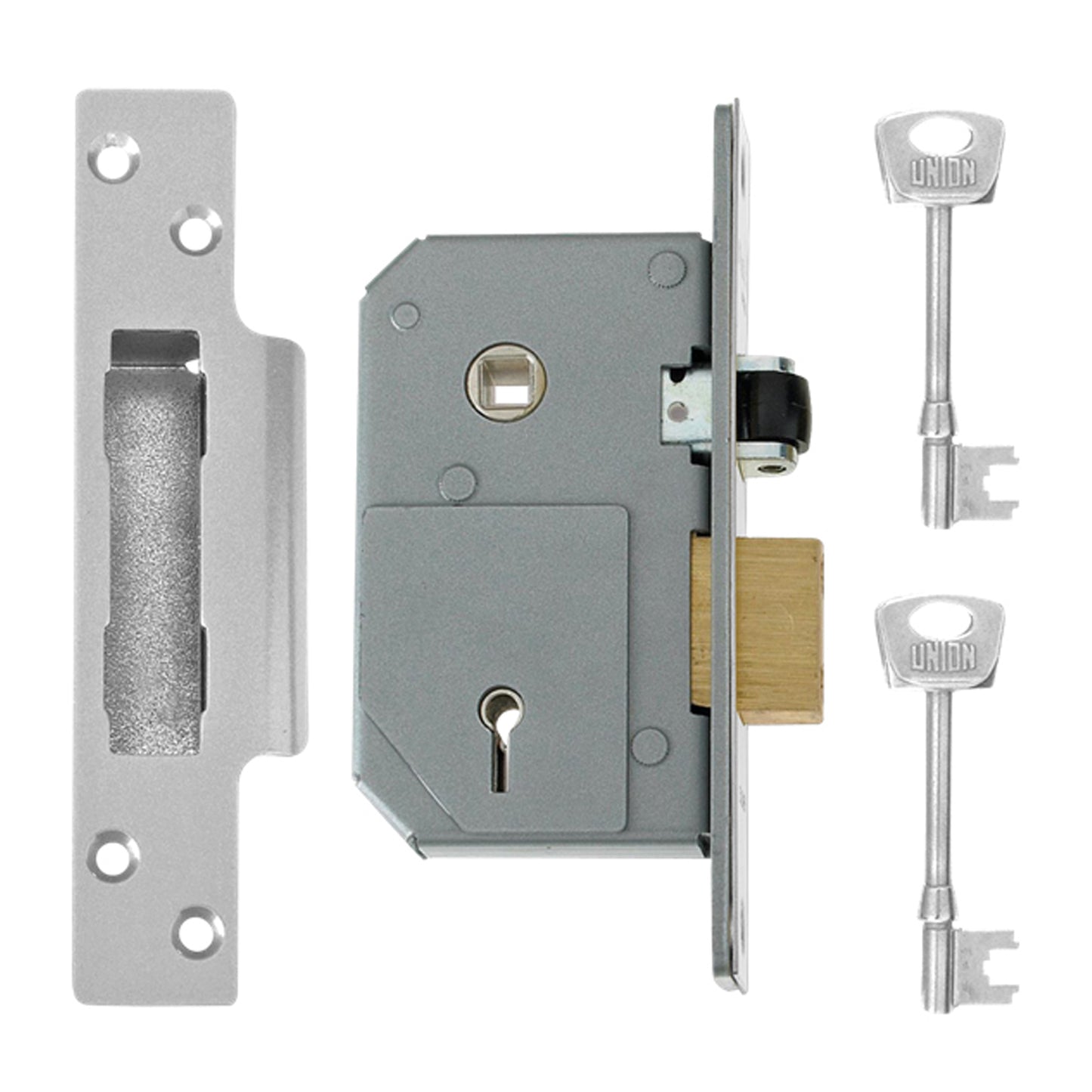

  • Satin Chrome

Standards:

• EN1634-1 assessed for use on 60 minute timber fire doors
