Cowdroy Sliding Door Carriage Assembly - Available in Various Weight Ranges

Cowdroy Sliding Door Carriage Assembly

Sliding Door Carriage Assembly commonly used with Cowdroy track systems for large and heavy commercial or architectural sliding doors weighing up to 80-350kg.

Sliding Door Carriage Assembly Function - supports and carries the door along the polymer-lined track, providing smooth and reliable movement for high-load sliding installations.

Features:

• Precision-engineered carriage assemblies for Cowdroy NXS sliding-door systems
• Suitable for internal, commercial and architectural sliding doors
• Available in 80kg, 120kg and 350kg load capacities
• Bearings operate directly on engineered polymer track inserts
• Provides smooth, low-friction door movement
• Eliminates conventional roller-tyre wear
• Designed for reduced maintenance and long service life
• Compatible with standard and low-clearance installations
• Soft-close options available for the 80kg and 120kg systems

Specifications:

• Available Weight Ranges:

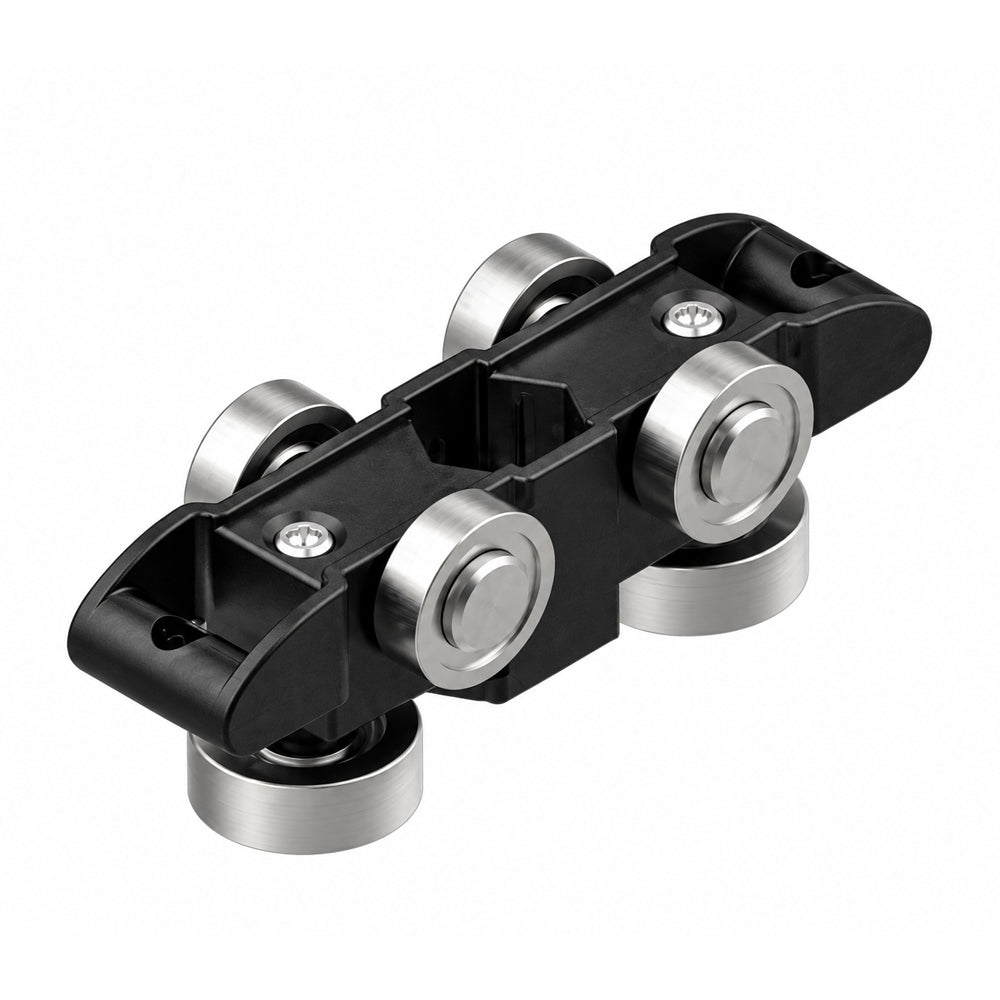

  • NXS080ZP: NXS-80 carriage assembly, zinc-plated finish, maximum 80kg per door

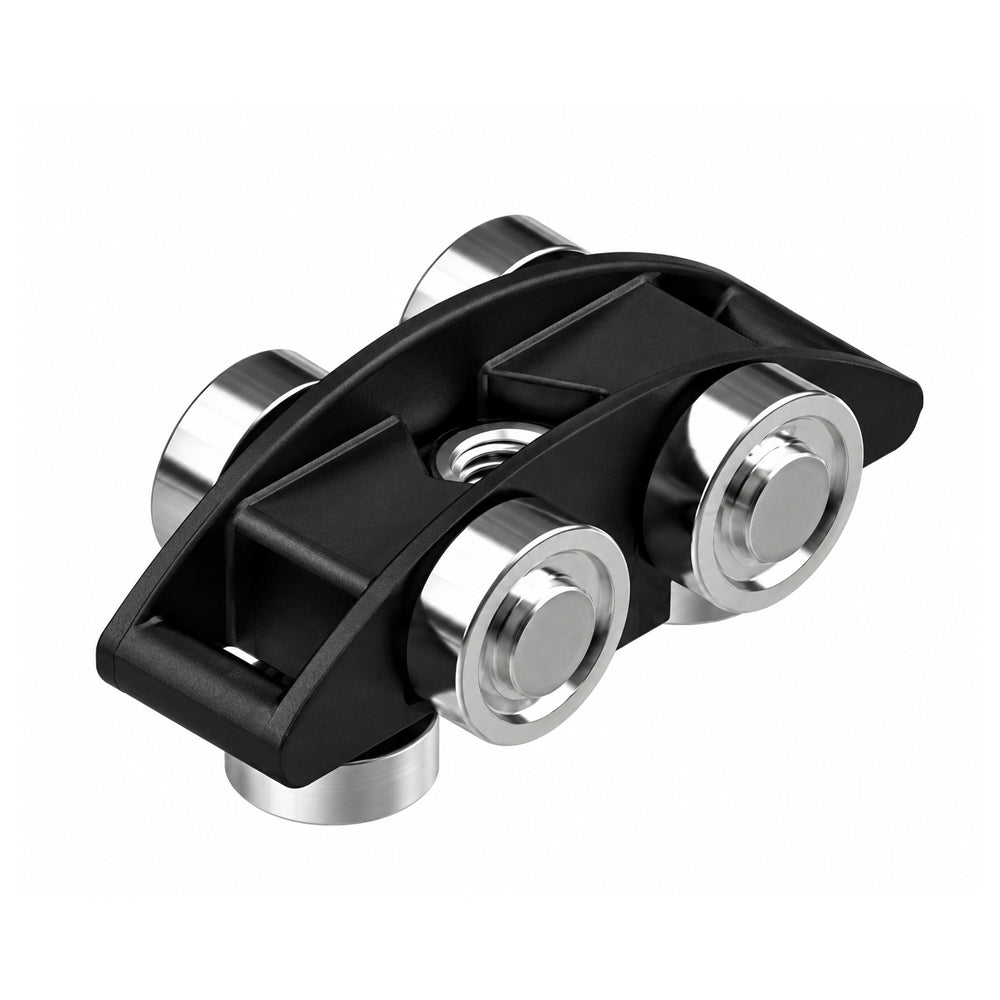

  • NXS120ZP: NXS-120 carriage assembly, zinc-plated finish, maximum 120kg per door

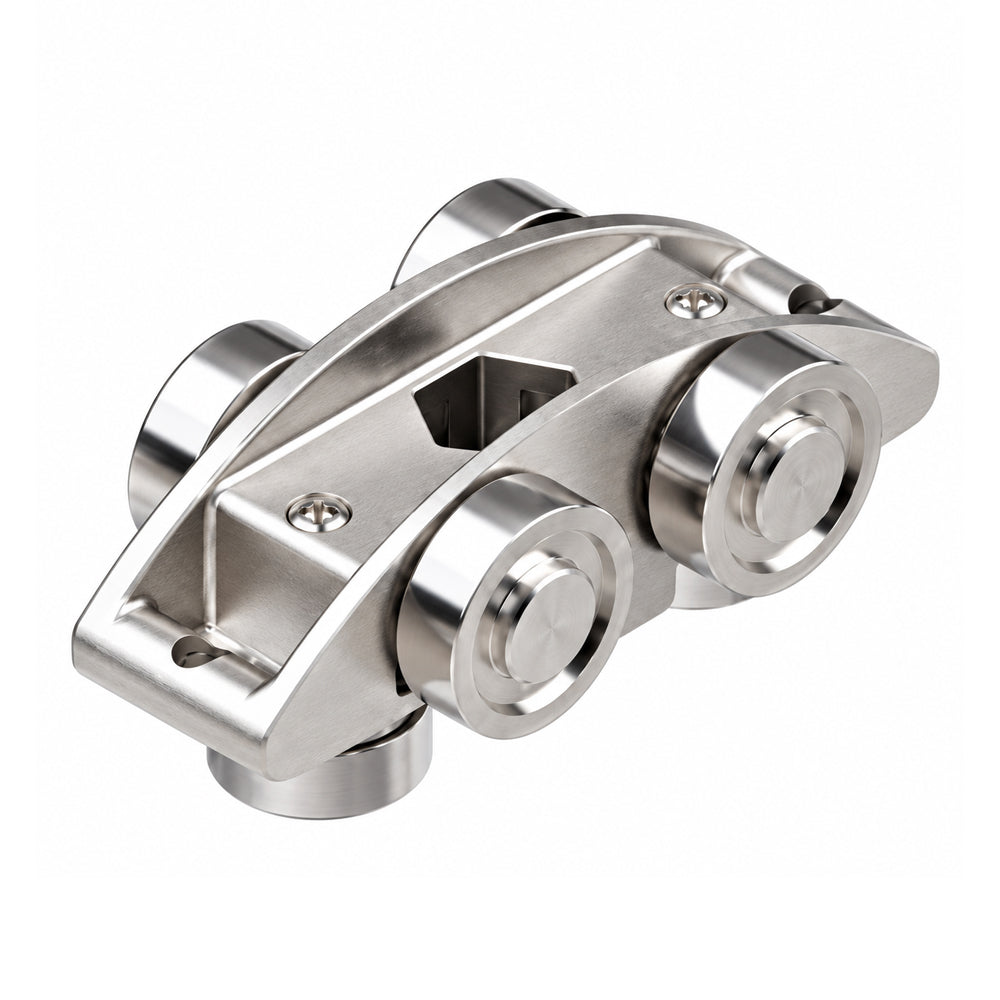

  • NXS350SS: NXS-350 carriage assembly, stainless-steel construction, maximum 350kg per door
• System Type: Top-hung sliding-door system
• Track Type: Enclosed hybrid aluminium track
• Track Insert: Black glass-filled polymer
• Minimum Door Thickness: 35mm
• Maximum Door Width:
  • 2000mm for NXS-80
  • 2500mm for NXS-120
  • 3000mm for NXS-350
• Low-clearance Compatibility: Available for all three systems
• Soft-close Compatibility: NXS-80 and NXS-120
• Application: Light- to heavy-duty commercial sliding doors and panels
