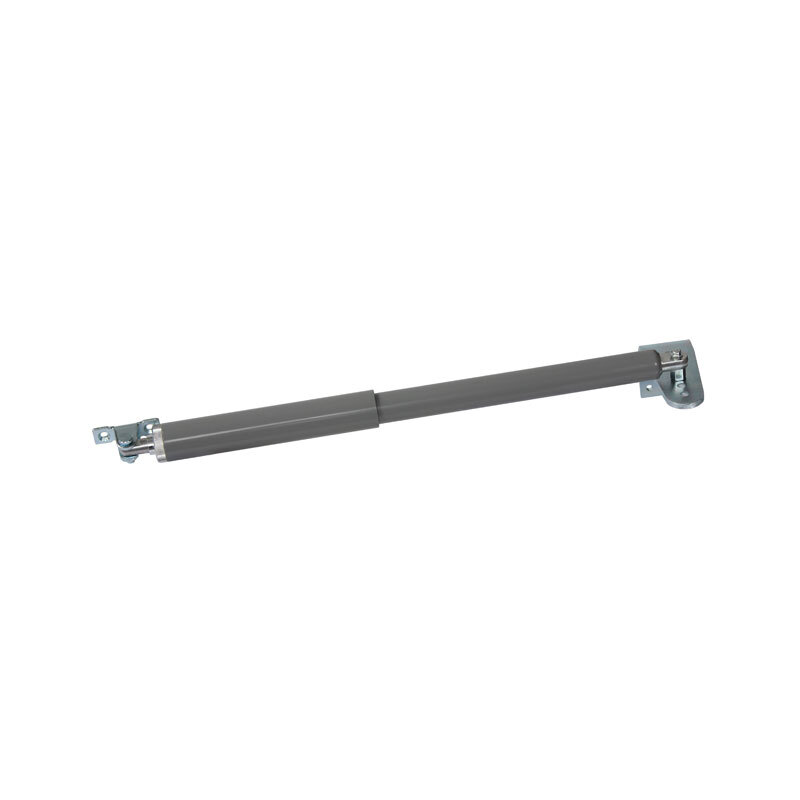

Dictator Direkt Gate and Door Closer 150mm Stroke up to 80Kg or 1.2m Wide 400N Dark Grey 1018-0127

Dictator Direkt Gate and Door Closer
1018-0127

Gate and Door Closer is commonly used in commercial buildings, public facilities, and residential properties for secure and efficient door operation.

Gate and Door Closer Function - is designed to automatically ensures secure and controlled closing of doors, enhancing safety and convenience.

• The gate closer DIREKT operates directly on the gate/door without the help of any lever.

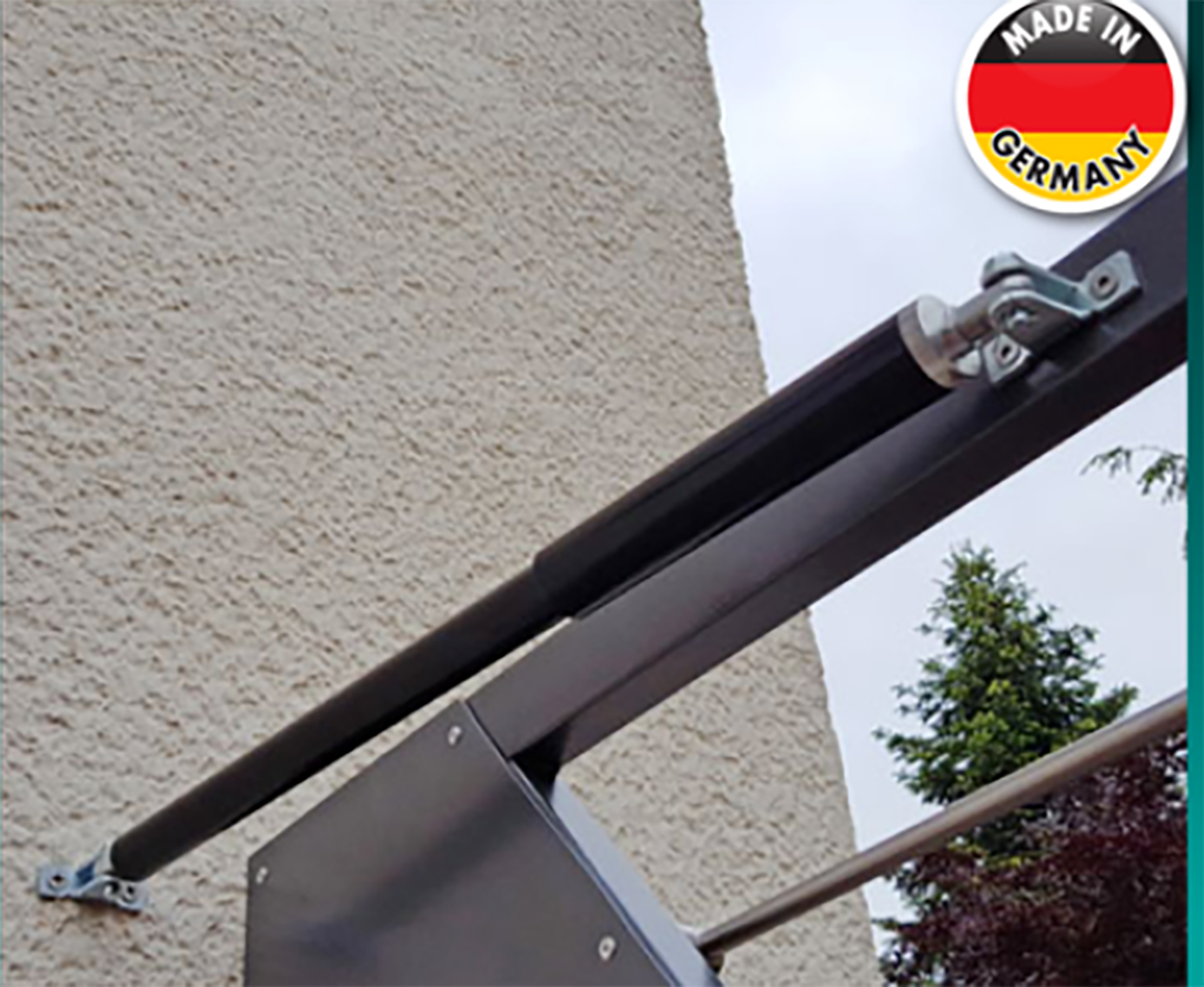

• It is fixed with one end to the gate post or the door frame and with the other to the door or gate itself.
• It operates similarly to a gas spring.
• When the gate is open, the piston rod of the gate closer is compressed and the pressure of the gas inside the gate closer acts on the piston.
• The piston rod extends and closes the door/gate.
• The cylinder of the gate closer contains hydraulic oil, which results in a controlled closing speed that is slowed down.
• By using nitrogen instead of a helical spring, much higher closing forces can be achieved.
• Thus the gate closer DIREKT always closes the door/gate reliably despite its small diameter.

Features:

• Versatile use on gate leaves up to 1200 mm width and 80 kg weight
• Perfect for retrofitting thanks to its multiple mounting accessories that allow many different installation possibilities
• Safe closing with continuous damping and no final latching action ensures protection of people
• Continuously adjustable closing speed

Specifications:

• Closing Speed: Steplessly adjustable
• Closing Force: Depending on model/installation type approx. 10 - 60Nm
• Material Piston Rod: Chrome Plated Steel, AISI 304, AISI 316L
• Material Cylinder: Zinc plated steel coated, AISI 304, 316L
• Material Protection Tube: Aluminium coated, AISI 304, AISI 316L
• Opening Angle: Max. 110 Degrees
• Weight Per Door Leaf: Up to about 80 kg
• Size Per Door Leaf: Max. height approx. 2500, width approx. 750 - 1200 mm
• Finish: Dark Grey
