SKU: DORM45200412
Dormakaba 50SPIN Spindle Insert Suits BTS Zinc 50mm
RRP: $181.50
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Features:
- The Dormakaba 50mm spindle inserts are a range of interchangeable spindles is available to provide greater floor clearance if required (e.g. doors with thresholds, carpeted floors etc)
- Special spindles available on application: e.g. with flat face profile and 3° offset or square section; spindles for non-Dormakaba-specific accessories are also available
- Suits BTS
- Finished in zinc

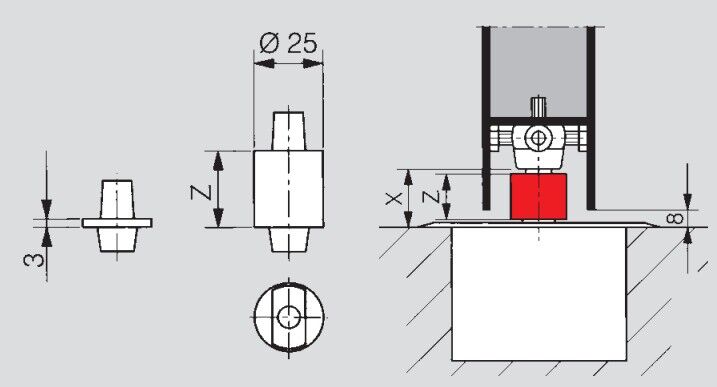

Calculating the necessary length of spindle extension
Extension = X – Floor clearance (normally 8 mm)
Collar height Z of the extended spindle inserts = Spindle extension length + 3 mm
(collar height of the standard spindle insert)
