SKU: DORM45200411
Dormakaba BTS Spindle Insert 45mm Zinc Plated 45200411
RRP: $181.50
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

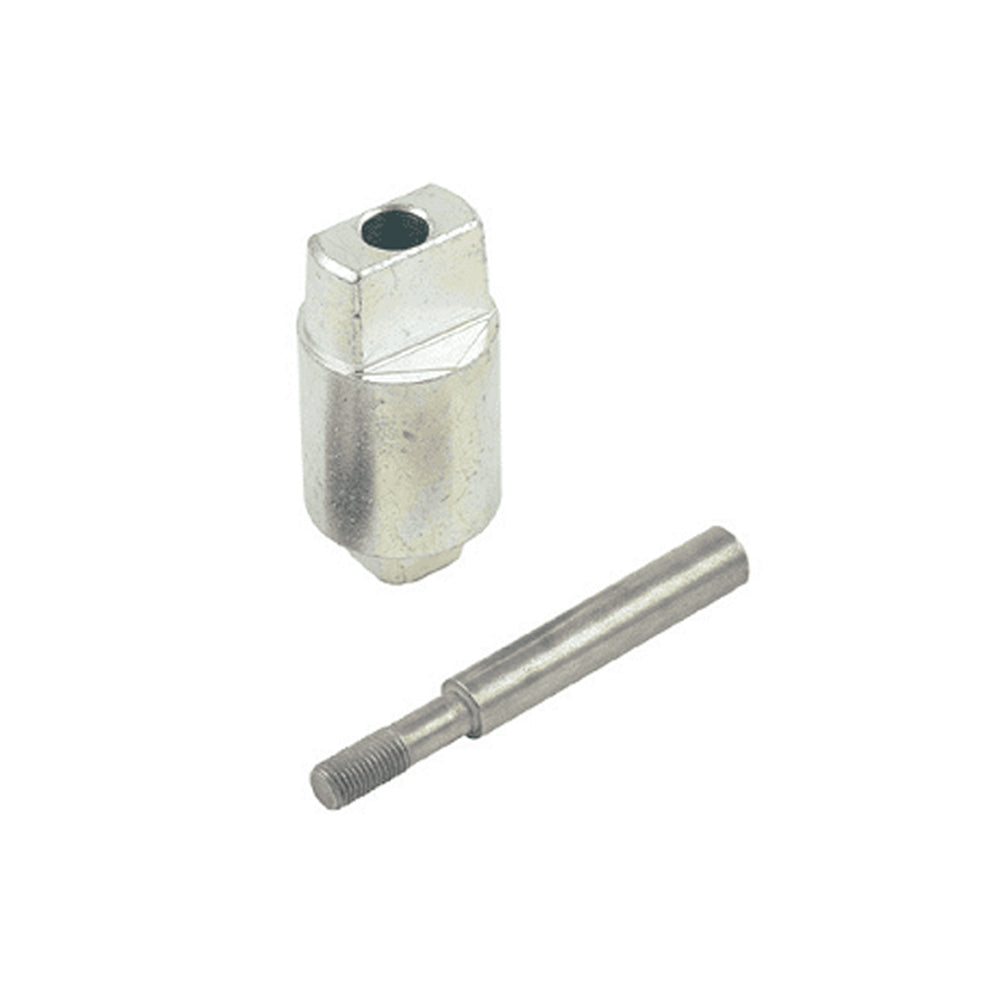

Dormakaba BTS Spindle Insert
45200411
Features:
- Provide greater floor clearance if required (e.g. doors with thresholds, carpeted floors etc)
- For Dormakaba BTS floor springs
- Finished in zinc
Specifications:

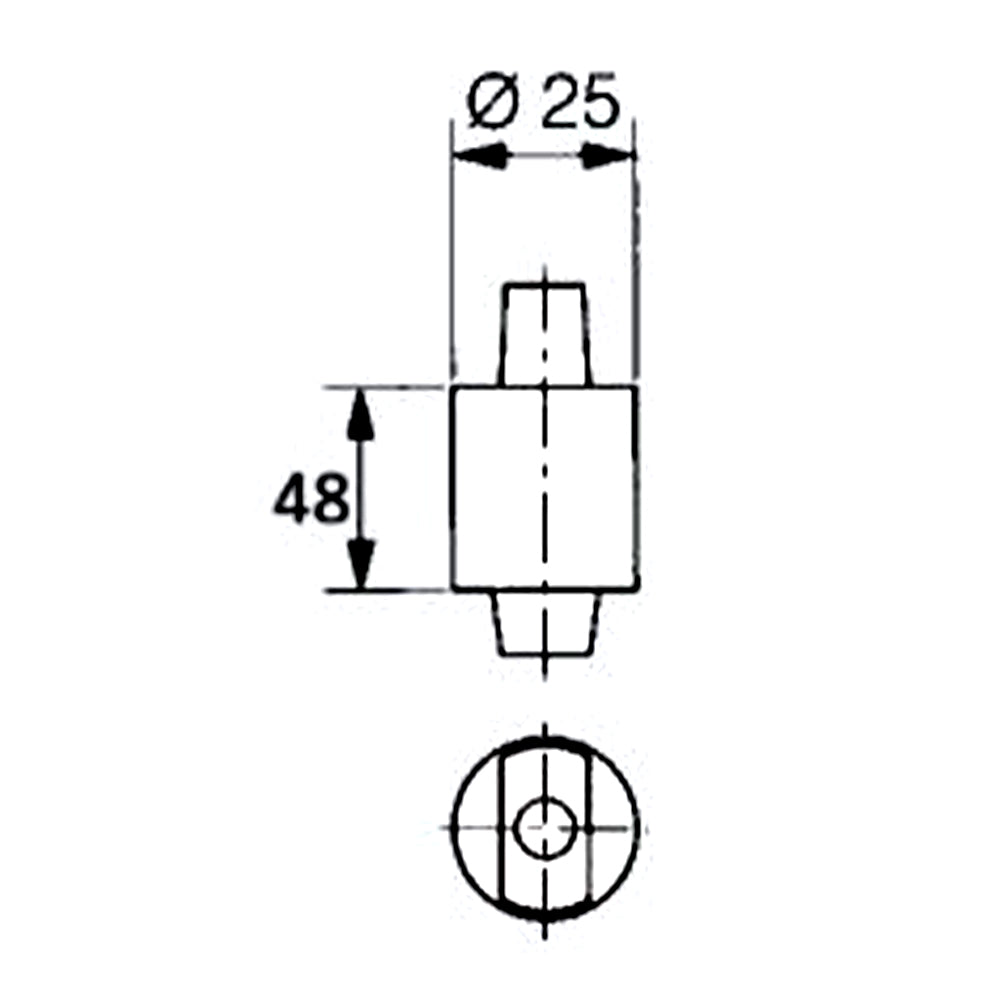

- Size: 45mm extended
- Finish: Zinc plated

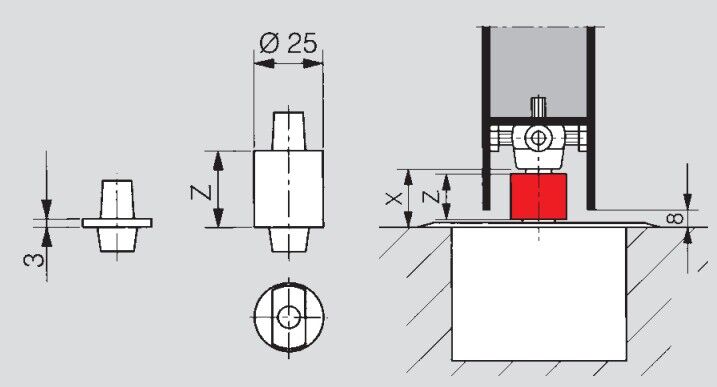

Calculating the necessary length of spindle extension
Extension = X – Floor clearance (normally 8 mm)
Collar height Z of the extended spindle inserts = Spindle extension length + 3 mm
(collar height of the standard spindle insert)
