SKU: DORM45200403
Dormakaba BTS Spindle Insert - Extended By 7.5mm 45200403
RRP: $124.58
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

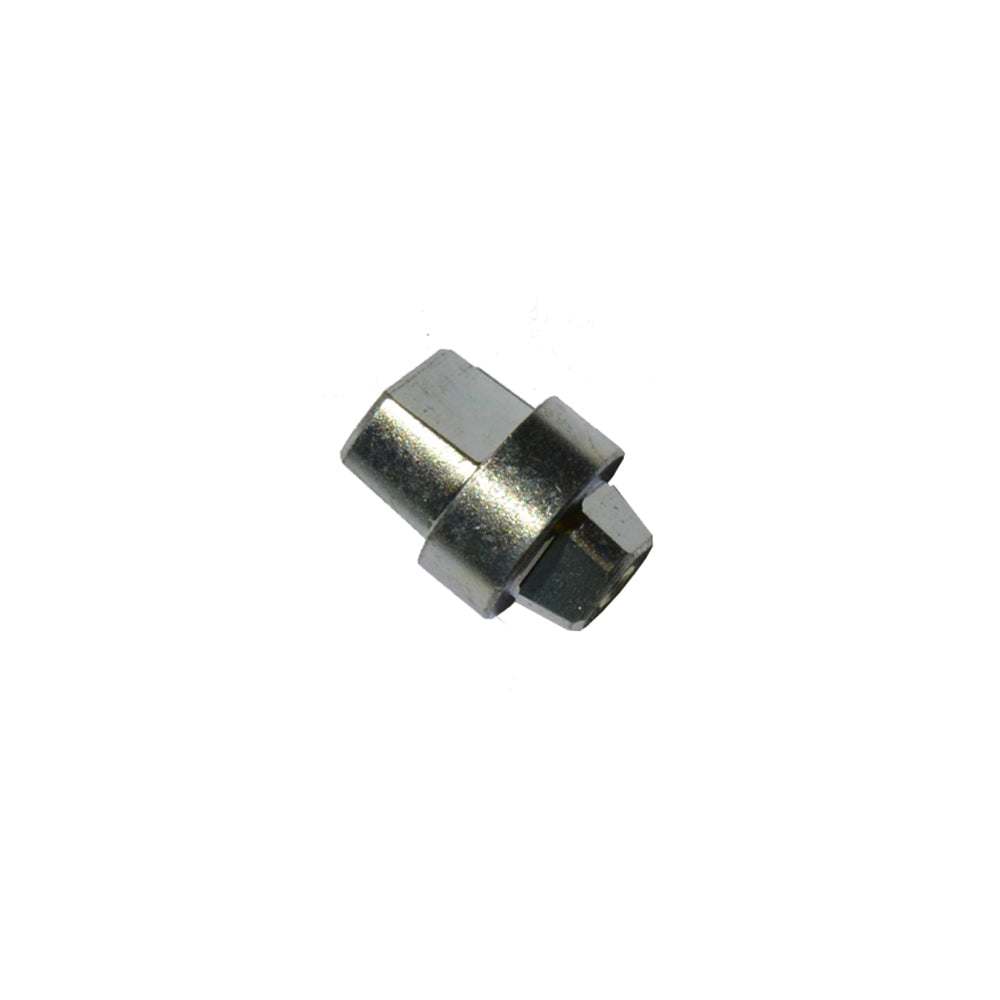

Dormakaba Spindle Insert Extended By 7.5 mm
45200403
Features:
- Provide greater floor clearance if required (e.g. doors with thresholds, carpeted floors etc)
- Extended spindle to suit the Dormakaba BTS concealed floor spring
- Ideal for carpeted floors or doors with thresholds

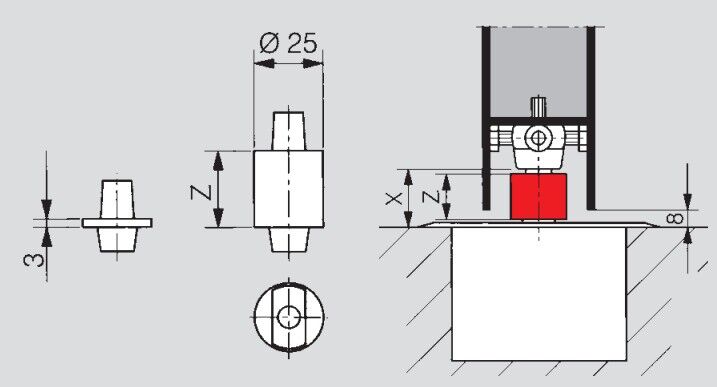

Calculating the necessary length of spindle extension
Extension = X – Floor clearance (normally 8 mm)

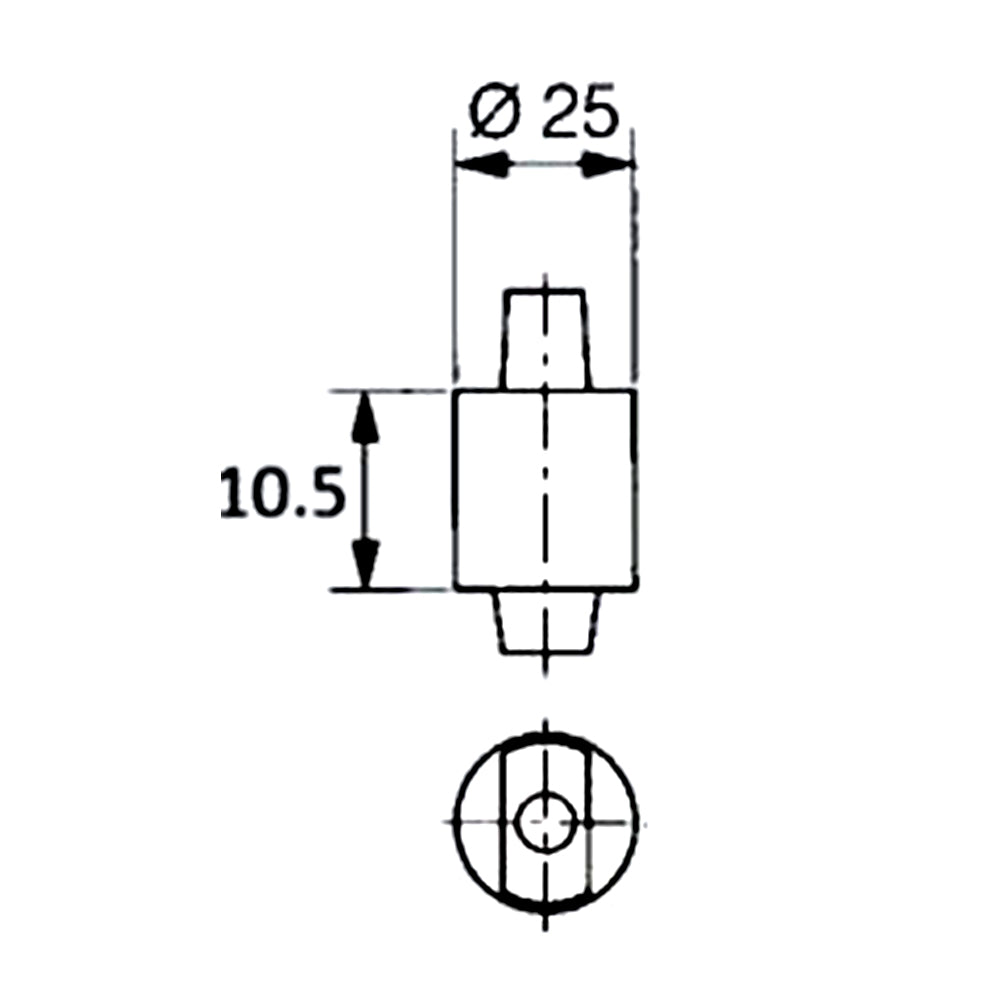

Collar height Z of the extended spindle inserts = Spindle extension length + 3 mm
(collar height of the standard spindle insert)
Dormakaba Spindle Insert Extended By 7.5 mm
45200403
Features:
- Provide greater floor clearance if required (e.g. doors with thresholds, carpeted floors etc)
- Extended spindle to suit the Dormakaba BTS concealed floor spring
- Ideal for carpeted floors or doors with thresholds
Calculating the necessary length of spindle extension
Extension = X – Floor clearance (normally 8 mm)
Collar height Z of the extended spindle inserts = Spindle extension length + 3 mm
(collar height of the standard spindle insert)
