Dorma Concealed Door Loop 260 Maximum Opening Angle 110 Degrees Stainless Steel 15811000

Dorma Concealed Door Loop
15811000

Door Loop is a type of accessory used in door installations, particularly in commercial or security applications, to protect and guide electrical wiring or cabling from the door frame to the door itself.

Door Loop Function - provide a safe and organized pathway for electrical wires, cables, or wiring harnesses that need to pass between the door and the frame. This is common in installations where electric locks, access control systems, or other electronic devices are mounted on or integrated into the door.

Features:

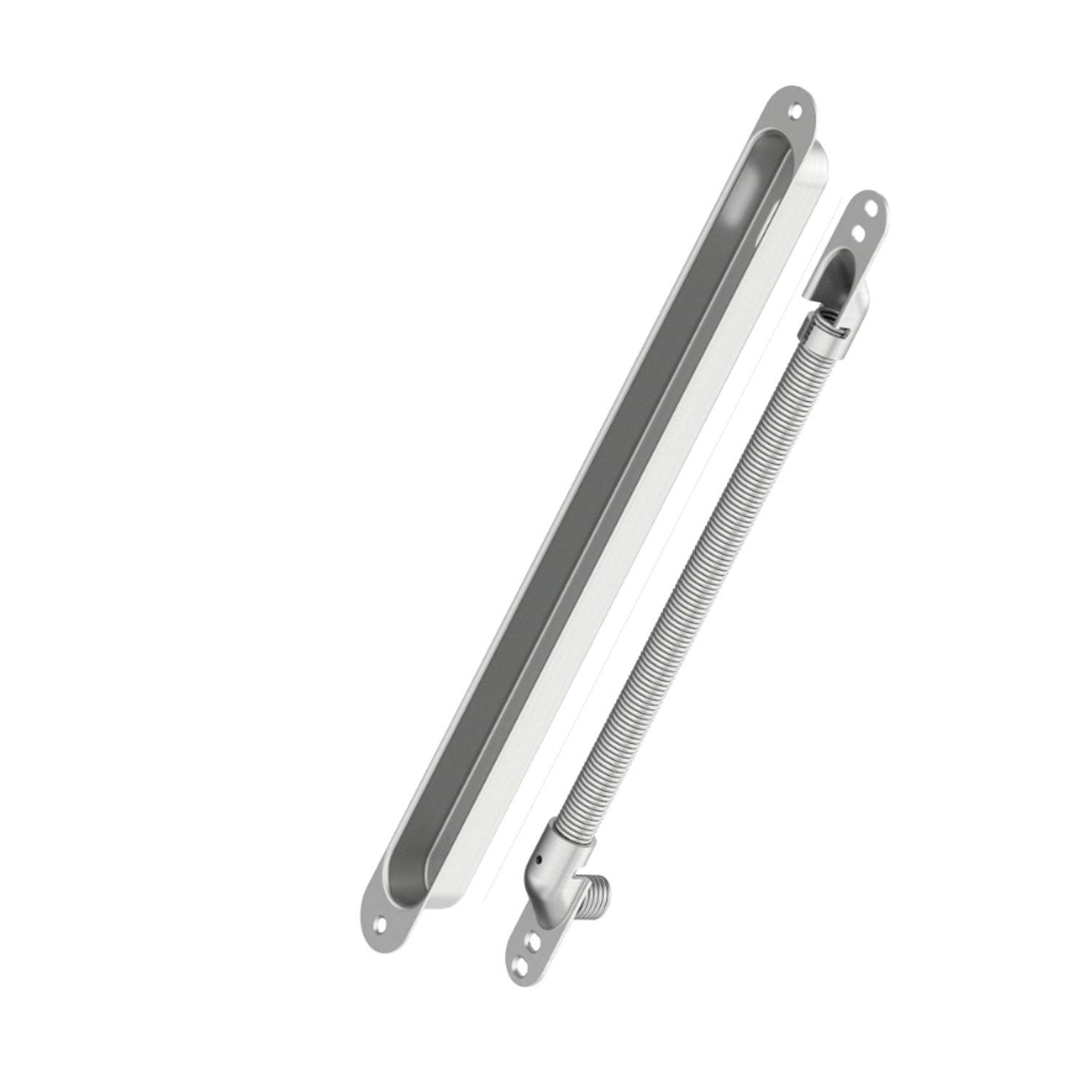

• The Dormakaba door loop 260 is a stainless steel spiral with installation case for inserting flexible connection cables of up to 7.5 mm diameter
• Guarantees a crush-free and tamper-proof connection between the leaf and frame of doors and windows
• Suits door hinges with a pivot point of up to 18mm

Specifications:

• Width: 24mm
• Height: 260mm
• Depth: 17mm
• Length: 155m (flexible spiral)
• Maximum opening angle: 110 degrees
• Finish: Stainless Steel
