SKU: DORMBTS75VA90
Dormakaba EN1-4 Floor Spring 90 Deg Hold Open Kit BTS75VA90 For Aluminium Door
RRP: $1,968.65
Payments accepted:
Couldn't load pickup availability
Dormakaba Floor Spring
BTS75VA90
Floor Spring Door Closer is a mechanical door closing device mostly used for glass doors along with patch fitting. Mostly used where both pull and push movements are required. Floor springs are used is in the Interior doors of Business parks, malls, and Hospital buildings.
Floor Spring Door Closer Function - designed to hold the door open when the door is opened past 90 degrees. Simple pushing of the door towards the closed position activates the closer and it also commences the closing action of the door.

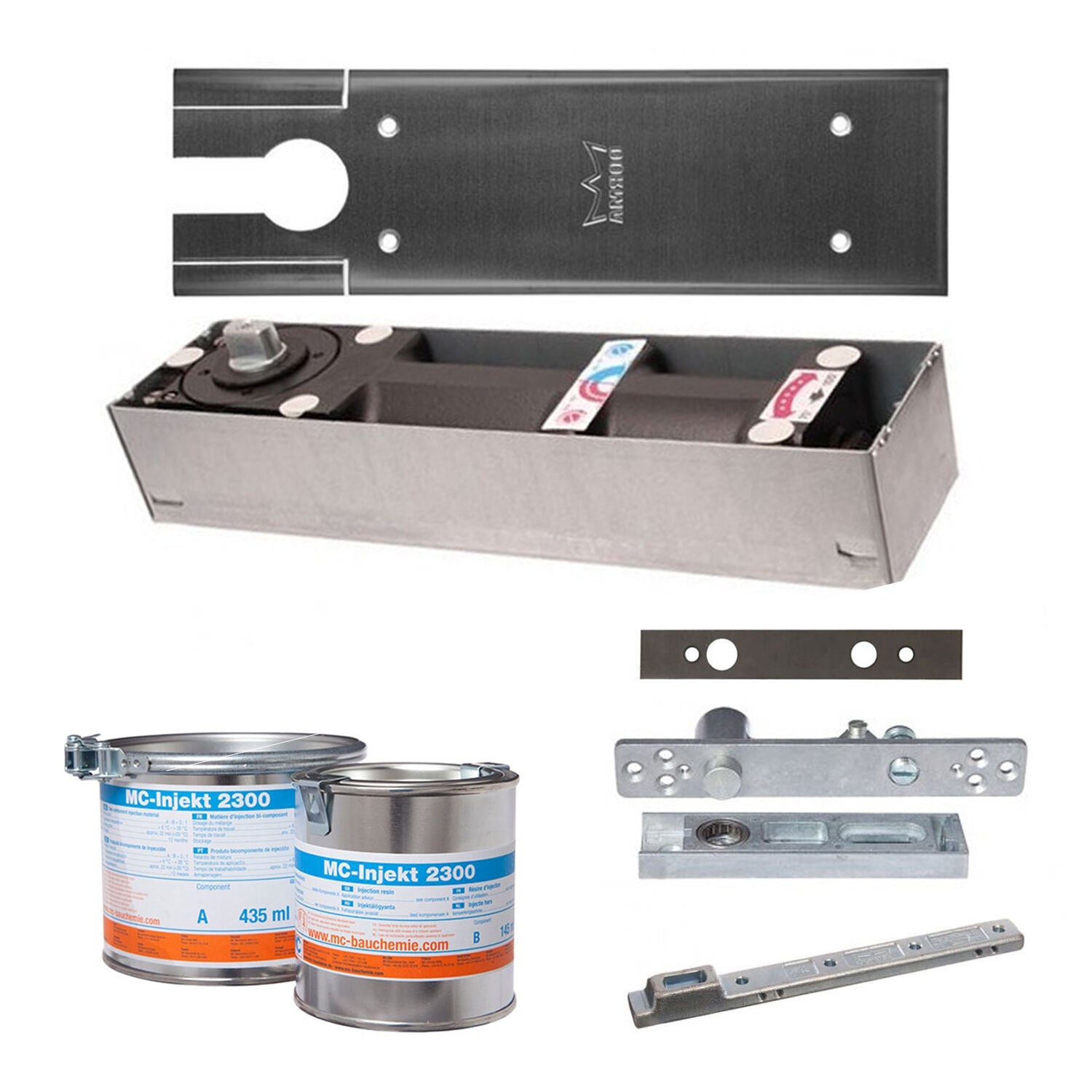

Includes:
- 1 x Dormakaba Floor Spring 90 Degrees Hold Open (61701200)
- 1 x Dormakaba Top Centres 8062 (8062)
- 1 x Dormakaba Door Strap 7422 (46010002)
- 1 x Dormakaba Cover Plate 7510V (46700059)
- 1 x Dormakaba Sealing Compound 2300 (45090086)
The Dormakaba BTS 75 V is a highly adaptable floor spring suitable for all standard single, and double-action doors with widths up to 1100 mm and 120kg door weight. This floor spring is enhanced by its adjustable closing force of EN 1-4 individually regulated using an adjustment bolt.
Certified manufacturer of ISO 9001.
Features:
- For single- & double-action doors
- Adjustable spring strength
- Universal application range
- Concealed installation
- Door weights 120kg

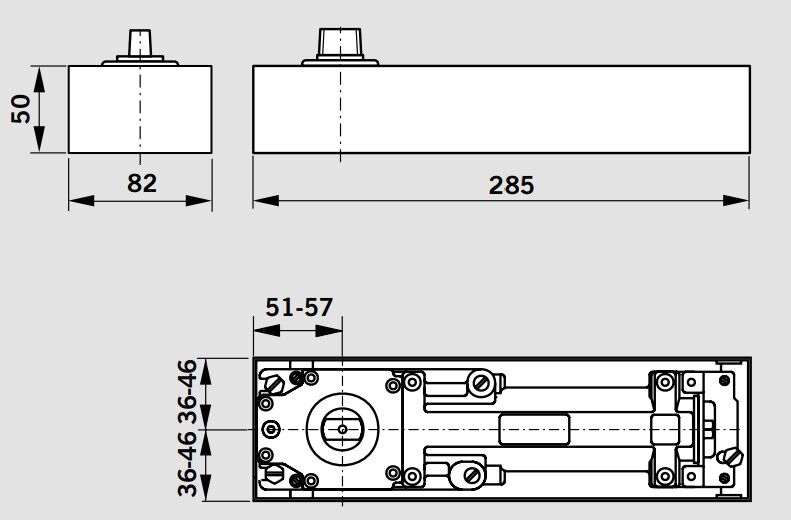

Specifications:
- Length: 285mm
- Width: 82mm
- Height: 50mm
- Weight: 3.0kg
- Hold-open

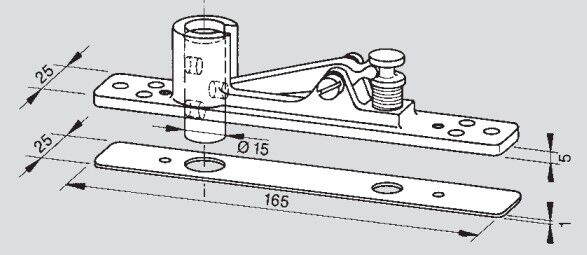

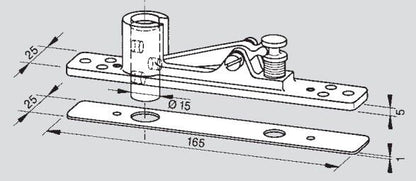

Dormakaba 8062 Top Center
46300003
Features:
- Suitable for double-action steel, aluminum, and timber doors
- Made of die-cast aluminum
- It comprises a frame portion with an adjustable pin for deep profiles up to a max. 20mm, and a door portion with needle bearing
- Suits BTS 75V

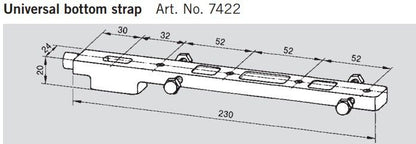

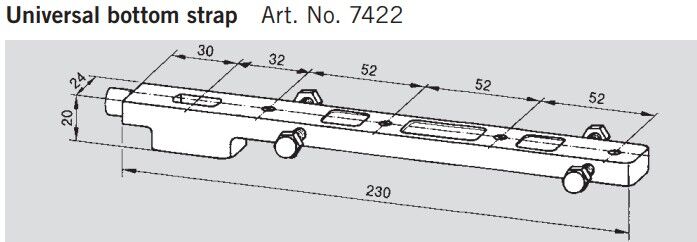

Dormakaba 7422 Bottom Strap
46010002
Features:
- Suits BTS floor springs for double-action aluminum doors
- Drop forged steel, zinc-plated; adjustable to various frame profiles

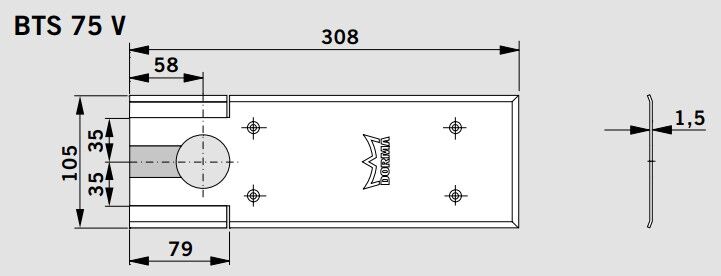

Dormakaba 7510V Universal Cover Plate Satin Stainless Steel BTS75
46700059
Features:
- Suits BTS 75V floor spring
- Adaptable for right or left-hand single-action applications by simply snapping off the appropriately pre-blanked corner sections. For center-pivoted (double-action) doors, the corner sections remain in place.
Specifications:
- Length: 308mm
- Width: 105mm
- Thickness: 1.5mm
- Finish: Satin Stainless Steel
