SKU: DORMTS93G15GNAB
Dormakaba EN1-5 Cam Action Door Closer Push Side w/ Slide Arm and Bracket Silver TS93G15GNAB
RRP: $1,062.26
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

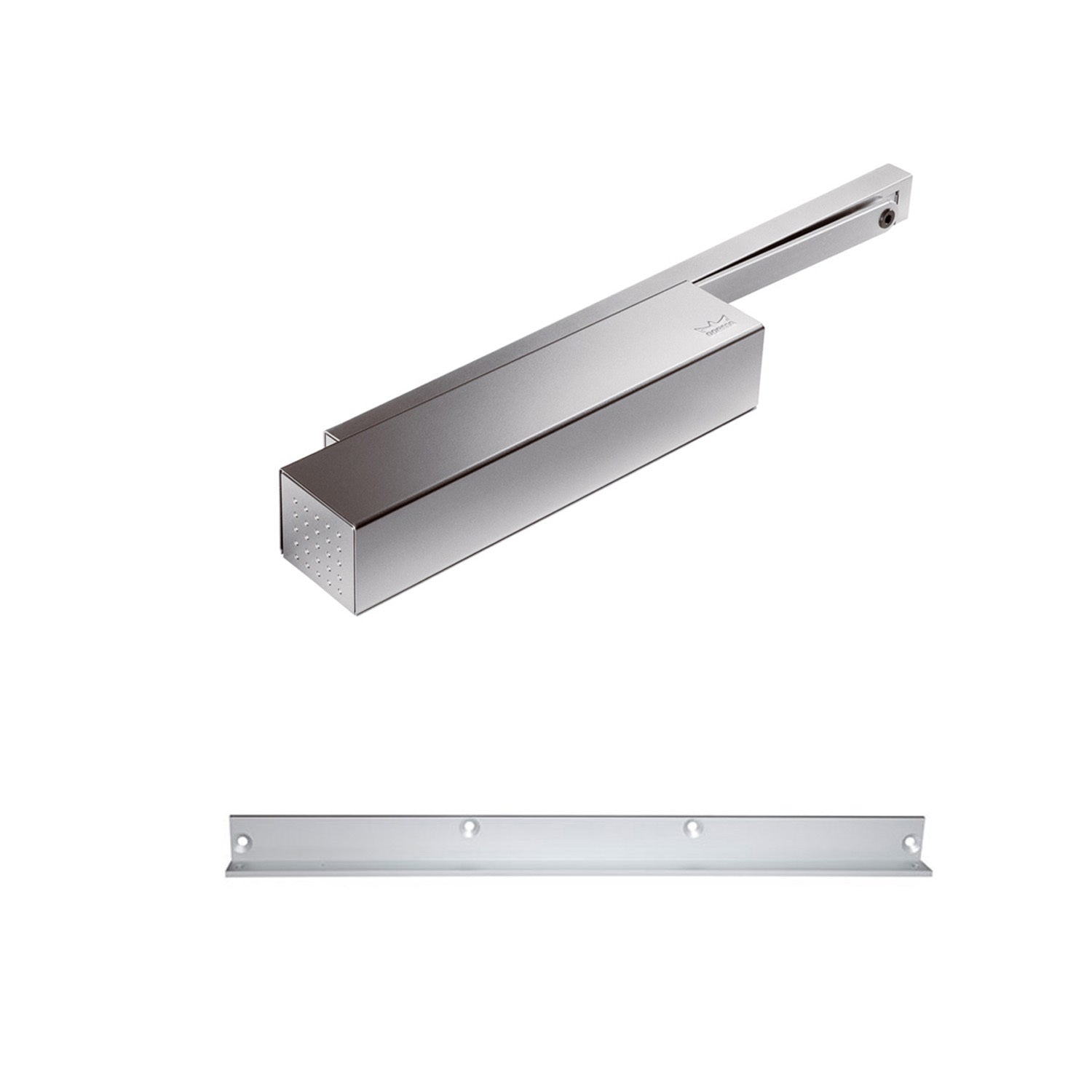

Dormakaba EN1-5 Door Closer Push Side w/ Slide Arm and Bracket
TS93G15GNAB
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x Dormakaba TS93G EN1-5 Door Closer Push Side w/ Slide Arm & Channel Silver (43100501)
- 1 x Dormakaba TS92AB Angle Bracket G-N Channel Suit G92/G93 N/RF Closer Silver (64430001)
Dormakaba TS93G EN1-5 Door Closer Push Side w/ Slide Arm & Channel
43100501
Features:
- Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
- Closing force adjustable with a screw and closing speed adjustable with a valve
- The latching speed, backcheck and delayed action is also adjustable at the valve
- Has a slide channel arm assembly
- Special model for push-side door leaf fixing/pull-side transom fixing
- Suitable for fire and smoke check doors where the cushioned limit stay is also used
- Suitable for single and double doors installation up to 1250 mm (W)

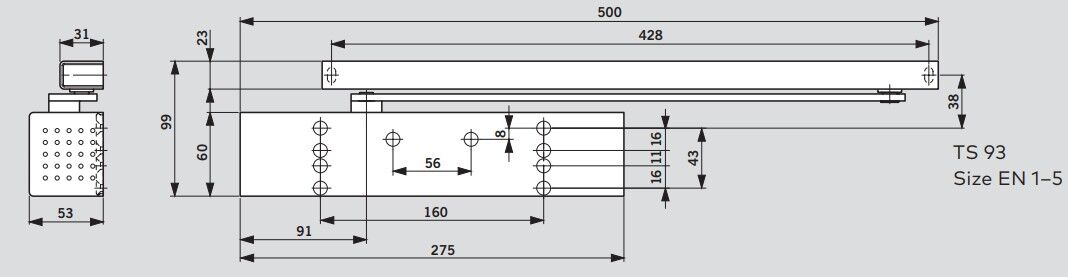

Specifications:
- Length: 275mm
- Width: 53mm
- Height: 60mm
- Weight: 3.5kg
- Adjustable Closing Speed: Yes
- Adjustable Latching Speed: Yes
- Has Backcheck: Yes
- Has Delay Action: Yes
- Has Hold Open: No
- Has Slide Arm: Yes
- Spring Strength: EN1-5
- Suits Push Side Of Door: Yes
- Fire Rated: Yes
- Finish: Silver
Note: For applications involving particularly heavy or wide doors, and doors which have to close against wind resistance, the next highest door closer size should be selected, or the closing force adjusted to a higher setting.
Dormakaba G-N Angle Bracket For TS92/TS93 N/RF Door Closer
64430001
Features:
- For push-side fixing of the slide channel to door frames with a deep reveal
Specifications:
- To Suit: TS92G & TS93G
- Finish: Silver
Dormakaba EN1-5 Door Closer Push Side w/ Slide Arm and Bracket
TS93G15GNAB
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x Dormakaba TS93G EN1-5 Door Closer Push Side w/ Slide Arm & Channel Silver (43100501)
- 1 x Dormakaba TS92AB Angle Bracket G-N Channel Suit G92/G93 N/RF Closer Silver (64430001)
Dormakaba TS93G EN1-5 Door Closer Push Side w/ Slide Arm & Channel
43100501
Features:
- Non-handed modular system including a heart-shaped cam suiting a number of door designs & fixing positions
- Closing force adjustable with a screw and closing speed adjustable with a valve
- The latching speed, backcheck and delayed action is also adjustable at the valve
- Has a slide channel arm assembly
- Special model for push-side door leaf fixing/pull-side transom fixing
- Suitable for fire and smoke check doors where the cushioned limit stay is also used
- Suitable for single and double doors installation up to 1250 mm (W)
Specifications:
- Length: 275mm
- Width: 53mm
- Height: 60mm
- Weight: 3.5kg
- Adjustable Closing Speed: Yes
- Adjustable Latching Speed: Yes
- Has Backcheck: Yes
- Has Delay Action: Yes
- Has Hold Open: No
- Has Slide Arm: Yes
- Spring Strength: EN1-5
- Suits Push Side Of Door: Yes
- Fire Rated: Yes
- Finish: Silver
Note: For applications involving particularly heavy or wide doors, and doors which have to close against wind resistance, the next highest door closer size should be selected, or the closing force adjusted to a higher setting.
Dormakaba G-N Angle Bracket For TS92/TS93 N/RF Door Closer
64430001
Features:
- For push-side fixing of the slide channel to door frames with a deep reveal
Specifications:
- To Suit: TS92G & TS93G
- Finish: Silver
