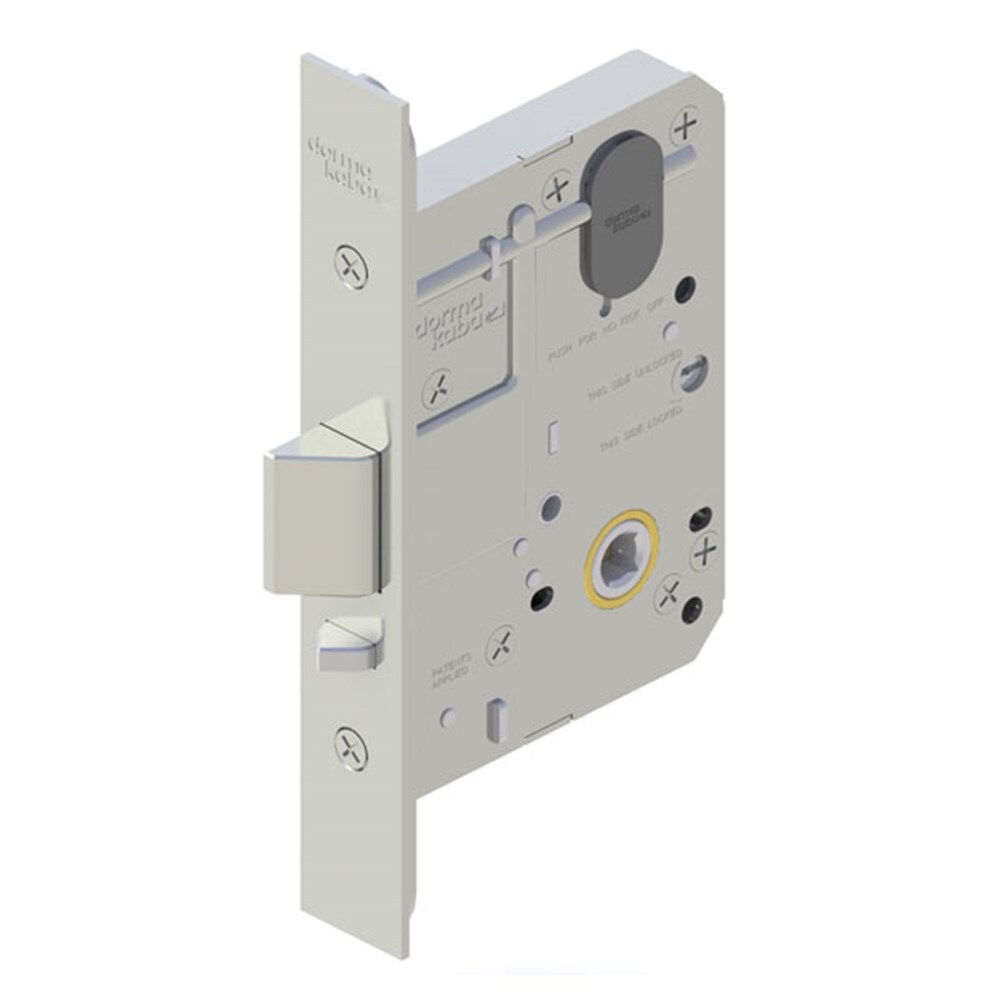

Dormakaba MS2602 Heavy Duty Commercial Mortice Lock
The Dormakaba MS2602 is a heavy duty commercial mortice lock built for high-security applications on exterior and interior doors. It delivers double-cylinder deadbolt security - keyed on both sides - making it ideal for doors with adjacent glass panels where an intruder could otherwise reach in and turn an interior knob.
Constructed from 304-grade stainless steel with a satin finish, the MS2602 is engineered for long-term durability in commercial environments. It is SCEC approved at Security Level 3 and conforms to AS4145.2-2008 at both SL8 (Physical Security) and D8 (Durability) - making it suitable for government, defence and other security-conscious installations.
Supplied less cylinder, giving you the flexibility to specify your preferred cylinder and keying system. Includes a turn snib adaptor, supports anti-lockout functionality, and is compatible with most electric strikes for access control integration.
Features:
- SCEC approved - Security Level 3
- AS4145.2-2008 compliant: SL8 physical security + D8 durability
- 14mm stainless steel reversible latch bolt
- 60mm backset - suits doors 32mm-50mm thick
- Fire rated
- Anti-lockout feature included
- Compatible with most electric strikes and restricted keying systems
- Supplied with turn snib adaptor, less cylinder
Specifications:
| Brand | Dormakaba |
| Model | MS2602 (MS2602SSS) |
| Material | 304 Grade Stainless Steel |
| Finish | Satin Stainless Steel |

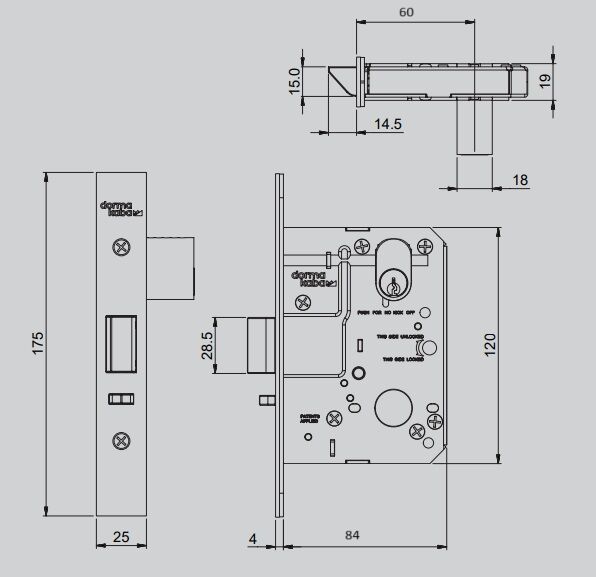

| Backset | 60mm |
| Door Thickness | 32mm - 50mm |
| Latch Bolt | 14mm stainless steel, reversible |
| Fire Rated | Yes |
| Anti-Lockout | Yes |
| SCEC Approved | SL3 |
| Australian Standard | AS4145.2-2008 - SL8 Physical Security / D8 Durability |
| Electric Strike | Compatible with most electric strikes |
| Cylinder | Not included - sold separately |
| Includes | Turn snib adaptor |
Frequently Asked Questions
Q: Does this lock come with a cylinder?
A: No, the MS2602 is supplied less cylinder. This allows you to select a cylinder compatible with your preferred keying system. Contact us if you need help choosing the right cylinder.
Q: Is this lock suitable for a government or high-security installation?
A: Yes. The MS2602 is SCEC approved at Security Level 3 and conforms to AS4145.2-2008 at SL8 (Physical Security) and D8 (Durability), making it appropriate for government, defence and other security-critical environments.
Q: Can this lock be used with an access control system?
A: Yes. The MS2602 is compatible with most electric strikes, making it straightforward to integrate into access control systems.
Q: What does "supplied less cylinder" mean?
A: It means the lock body is included but the cylinder - the part you insert the key into - is not. This is standard practice for commercial locks, as it lets you specify your preferred brand and keying system.
Q: What door thickness does this lock suit?
A: The MS2602 suits doors between 32mm and 50mm thick, with a 60mm backset.
Dormakaba MS2602SSS Heavy Duty Mortice Lock
MS2602SSS
Mortice Lock provides more security on exterior doors that have windows. (e.g. When intruders attempt to break into a building through a window, the key lock on the inside of the door will stop them from entering)
Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted
Features:
- MS2602 primary mortice lock
- Operated by key or handle outside or by turnsnib, key or handle inside
- 14 mm stainless steel reversible latch bolt
- Easily adapted to most functions
- Supplied with turn snib adaptor
- Supplied less cylinder
- Compatible to most restricted keying systems
- Compatible with most electric strikes
- SCEC approved (SL3)
- Conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008
- Conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008
Specifications:
- Material: 304 Grade Stainless Steel
- Backset: 60mm
- Door Thickness: 32mm - 50mm
- Fire Rated: Yes
- Anti-Lockout: Yes
- Finish: Satin Stainless Steel
