SKU: DORMRTS854T90
Dormakaba Transom Closer EN4 90 degree Hold Open Timber Combi Pack RTS85T
RRP: $973.03
Payments accepted:
Couldn't load pickup availability
Dormakaba Transom Closer EN4 90 degree Hold Open Timber Combi Pack
RTS85T
Transom Closer allows a single or double action aluminium door or doors to be closed with precision.
Transom Closer Function - Above the door, a concealed in the aluminium transom profile ensures that the door closes after usage.
Includes:
- 1 x Dormakaba 85W Cover plate to suit steel and wooden door frames - satin stainless steel (10000051A)
- 1 x Dormakaba RTS85 EN4 Transom Closer (85322101)
- 1 x Dormakaba Bottom Pivot 8550 (85210005)
- 1 x Dormakaba Closer Arm 8530 (65310300)
The Dormakaba RTS 85 transom concealed door closer offers a solution for installations where door control must be provided without disturbing the aesthetic appearance of the door. A complete line of accessories is available to accommodate virtually any door and frame configuration. Certified to ISO 9001.

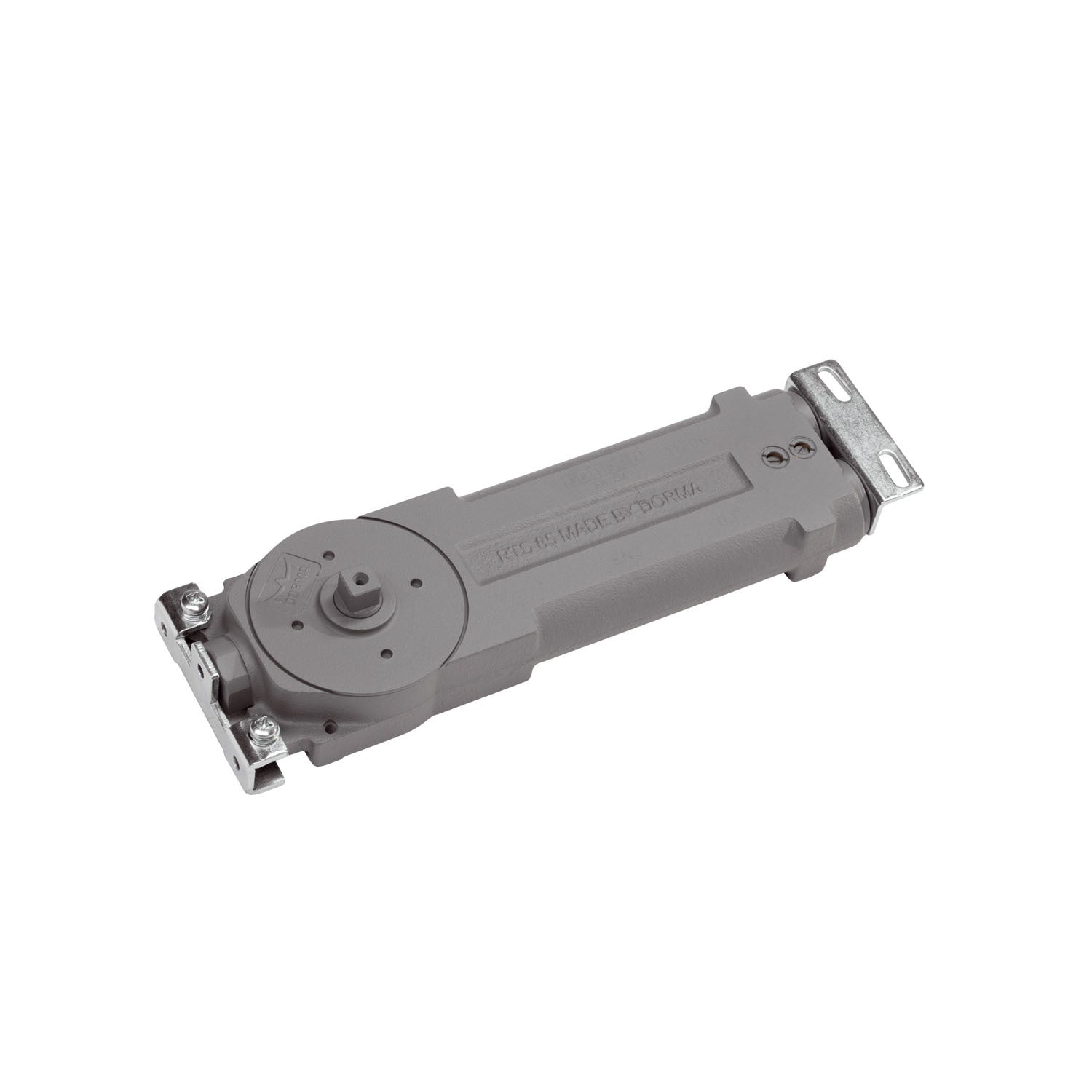

Dormakaba RTS85 EN4 Transom Closer
85322101
Features:
- For single and double action doors
- Backcheck function as standard
- Wide range of accessories for almost every configuration
- Concealed in the door frame
Specifications:
- Closing Force: EN4
- Internal doors up to and external doors: up to 1100mm
- Closing speed variable by valve adjustment: Yes
- Final closing speed variable by valve adjustment: Yes
- Backcheck: Yes
- Hold Open: 90 Degrees

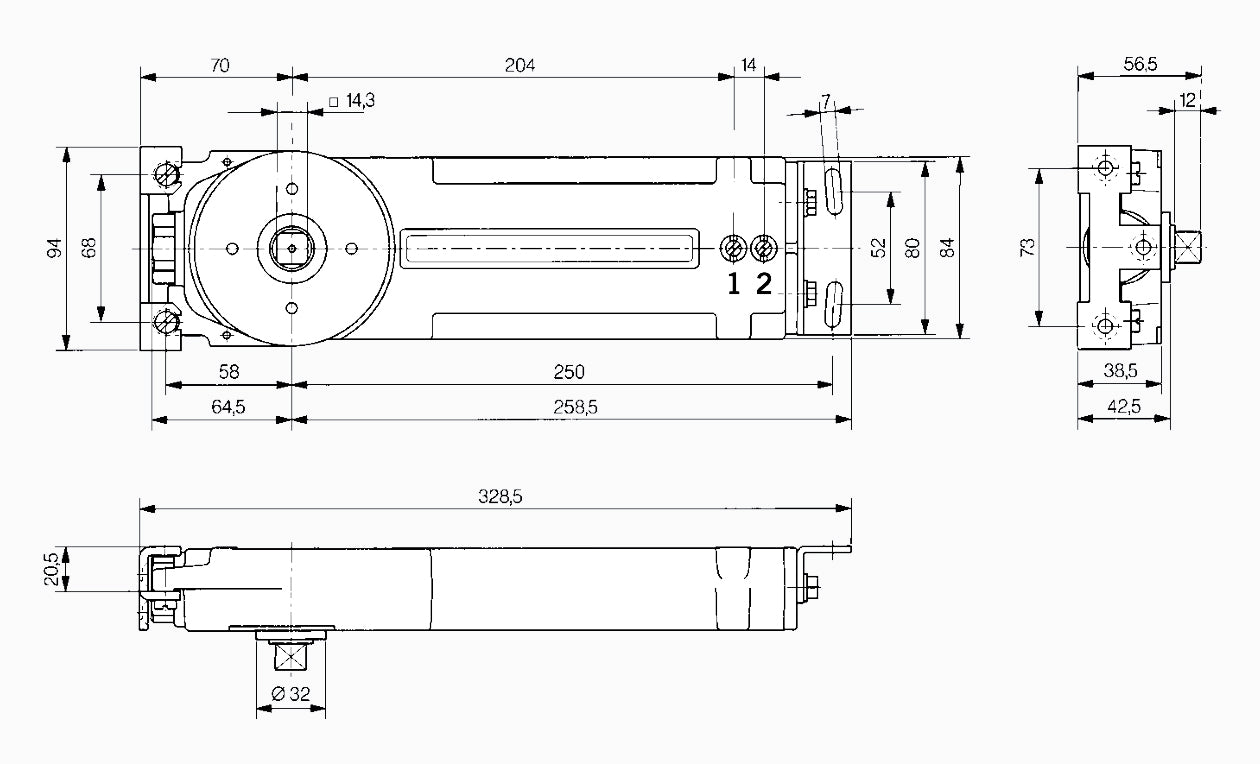

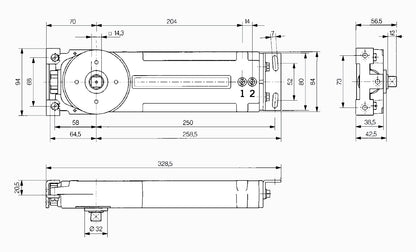

- Length: 323mm
- Width: 90mm
- Height: 38mm
- Weigth: 4.8kg
Dormakaba RTS85W Transom Coverplate Satin Stainless Steel
10000051A
Specifications:
- Satin Stainless Steel Cover plate
- Suits Dormakaba TS85 transom closers
- To suit steel and wooden door frames

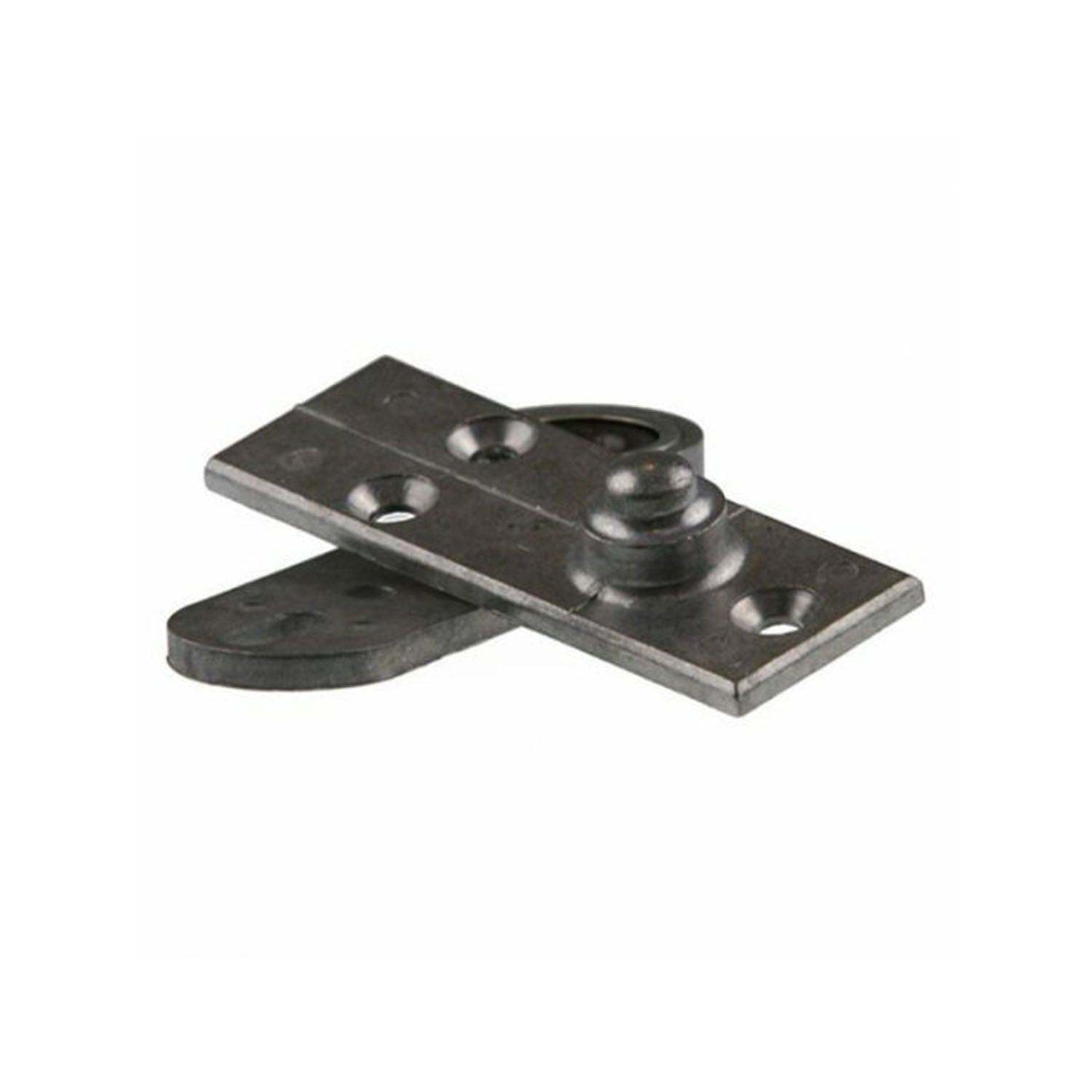

Dormakaba 8550 Transom Closer Pivot Timber
65310300
Features:
- The Dormakaba RTS85 floor pivot suits side-load installation
- Used on timber doors, floor portion is fitted directly to the floor
Specifications:
-
Suits Bottom Rails with Channel:
- Depth: 18-20mm
- Height: 27mm

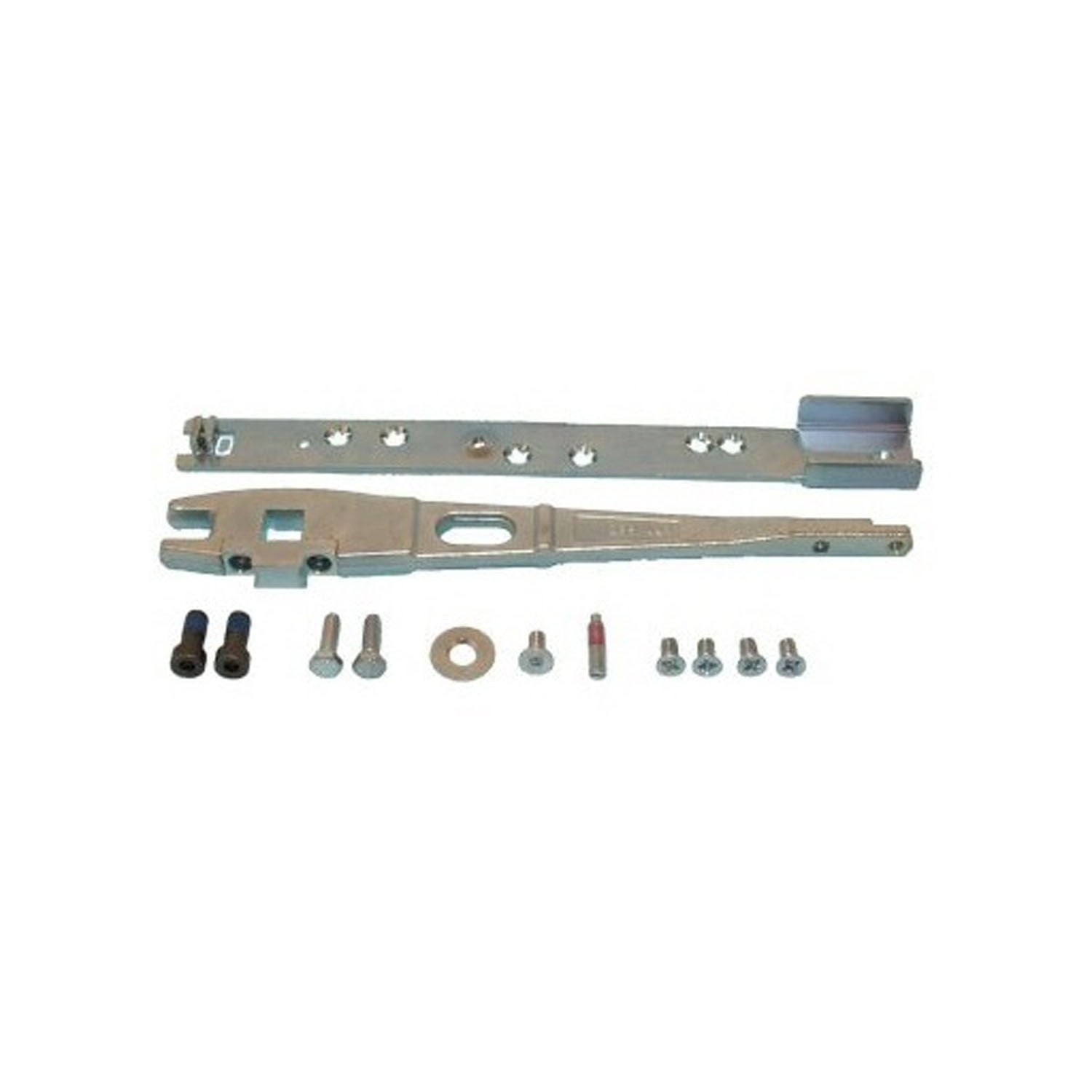

Dormakaba Transom Closer Arm w/ Bracket
85210005
A standard side load top arm for use with Dormakaba concealed transom door closers. The arm is fully adjustable allowing lateral adjustment through the hinge style. It also has hole and centre lines in the channel for easy location of the pivot point.
A Concealed overhead door closer makes sure that you don't have to worry about closing the door after usage.
If you're looking for a door closer that won't be an eyesore, then a concealed overhead door closer is the way to go. These types of door closers are installed above the door, so they're not visible when the door is closed. This makes them ideal for places where aesthetics are important, such as in businesses or office buildings. Another advantage of concealed overhead door closers is that they're less likely to be damaged than other types of door closers. Since they're out of the way and not visible, they're less likely to be hit by passing traffic or bumped into.
