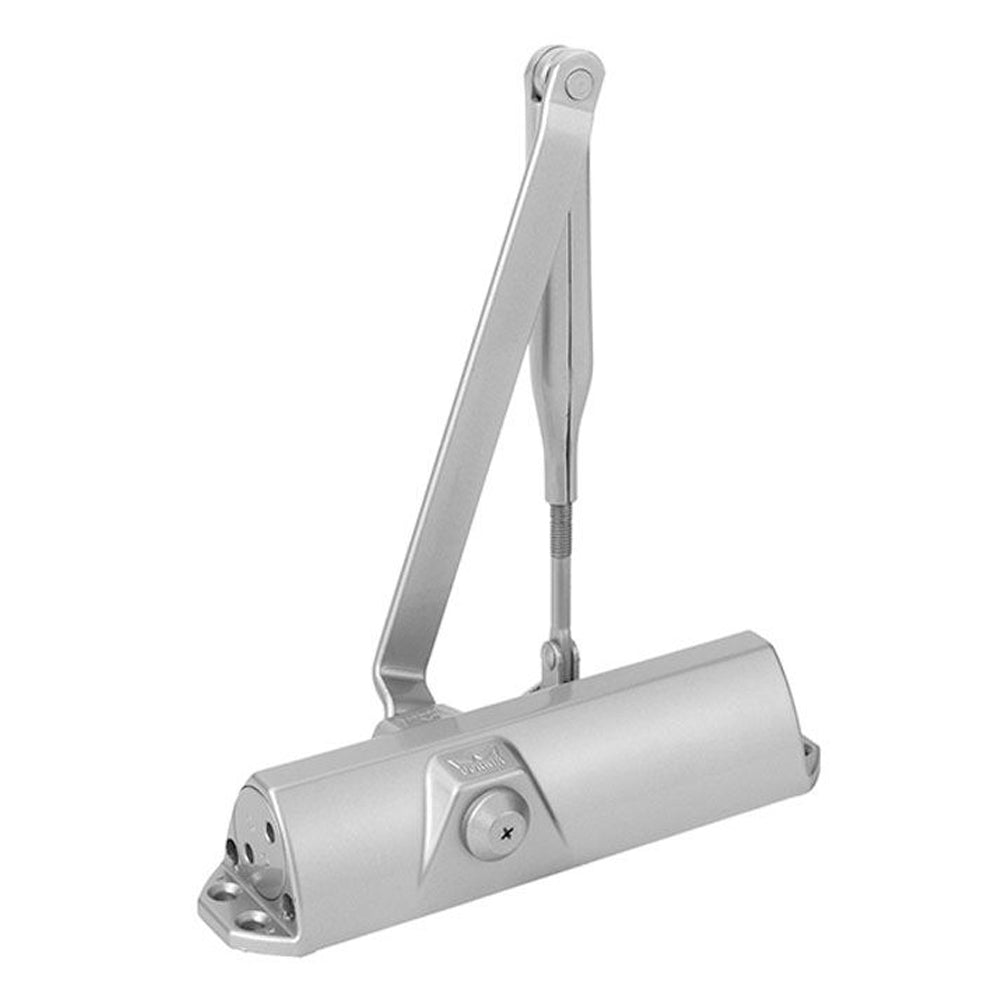

Dormakaba TS68 EN2-4 Door Closer Back Check Fire Rated Silver 66410501

Dormakaba TS68 EN2-4 Door Closer
66410501

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Non-handed closer suitable for all common doors and does not require a mounting backplate
• With adjustable closing speed of 180° - 15° and 15° - 0° via 2 separate valves
• Uses a standard arm
• Suitable for installation on doors up to 1100mm
• Ideal low-cost solution for standard doors
• Variable closing force via arm power shoe and templating size EN2/3/4
• Non-handedd
• Slimline arm assembly
• Parallel bracket included

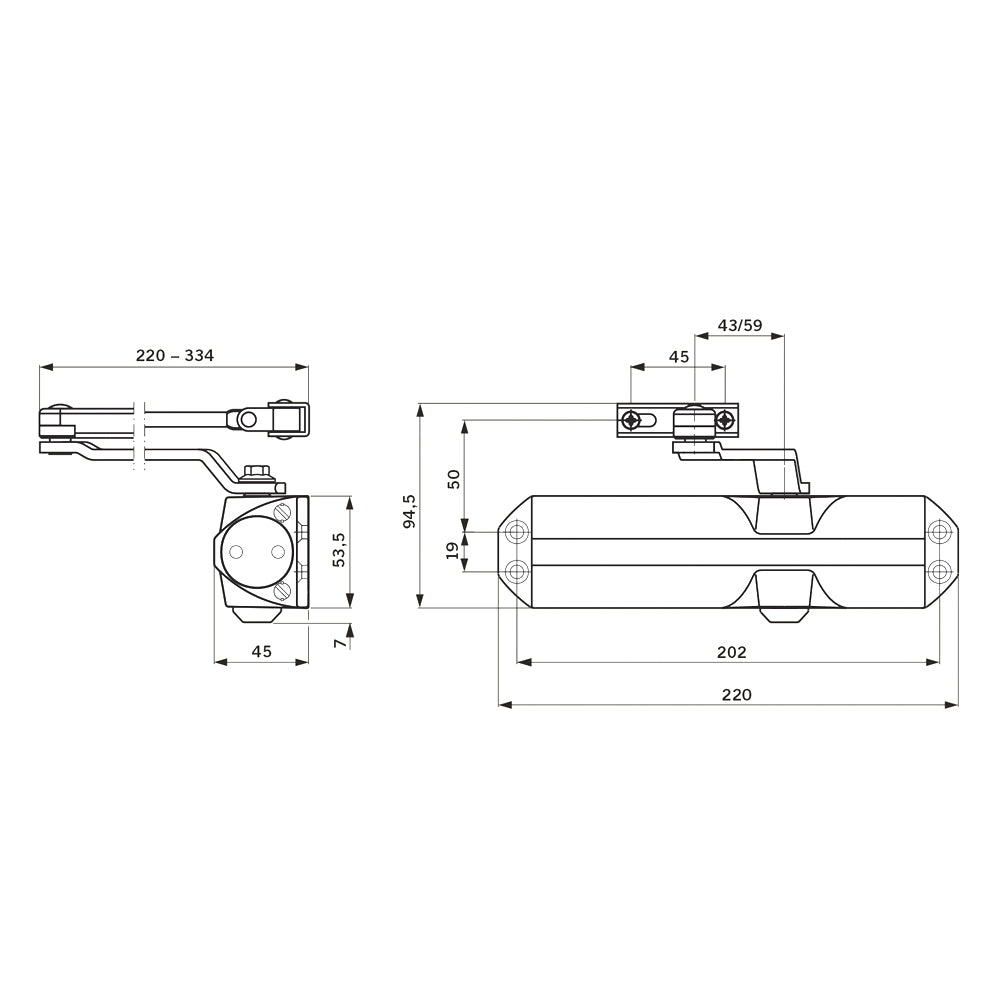

Specifications:

• Length: 220mm
• Width: 45mm
• Height: 53.5mm
• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Has Backcheck: Yes
• Has Delay Action: No
• Has Holdopen: No
• Has Slide Arm: No
• Parallel Arm Bracket Included: Yes
• Spring Strength: EN2-4
• Fire Rated: Approved to AS1905 Part 1 fire resistant doors (backcheck model only)
• Finish: Silver
