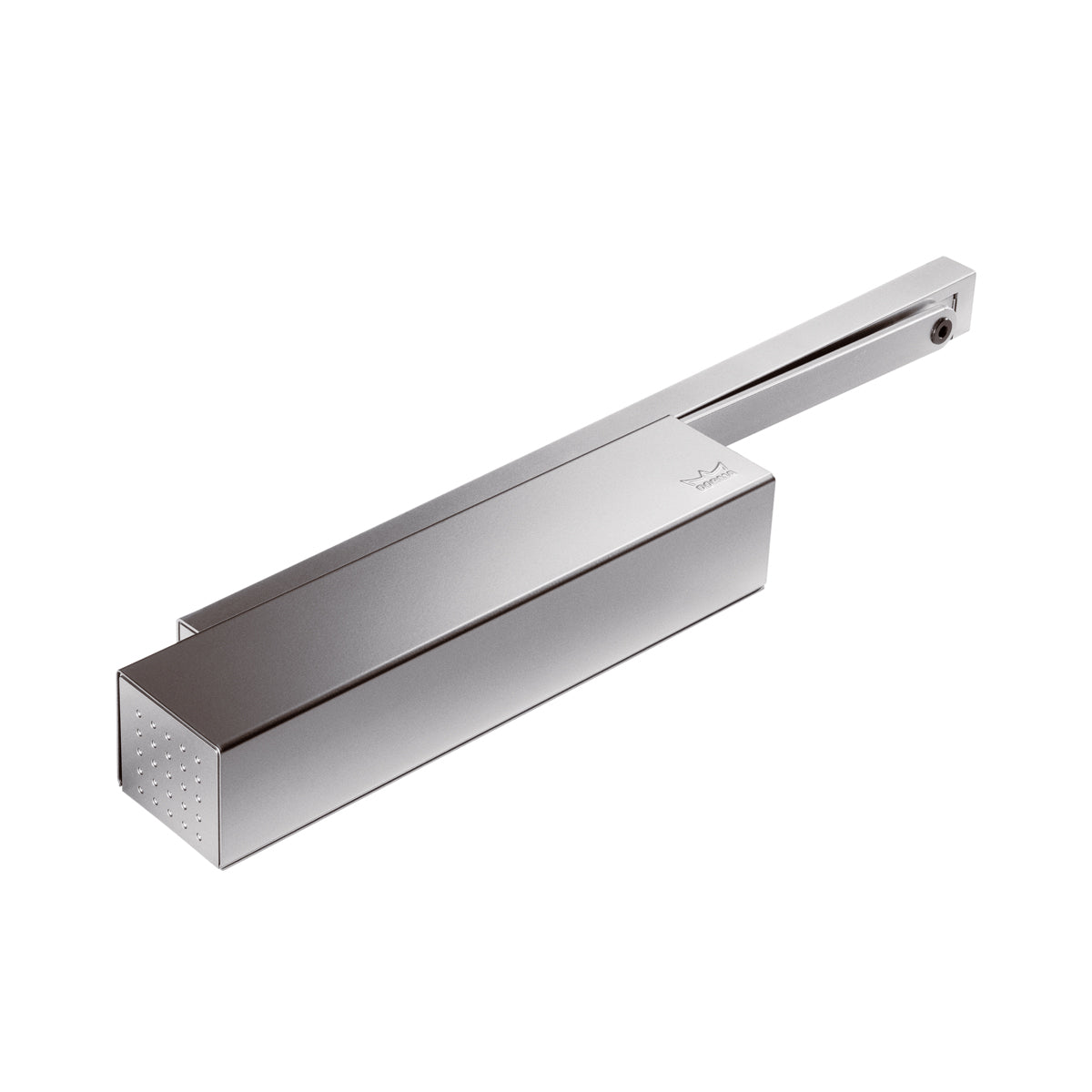

Dormakaba TS92B EN1-4 Door Closer Pull Side Fire Rated with Arm 42020201
RRP: $519.63
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Dormakaba Door Closer
TS92BSE
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Includes:
- 1 x Door closer TS92B (42020101)
- 1 x Arm GN (64010001)
Features:
- Perfect choice for interior doors
- Designed especially for interior applications, the universal Dormakaba TS 92 door closer for standard doors in the award winning Contur design offer’s excellent ease of use due to the EASY OPEN Cam action technology.
- Cam-action door closers with slide channel
- With its cam action mechanism, high efficiency and adjustable power the TS92 provides exceptional ease of operation by all users whilst providing full and secure closing of the door.
- Non-handed closer suitable for interior doors and comes with a linear drive mechanism with heart-shaped cam (Contur design)
- With adjustable closing speed of 180° - 15° and a latching action independently adjustable with a closing action of 15° - 0° with two separate vales.
- Standard model for pull-side door leaf fixing/push-side transom fixing.
- Suitable for fire and smoke check doors where the cushioned limit stay is also used.
- Suitable for installation on doors up to 1100mm (W).

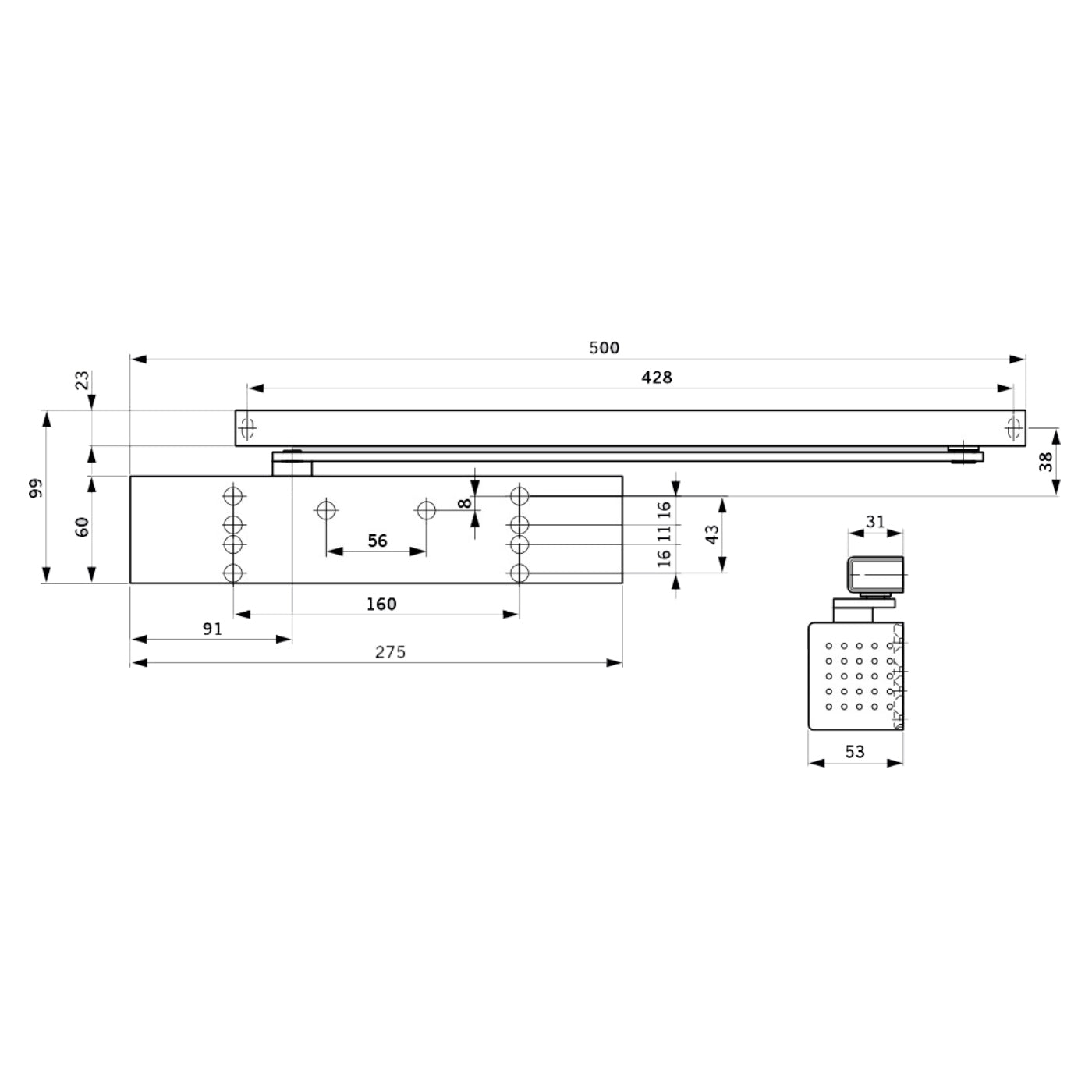

Specifications:
- Length: 281mm
- Width: 47mm
- Height: 65mm
- Closing force Adjustable Size: EN 1-4
- Standard doors: up to 1100mm
- External doors, outward opening: No
- For fire and smoke check doors: Yes
- Non-handed design: Yes
- Arm assembly type: Slide channel
-
Closing speed and latching action independently adjustable at two separate valves:
- 180 degrees to 15 degrees
- 15 degrees to 0 degrees
- Backcheck: No
- Delayed action: No
- Weight: 2.0 kg
- Finish: Silver
Protection:
- Successfully Third Party Tested to BS EN1154
- CERTIFIRE Approved CF119
