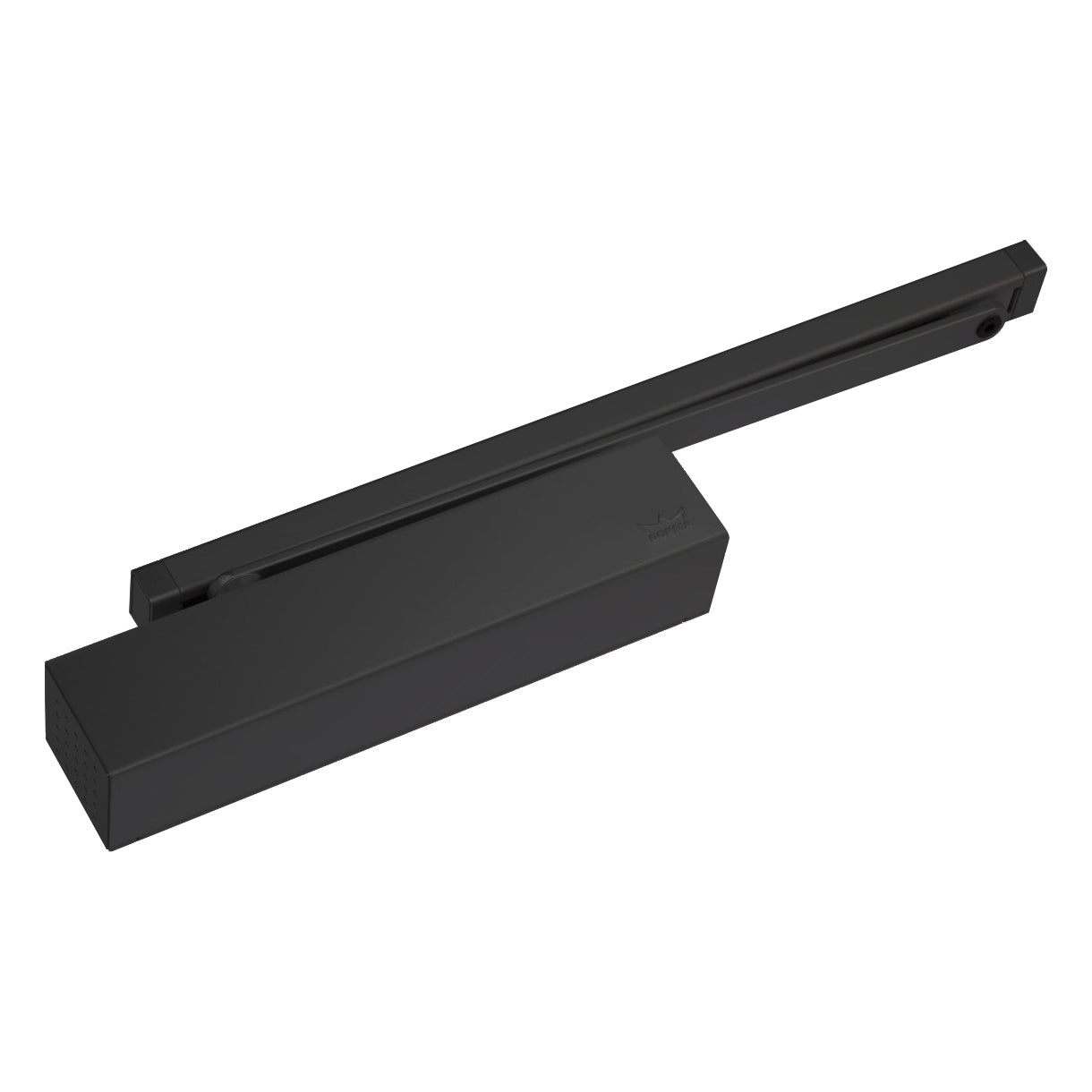

Dormakaba En1-5 Cam Action Door Closer Pull Side Black with Arm Fire Rated TS93B 43090519

Dormakaba Door Closer TS93B EN1-5 Pull Side with Arm Fire Rated
43090519

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Standard model for pull-side door leaf fixing/push-side transom fixing
• Suitable for fire and smoke check doors where the cushioned limit stay is also used
• Suitable for single and double doors installation up to 1250 mm (W)
• For fire and smoke check doors
• Handed design
• Slide Channel
• Closing force variable by means of adjustment screw
• Latching and closing speed adjustable by valve

Technical Specifications

• Adjustable Closing Speed: Yes
• Adjustable Latching Speed: Yes
• Backcheck: Yes
• Delay Action: Yes
• Holdopen: No
• Slide Arm: Yes
• Spring Strength: EN1-5
• Suits Pull Side Of Door: Yes
• Fire Rated (FIRERATED): Yes

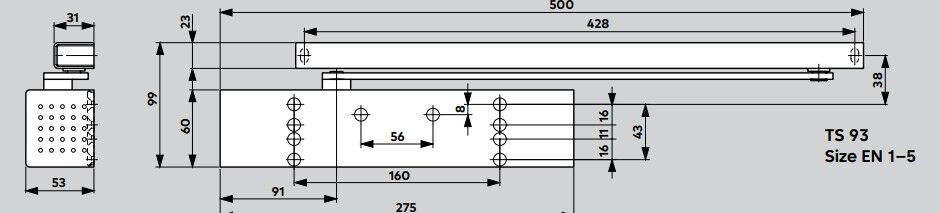

• Length: 275mm
• Overall depth: 53mm
• Height: 60mm
• Finish: Black
