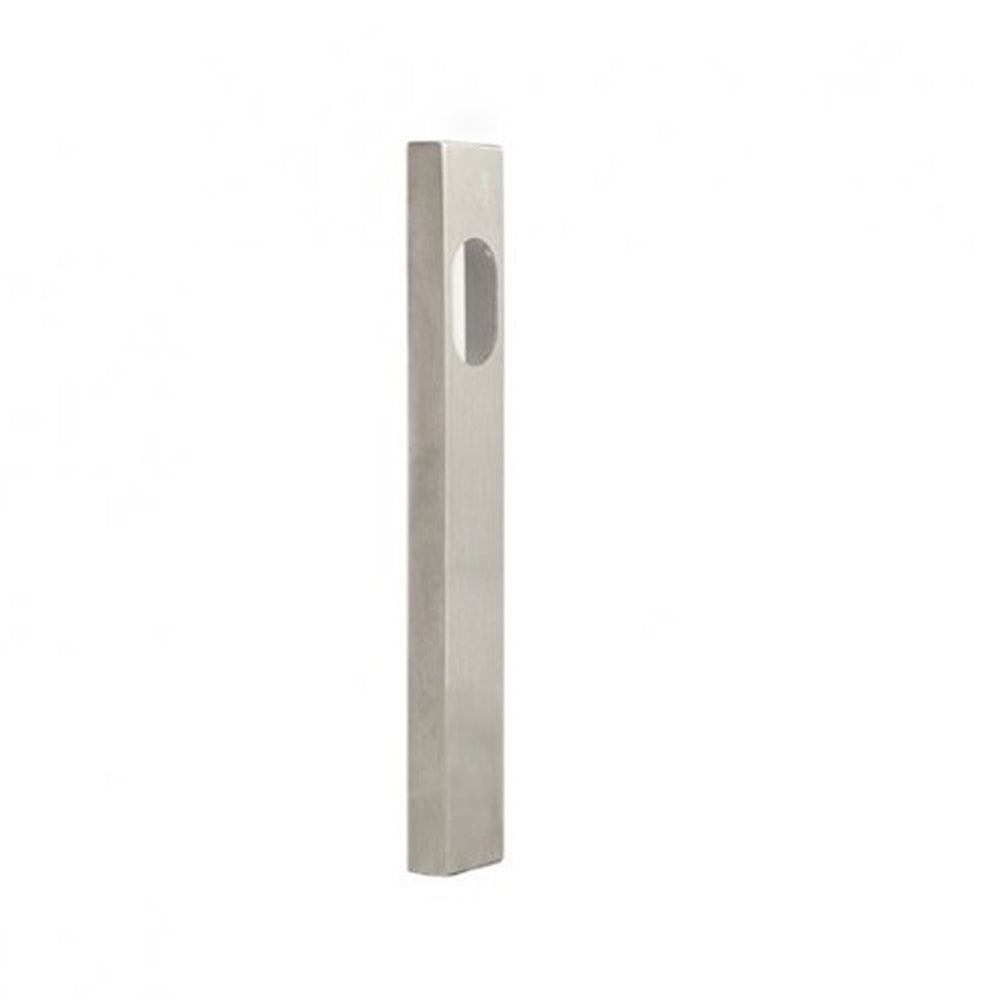

Dormakaba 6400 Series Narrow External Square End Plain Plate Concealed Fix Satin Stainless Steel

Dormakaba 6400 Narrow Style Exterior Square End Plate
DF64100001

Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.

Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.

Features:

• A true rectangular narrow plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through fixing for use with Australian narrow stile mortice locks and latches
• Non handed plate with oscillating lever action for quick reversal of handing
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon shim preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Standard screws in 5/32 thread

Specifics:

• Fixing: Plates are 12mm thick and are designed to fit back to back with concealed fix.
• Handing: Plates and knobs are non-handed with levers reversible on site in most cases.
• Door Thickness: 32mm to 45mm.
• Height: 185mm
• Wide: 26mm
• Thick: 12mm
• Finish: Satin Stainless Steel
