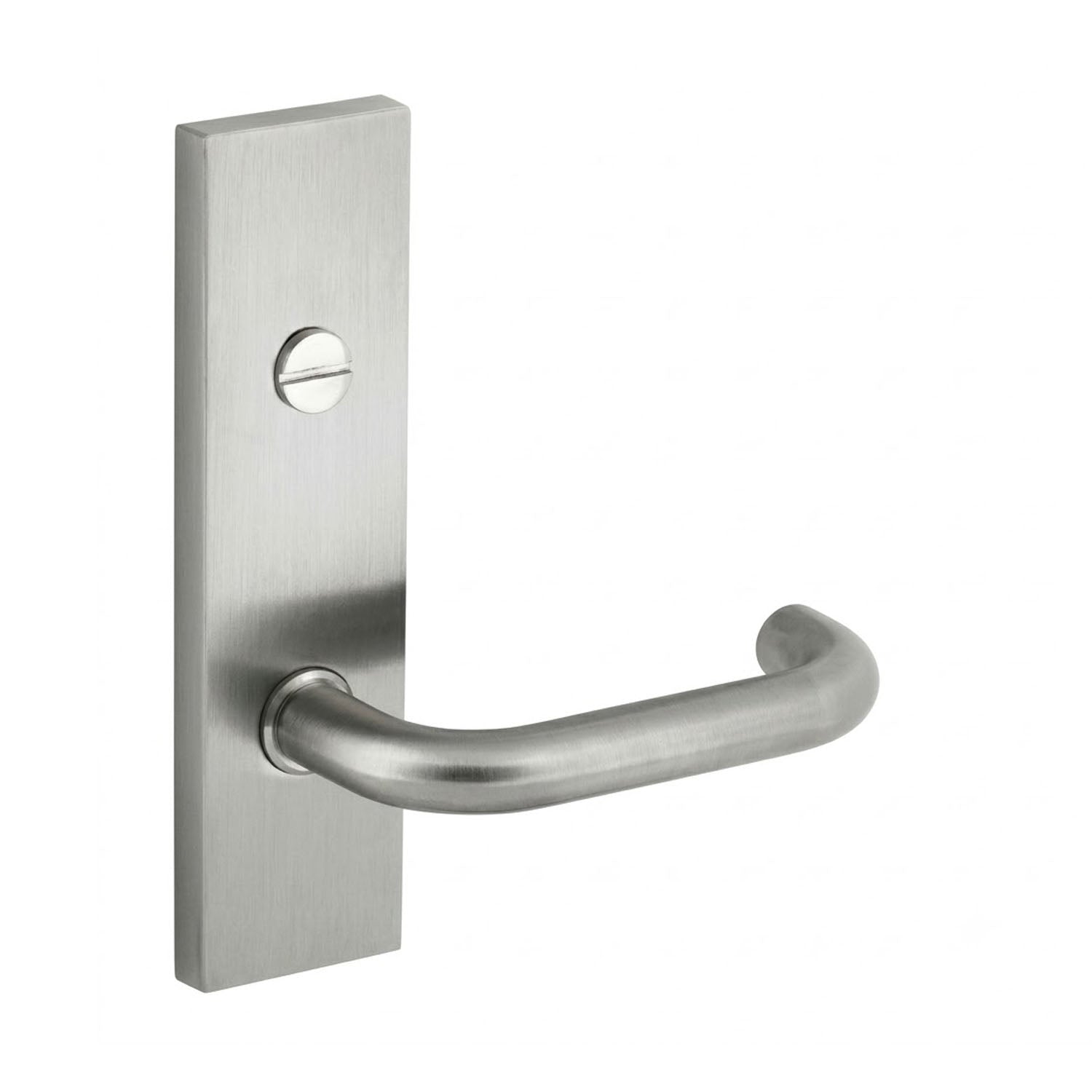

Dormakaba 6600 Series External Plate with Emergency Release Plate Satin Stainless Steel 9400000017284

Dormakaba 6600 Series External Plate with Emergency Release Plate
9400000017284

Door Lever can be found on all types of doors including exterior doors of  internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• A true rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
• A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban lever designs
• Supplied With Fixings

Specifications:

• Door Thickness: 32mm to 50mm
• Plate Height: 165mm
• Plate Width: 45mm
• Fixing Centres: 143mm
• Material: Stainless Steel 316 Marine Grade
• Finish: Satin Stainless 316
