SKU: DORM80350270099

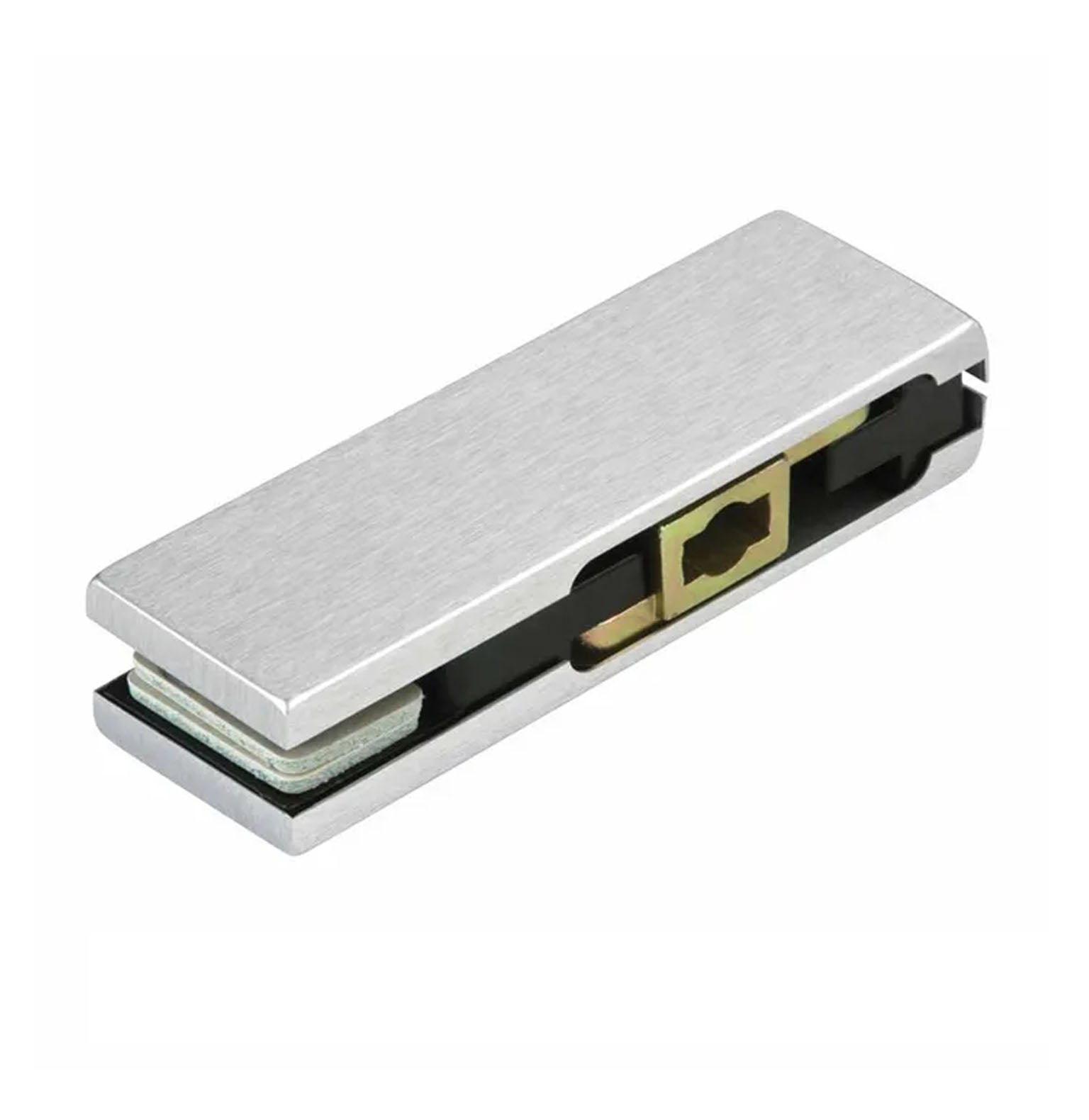

Dormakaba Bottom Patch Fitting UL PT10.V3.SSS Satin Stainless Steel 80350270099
RRP: $125.92
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Dormakaba Bottom Patch Fitting
80350270099
Bottom Patch Fittings is not directly mounted on the main plate, but instead mounted on a patch plate that’s welded or fixed onto it for strength.
Bottom Patch Fittings Function - is a reinforced pivot connection that’s added onto a structure using a patch plate.
Features:

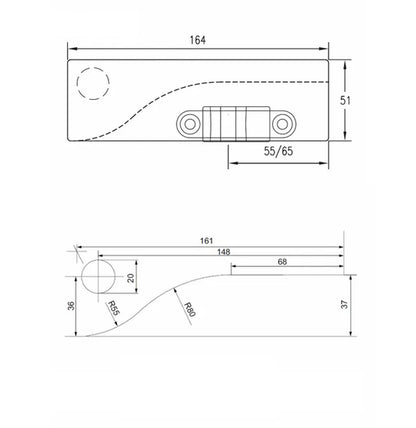

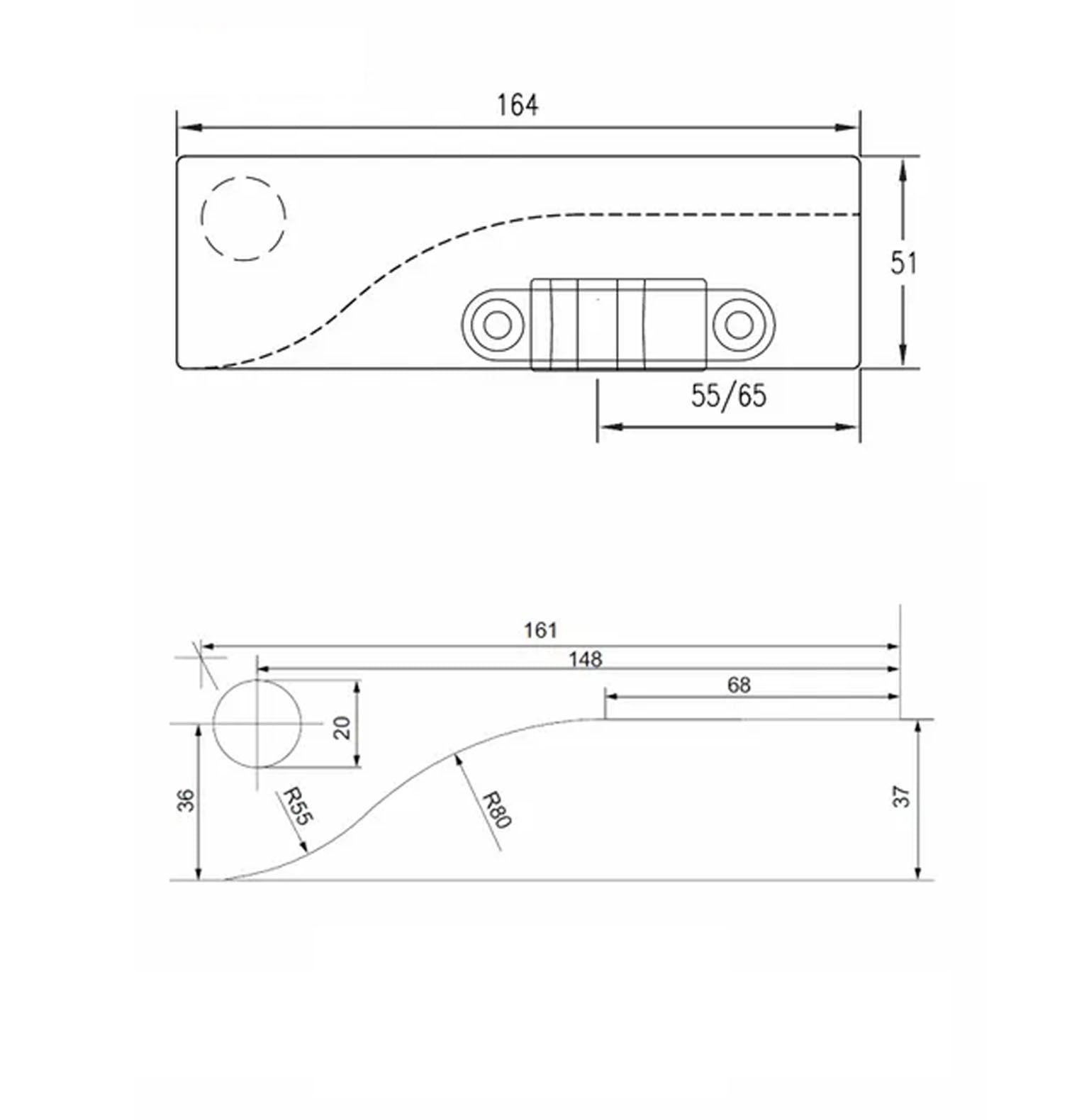

- Unnversal 51mm x 164mm bottom Patch Fittings with covers
- Suitable for dormakaba BTS floor springs or free pivots
- Patch is modified to be centre fixed on glass providing pivot point of 150mm or greater
- Pivot point can be set at 55mm or 65mm
- Suppplied with Fixings
Specifiations:
- Glass Thickness: 8mm to 15mm
- Length: 164mm
- Height: 51mm
- Width:33mm
- Maximum Door Weight: 100kg
- Finish: Satin Stainless Steel
