SKU: DORM830018PVSX
Dormakaba 8300/18PV Vision Door Lever Handle on Round Rose Privacy - Available in Various Finishes
RRP: $123.71
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability

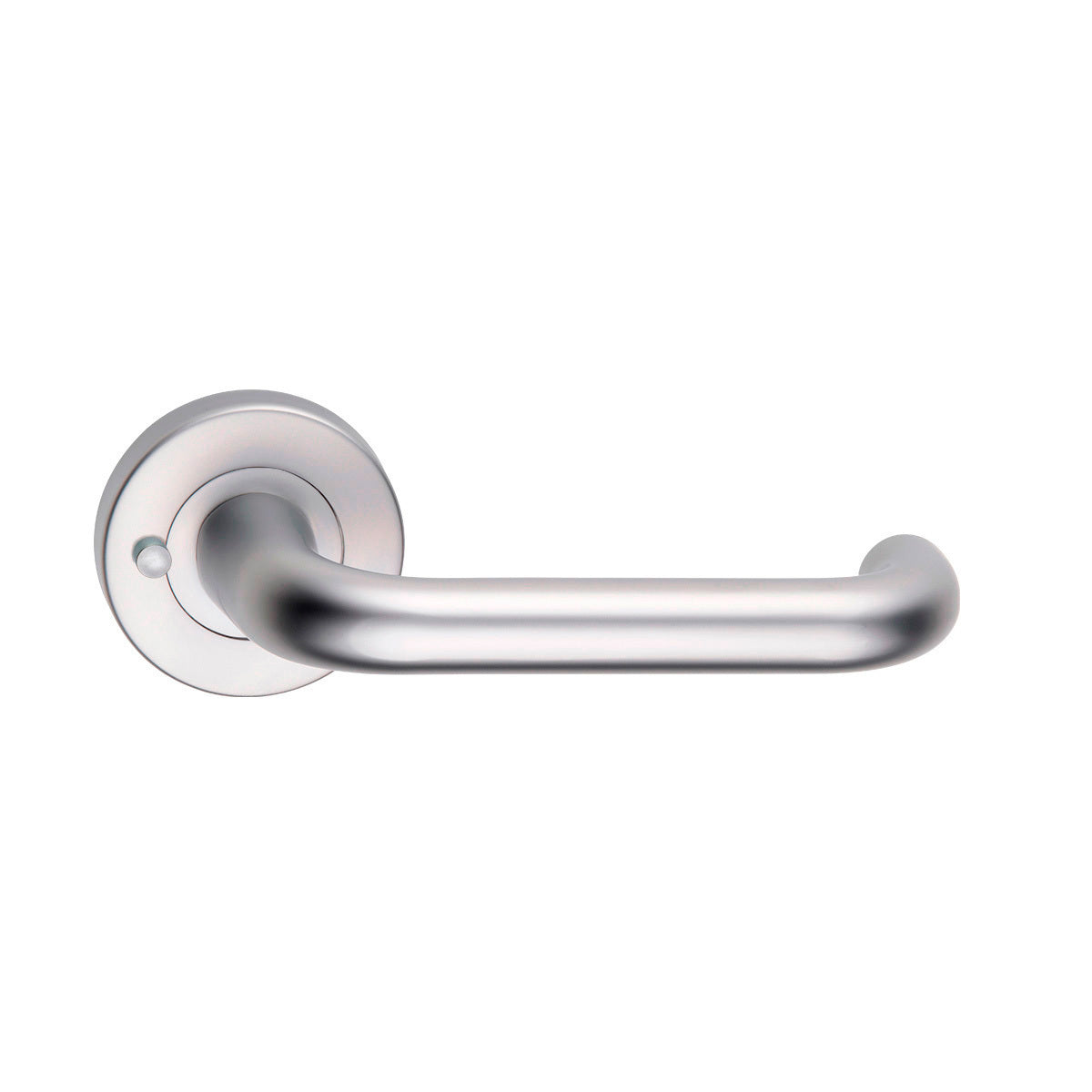

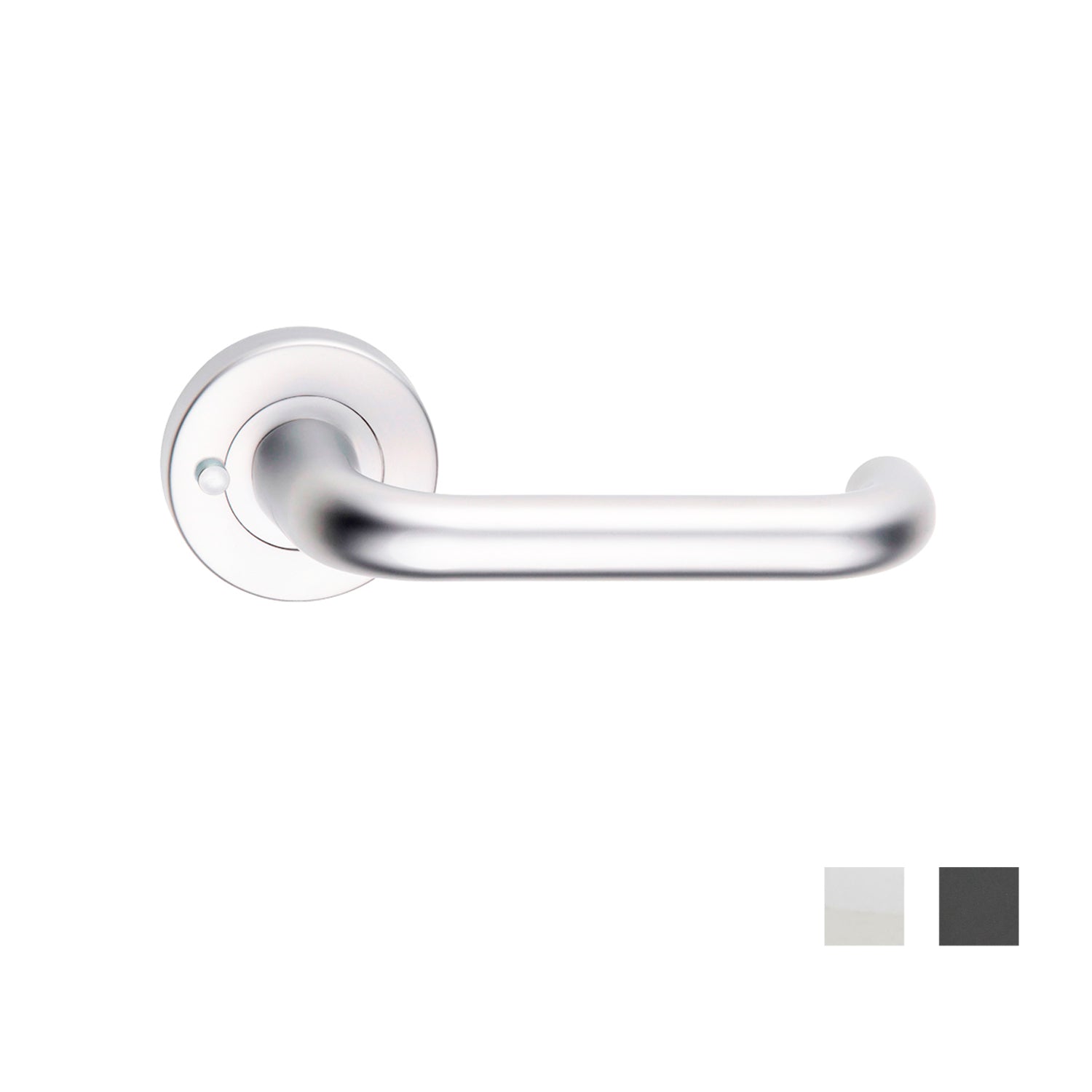

Dormakaba 8300/18PV Vision Door Lever Handle on Round Rose Privacy
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 15 business days after payment is made.
Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)
Privacy Function - can be locked by a button or a turn piece on the inside with no key function.
Features:
- High quality cost effective range of handles for light commercial and domestic applications
- Well suited for residential applications where aesthetics and contemporary appeal is desired
- It is ideal for retrofitting in place of existing door fittings due to its larger diameter rose
- Levers are fitted onto a 53mm rose mounting plate which has a slim 10mm projection of the door face
- Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches

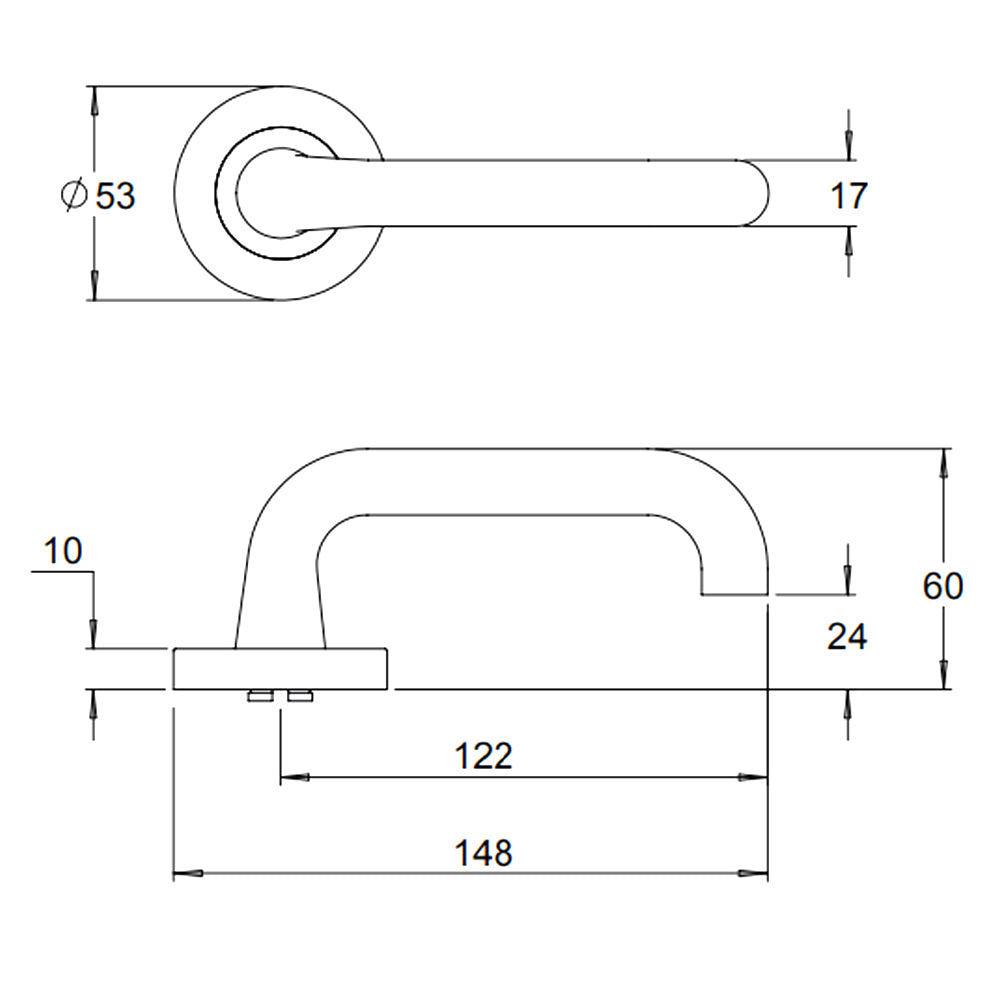

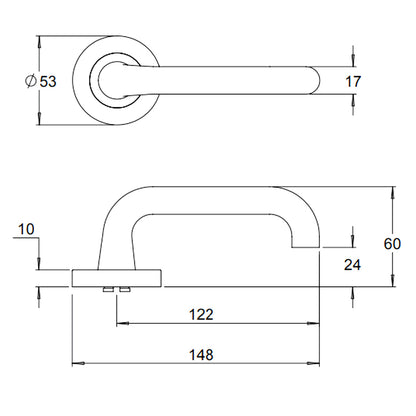

Specifications:
- Material: Die-cast zinc
- Diameter Rose: 53mm
- Thickness: 10mm
- Fixing Centres: 41mm
- Square rose: 57mm x 57mm
- Fixings: Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
- Handing: Roses are non-handed and in most cases can be reversed (refer to lever designs for more information).
- Fire Rating: Vision 8000 series furniture is fire rated and comply with AS1905.1.
- Disabled Access Compliance: A selection of lever handle designs comply with AS1428.1 2009.
- Function: Privacy
-
Available Finish:

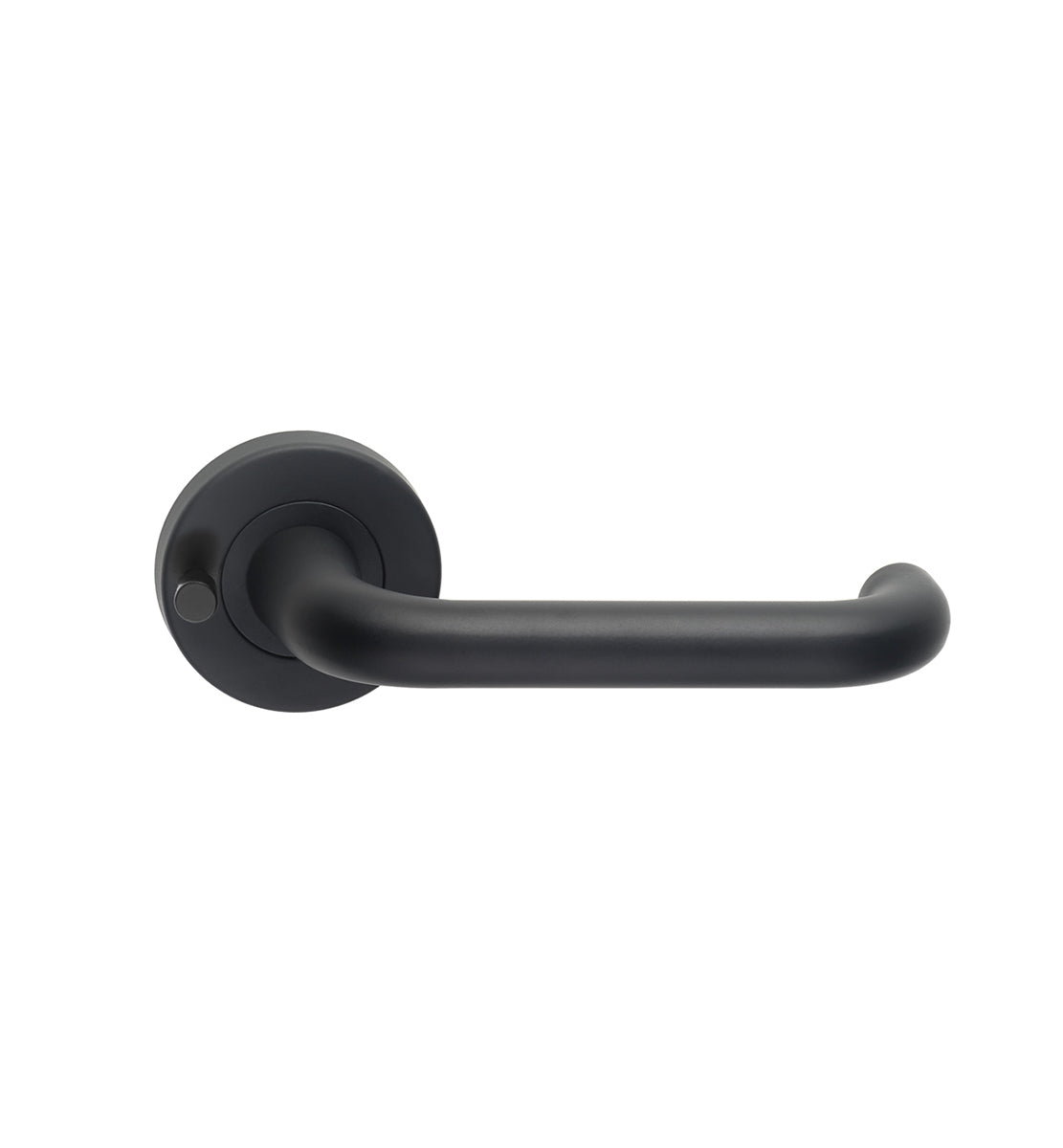

- Black

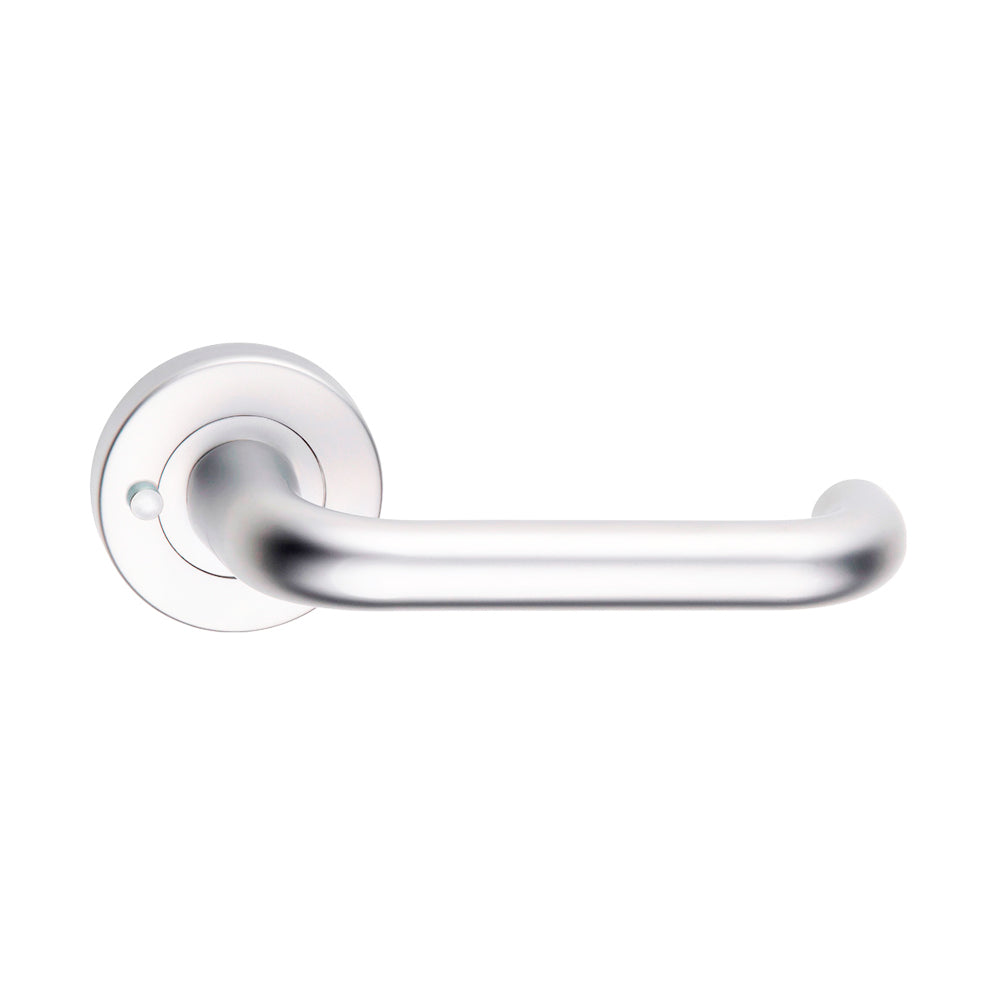

- Polished Chrome
- Satin Chrome
- Sold as Pair

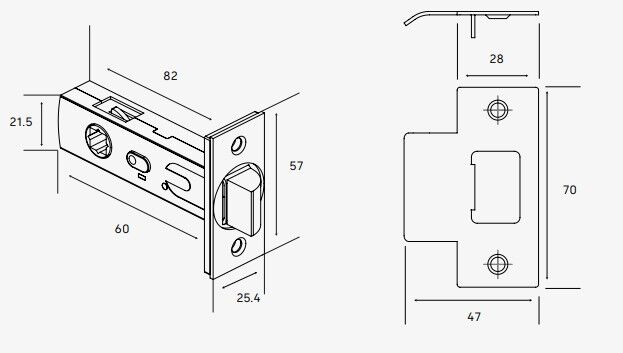

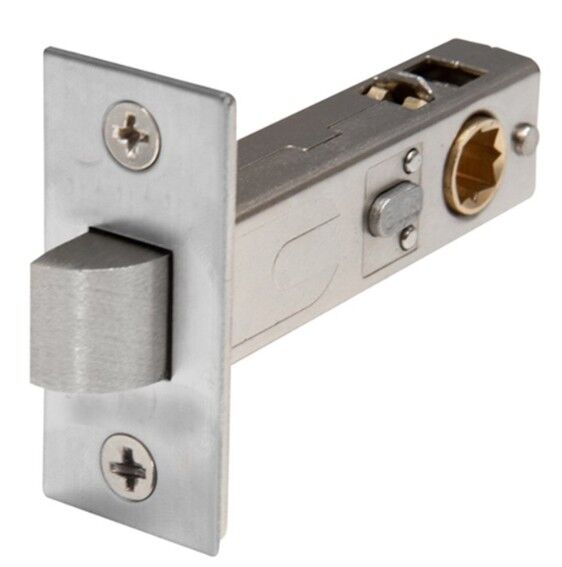

Note: Latches are sold separately
Dormakaba Vision Round Privacy Door Handle Leverset
8300/18PVSX
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be cancelled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 15 business days after payment is made.
Privacy used for internal doors that require locking. (e.g. bathrooms, bedrooms, and any room where privacy is needed)
Privacy Function - can be locked by a button or a turn piece on the inside with no key function.
Features:
- High quality cost effective range of handles for light commercial and domestic applications
- Well suited for residential applications where aesthetics and contemporary appeal is desired
- Levers are fitted onto a 53mm rose mounting plate which has a slim 10mm projection of the door face
- Constructed using a die cast rose and lever and is designed to suit dormakaba passage mortice locks and tubular latches but can be equally compatible with other Australian tubular latches
Specifications:
- Material: Die-cast zinc
- Diameter Rose: 53mm
- Thickness: 10mm
- Fixing Centres: 41mm
- Fixings: Designed with a through fixing and perforated screws to allow a quicker installation. Fixings can be in a horizontal or vertical pattern.
- Handing: Roses are non-handed and in most cases can be reversed (refer to lever designs for more information).
- Fire Rating: Vision 8000 series furniture is fire rated and comply with AS1905.1.
- Function: Privacy
- Finish: Satin Chrome
- Sold as Pair
Note: Passage set sold less latch, Privacy set sold including latch
