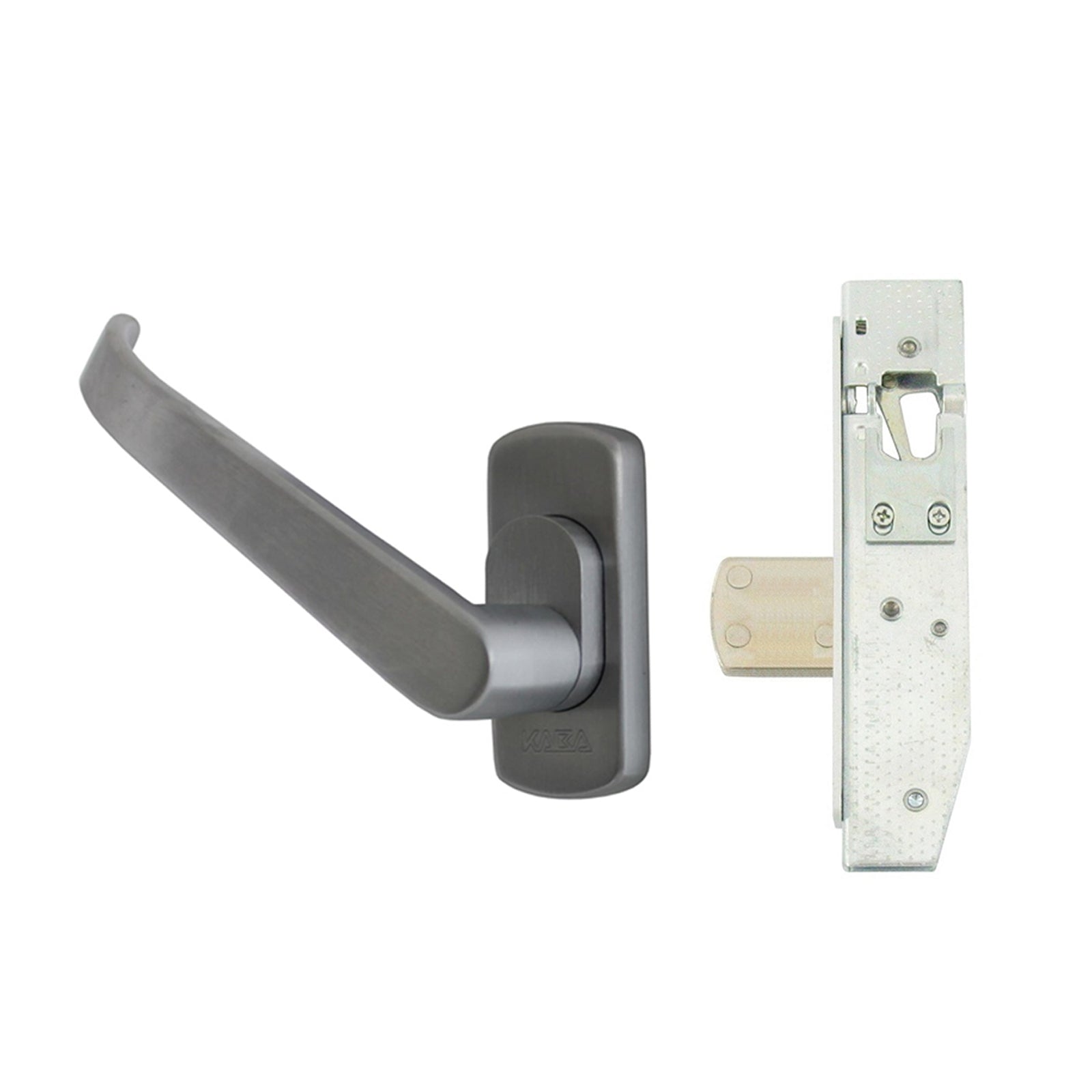

Dormakaba 950 Mortice Door Lock with Ambulant Case Fixed Turn Escape Lever Satin Chrome Plate

Dormakaba 950 Mortice Door Lock with Ambulant Case Fixed Turn Escape Lever
950L37SCPLC

Ambulant Case Fixed Turn Escape Lever is commonly used in commercial buildings, healthcare facilities, educational institutions, and public spaces where secure access control and emergency egress are essential.

Ambulant Case Fixed Turn Escape Lever Function - ensures secure and easy access control while allowing emergency exit capabilities with a simple lever turn.

Includes:

• 1 x Dormakaba 950 Mortice Door Lock Short 23mm Backset 37mm Bolt No Cylinder (950-37SCP-LC)
• 1 x Dormakaba Ambulant Case Fixed Turn Escape Lever Satin Chrome (SB312SCP)

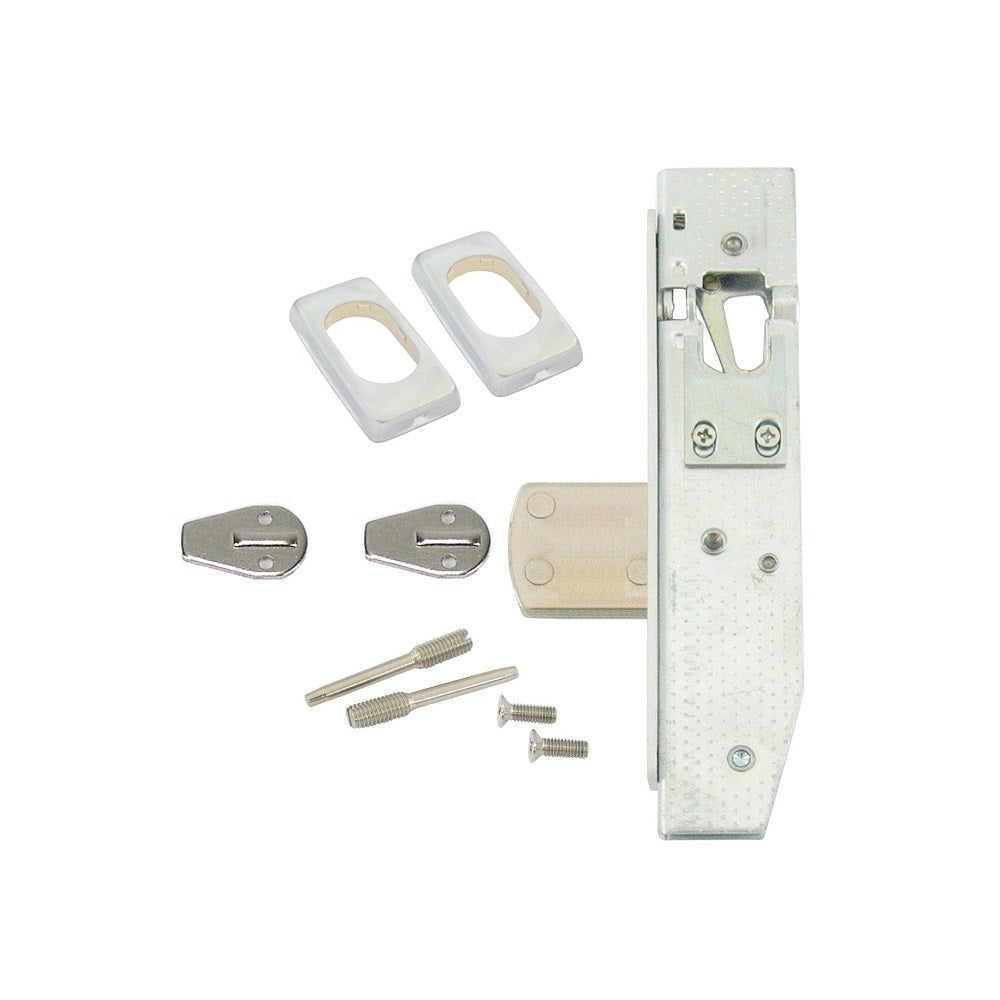

Dormakaba 950 Series Short Backset Mortice Lock
950-37SCP-LC

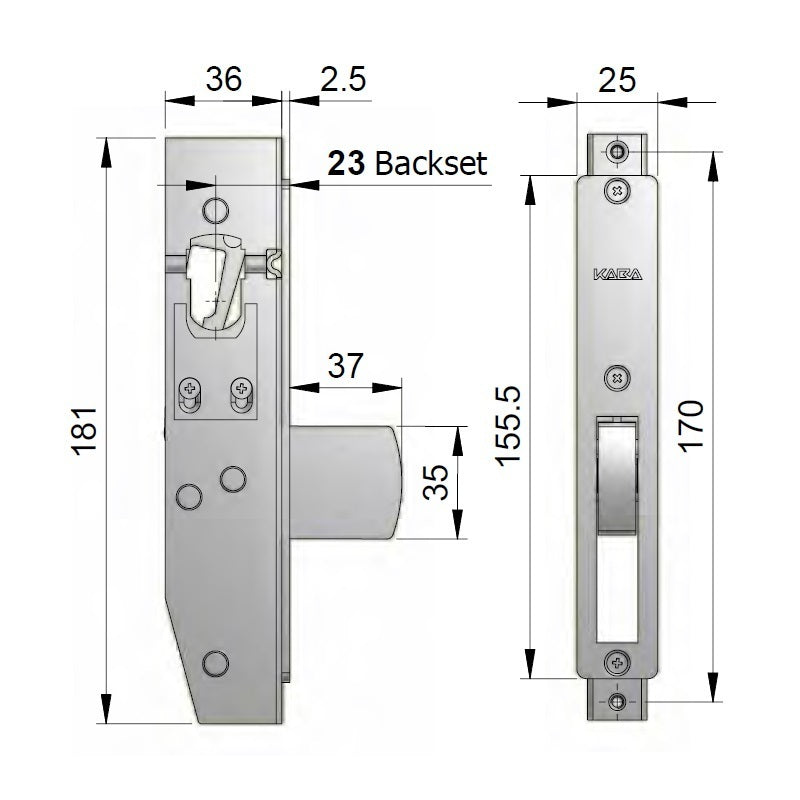

Specifications:

• Min. Door Thickness: 32mm - 58mm Aluminum Doors
• Height: 181mm
• Width: 25mm
• Depth: 37mm
• Backset: 23mm
• Includes Fixing Screws: Yes
• Includes Strike Plate: Yes
• Spindle Size: 7.6mm
• Bolt Throw: 36mm
• Lockable: Yes
• Finish: Satin Chrome

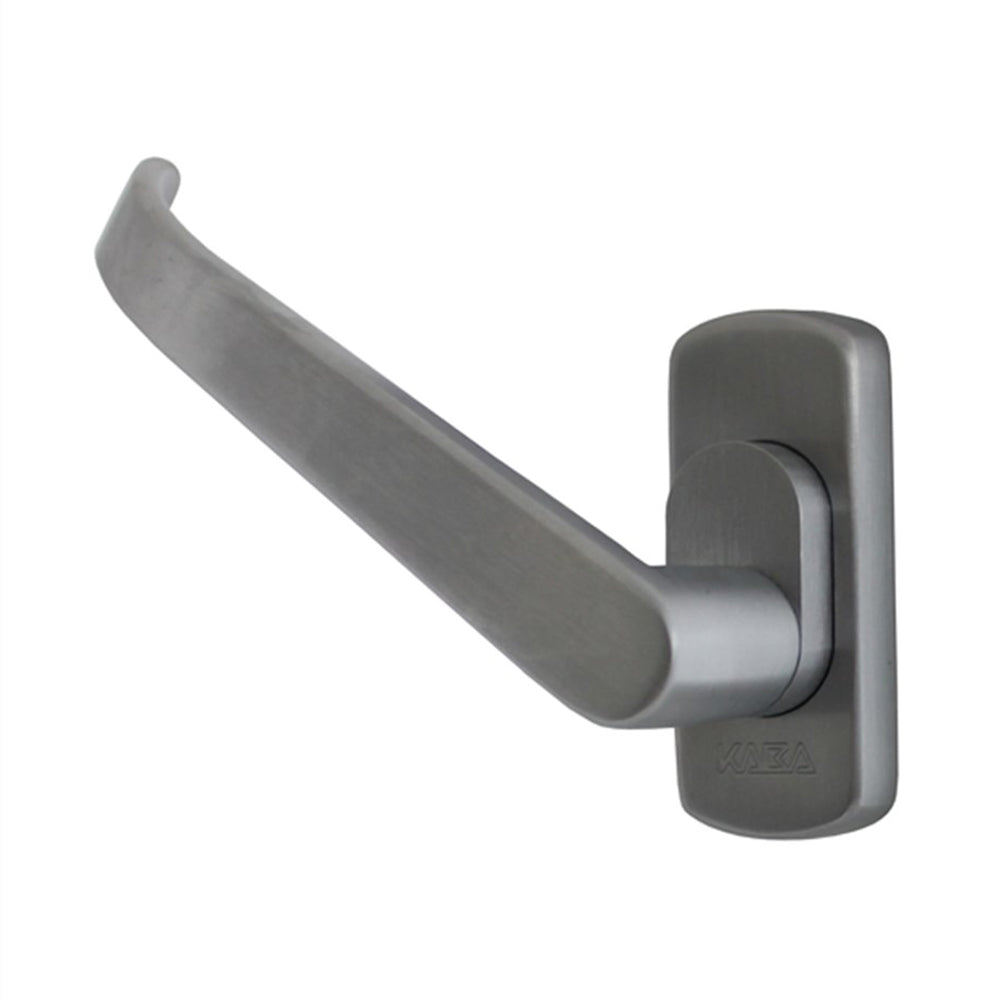

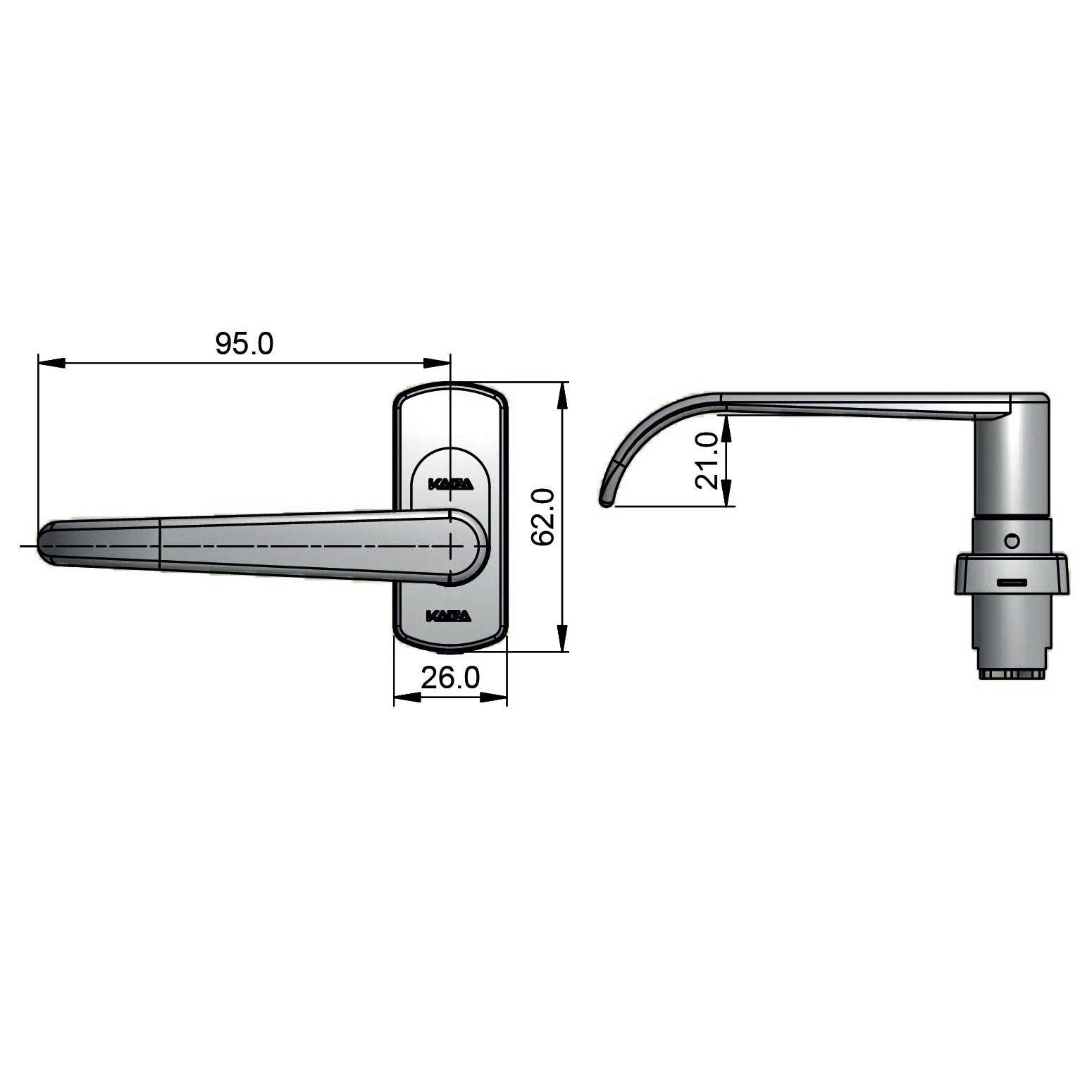

Dormakaba Ambulant Case Fixed Turn Escape Lever
SB312SCP

Features:

• Single action downward lever operation to unlock door
• Suits 950/951 range of narrow backset locks
• Surface fixed escutcheon (FA950) provides stability by clamping on cylinder and also face fixing to door - supplied as standard
• Design for Access and Mobility when fitted to standard aluminium extrusion of 45 mm thick style
• Patented mechanism provides travel restriction to prevent lock damage
• Handed installation is field reversible

Specifications:

• Function: Escape Lever
• Fixing: Case Fixed
• Suits: BRAVA 5090 & Kaba 950/951 Series
• Finish: Satin Chrome Plate

Rating/Compliance:

• Meets BCA/NCC requirements of egress for exit doors
• Lever design meets AS1428.1
