SKU: DORM80180000

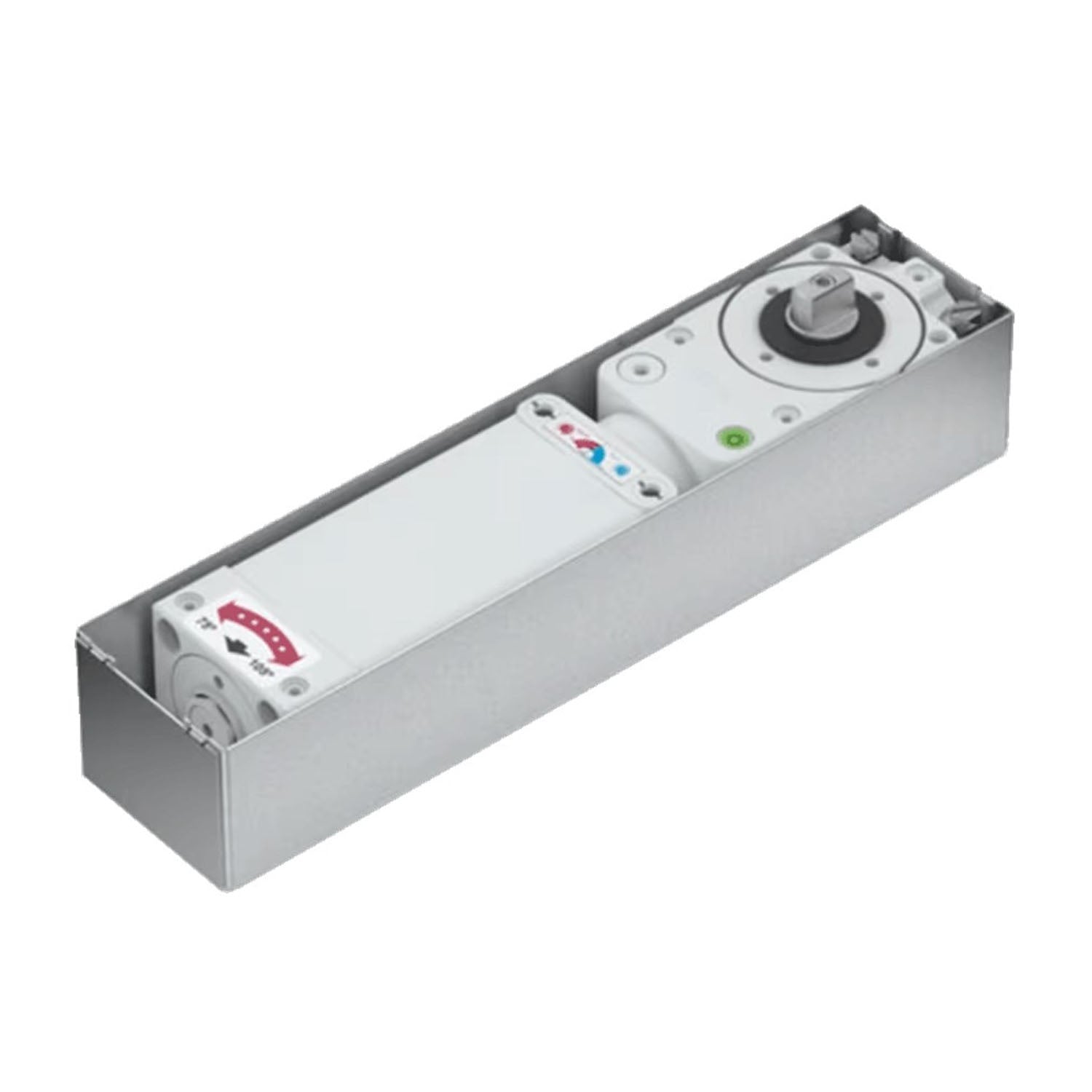

Dormakaba BTS80 EN-3-6 Door Closer Floor Spring Adjustable Hold Open 80180000
Payments accepted:
Couldn't load pickup availability
Dormakaba BTS80 EN-3-6 Door Closer
80180000
Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.
Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.
Features:
- Dormakaba BTS80V with backcheck, delayed closing and door hold-open function
- Automatic closing and infinitely adjustable closing speed
- Mechanical backcheck
- Supplied less cover plate Hold-open point selectable up to 170 degrees (fallback approx. degrees), start of hold open/end of delayed action range adjustable between 75 degrees and 105 degrees
Specifications:
- Maximum Door Leaf Weight: 300kg
- Power: EN 3 to 6
- Hold-open function: Adjustable
- Suitable for installation on doors up to: 1400mm width with a maximum 300kg leaf weight
- Length: 341mm
- Width:: 78mm
- Height: 60mm
