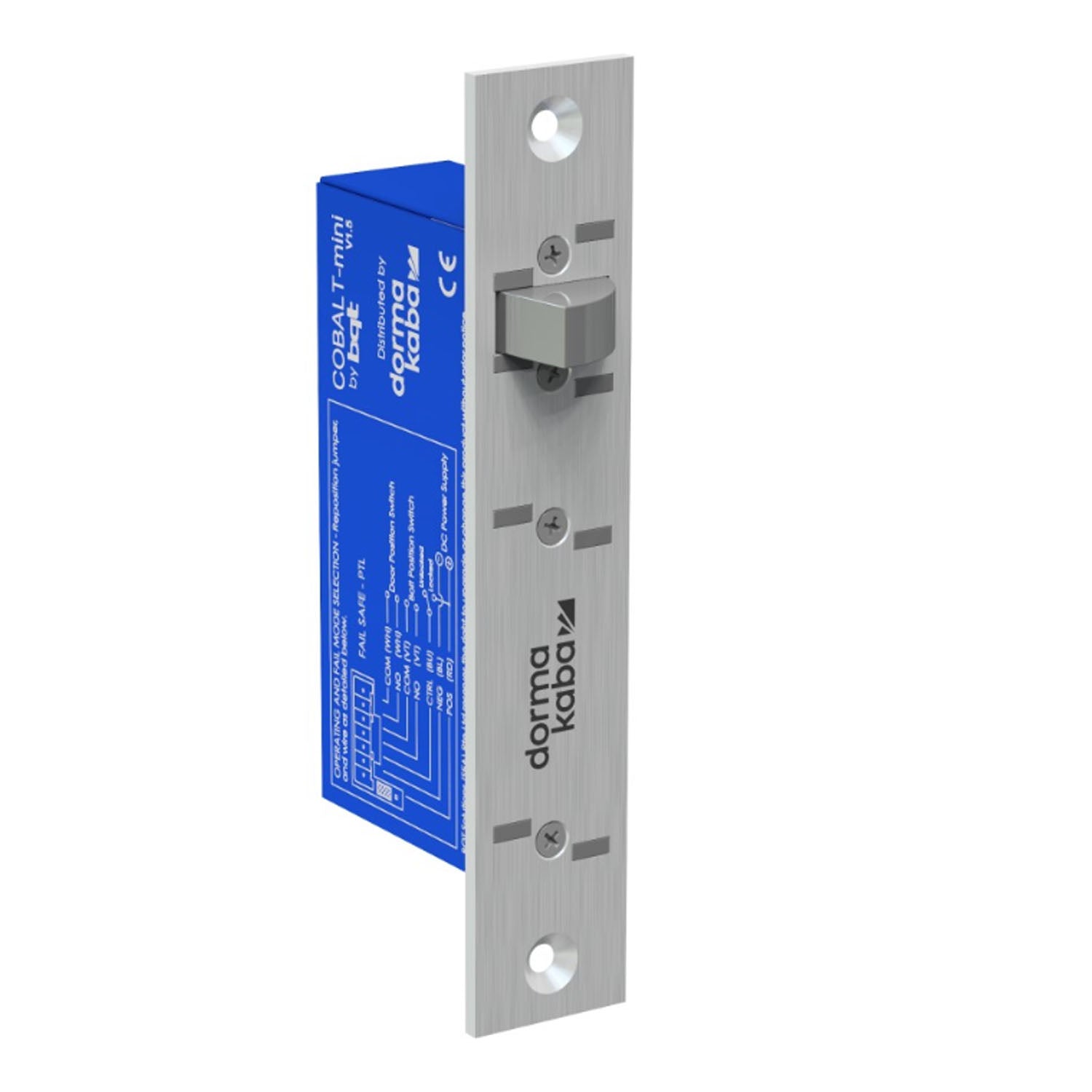

Dormakaba Cobalt Mini Side Load Lock 12-24VDC
SL30SGL
Cobalt Mini Side Load Lock is a motor-driven electronic locking device designed to secure single-action doors in commercial and residential applications. Its main function is to provide high-security locking while still being able to release the door even when significant pressure is applied to it.
Cobalt Mini Side Load Lock Function - is an electronic deadbolt lock that pulls the door tightly closed, corrects minor misalignment, securely locks the door, and can still unlock even when heavy pressure is pushing against it.
Features:
- Designed to secure commercial and residential single action doors. Its small footprint ensures the mini side load lock can be installed in most locations however it still has the ability to pull a door in tightly against a seal and will release instantly when requested, even with excessive load on the door.
- Door misalignment of up to 8mm is corrected
- Automatic deadbolting
- 10mm thick stainless steel bolt pin
- Reverse polarity and transient protection
- Multiple attempts to lock
- Convert from Fail Safe to Fail Secure by repositioning a single jumper
- Door and bolt position monitors
- Mortice mount horizontally or vertically, on single acting doors
- Surface mount with the aid of the SLA30SGL accessories, including glass mount
Specifications:
- Side load release: up to 600kgs
- Holding Force: 10,000N (1,000kg)
- Side load release: Up to 600kg opening load on door
- Voltage at lock: 12-24VDC +/- 15%
- Door misalignment: +/- 8mm
- Endurance: 1,000,000 cycles normal operation
- Length: 160mm
- Width: 30m
- Depth: 51mm
Certifications:
- EN 61000-6-1: 2007, EN 61000-6-3:2007
- Compliance: RoHS, FCC Part 15, Subparts A and B, Fire test of 4 hours certified to BS 476-22:1987
- Compliance: EN 14846, EN 1634-1
