Dormakaba Internal Square End Plate Cylinder Hole & 70 Lever Satin Stainless Steel 6601/70SSS

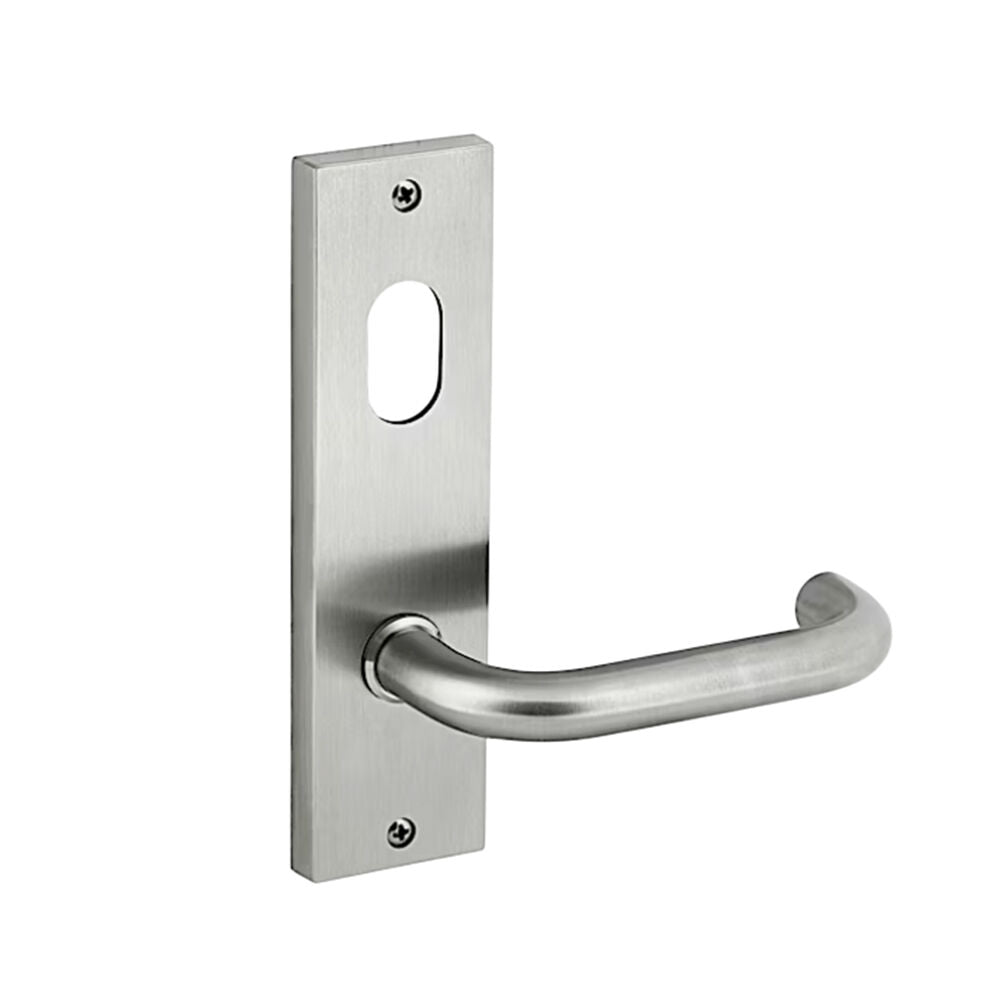

Dormakaba Door Handle Lever On Square End Plate Cylinder Hole Visible Fix
316G SS 6601/30G

Door Lever can be found on all types of doors including exterior doors of residential and commercial buildings.

Door Lever Function Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 solid stainless steel
• A characteristic feature of stainless steel door furniture is the naturally gleaming finish
• Heavy duty spring mechanism manufactured using the highest grade materials
• Levers and knobs on the 6600 series plates are non-handed and in most cases the levers can be reversed on site.
• Fixing Screws included

Specifications:

• Fixing: Visible Fixed
• Material: 316 Grade Stainless Steel
• Plate Length: 45mm
• Plate Width: 10mm
• Plate Height: 165mm
• Fixing Centres: 149.25mm
• Door Thickness: 35mm - 50mm
• Suitable for Door Type: Timber Doors
• Finish: Satin Stainless Steel

Ratings/Compliance:

• Fire Rating: The 6600 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1.
• AS1428.1 2009 compliant
