SKU: DORM650770SSS

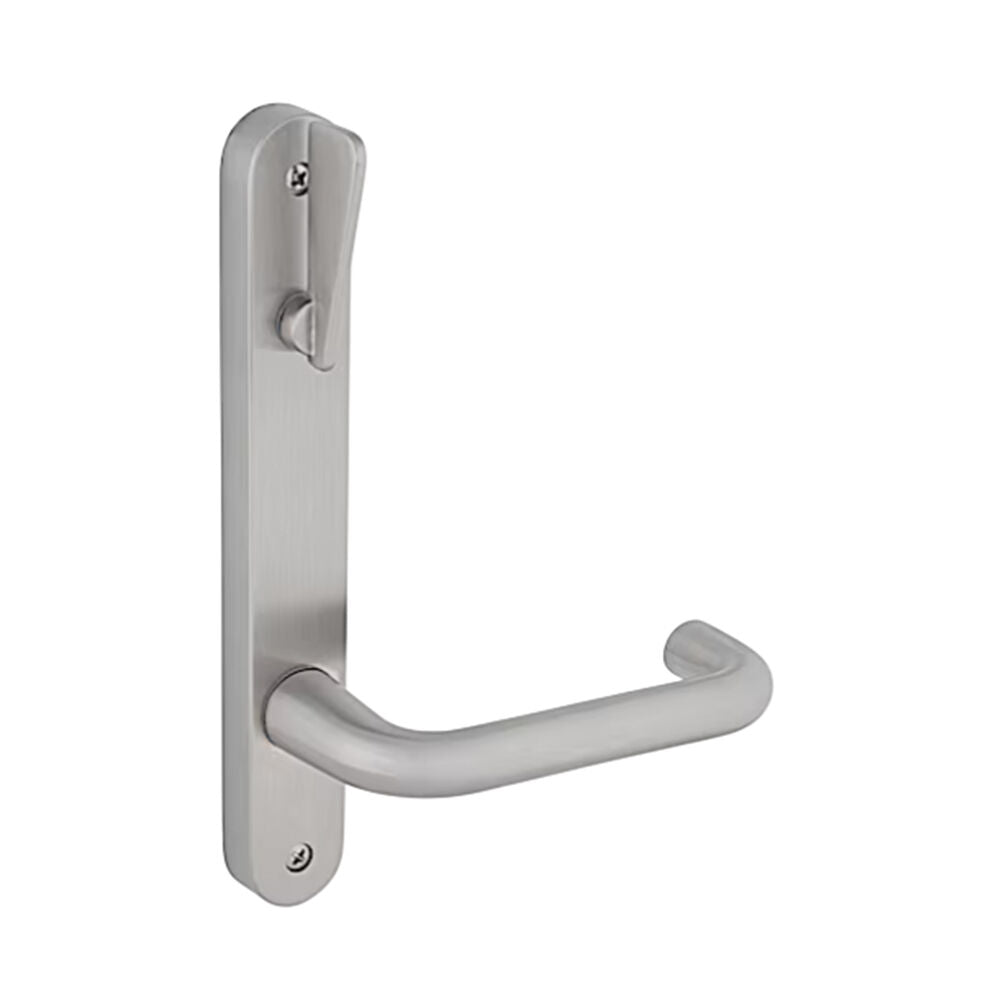

Dormakaba Door Handle Lever Narrow Stile Round End Plate Disabled Turn Visible Fix 6507/70SSS
RRP: $252.32
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Dormakaba Door Handle Lever Narrow Stile Round End Plate Disabled Turn Visible Fixed
6507/70SSS
Door Lever can be found on all types of doors including exterior doors of residential and commercial buildings.
Door Lever Function Lever design provides an easier grip when opening a door and it prevents your hand from slipping.
Features:
- Round narrow plate displaying clean modern lines with bevelled edges
- Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
- A characteristic feature of Stainless Steel door furniture is the naturally gleaming finish
- Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
- Extensive range of optional plate functions
- Designed with bolt through fixing for use with Australian narrow stile mortice locks and latches.
- Non handed plate with oscillating lever action for quick reversal of handing.
- Heavy duty spring mechanism manufactured using the highest grade materials
- Nylon shim preventing metal to metal wear and providing a smoother friction free movement
- All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
- Certain Coastal Series lever designs are not compatible with all narrow backset mortice locks. Check your requirements against the suitability chart in this brochure
- Standard screws in 5/32 thread to suit door thickness of 32mm-45mm thick doors
- Fixing Screws included
Specifications:
- Fixing: Visible Fixed
- Lever Type: Lever 70
- Material: 316 Grade Stainless Steel
- Plate Length: 26mm
- Plate Width: 12.7mm
- Plate Height: 185mm
- Fixing Centres: 164mm
- Door Thickness: 32mm-45mm
- Suitable for Door Type: Timber Doors
- Finish: Satin Stainless Steel
Ratings/Compliance:
-
Fire Rating: The 6500 series plate furniture is fire rated and complies
with AS1905.1-2005 Part 1 - AS1905.1-2005 Part 1 compliant
