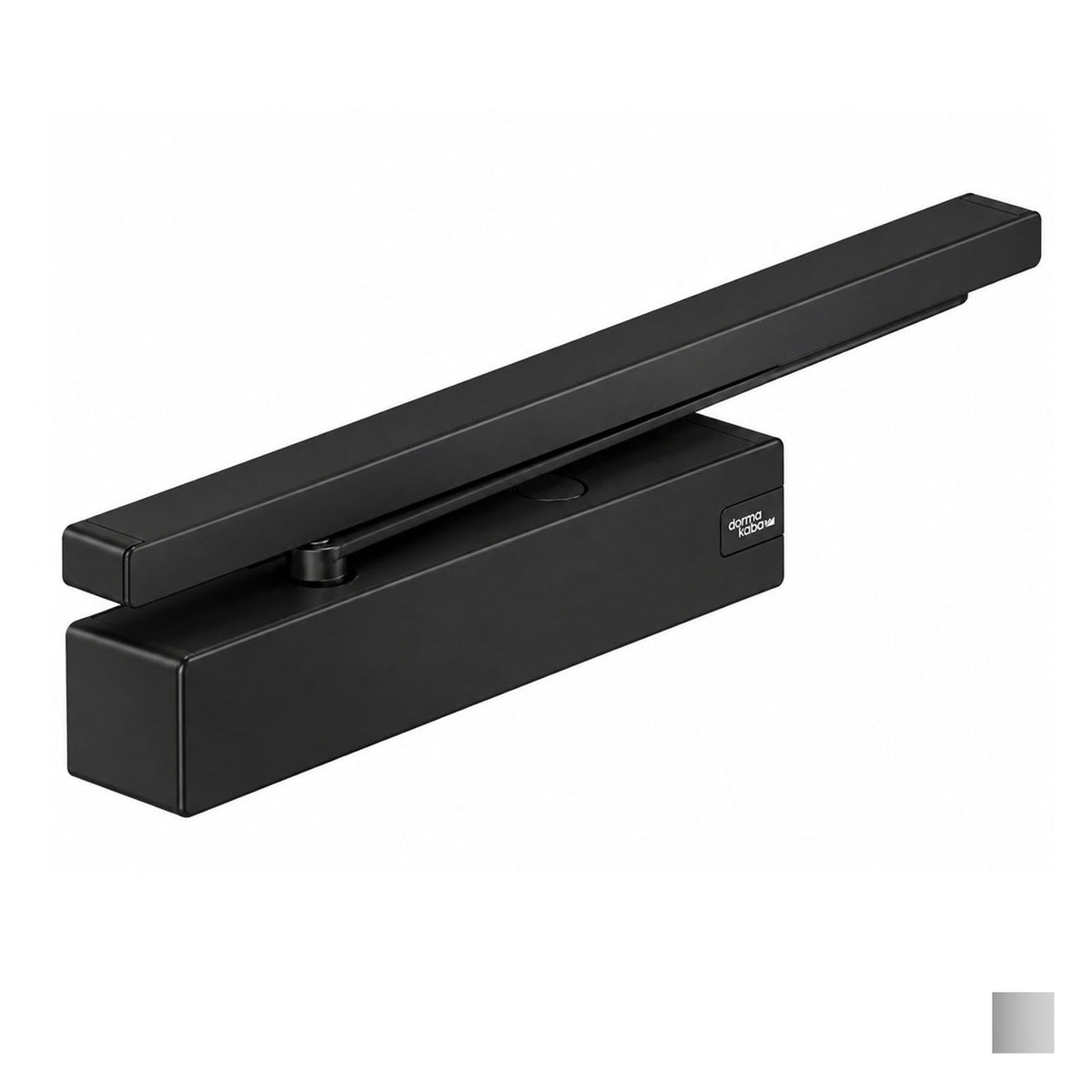

Dormakaba EN 1-6 Slide Channel Door Closer Adjustable Closing - Available in Black and Silver

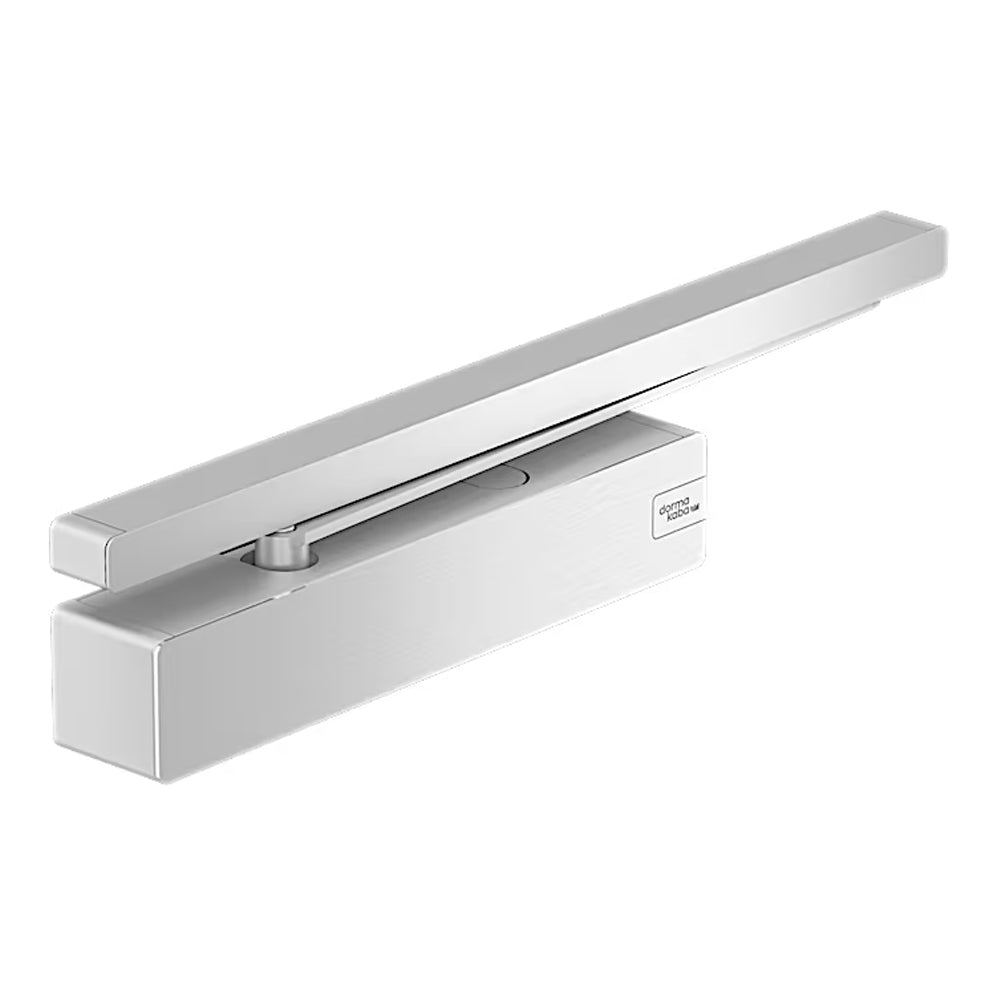

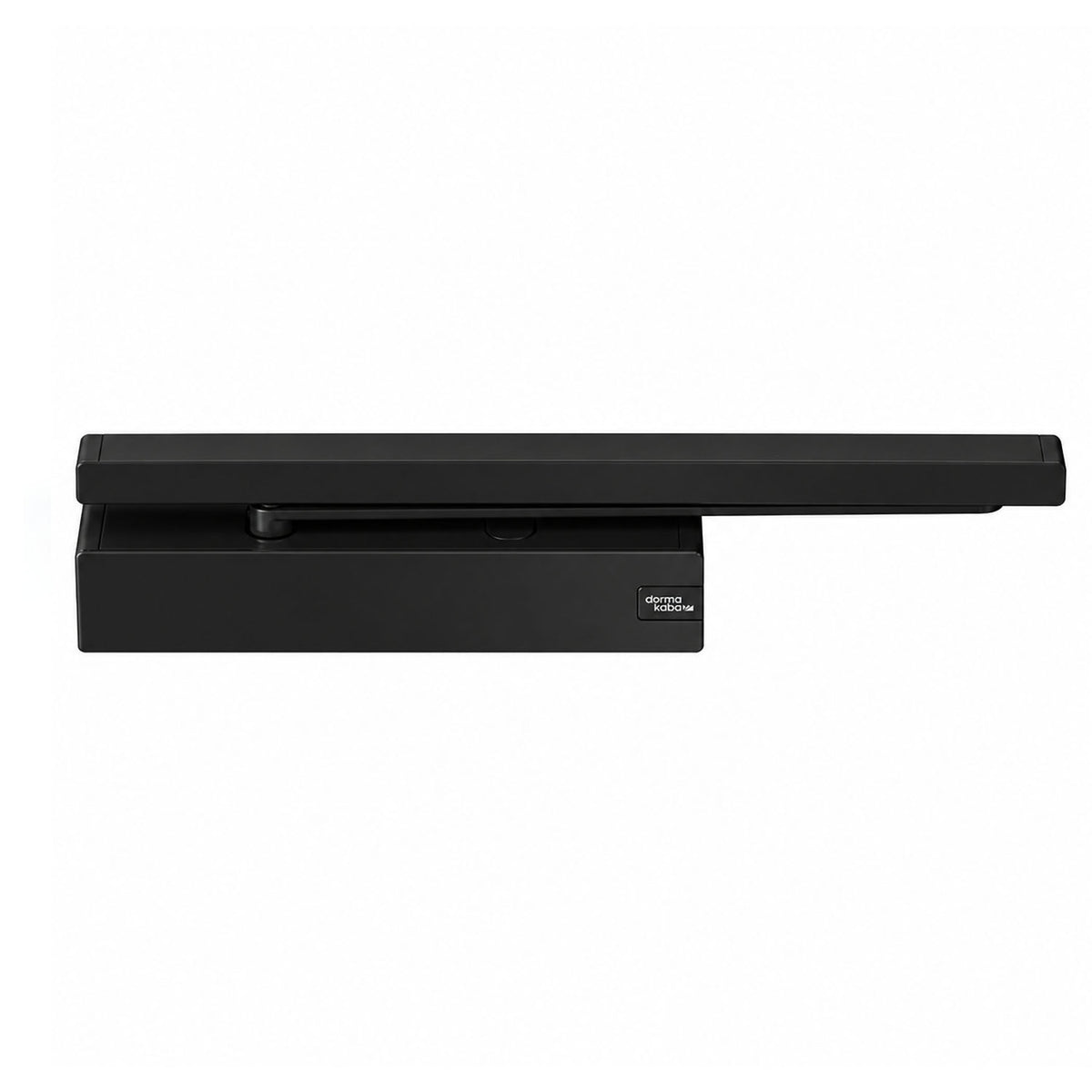

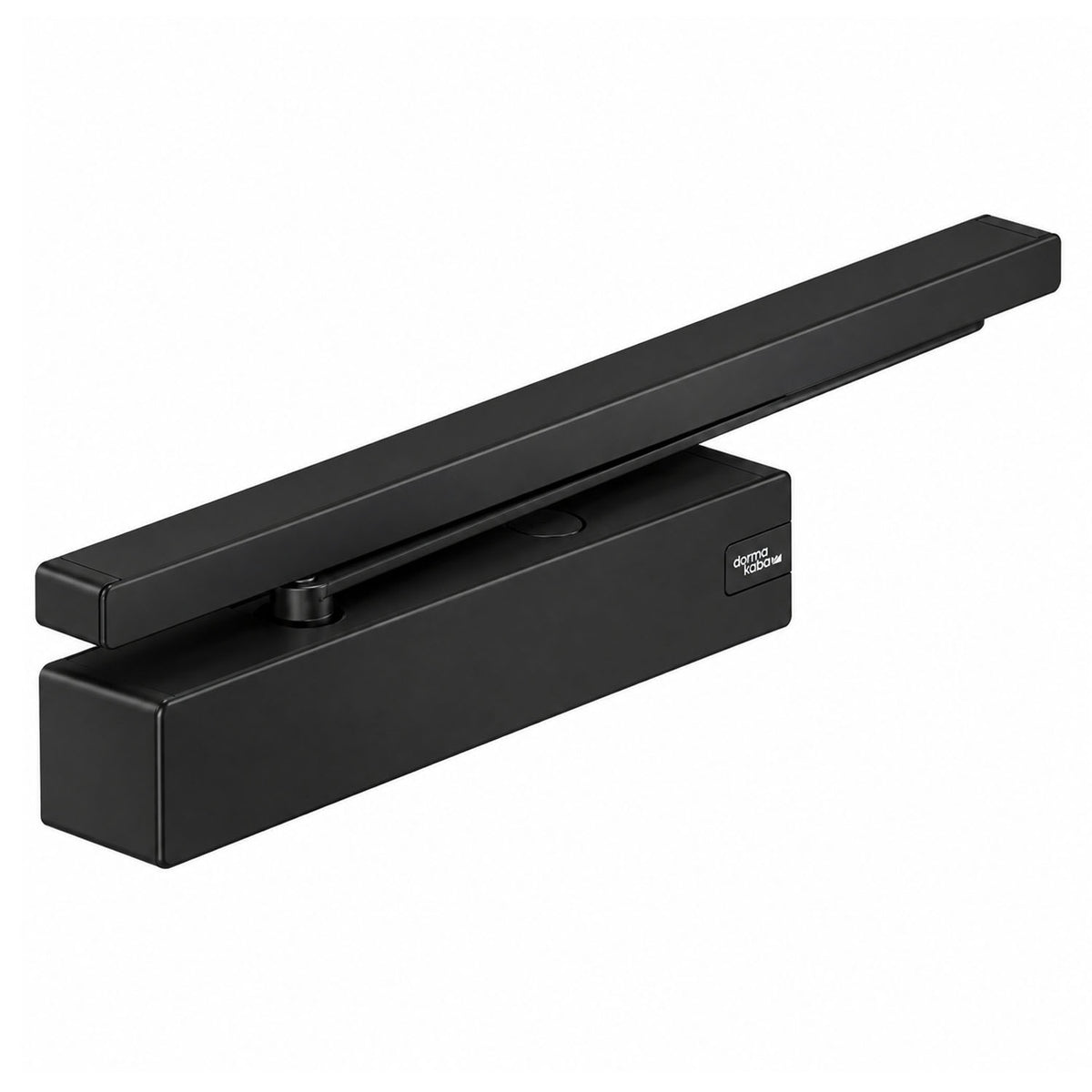

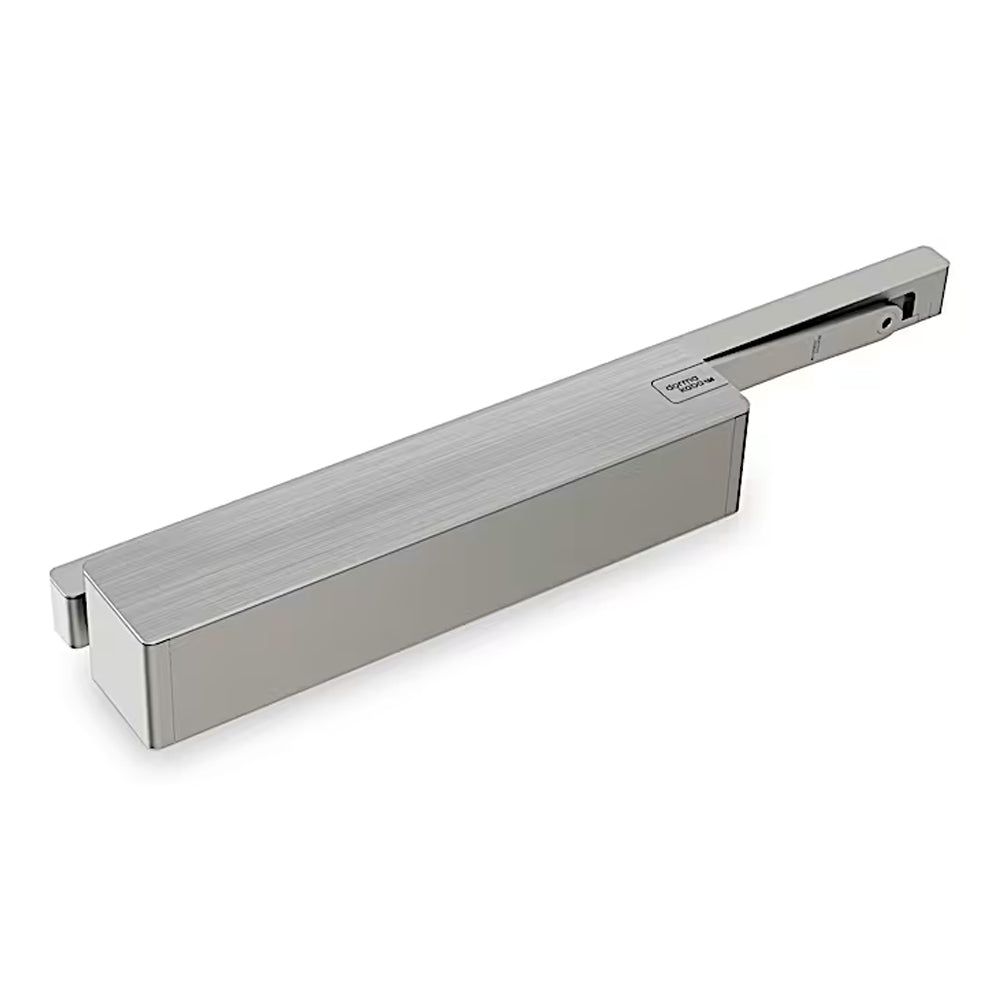

Dormakaba EN 1-6 Slide Channel Door Closer

Door Closer is a mechanical device that closes a door in a controlled manner, preventing it from slamming.

Door Closer Function - A hydraulic device that is used to automatically close a door after it has been opened. Door closers are commonly used as a fire prevention measure, typically installed on fire doors, as well as helping to prevent draughts.

Features:

• Large closing force range for door widths up to 1,400 mm SoftFlow quiet door closing thanks to additional closing range
• Proven EASY OPEN technology provides barrier-free access as per German Industrial Standards (DIN) SPEC 1104 and (DIN) 18040

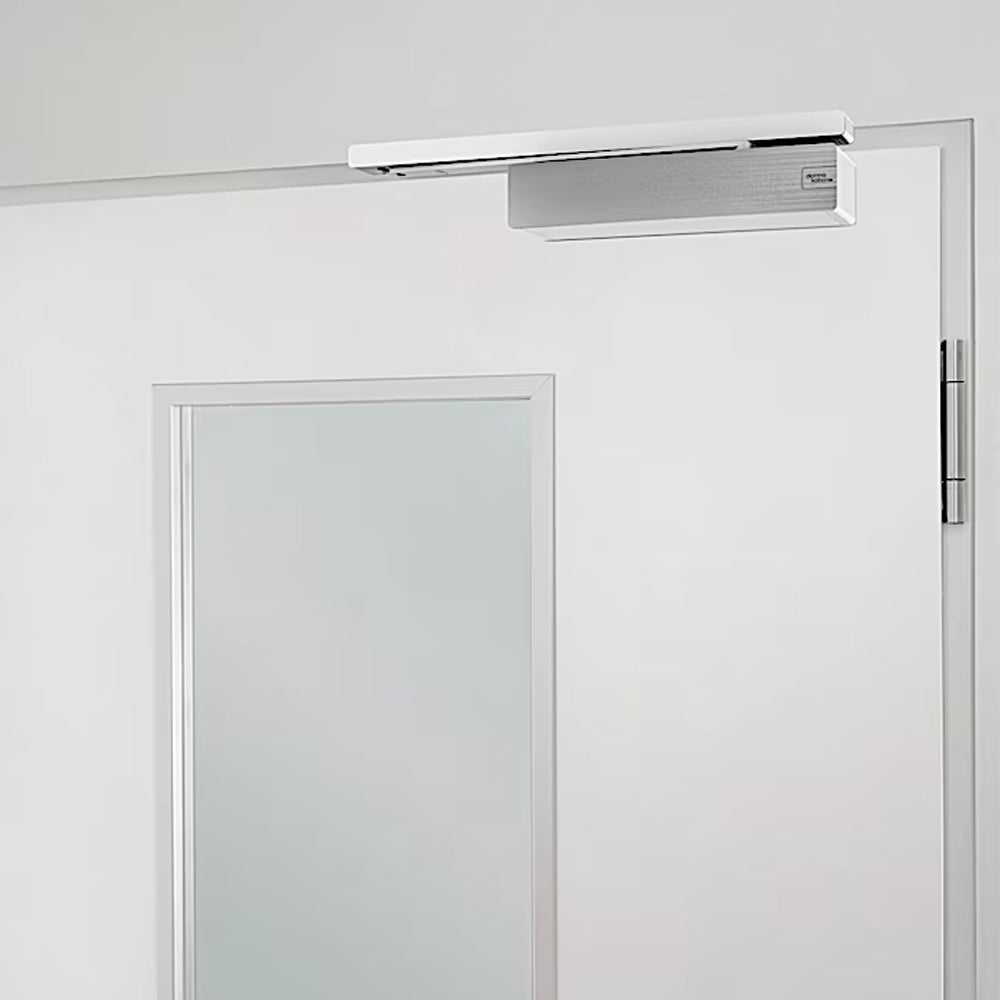

• One door closer for all four installation types
• Backcheck and delayed closing in all four installation types
• Self-closing from 180 degrees opening angle on pull side
• Closing force adjustment possible at front using a battery screwdriver
• With visual closing force indicator
• For doors weighing up to 300 kg (not in conjunction with electromechanical hold-open unit integrated into the slide channel)

Specifications:

• Power: EN 1 to 6
• Max Door Weight: 300kg

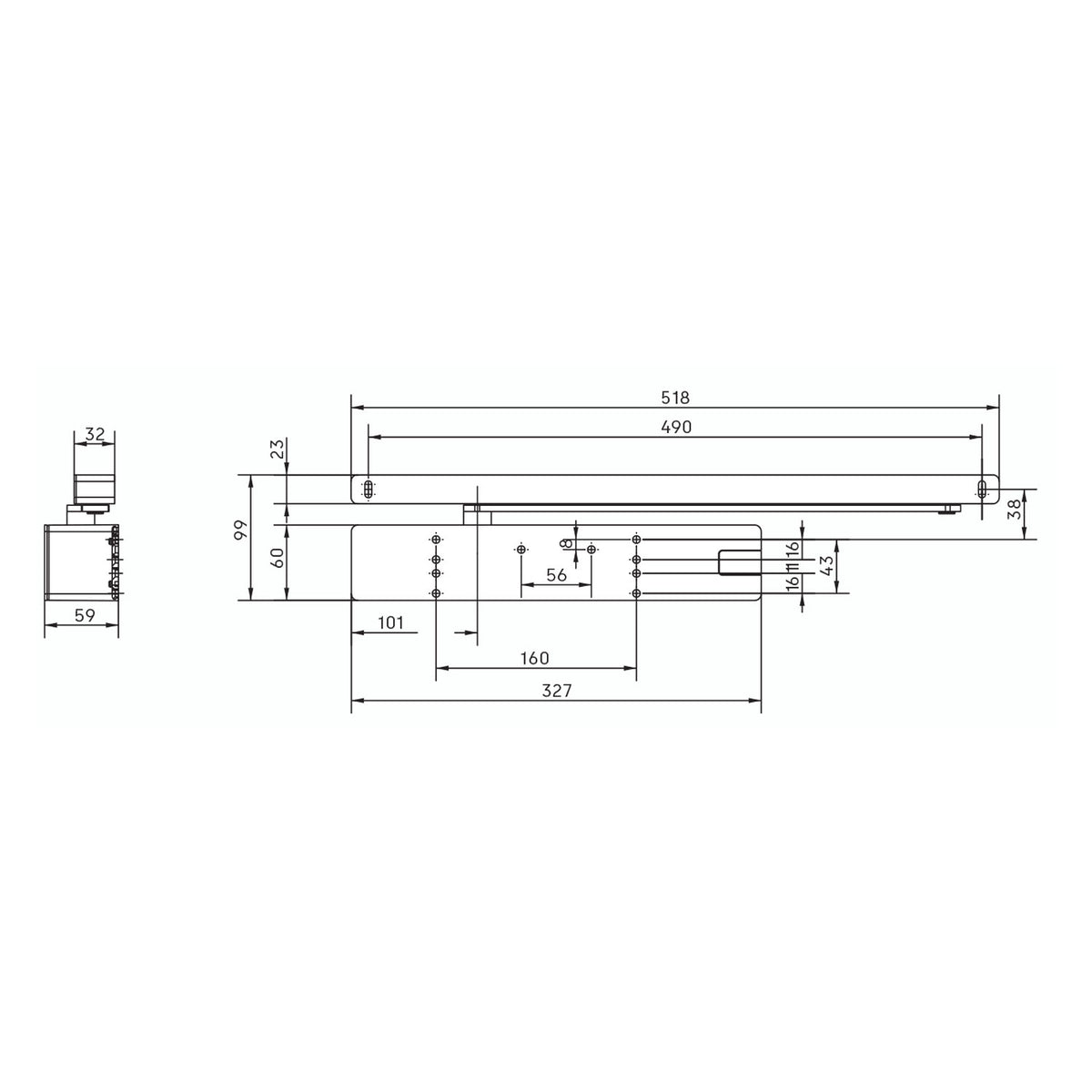

• Length: 327mm
• Depth: 59mm
• Height: 60mm
• Backcheck: Yes (adjustable using valve)
• Delayed closing: Yes (continuously adjustable using valve)
• Latching action: Yes (continuously adjustable using valve)
• Available Finish:
  • Black
  • Silver

Compliance:

• With the maximum opening torque as per German Industrial Standard (DIN) 18040 up to a door width of 1,250mm
