SKU: DORMDF66100001
Dormakaba Furniture Square End Plate With Cylinder Hole Concealed Fix 6610SSS
RRP: $68.05
Payments accepted:
Couldn't load pickup availability

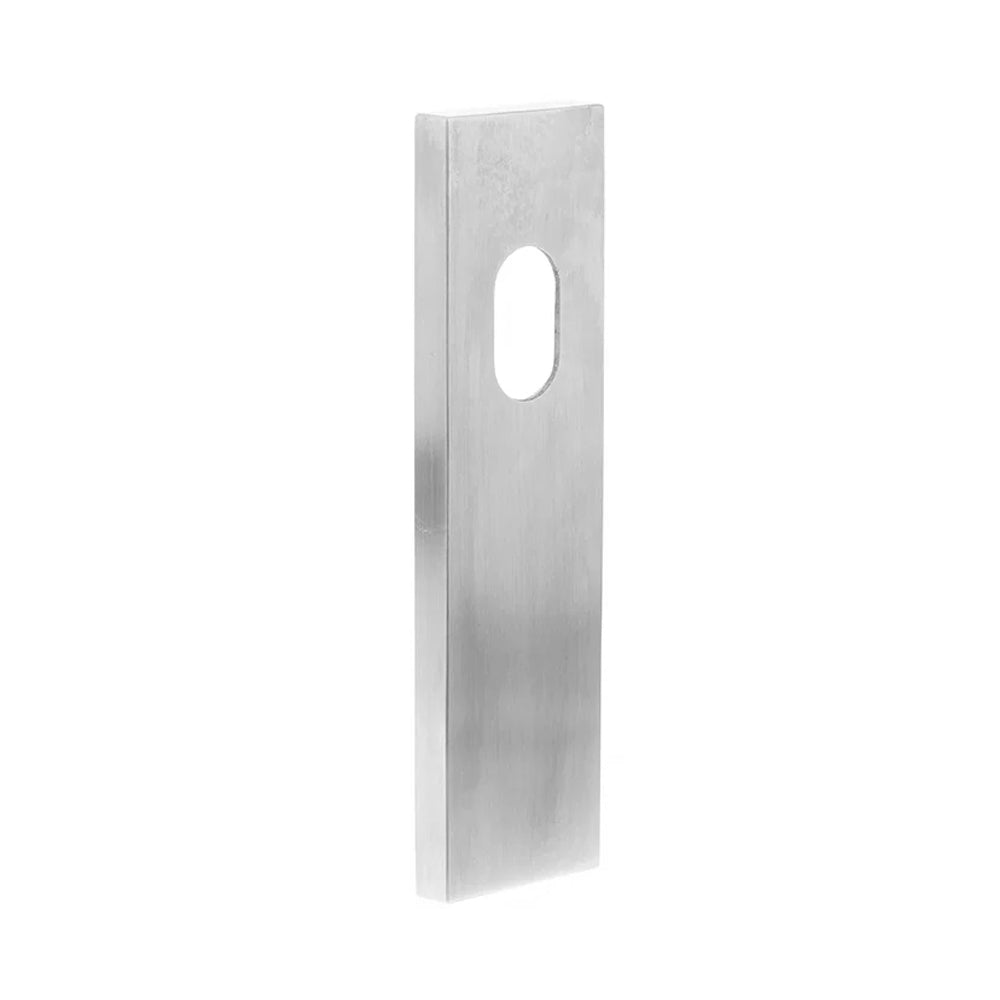

Dormakaba Furniture Square End Plate With Cylinder Hole
6610SSS
Square End Plate a classic rectangular plate with bevelled edges. Suits corporate, commercial and public spaces with high use requirements.
Square End Plate Function - External plates designed to fit back to back. If outside plate is specified with concealed fixing, then the inside plate must be visible fixed.
Features:
- Designed for use with dormakaba DKMS2602SSS series locks
- Rectangular exterior square end plate
- Plain plate with cylinder hole only
- Concealed fixing
- Plates are designed to fit back to back
- External plates supplied with fixing screws
Specifications:
- Door Thickness: 32mm - 50mm
- AS1428.1 Compliant Lever: No
- Internal / External: External
- Plate Size: 165mm x 45mm x 10mm
- Screw Fixing Centres: 148mm
- Plate Type: Square End
- Fire Rated: Yes
- Material: 316 Stainless Steel
- Grade of Stainless Steel: 316
- Plate Has A Lever: No
- Plate Has Oval Cylinder Hole: Yes
- Finish: Satin Stainless Steel
Compliance:
- Fire Rated: Successfully tested up to 4 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
