WHILE SUPPLIES LAST - Dormakaba Lever External Round End Plate w/ Emergency Button Right Hand 6749/30GR

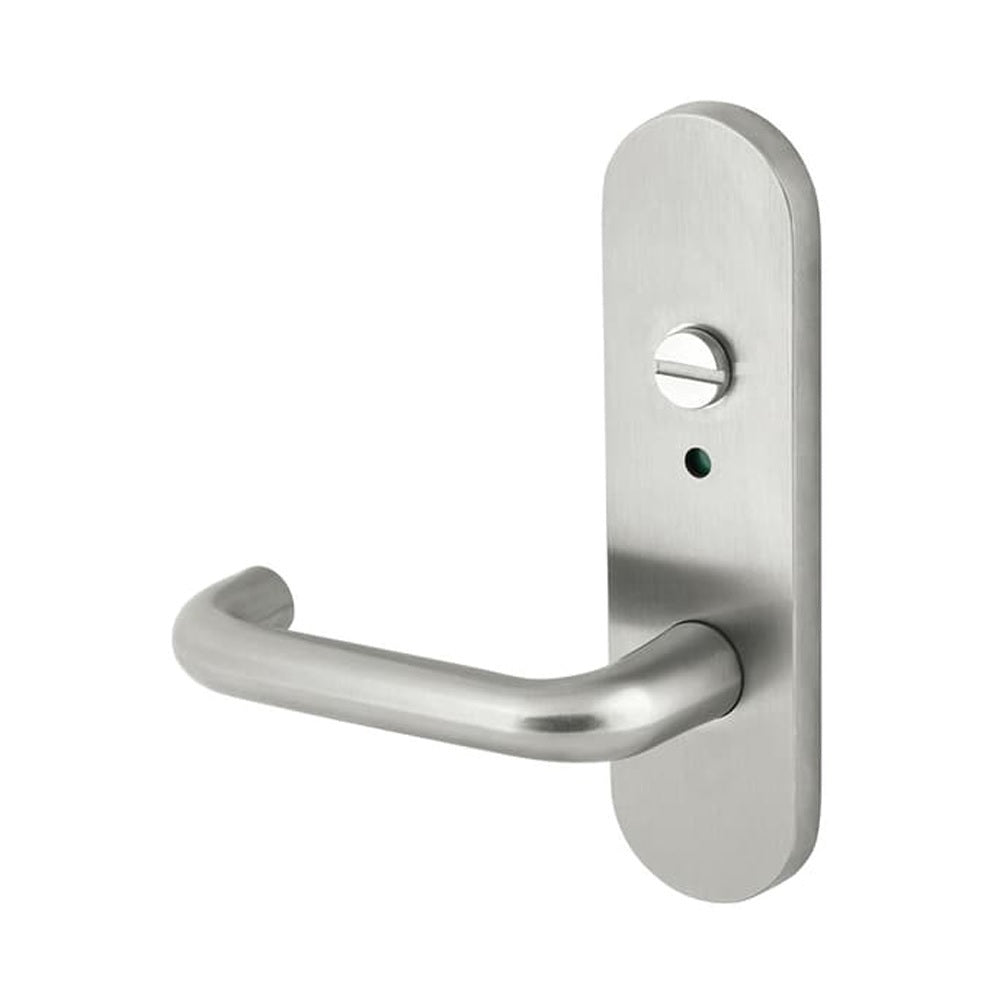

Dormakaba Lever External Round End Plate w/ Emergency Button
6749/30GR

Door Lever can be found on all types of doors including exterior doors of internal doors, residential and commercial buildings.

Door Lever Function - Lever design provides an easier grip when opening a door and it prevents your hand from slipping.

Features:

• Stylish alternative to the rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 Solid Stainless Steel
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Extensive range of optional plate functions
• Designed with bolt through the door fixing for use with the dormakaba MS2602 series mortice locks and latches
• Heavy duty spring mechanism manufactured using the highest grade materials
• Nylon bush preventing metal to metal wear and providing a smoother friction free movement
• All turn snibs and privacy snibs on plate are supplied with a heavy duty star spindle for positive turn actuation and furthermore provides for true installation alignment
• Compatible with all Coastal and Urban series lever designs
• Standard screws in 5/32 thread to suit

Fire Rating:

• The 6700 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1

Disabled Compliance:

• Disabled turn’s on plates 6707, 6748, 6617, 6758 and 6757 feature a user friendly finger grip of non entrapment design. Designed with the assistance of access consultants.

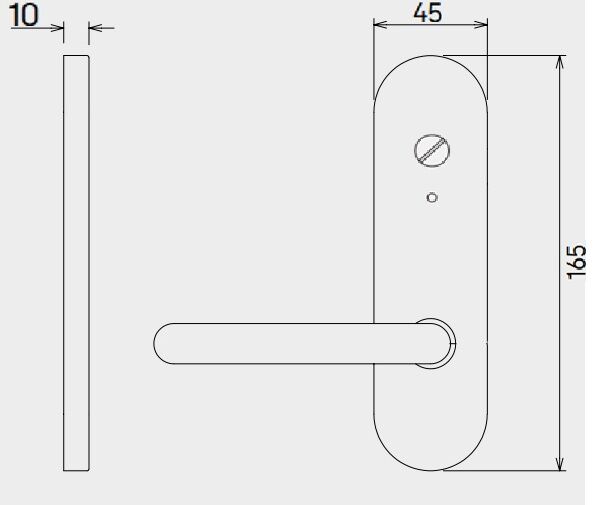

Specifications:

• Door Thickness: 32mm - 50mm
• Height: 165mm
• Width: 45mm
• Thickness: 10mm thick
• Fixing Centres: 149.25mm
• Handing: Right Hand
• Finish: Satin Stainless Steel
