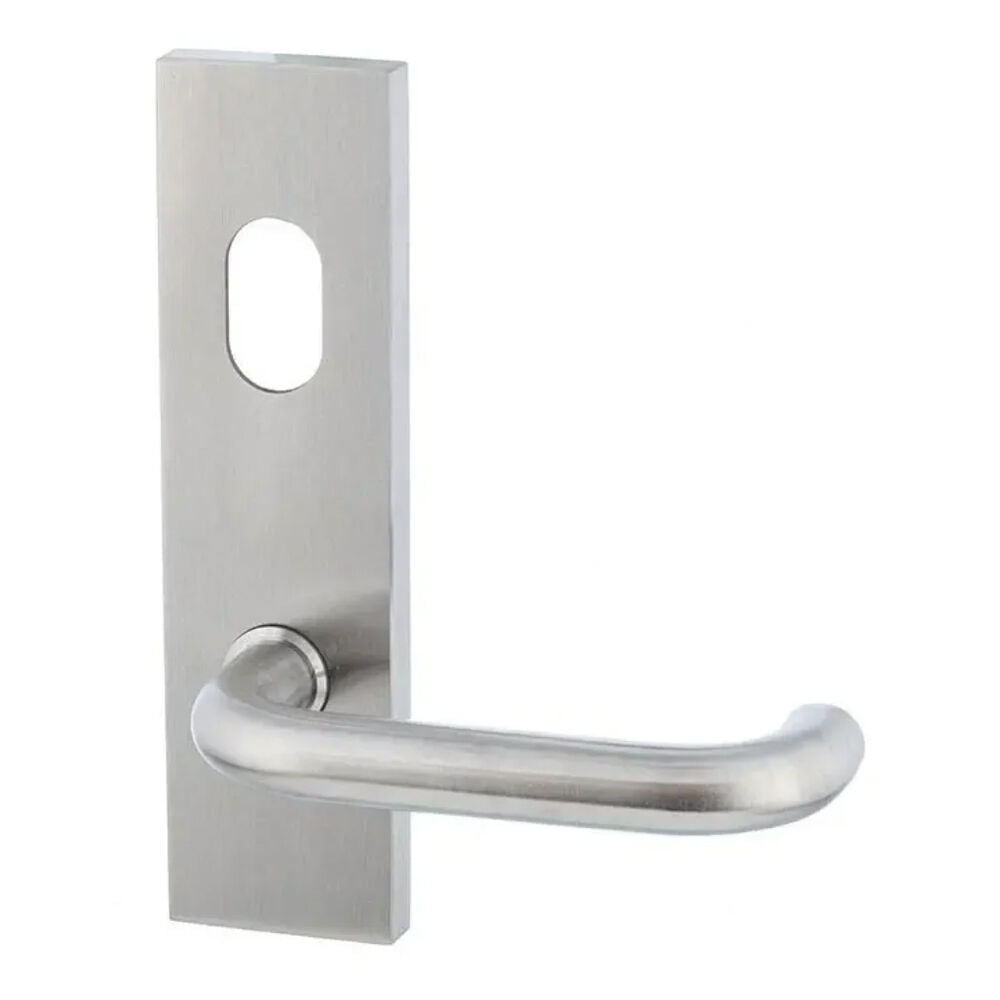

Dormakaba External Square End Plate with Cylinder Hole & 70 Lever Satin Stainless Steel 6600/70SSS

Dormakaba Lever on Square End Plate with Cylinder Hole
6600/70

Lever on Square End Plate with Cylinder Hole is commonly used in commercial and industrial buildings on aluminum or narrow stile doors that require both lever access and key locking functionality.

Lever on Square End Plate with Cylinder Hole Function - a complete locking handle set, allowing both lever operation and key access on narrow stile doors.

Features:

• A true rectangular plate displaying clean modern lines with bevelled edges
• Manufactured using hygienic and corrosion resistant 316 solid stainless steel
•  A characteristic feature of stainless steel door furniture is the naturally gleaming finish
• Concealed fixed external plates with visible fixed internal plates connected with bolt through fixings
• Heavy duty spring mechanism manufactured using the highest grade materials

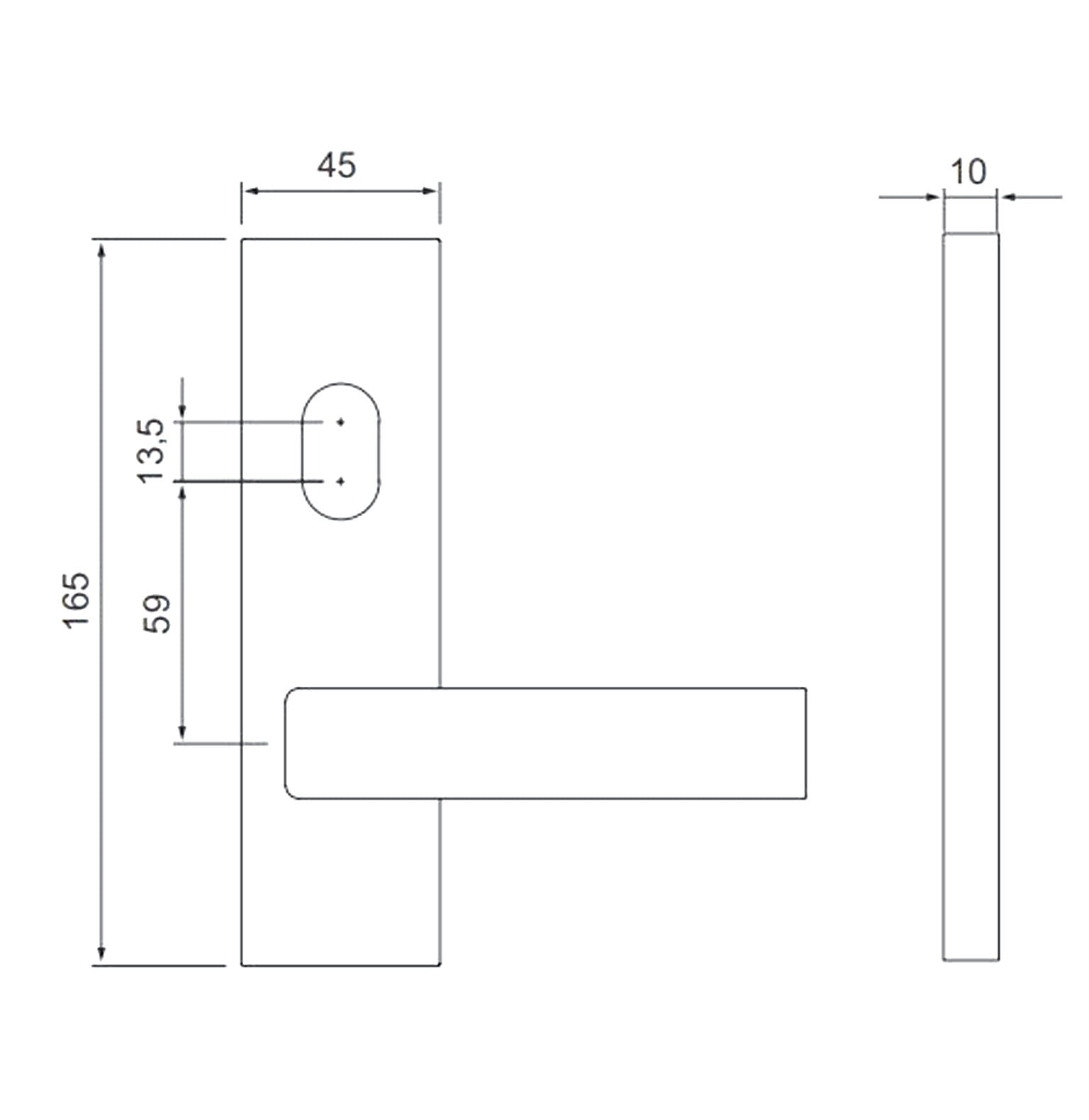

Specifications:

• Material: Stainless Steel
• Height: 165mm
• Length: 135mm
• Door Thickness: 35mm - 50mm
• Plate Width: 45mm
• Plate Height: 165mm
• Includes Fixing Screws: Yes
• AS1428.1 Compliant: Yes
• Fire Tested: Yes
• Suitable for Door Type: Timber Doors
• Cylinder Cut Out Profile: Oval
• Spindle Size: 7.6mm
• Fixing: Concealed Fixed
• Finger Clearance: 45mm
• Finish: Satin Stainless Steel

Ratings/Compliance:

• Fire Rating: The 6600 series plate furniture is fire rated and complies with AS1905.1-2005 Part 1.
