Dormakaba Lift Off Door Hinge 100x75mm Stainless Steel - Available in Various Handing

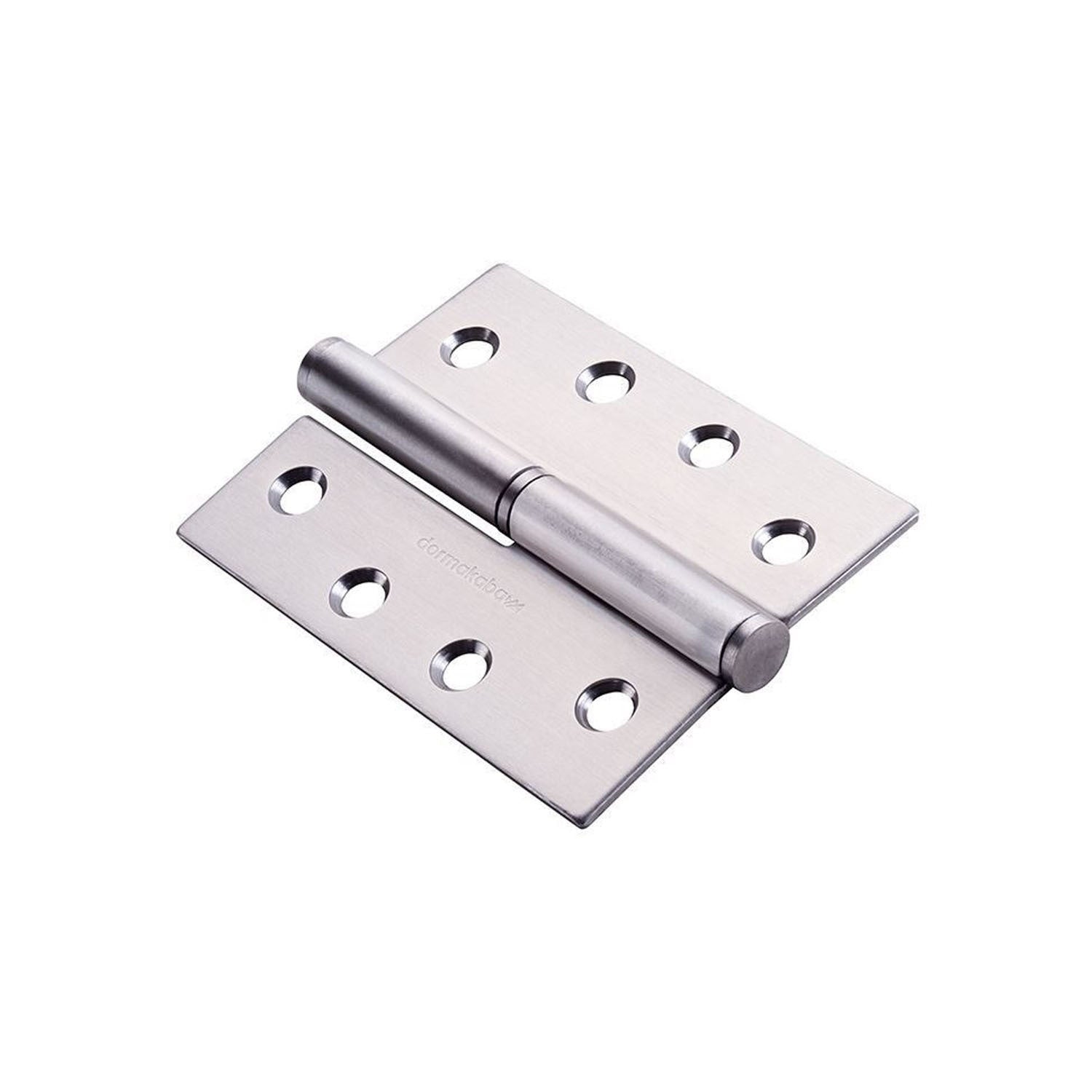

Dormakaba Lift Off Door Hinge

Lift Off Hinge can be installed to inward opening doors. Most common building solution used for access into fully enclosed sanitary compartments.

Lift Off Hinge Function - a mechanical bearing that allows doors to pivot on one edge when they open and close, allowing for limited rotational movement of the object to which it is attached.

Features:

• Suitable for Timber or Metal doors and Timber or Pressed Metal frame applications
• Allows a door to be removed by someone on the outside in the event of an emergency
• Doors require a gap between the top of the door and the underside of the head of the door frame to allow sufficient movement upwards for door release
• Supplied with (8) x 4.2 x 35mm wood & (4) x M5 x 12mm metal thread screws

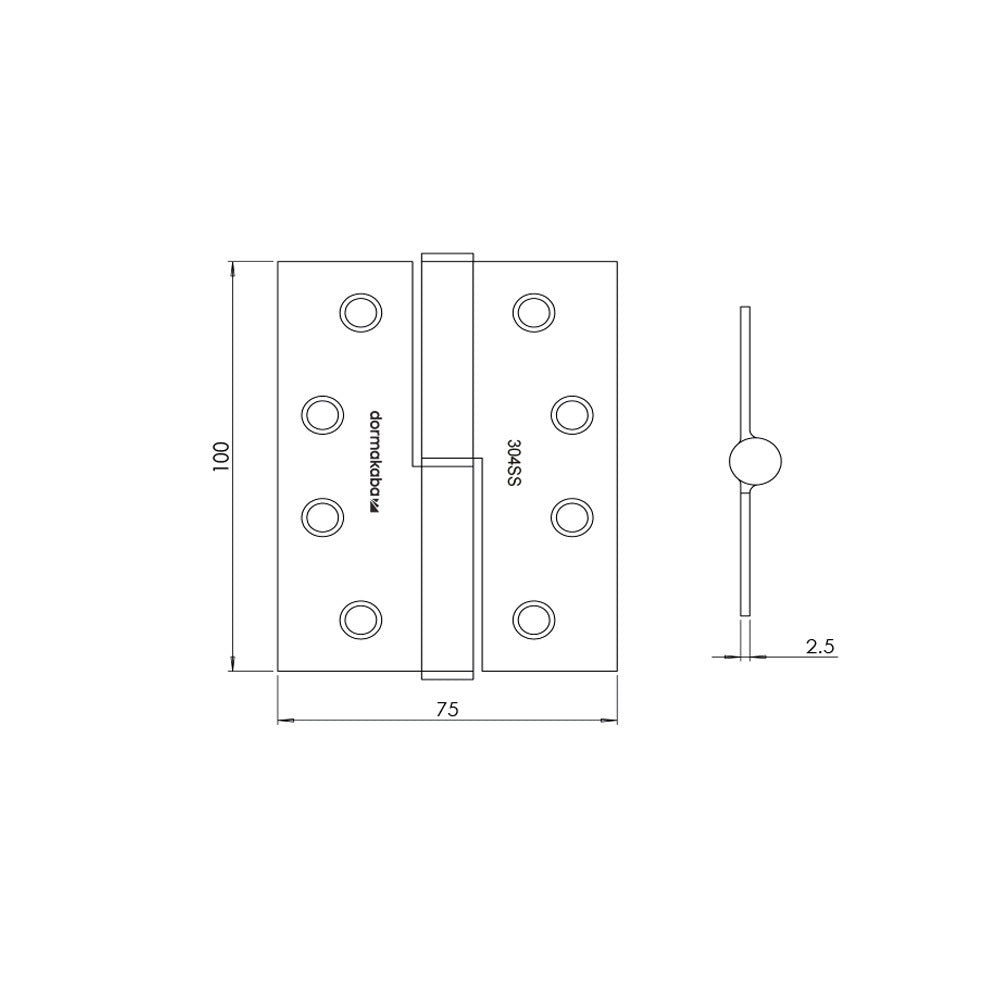

Specifications:

• Material: 304 Grade Stainless Steel
• Size: 100mm x 75mm
• Thickness: 2.5mm
• Pin Size (when you lift off the hinge): 15mm
• Handing:
  • Left Hand
  • Right Hand
• Finish: Satin Stainless Steel
