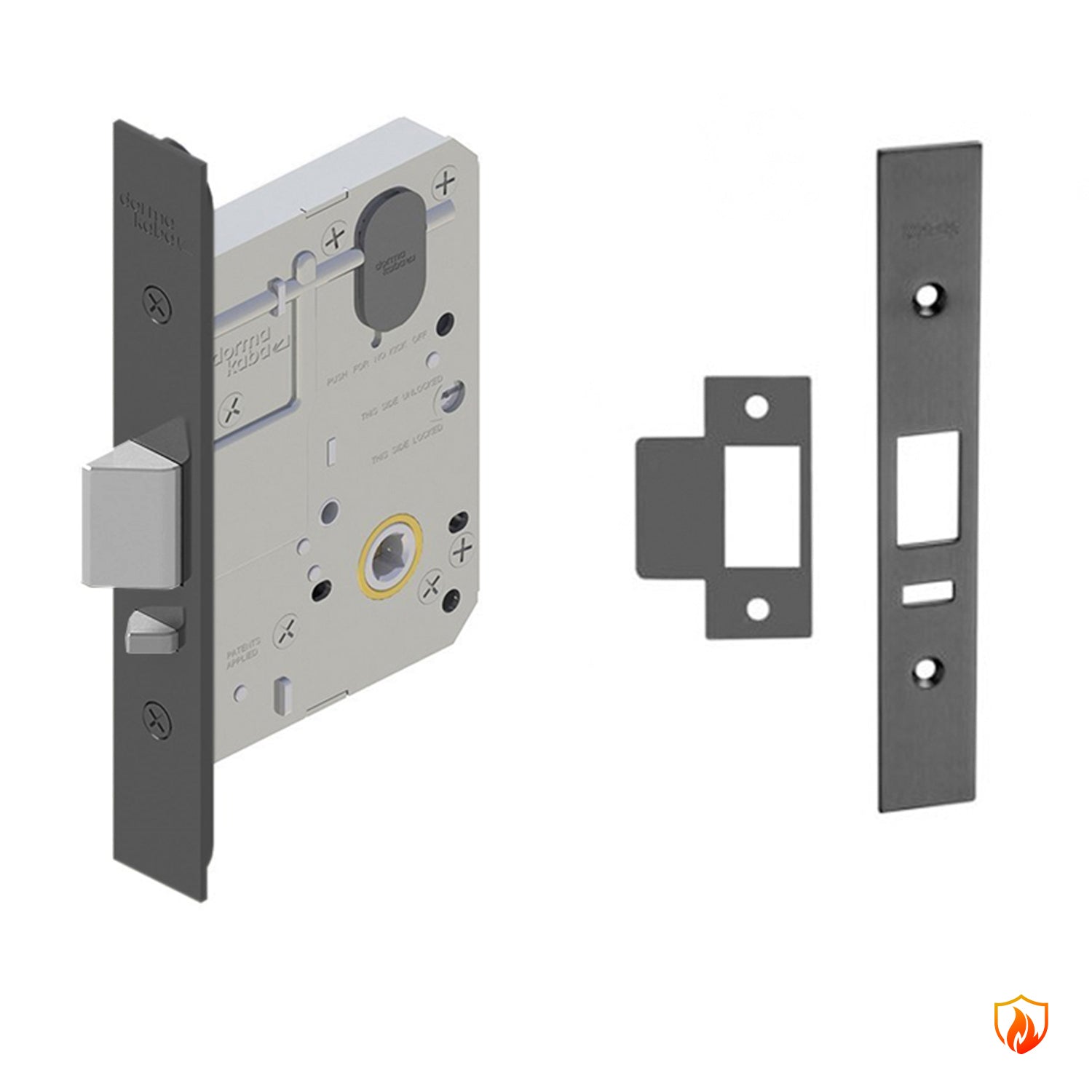

Dormakaba Primary Mortice Door Lock 60mm Fire Rated Black MS2602

Dormakaba Primary Mortice Door Lock
MS2602

Mortice Lock is commonly used in doors. It is known for its durability, security, and classic design. It consist of several components that work together to provide effective locking and unlocking functions.

Mortice Lock Function - where the deadbolt locks by a key on both the exterior and interior of the lock. Latch is activated by turning the key or lever handle if fitted.

Features:

• Case, cover and faceplate constructed from 304 grade stainless steel
• Operated by key or handle outside or by turnsnib, key or handle inside
• 14 mm stainless steel reversible latch bolt
• Anti-lockout function built-in
• Easily adapted to most functions
• Supplied with turn snib adaptor
• Supplied less cylinder
• Compatible to most restricted keying systems
• Compatible with most electric strikes
• SCEC approved (SL3)
• Fire rated up to 4 hours

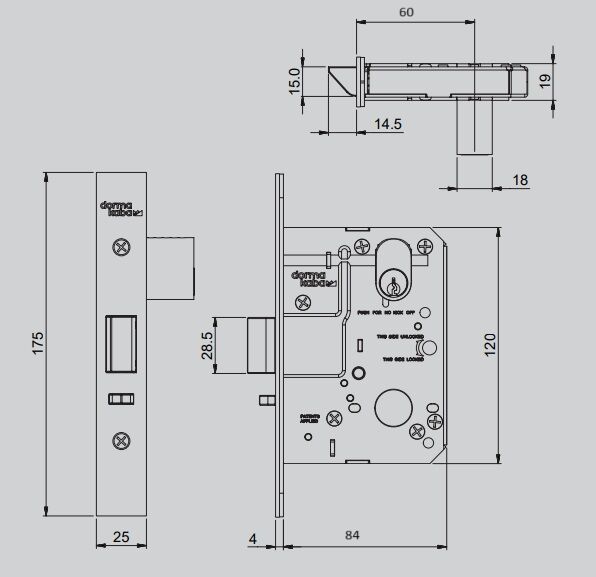

Specications:

• Material: 304 Stainless Steel
• Door Thickness: 32 to 50 mm
• Faceplate Height: 175mm
• Faceplate Width: 25mm
• Mortice Height: 120mm
• Mortice Width: 84mm
• Anti-lockout Function: Yes
• Compatible With Most Restricted Keying Systems: Yes
• Holdback Function Built-in: No
• Lock Grade: Commercial
• SCEC Endorsed: SL3 With Approved Keying System Installed
• Backset: 60 mm
• Fire Rated: Yes
• Finish: Black

Ratings:

• MS2600 Series lock conforms to level SL8 (Physical Security) in accordance with Australian lock standard AS4145.2-2008.
• MS2600 Series lock conforms to level D8 (Durability) in accordance with Australian lock standard AS4145.2-2008.
