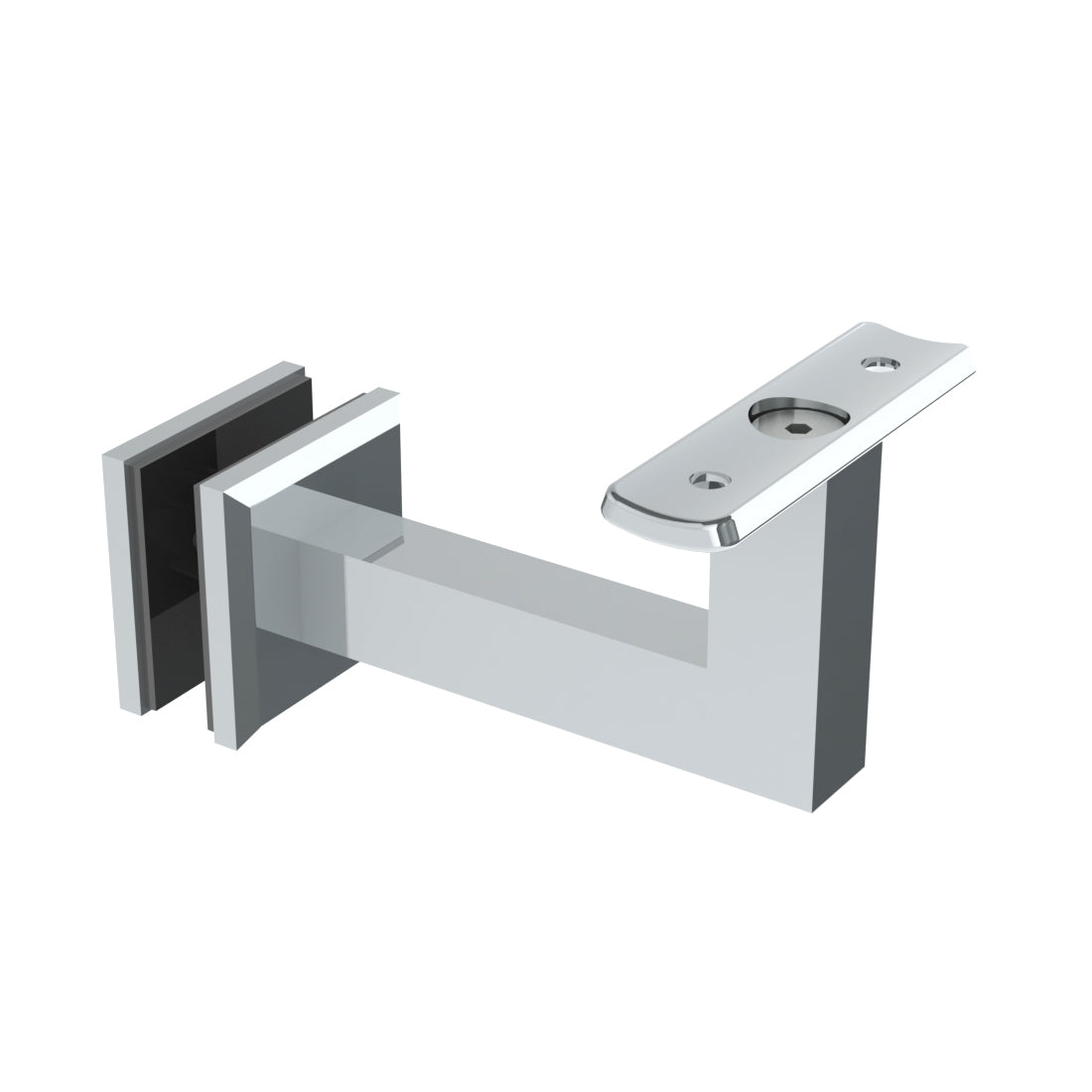

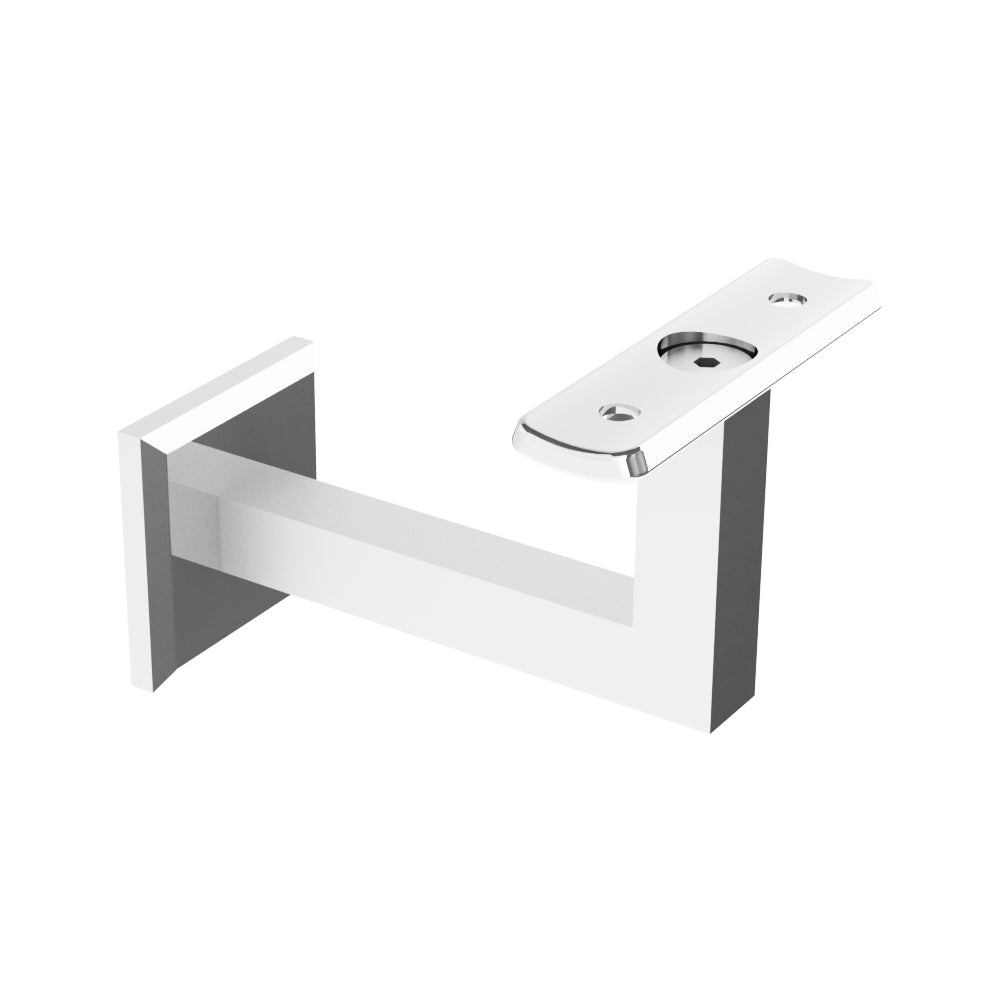

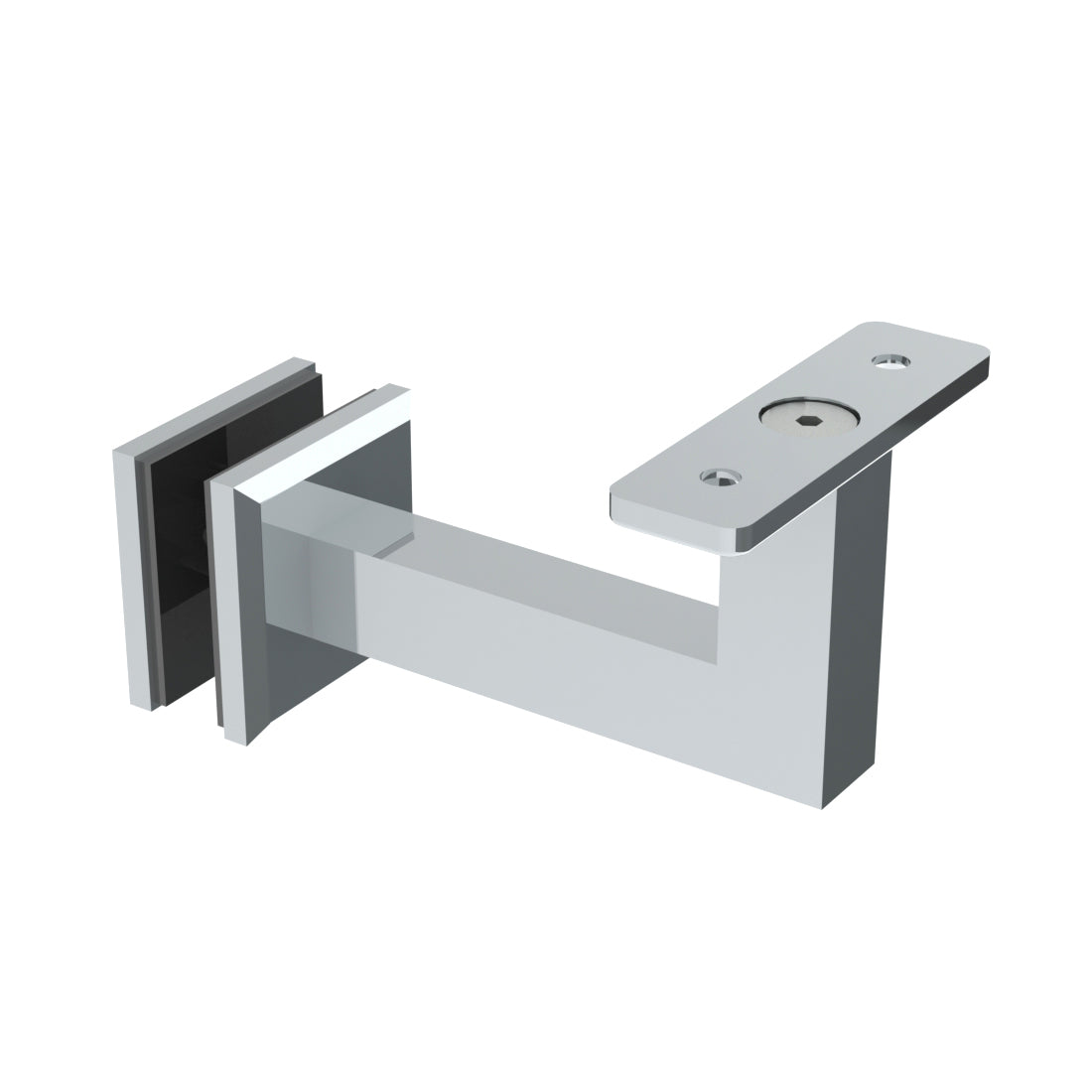

Emro Commercial Square Bracket For Glass SS620G - Available in Curved Top and Flat Top

Emro Commercial Square Bracket For Glass
SS620G

Handrail Bracket is used to attach the staircase railing to a wall

Handrail Bracket Function - offers support for the thousands of times the railing is grabbed when going up and down the stairs.

Includes:

• 1 x Arm
• 1 x Rail Mount
• 1 x Base
• 1 x Base Nut
• 2 x Washer Nylon
• 1 x Threaded Retainer
• 1 x Countersunk Bolt - M6 x 12mm
• 1 x Screw - M5 x 6mm
• 2 x Countersunk Screw - 5mm x 40mm

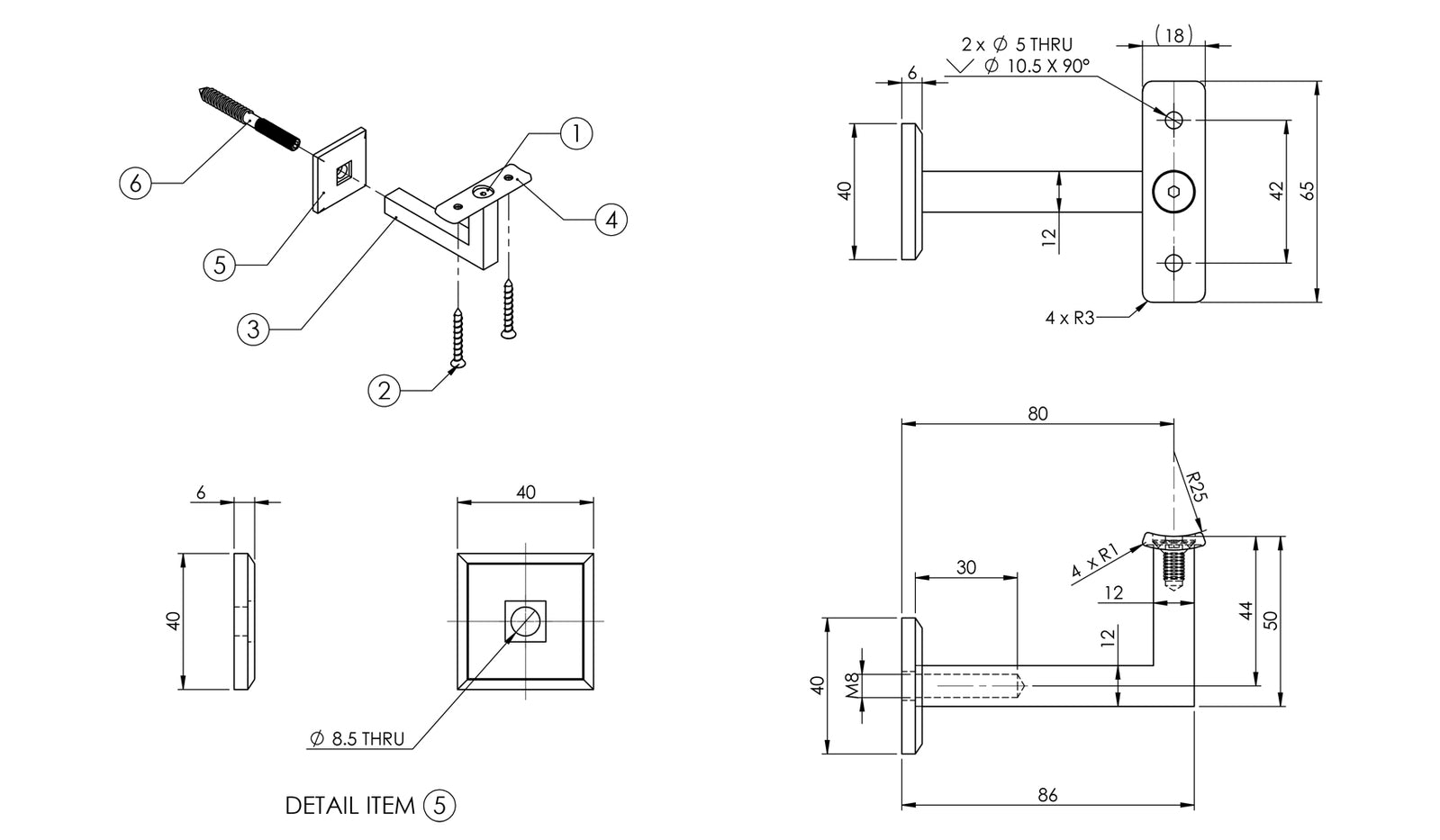

Specifications:

• Material: 316 Stainless Steel
• Top Bracket Type:
  • Curved
  • Flat
• Top Bracket Length: 65mm
• Top Bracket Centre to Centre: 42mm
• Bottom Bracket Length: 40mm
• Bottom Bracket Width: 40mm
• Projection: 88mm
• Finish: Polished Stainless Steel
