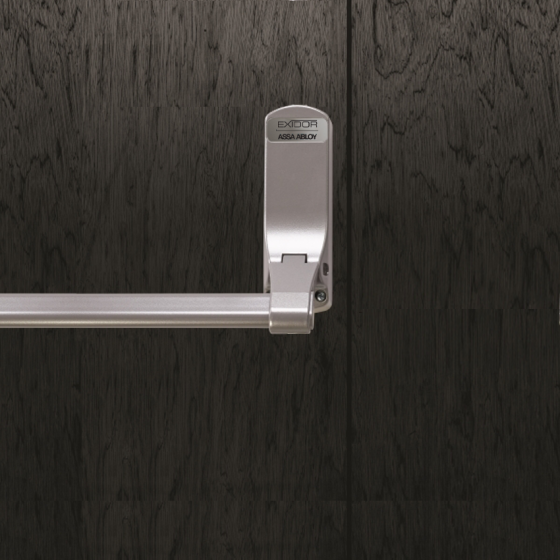

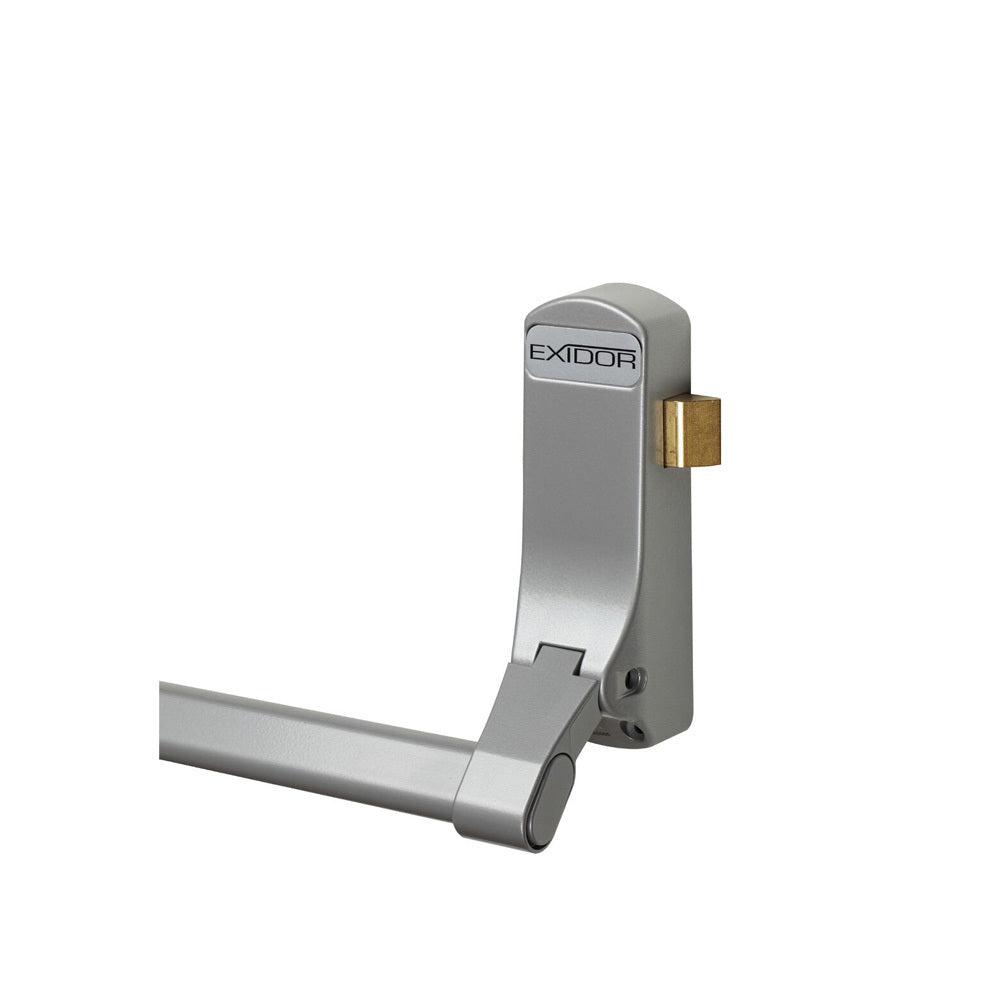

Exidor by Assa Abloy Panic Exit Device Single Point Lock Silver EXI296-SIL

Exidor Assa Abloy Panic Exit Device
EXI296-SIL

Panic Reversible Latch allows for both doors to be locked closed and permits emergency exit from both doors (e.g. where emergency or panic situation could occur).

Panic Reversible Latch Function - a safety device for critical emergency. These are designed specially for doors that may be used in the event of an emergency that would require a fast and unencumbered escape, such as a fire evacuation.

• Combining attractive design and high-quality engineering
• Ideally suited to all commercial buildings where a safe and speedy exit is essential. Whether you’re looking for solutions for timber, steel, UPVC or aluminium doors, Exidor panic hardware and exit devices are available with bolts, vertical or horizontal pullman latches, touch bars, and much more.

Features:

• Non-handed
• Fire rated for use on timber and steel doors
• Surface mounted
• Bar can be cut to size on site
• Suits single door applications
• Adapter for operating with a rim cylinder
• Closed arm design
• Door opening outward
• Bolt style latch
• Supplied in trade pack

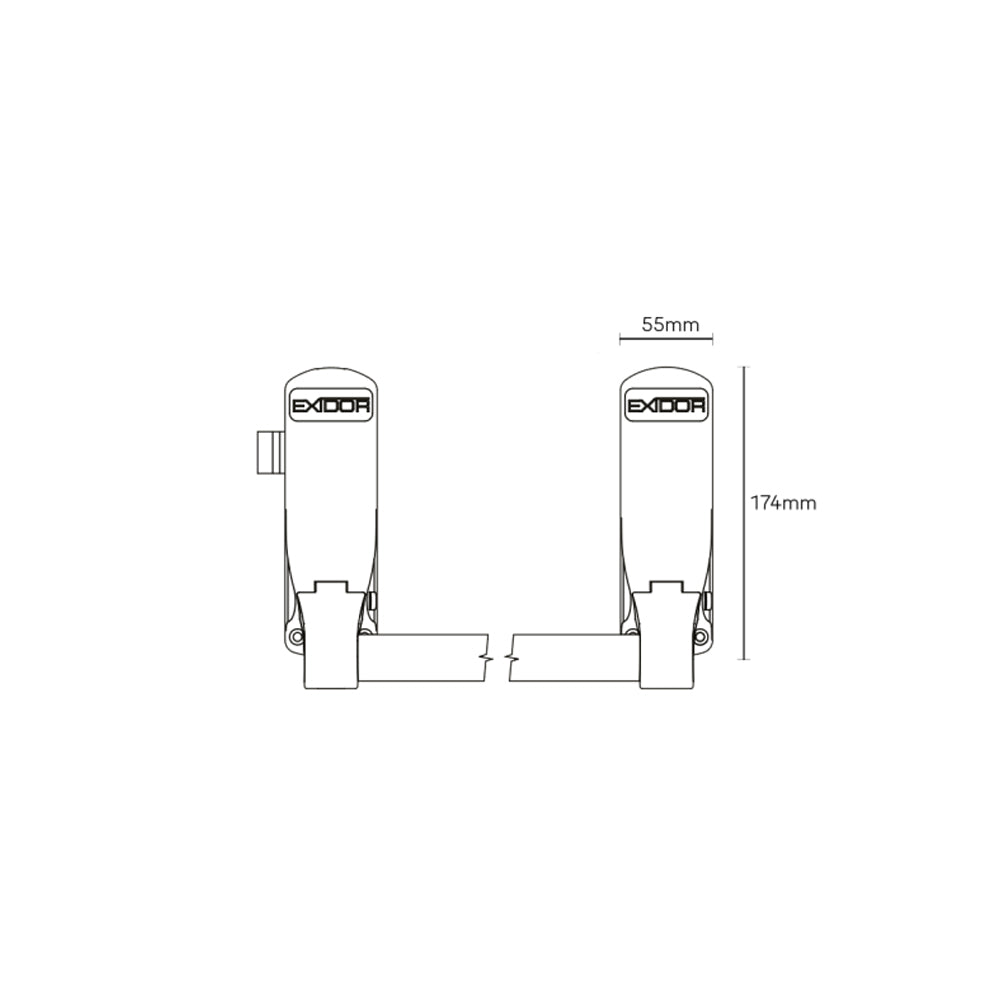

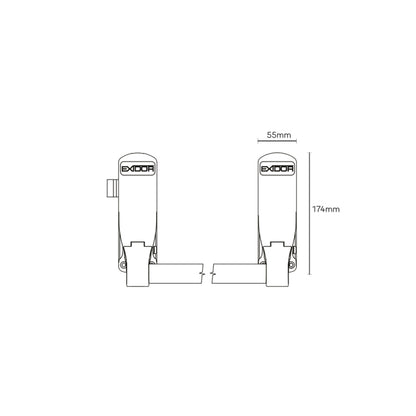

Specifications

• Handing: Reversible
• Number of locking points: 1
• Maximum Panel Width: 1220mm
• Projection: 98mm (from door face)
• Maximum Door Weight: 200kg
• Finish: Silver

Operation: Pushing the bar down into the door face retracts the latch or bolts. The bolts remain retracted until automatically released on closing of the door.
