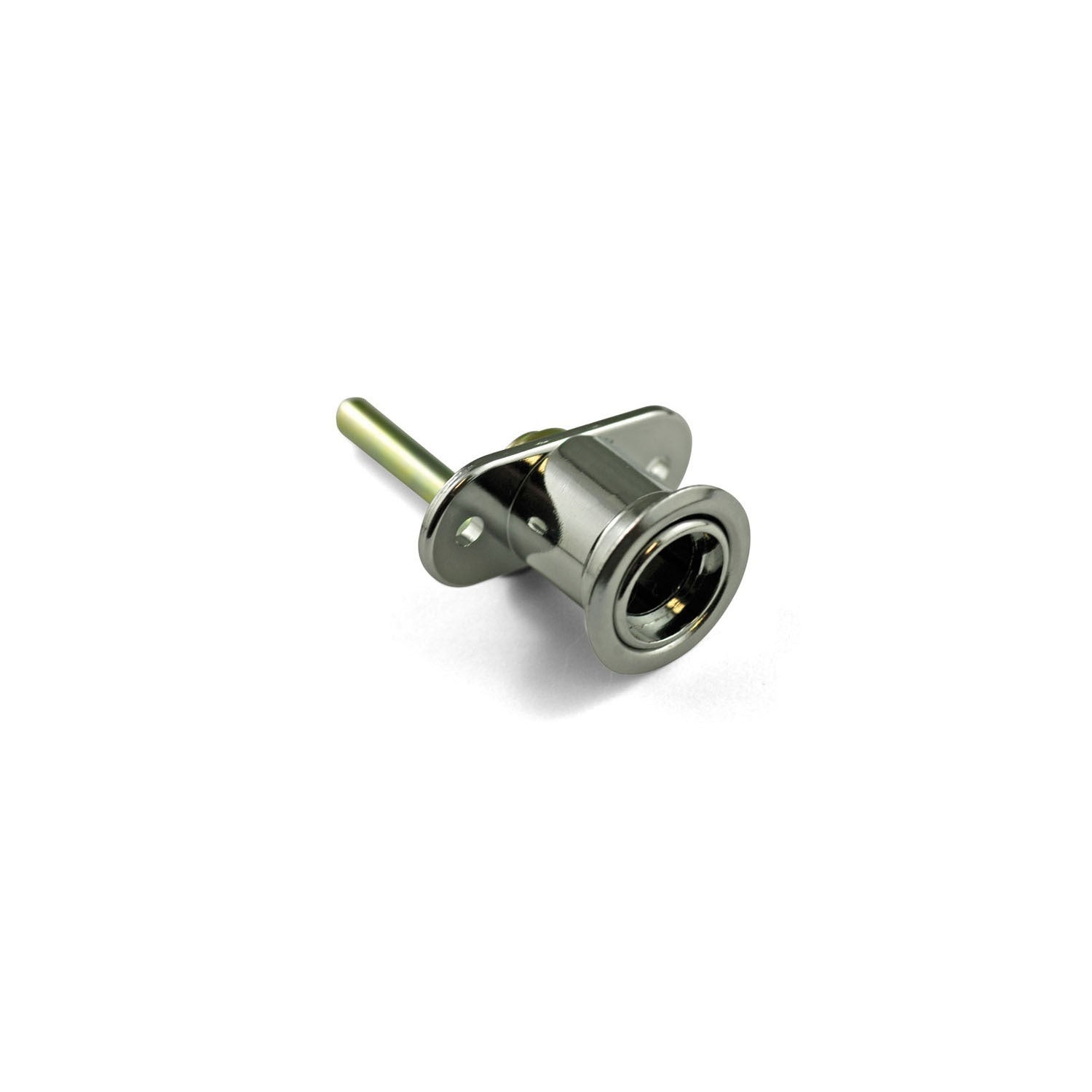

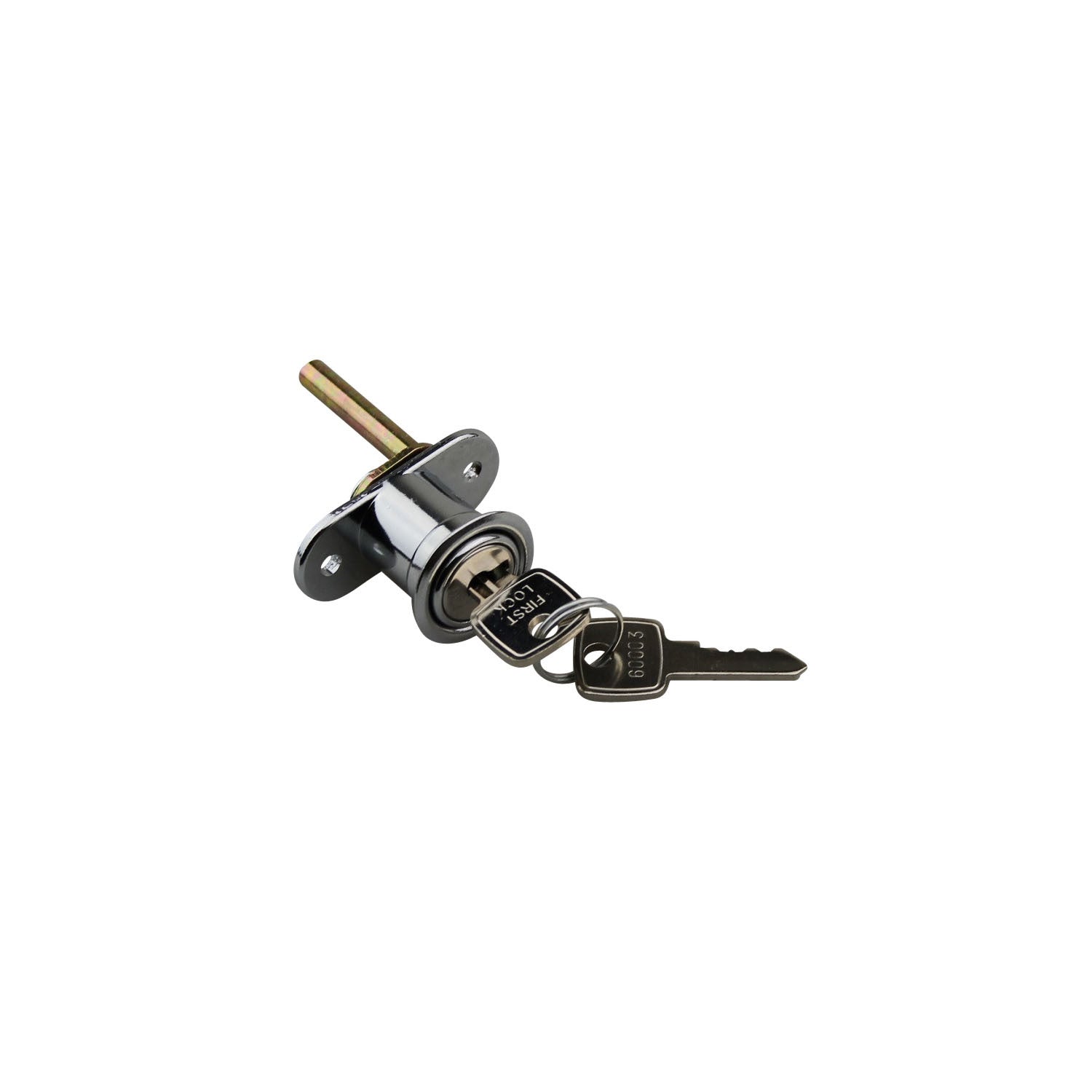

Firstlock Multi Drawer Lock Keyed To Differ w/ Barrel MULTIBACKKD

Firstlock Multi Drawer Lock
MULTIBACKKD

Front fixed Multi Drawer locks are used in general mobile pedestal applications, either fitted in the drawer front or a small pelmet fitted at the top of the pedestal. Front fixed locks enable the pedestal to be more versatile as to where it can be used due to the fact that only the front of the pedestal needs to be clear of obstacles in order to access the lock.

Features:

• Rotation of the pin from centre to centre is 17mm
• Locking bar and accessories, if required must be purchased separately
• All cupboard/drawer locks are supplied with bezel
• 20mm cylinder projection with 19mm diameter
• Standard bolt projection is 10.2mm vertical
• Suits Keyline LF16 (Silca LF6R) keyway
• Barrel included (not pictured)
• Keyed to differ
• Chrome plate finish

Please note if buying more than 1 lock:

This listing is for 'keyed to differ' (KD) locks, for example:
- if you buy 5 locks, all 5 locks will use a different key

If you need 'keyed alike' (KA) locks, please search for our other listing with 'KA' or 'keyed alike' in the title.
