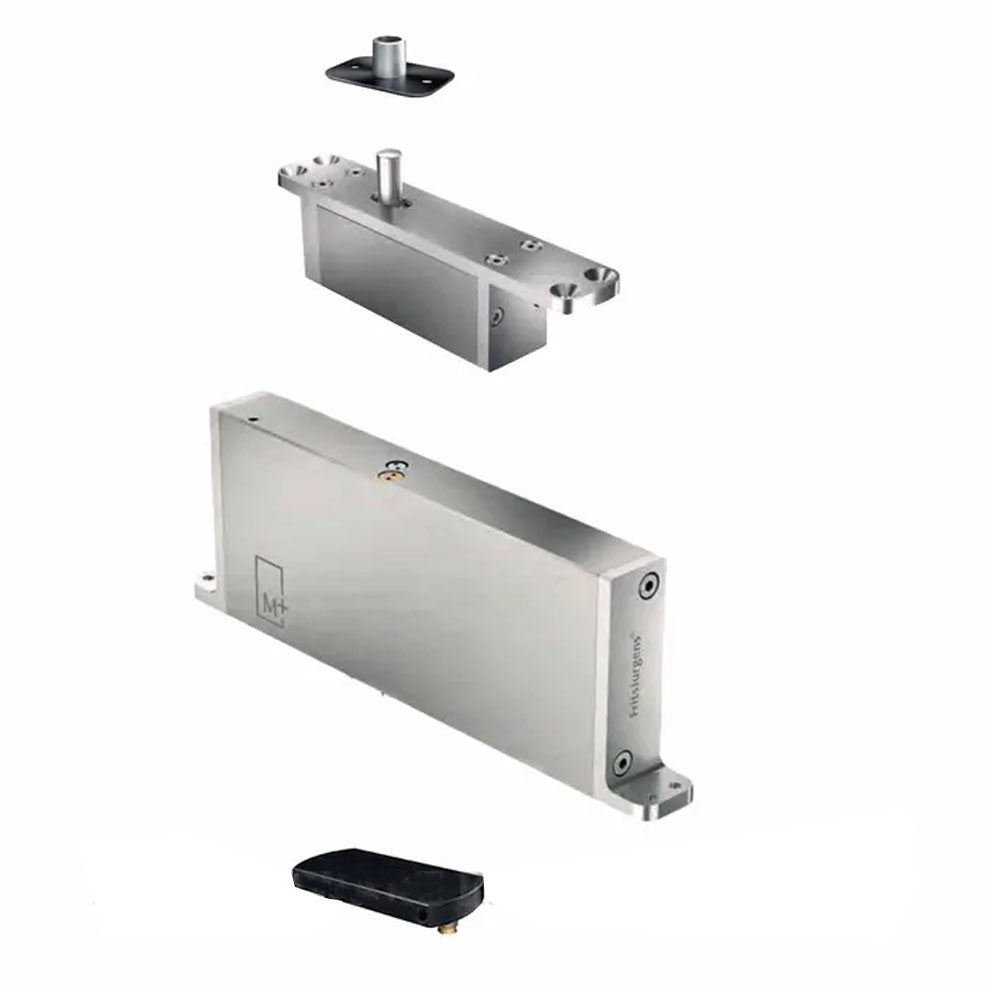

FritsJurgens Full Kit System M+C | 70mm Min Pivot Point Squared Floor Plate PVD Black FJS/STM+70CSBK

FritsJurgens Full Kit System
FJS/STM+70CSBK

Pivot Sets are commonly used for large and heavy doors that could pose challenges for traditional hinge systems. These doors might include oversized commercial doors, industrial doors, and entrance doors in public buildings.

Pivot Set Function - used to facilitate the rotation or pivoting of doors around a vertical axis. Pivot sets are designed to enable doors to swing smoothly and efficiently while providing stability and support. They are often used in situations where traditional hinges may not be suitable due to the size, weight, or design of the door.

Features:

• System M+ is an adjustable, self-closing pivot hinge.
• Supplied With Fixings
• It provides Latch Control to ensure proper latching, guaranteed control over the movement of doors from 20 kg to 500 kg, and extra adjustability for the movement of the door.
• Supplied With Fixings

Specifications:

• Material: Stainless Steel 420 Surgical Grade - Anodised Aluminium
• Maximum Door Height: Unlimited
• Maximum Door Width: 470mm To 2369mm
• Door Rotation:
  • Double-acting: 180 degrees
  • Single-acting: 90 degrees
• Hold Positions: 90 degrees
• Door Thickness: 50mm Minimum
• Maximum Door Weight: Class C 20kg o 209kg
• Pivot Point Adjustable: 70mm (minimum)
• Hold Open: Standard
• Finish: PVD Black
