SKU: BELVFJS316K
FritsJurgens System 3 Fully Sprung Concealed Pivot Self Closing Hold Open
RRP: $2,772.00
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
FritsJurgens System 3 Fully Sprung Concealed Pivot Self Closing Hold Open
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)
This is a non-stocked item which leaves the warehouse in 6 business weeks after payment is made.
Perfection all around with the System 3 pivoting door hinge of FritsJurgens. FritsJurgens System 3 pivoting door hinge has three functions: rotation, closing and hold positions. System 3 can turn through 360 degrees and is characterised by a hold position at every quarter of a circle.
Features:
- No structural elements in floor and ceiling
- Load-bearing capacity: up to 500 kg
- Minimum door thickness: 40mm
- Quick and simple to install
- Maintenance free
- For new and existing situations
- Easily adjustable with the door in place
- Suitable for timber, steel, framed glass and massive cladded doors
- For double action doors
- For internal and external doors
- For commercial and residential environments

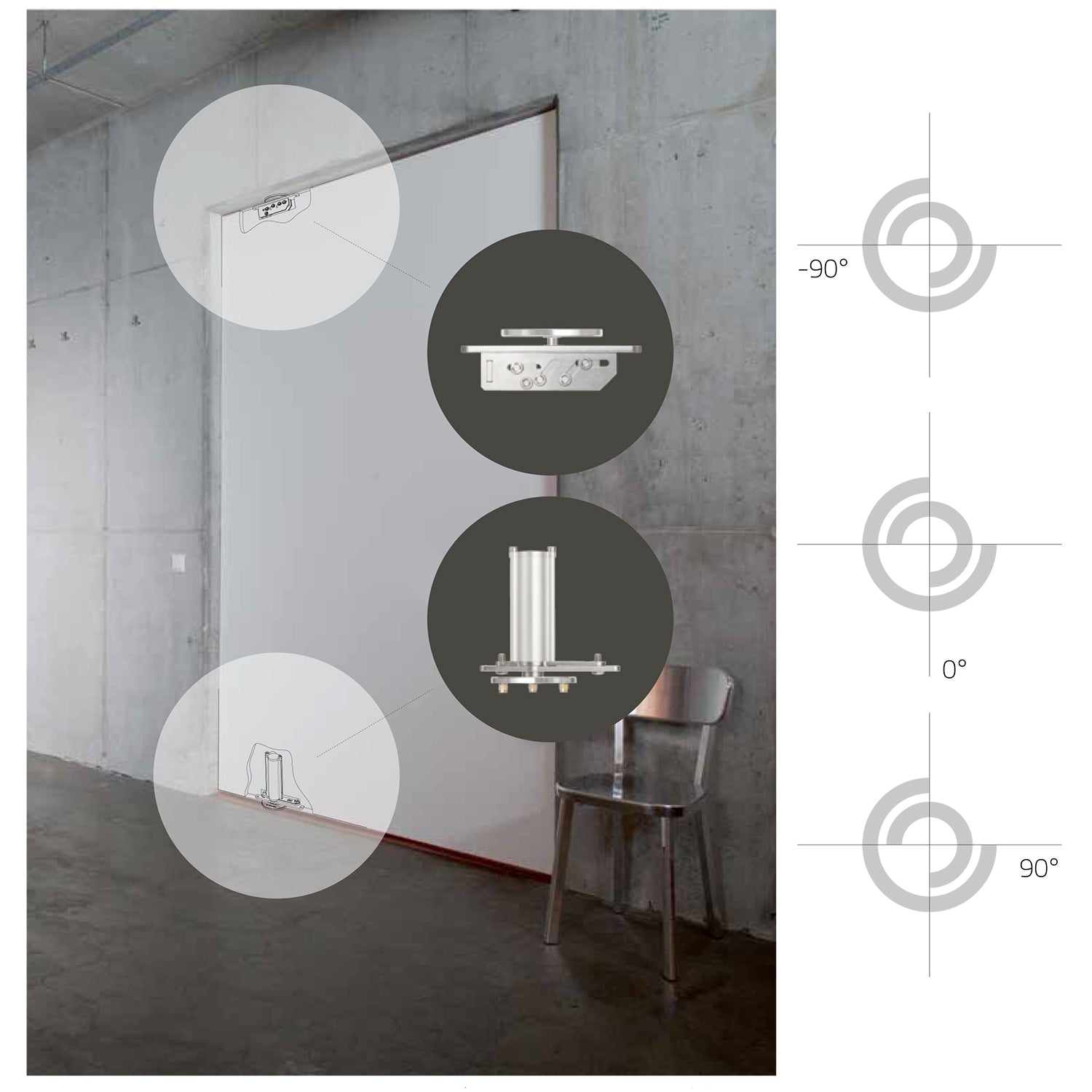

- Hold positions at 0, 90, 180 and 270 Degrees
- Self-opening
- Self-closing
- Patented spring system
Note: This product does not ship to New Zealand.
FritsJurgens System 3 Fully Sprung Concealed Central Pivot
FJS316K
PLEASE NOTE: This item is Non-returnable. Upon placing your order, it CAN'T be canceled or returned (unless faulty or damaged)
Note: Only works for central pivoting system
Perfection all around with the System 3 pivoting door hinge of FritsJurgens. FritsJurgens System 3 pivoting door hinge has three functions: rotation, closing and hold positions. System 3 can turn through 360 degrees and is characterised by a hold position at every quarter of a circle.
Features:
- Works for central pivoting system
- No structural elements in floor and ceiling
- Load-bearing capacity: up to 500 kg
- Minimum door thickness: 40mm
- Quick and simple to install
- Maintenance free
- For new and existing situations
- Easily adjustable with the door in place
- Suitable for timber, steel, framed glass and massive cladded doors
- For double action doors
- For internal and external doors
- For commercial and residential environments
- Hold positions at 0, 90, 180 and 270 Degrees
- Self-opening
- Self-closing
- Patented spring system
Specifications:
- Max Door Weight: 500kg
- Max Door Weight at closing force: 40kg
- Max Door Width: 1300mm (650 from pivot point)
Note: This product does not ship to New Zealand.
