SKU: FSHFES10M

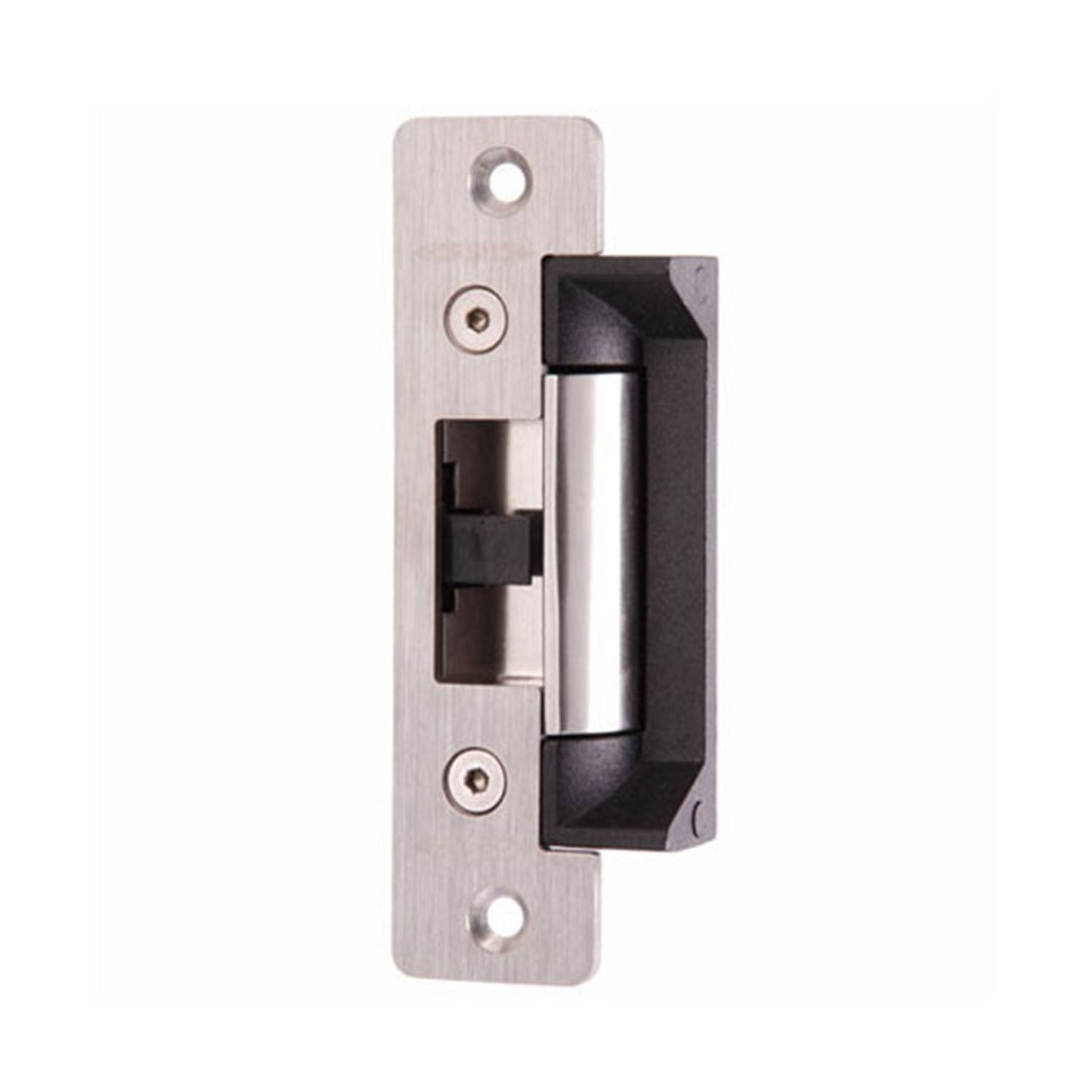

FSH Electric Strike Door Latch Monitored Fire Rated FES10M
RRP: $204.60
Payments accepted:
Couldn't load pickup availability
There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
FSH Electric Strike Door Latch Monitored Fire Rated
FES10M
Electric Strike is intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
Features:
- The FES10M series electric strikes are designed for use with all access control systems
- Stainless steel faceplate
- Fail safe/fail secure is changeable on site
- Suitable for use on hinged doors to work with a extensive range of locks
- Fire rated up to 2 hours
- Power to lock/power to open field selectable
- Stainless steel faceplate
- Stainless steel striker
- Patented barbell steel locking pin
- Solenoid can be continuously powered
- Optional extension lips
- Self adhesive installation template.Includes tab mounting kit
- Pre-drilled for extension lips
Specifications:
- Dual voltage: 12vdc @ 200mA, 24vdc @ 100mA.
- Holding strength of over: 1300kg.
- FES10 is suitable for: 18 mm latch with a 3 mm door gap.
Ratings/Compliant:
- Successfully fire rated up to 2hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .
