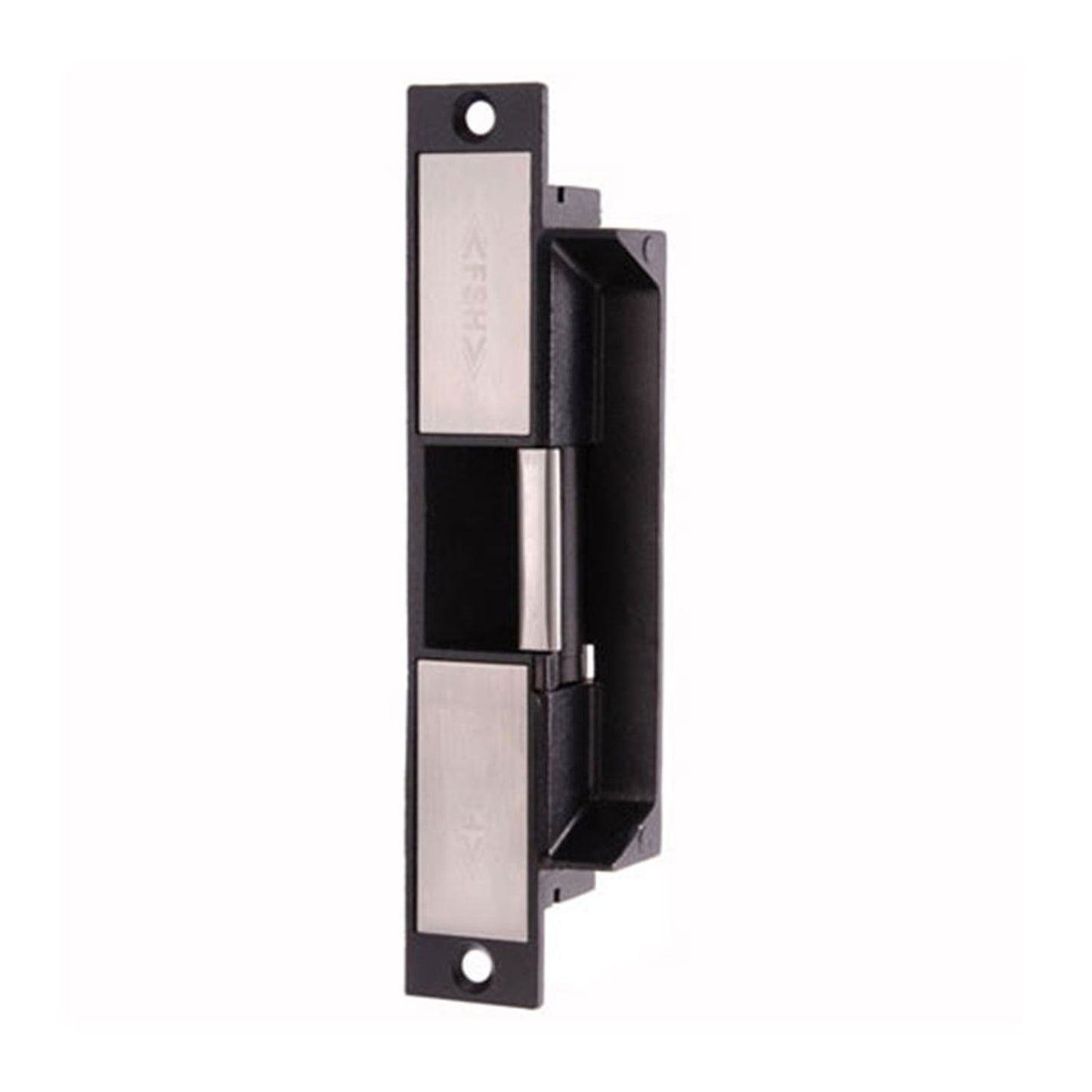

FSH Electric Strike Non-Monitored Fire Rated
FES20
Electric Strike is intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
Features:
- The FES20 series electric strikes are designed for use with all access control systems
- The FES20 series now come with a 10 mm strike lip as standard, to prevent possible personal injury and damage to clothing as with the 15 mm lip
- A 5 mm lip extension is included with the strike if needed
- Fail safe/fail secure is changeable on site
- Suitable for use on hinged doors to work with a extensive range of locks
- Non-monitored
- Current 12vdc @ 220mA, 24vdc @ 120mA, 36vdc @ 80mA
- Stainless steel construction
- Solenoid can be continuously powered
- Optional extension lips
- Self adhesive installation template
- Includes tab mounting kit
- Pre-drilled for extension lips
- Power to lock/power to open field selectable
Specifications:
- Multi Voltage: 12~36vdc
- Holding strength of over: 1490kg
- FES20 is suitable for: 18 mm latch with a 3 mm door gap
Ratings/Compliant:
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .

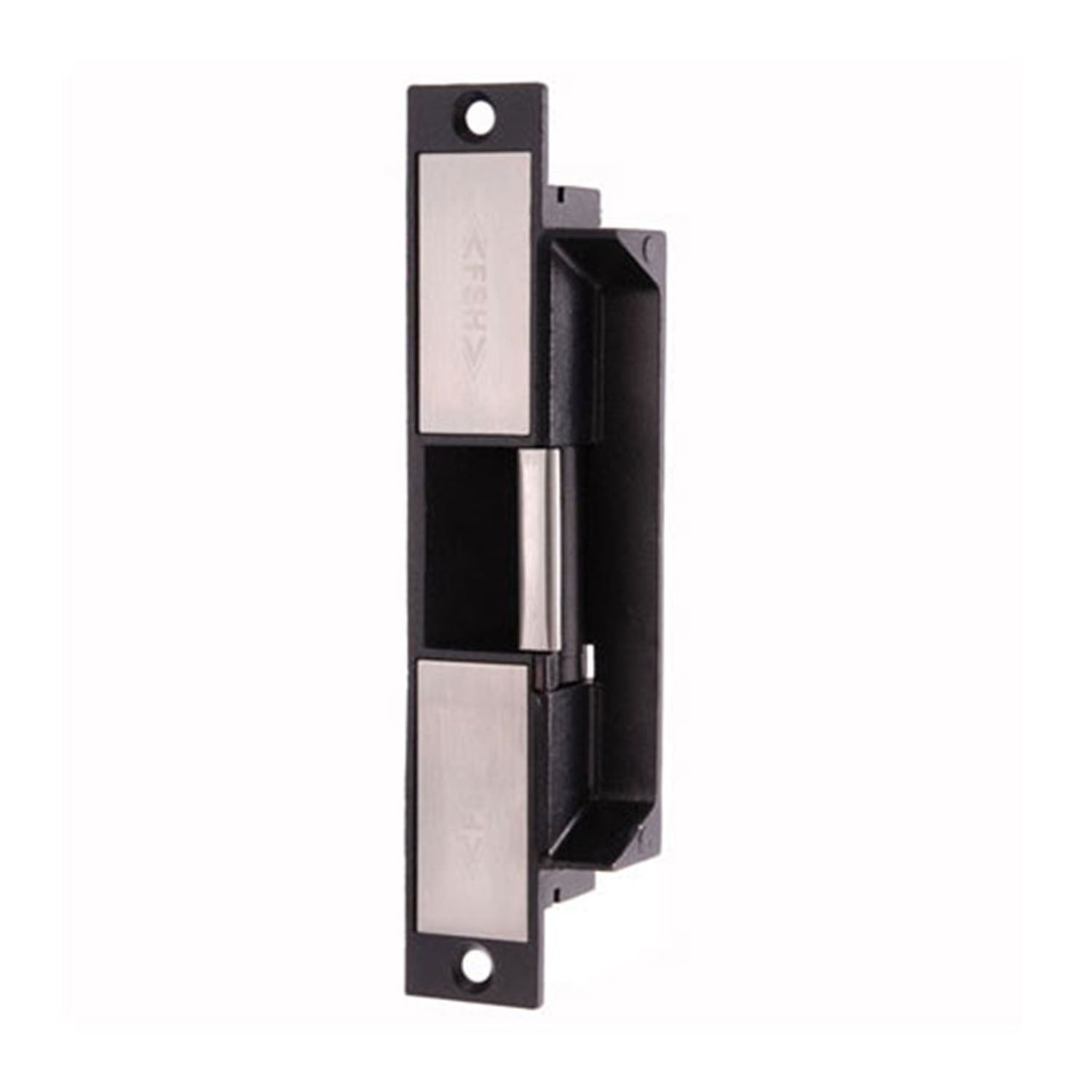

FSH Electric Strike Non-Monitored Fire Rated
