SKU: SPRFEM4300DM

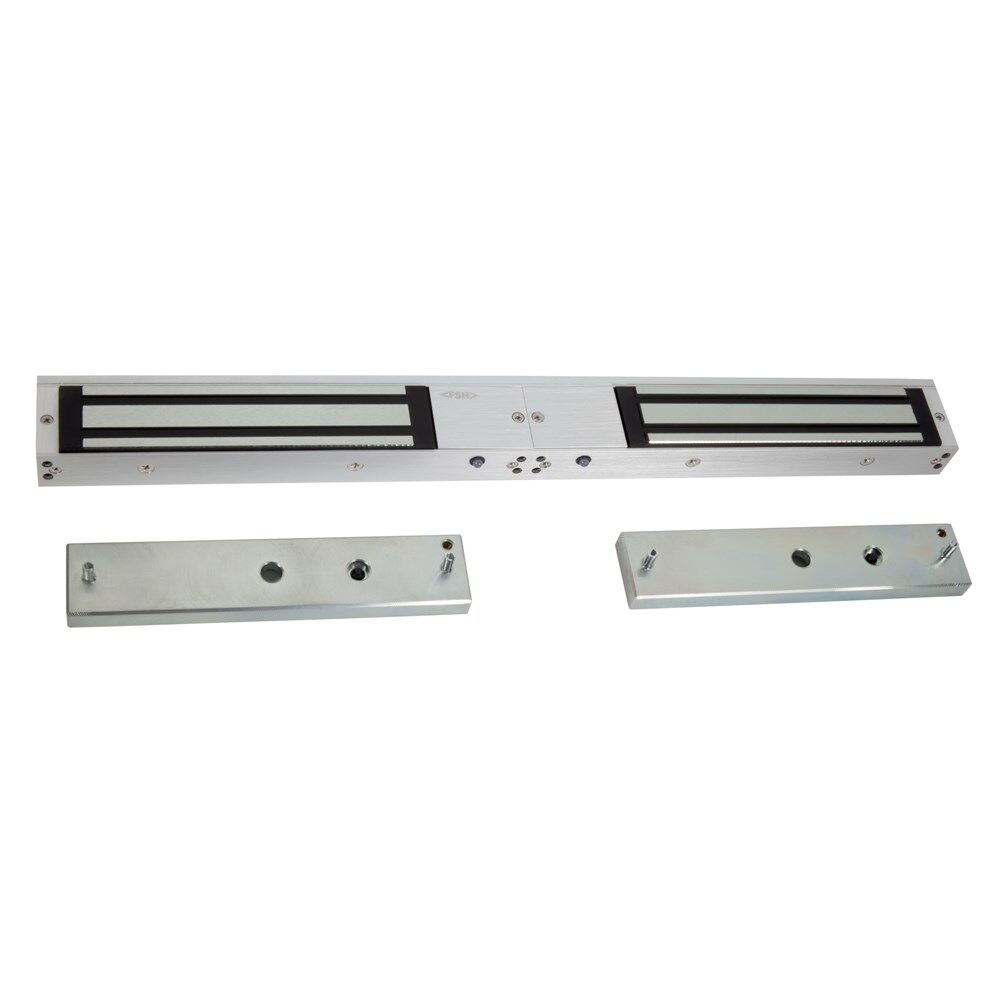

FSH FEM4300 series maglocks to suit double doors monitored FEM4300DM
RRP: $575.48
Payments accepted:
Couldn't load pickup availability

There was an error loading products. Please try again.
Payments accepted:
Couldn't load pickup availability
Description
FSH FEM4300 series maglocks to suit double doors monitored.
5 year mechanical warranty and a holding strength of up to 280kg per magnetic lock.
Successfully tested up to 2 hours (depending on type of doorset) on fire door assemblies in accordance with Australian Standard AS 1905.1- 2005, Part 1: Fire Resistant Doorsets.
- Dual Voltage: 12 /24 VDC field selectable
12VDC@ 500mA 24VDC@ 250mA. - Door and Lock Status Monitoring Sensor (DSS and LSS S with “M” Models).
- Built-in varistor (MOV) surge protection.
- Red-Green bicolour LED on monitored version.
- No residual magnetism.
- Holding force up to 280kgs per magnetic lock.
- Satin anodised aluminium housing.
- Zinc plated electromagnetic body.
- Magnet size 477 (L) x 48 (H) x 25 mm (D).
- Armature plate 185 (L) x 38 (H) x 12 mm (D) x 2.
- 5 year warranty.
- Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015).
FSH Double Maglock
FEM4300DM
Double Maglock is commonly used in commercial buildings, hospitals, schools, and other secure facilities where fire-rated, high-strength electromagnetic locking and door monitoring are required for double door setups.
Double Maglock Function - is to securely lock double doors using electromagnetic force, while providing monitoring and maintaining compliance with 2-hour fire safety standards.
Features:
- FSH FEM4300 series maglocks to suit double doors monitored
- 5 year mechanical warranty and a holding strength of up to 280kg per magnetic lock
- 2005, Part 1: Fire Resistant Doorsets
- Holding force up to 280kgs per magnetic lock
- Door and Lock Status Monitoring Sensor (DSS and LSS S with M Models).
- Built-in varistor (MOV) surge protection
- Red-Green bicolour LED on monitored version
- No residual magnetism
- Satin anodised aluminium housing
- Zinc plated electromagnetic body
Specifications:
- Current: 1 A @ 12 Vdc, 500 mA @ 24 Vdc
- Holding Strength: 280kg
- Working Voltage: 12/24 Vdc
- Fire Rated: Yes, 2 Hours
- Single Or Double Door Maglock: Double
- Monitoring: Monitored
- Magnet Size:
- Length: 477mm
- Height: 48mm
- Depth: 25mm
- Armature Plate:
- Length: 185mm
- Height: 38mm
- Depth: 12mm
- Finish: Satin Anodised
Compliance:
- Fire Rated (up to 2-hour fire rated in accordance with AS 1905.1:2015)
