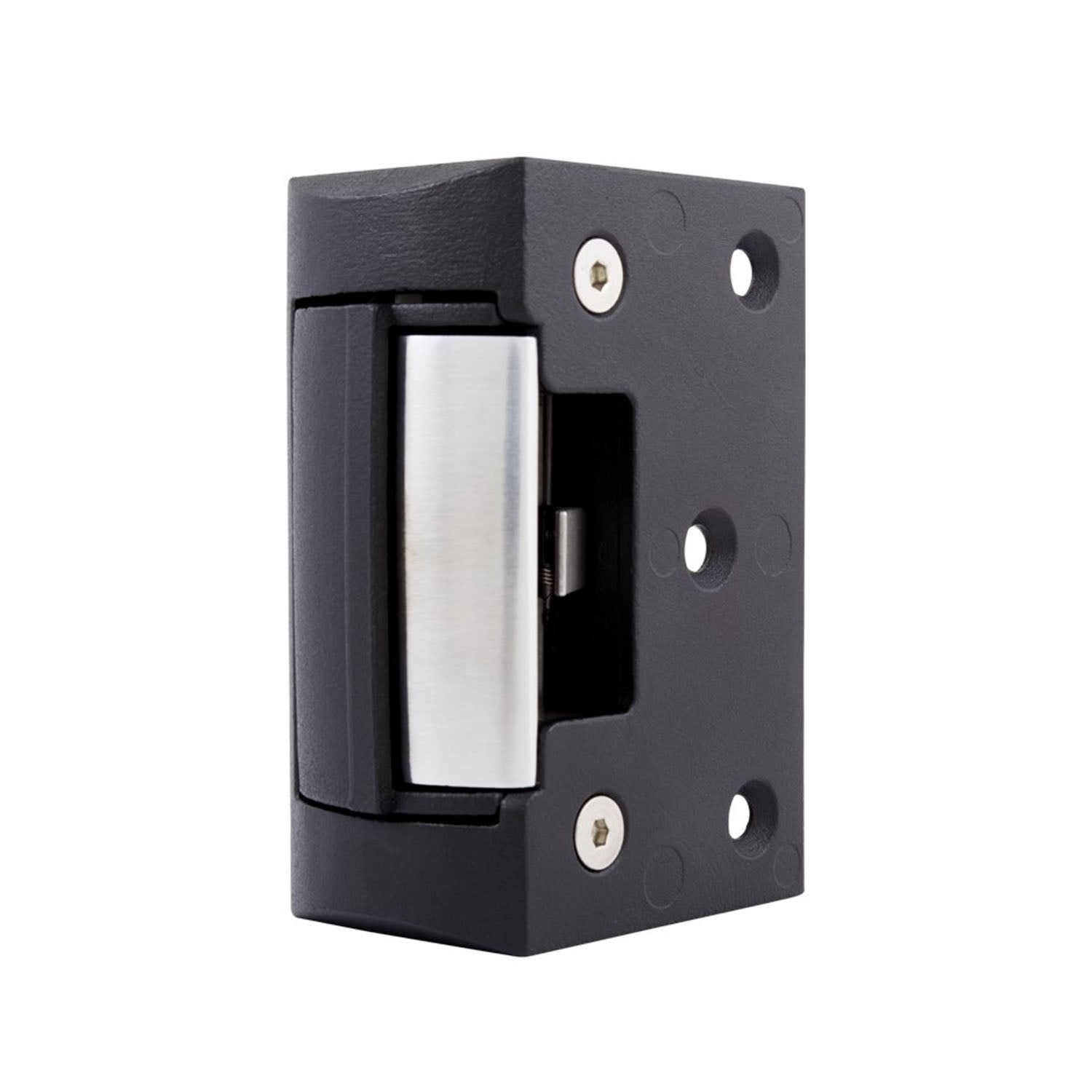

FSH Rim Mounted Electric Strike Door Latch Monitored
FES15M
Electric Strike is intended for door security in commercial & industrial applications with heavy traffic that require access control systems. Suitable for use on hinged doors to work with an extensive range of locks.
Electric Stike Function - replaces a standard door strike and connected to a power supply. An electric strike's ramped surface can, upon command, pivot out of the way when the lock on the door is in the locked position and the door is opened.
Features:
- FES15M is a surface mounted monitored electric strike suitable for use with rim or surface type dead latches
- Easily installed and works with all access control systems
- Dual voltage: 12vdc @ 200mA, 24vdc @ 100mA
- Door status monitoring
- Continuously rated coil
- Power to lock / power to open field changeable
- Holding strength over 1252kg
- Up to 4 hour fire rating
Specifications:
- Current: 200 mA @ 12 Vdc to 100 mA @ 24 Vdc
- Field Selectable Fail Safe/Fail Secure: Yes
- Holding Strength: 1252kg
- Working Voltage: 12 Vdc to 24 Vdc
- Fire Rated: Yes, 4 hours
- Locking Mode: Fail Secure/Fail Safe
- Monitoring: Monitored
Ratings/Compliant:
- Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS/NZS 1905, Part 1-1997 and BS 476: Part 22-1987 ( Fire resistant door sets) .
