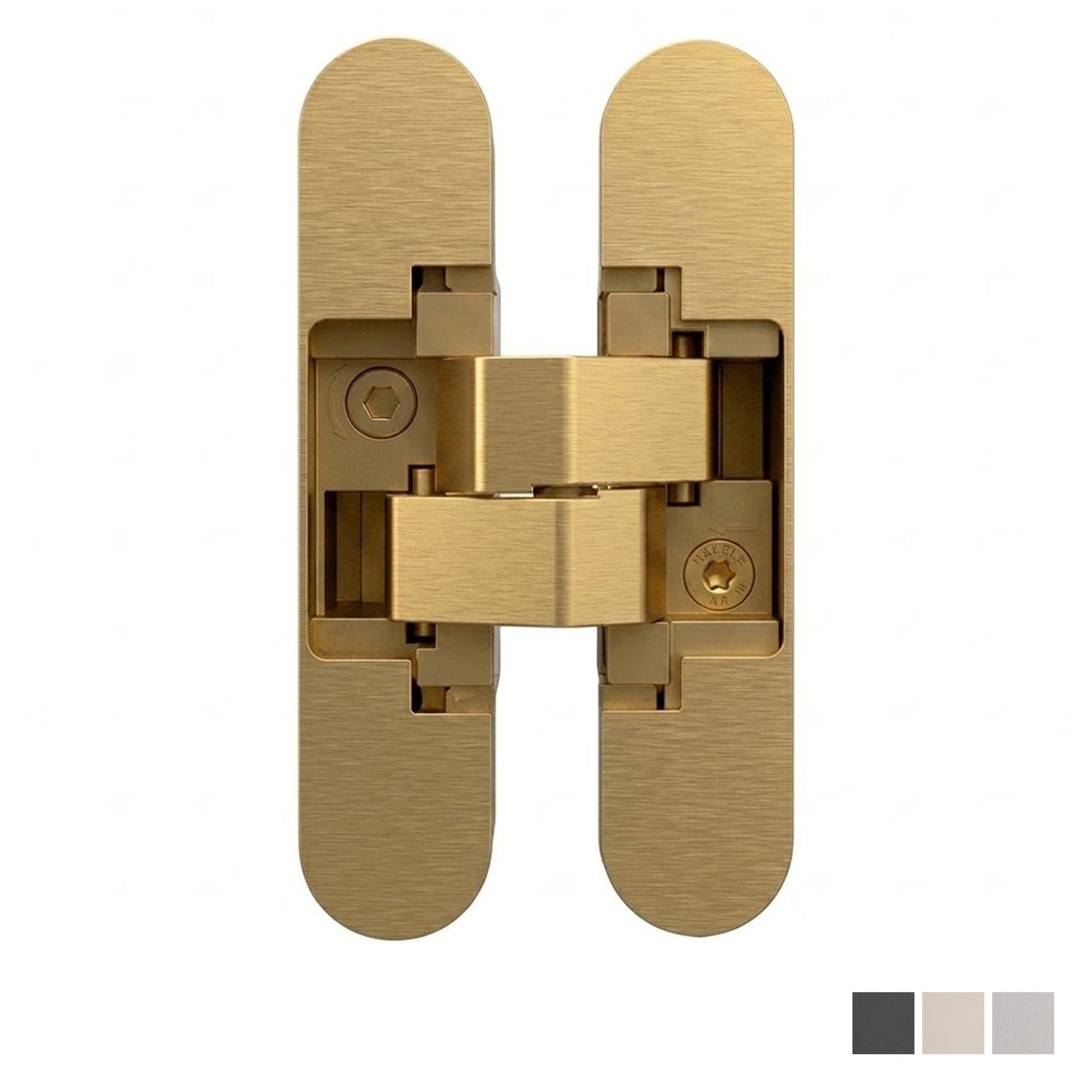

Hafele Anselmi Concealed Hinge AN140 40kg - Available in Various Finishes

Hafele Anselmi Concealed Hinge

Concealed Hinge are door hinges that are hidden from view when the door is closed.

Concealed Hinge Function - is to support the door while allowing it to open and close smoothly, with the hinge hidden from sight for improved aesthetics and security.

Features:

• High-quality, modern concealed hinges designed for non-rebated, interior wooden doors
• Innovative design allows the door to open fully 180 degrees, and when closed, they remain completely invisible, creating a seamless surface with the door frame
• Hidden in the door and frame, ensuring an aesthetically pleasing interior
• For wooden frames, flush interiors

Specifications:

• Mounting: For DIN left and DIN right hand use
• Height: 110mm
• Width: 24mm
• Flange shape: Rounded
• Flange Width: 24 mm
• Material: Zinc alloy, Acetal
• Model: AN 140 3D
• Flange Height: 110 mm
• Maximum Door Weight for 2 hinges: 40kg
• Opening Angle: 180 degrees
• Door Thickness: 32mm
• Router Bit Diameter: 24mm
• Thrust Ring Diameter: 27mm
• Available Finishes:

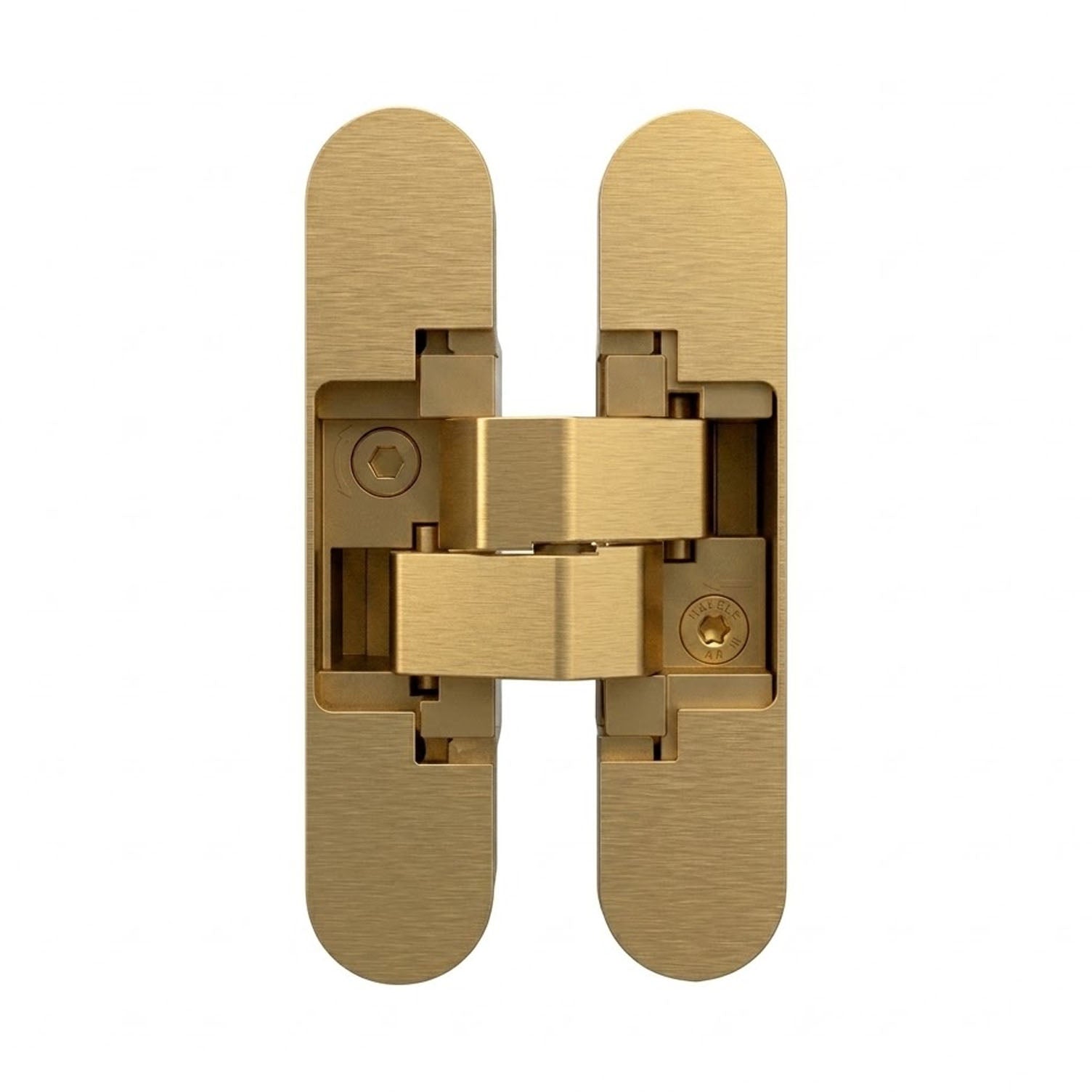

  • Gold

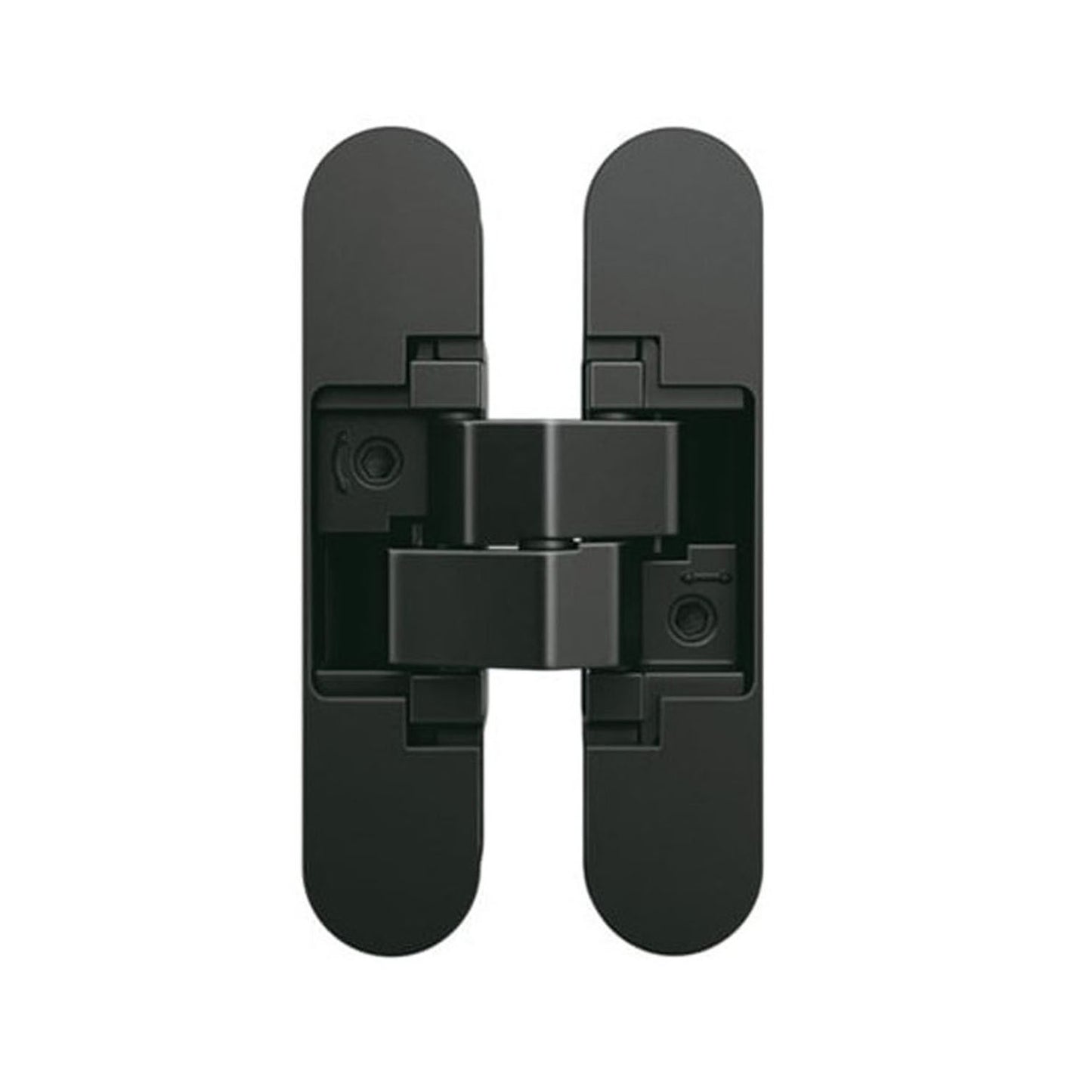

  • Matt Black

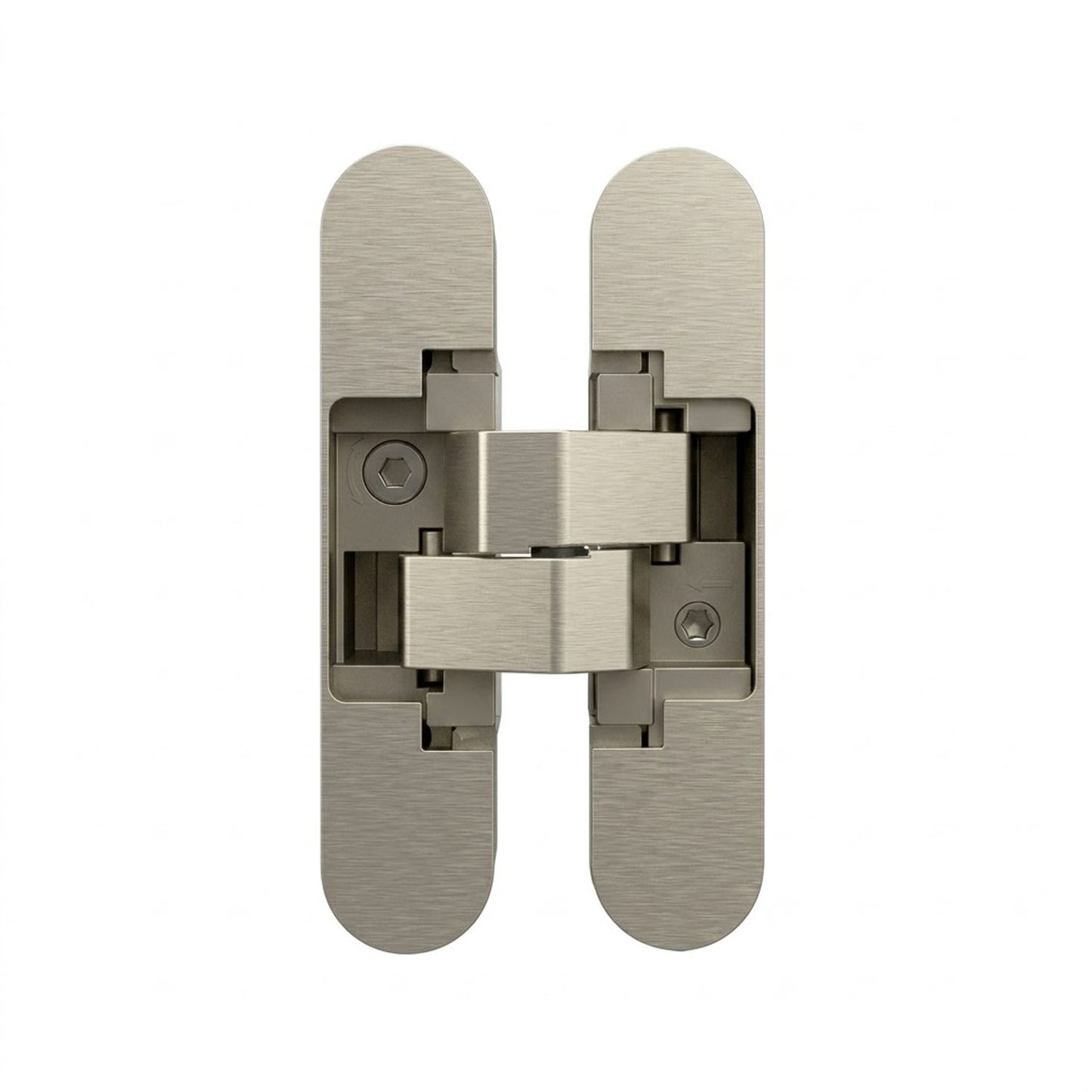

  • Matt Nickel

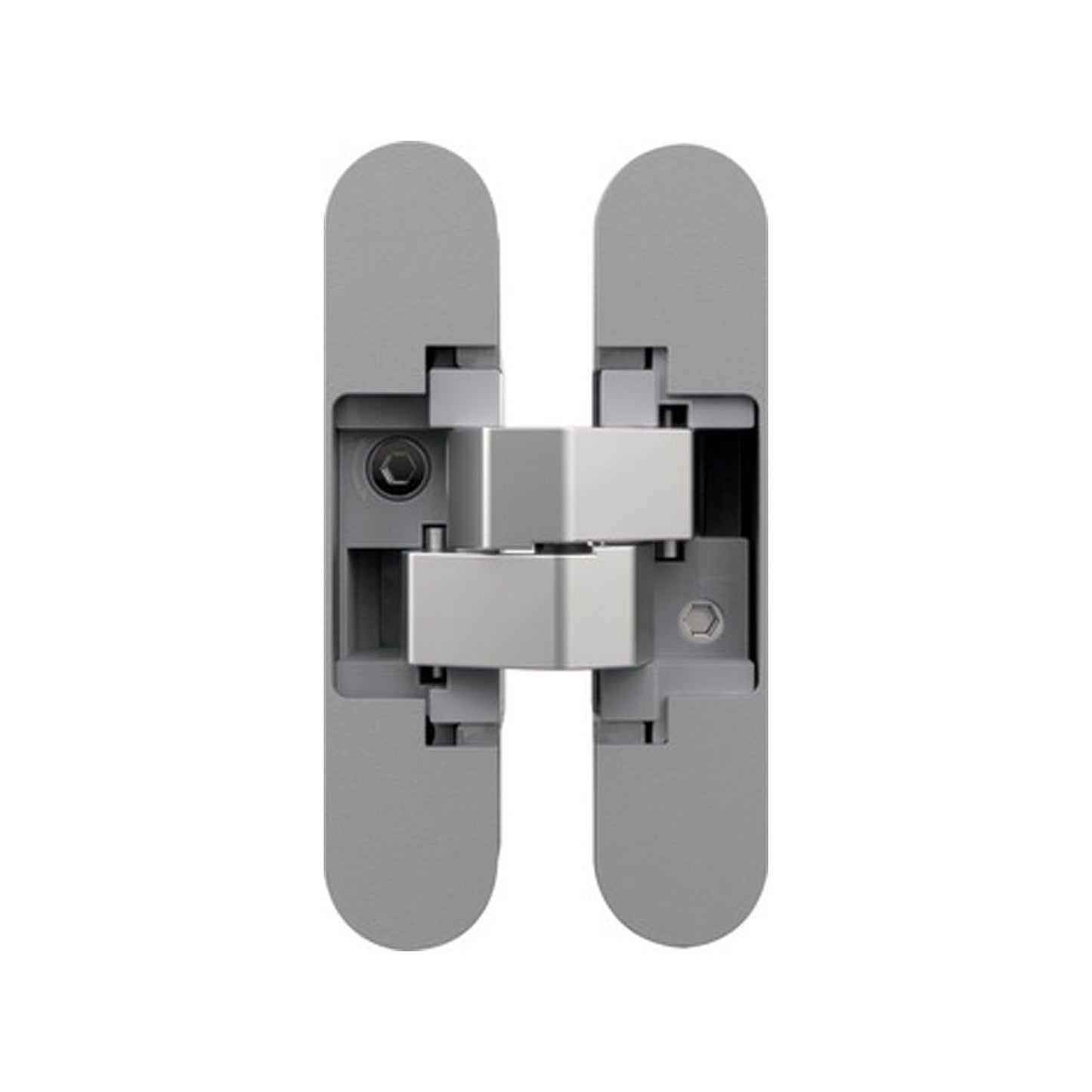

  • Siver
